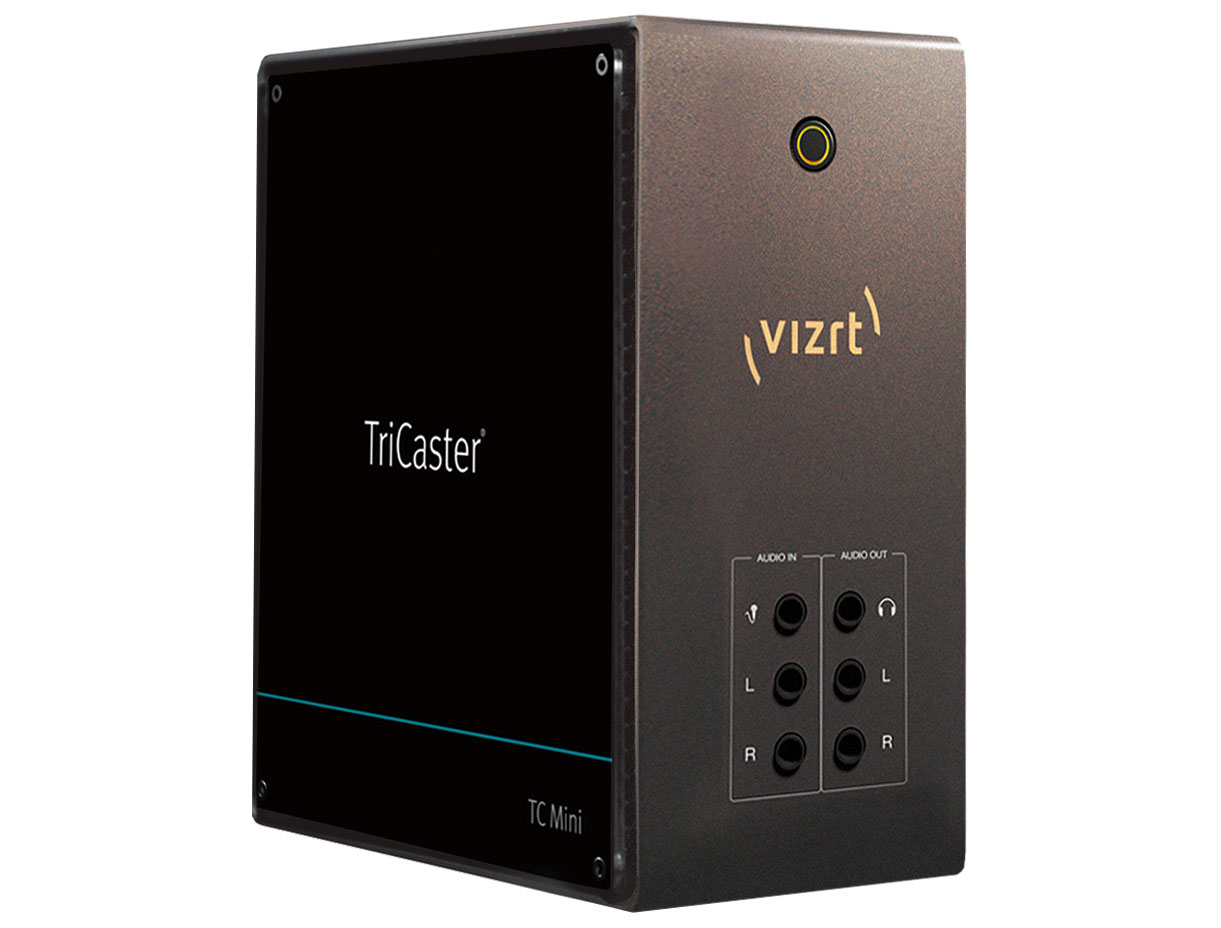

TriCaster Mini X 適合各種活動場合及應用:無論是政府機構、企業、學術、體育、金融 … 等現場錄播都非常合適。輕巧便於攜帶,操作簡單輕鬆,可搭配各種 HDMI 或 HD SDI 輸出的攝影機,做到多機現場錄製。同時內含雙路 DDR、四路 M/E、側錄、字幕效果,同時還可以發布串流視訊,功能強大完整! TriCaster Mini 將會是您現場製播的最佳利器!

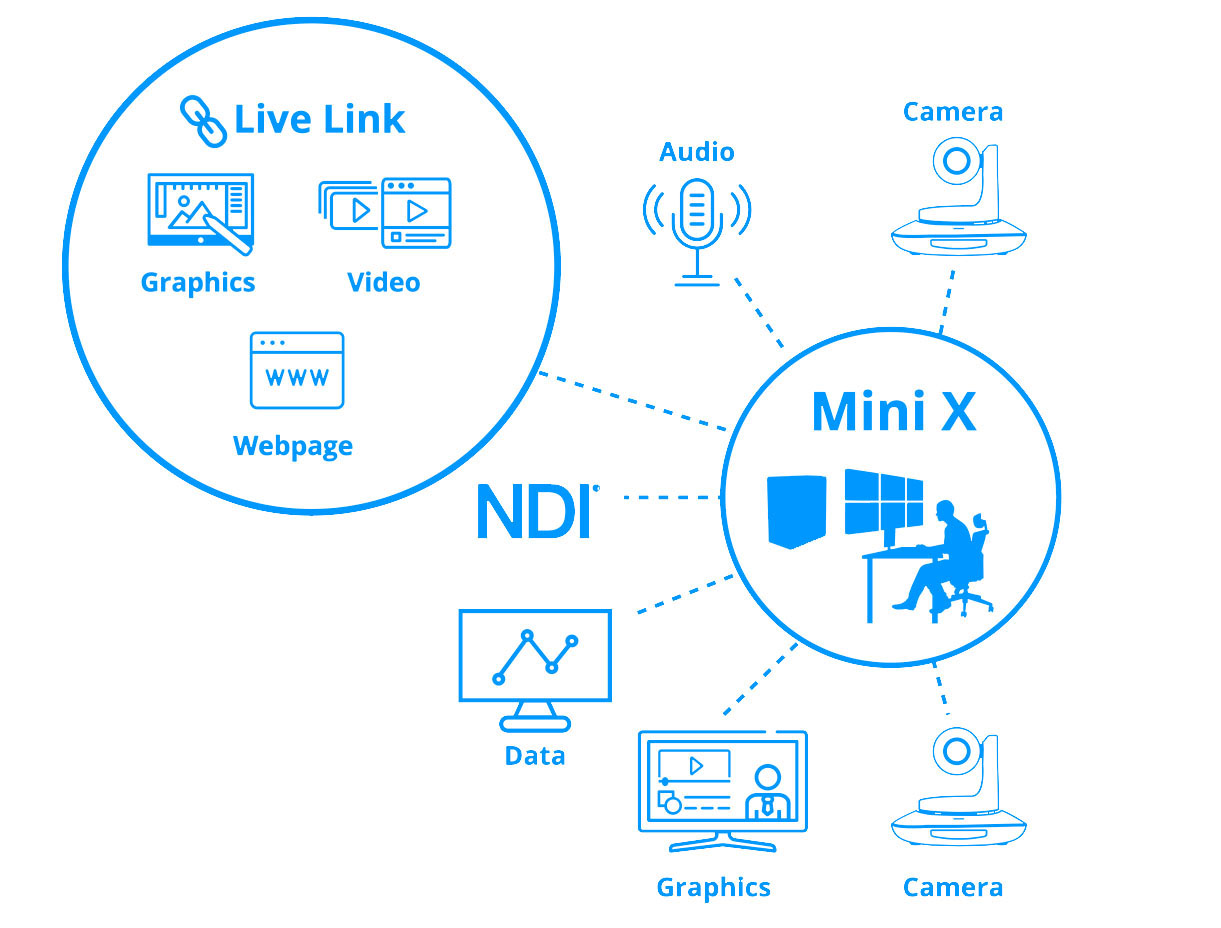

全新上市的 Mini X , 是 TriCaster Mini 系列的新成員,Mini X 具有 4K 30P 的製作能力,在網路製作環境,日漸成熟的今日,全程使用 NDI,強化最新的 NDI IP 現場製作流程,從網路上獲取所有製作素材與視訊源。配合 LIVE TOOL 與 4路 HDMI 輸入,更靈活地獲得所需的影音素材來源。
TriCaster Mini X 讓您輕鬆自由地進行現場製作
TriCaster Mini X 讓任何級別的製作人,運用任何裝置,從智慧型手機到 4K 攝影機,都可以隨時隨地自由地創作與分享影音,真正展示了視覺敘事的力量。
自由製作- 無需對基礎設備進行大量投資,即可為任何有故事的人提供專業的現場視訊製作能力。
快速整合 - 現有的 HDMI 設備直接連接到 Mini X,無需購買任何新設備即可進行專業級製作。

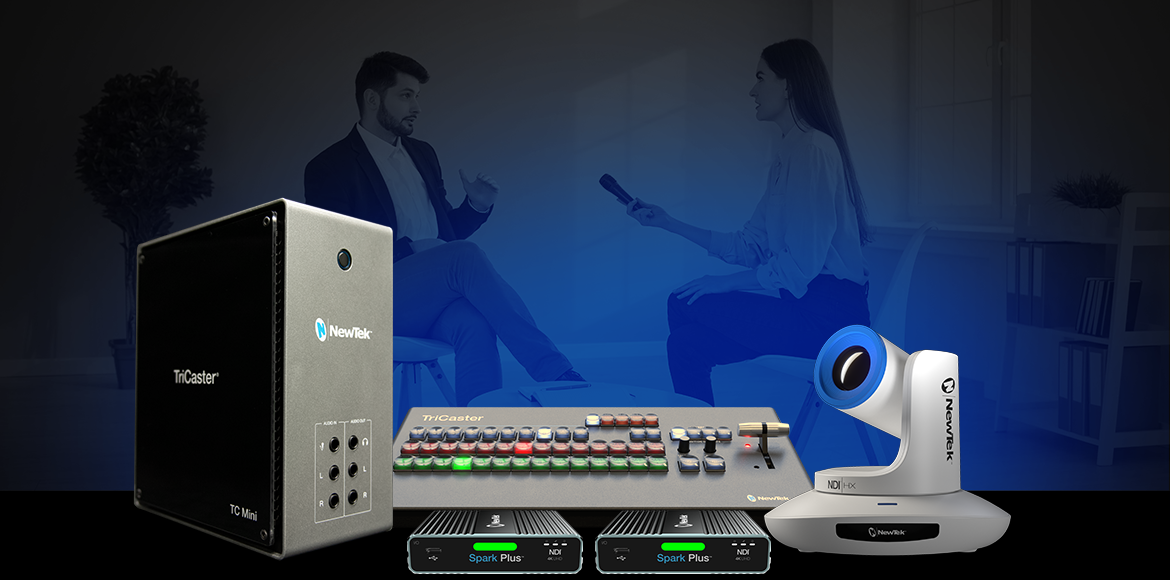

擴展容易 - TriCaster 具有完整製作生態系統,使用者可以利用多種方式來擴大製作規模以滿足任何需求。
型號 | TriCaster Mini X | TriCaster Mini 4K | TriCaster TC1 |
---|---|---|---|
視訊輸入 | 4 HDMI | 4 NDI(可配合使用 SparkPlus) | 4 HD-SDI |
NDI輸入 | 8 | 8 | 16 |
SDI Inputs | 需使用 SparkPlus IO SDI | 需使用 SparkPlus IO SDI | 4 |
PTZ 攝影機 | 8 | 8 | 8 |
解析度 | 4Kp30 | 4Kp60 | 4Kp60 |
Media | 2 DDR 2 GFX 1 Sound |
2 DDR 1 GFX 1 Sound |
2 DDR 2 GFX 1 Sound |
錄製路數 | 4 | 4 | 8 |
Video Input | 8 x IP video inputs via NDI, resolution-independent |
Digital Video Inputt |

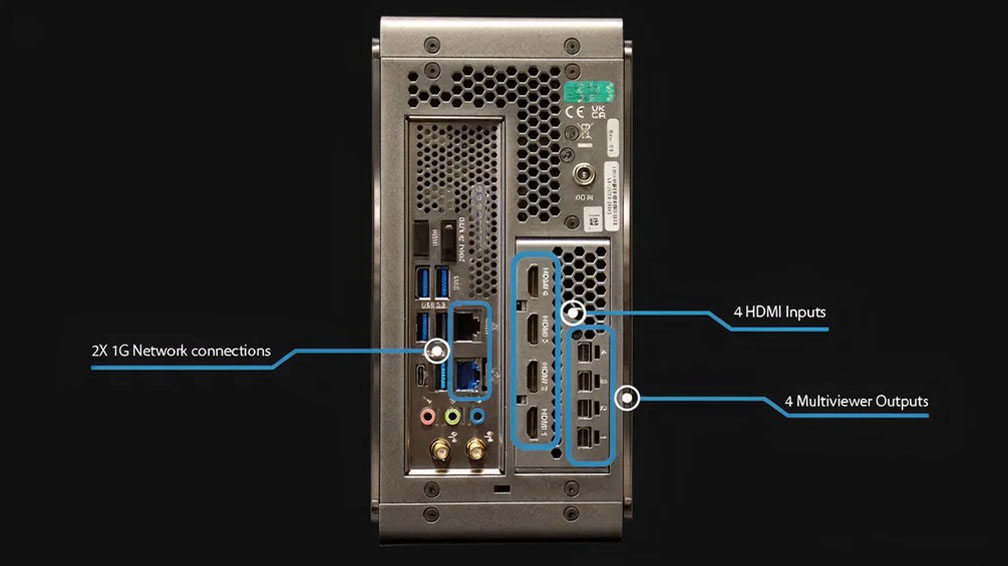

4 x HDMI video connections supporting video input in any combination of standard formats, resolutions, and frame rates1
|

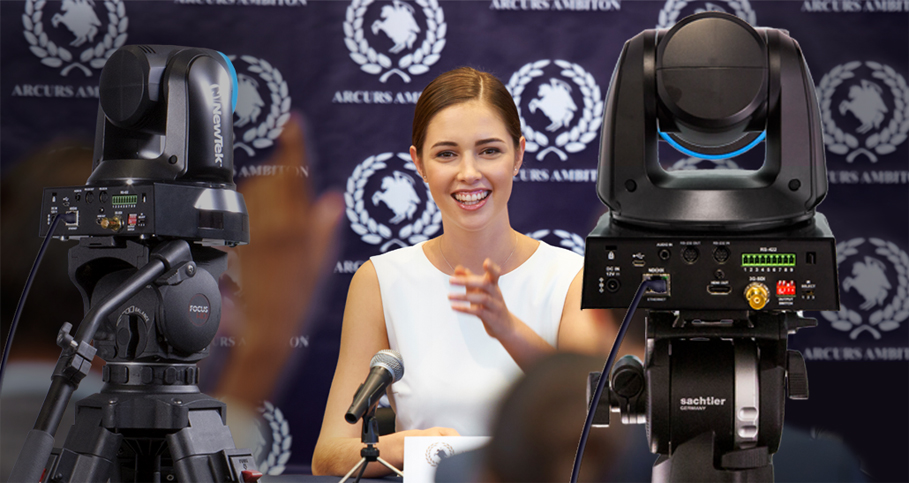

PTZ | Support for up to 8 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232, RS422, and IP, with integrated controls and preset system |

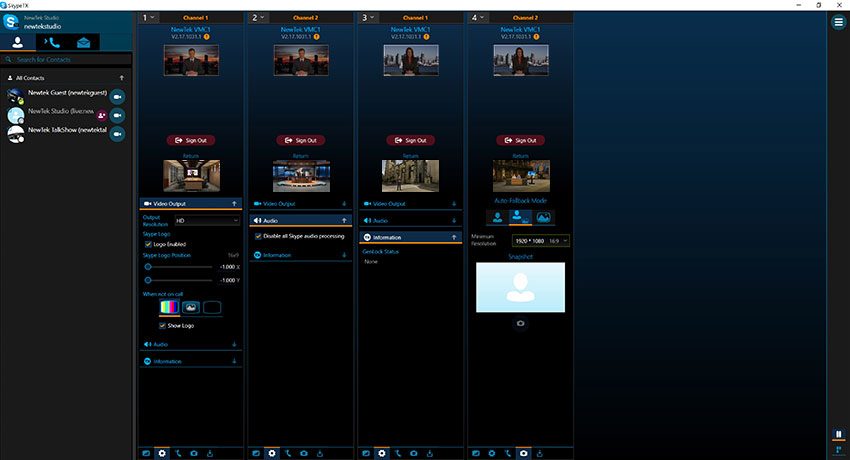

Skype TX | Skype TX Native support for up to 2 simultaneous Skype video call inputs via Skype TX software integration, including tally and Talk Back communication |
Network Video Output |
IP video output via NDI, optionally configurable for:
|
Stream Output | 2 x streaming video output, independently configurable, with simultaneous stream archive |
Monitor Outputs |

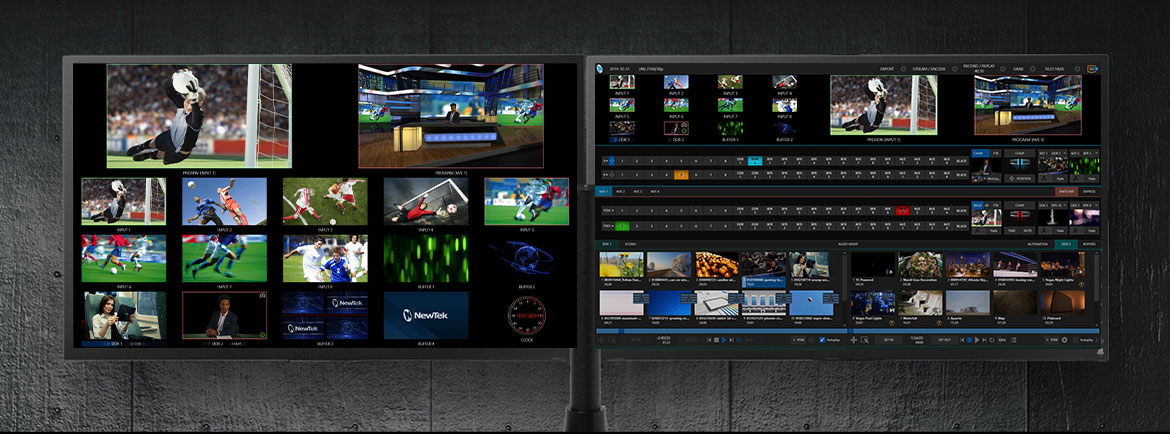

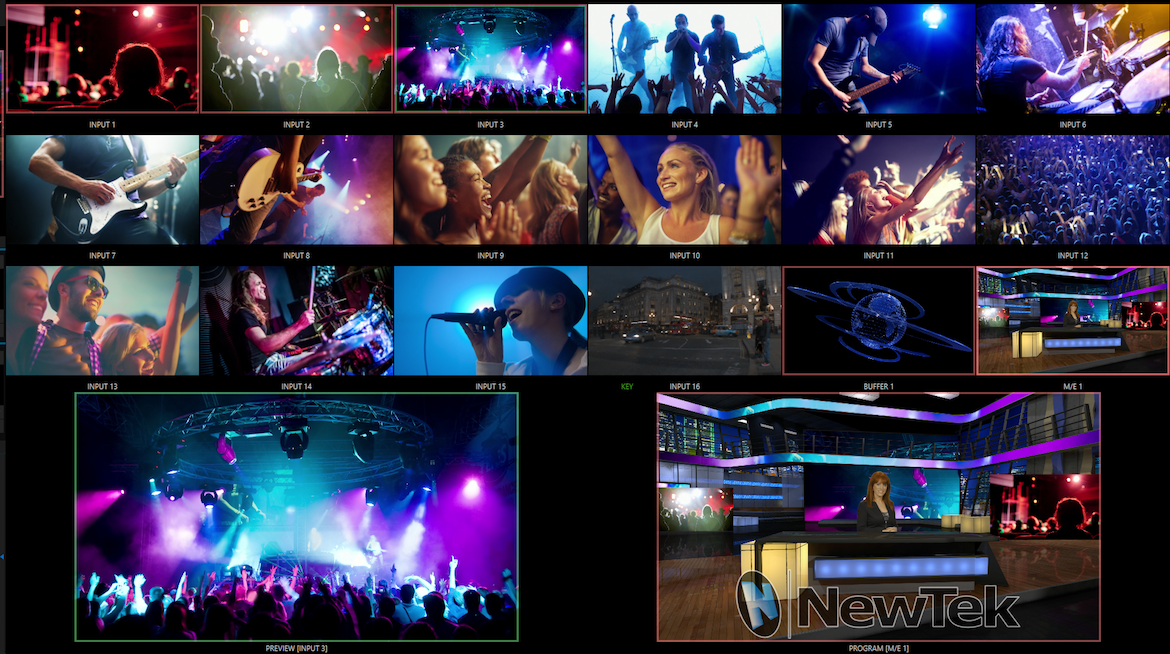

4 x mini display port with output adapters 3 x of the outputs support multiviewers using standard display resolutions |
Mix/Effect Buses (M/E) |
|
DSK Channels | 2 x DSK channels |

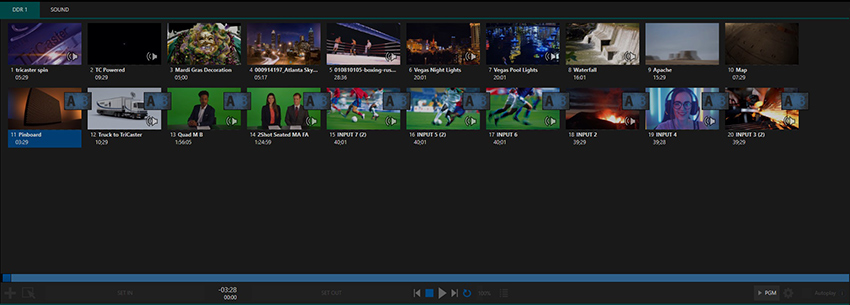

Media |
5 x media players
15 x media buffers
|
Keyers |
Integrated LiveMatte chroma and luma keying technology on all source channels and M/E buses
|

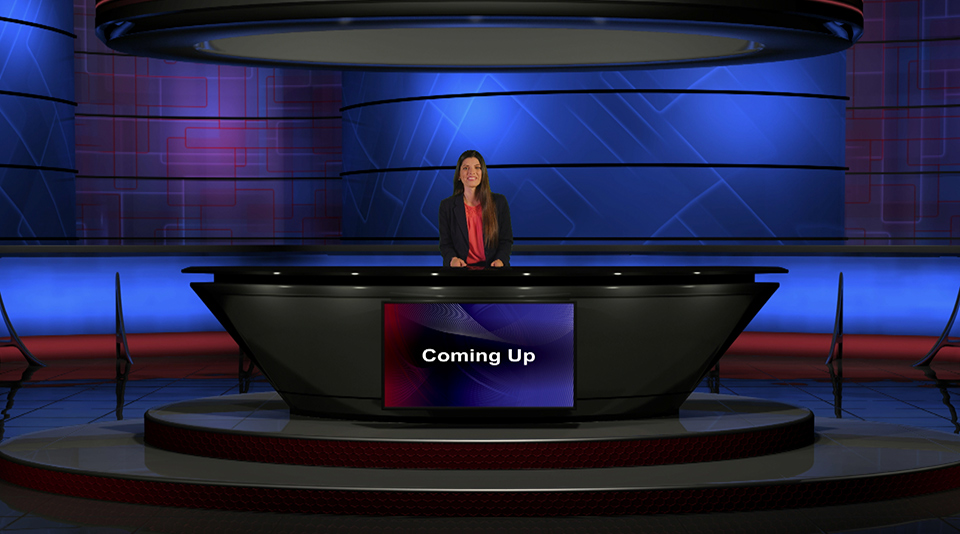

Virtual Sets | Integrated LiveSet technology with 30+ live virtual sets and box effects included |
DataLink | Integrated DataLink technology enabling real-time, automated data input from internal and external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII and more |
Recording |
4 x recording channels from either NDI inputs or Mix outputs (10 x with Premium Access)
|
Storage |
Capacity varies by format, resolution and file specification Supports recording to external storage via USB 3.0 |
Grab | Grab full-resolution, deinterlaced still images from external video sources and outputs |
Export | Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding |

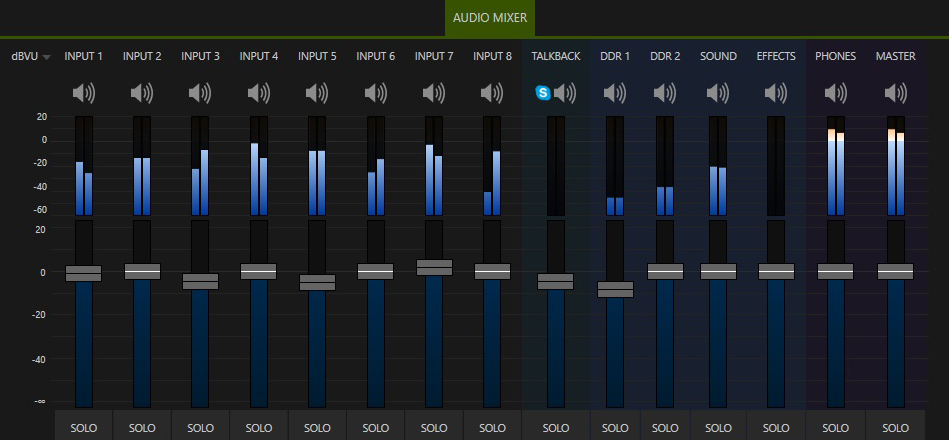

Audio Mixer | Integrated multi-channel audio mixer with support for stereo audio, and DSP’s |

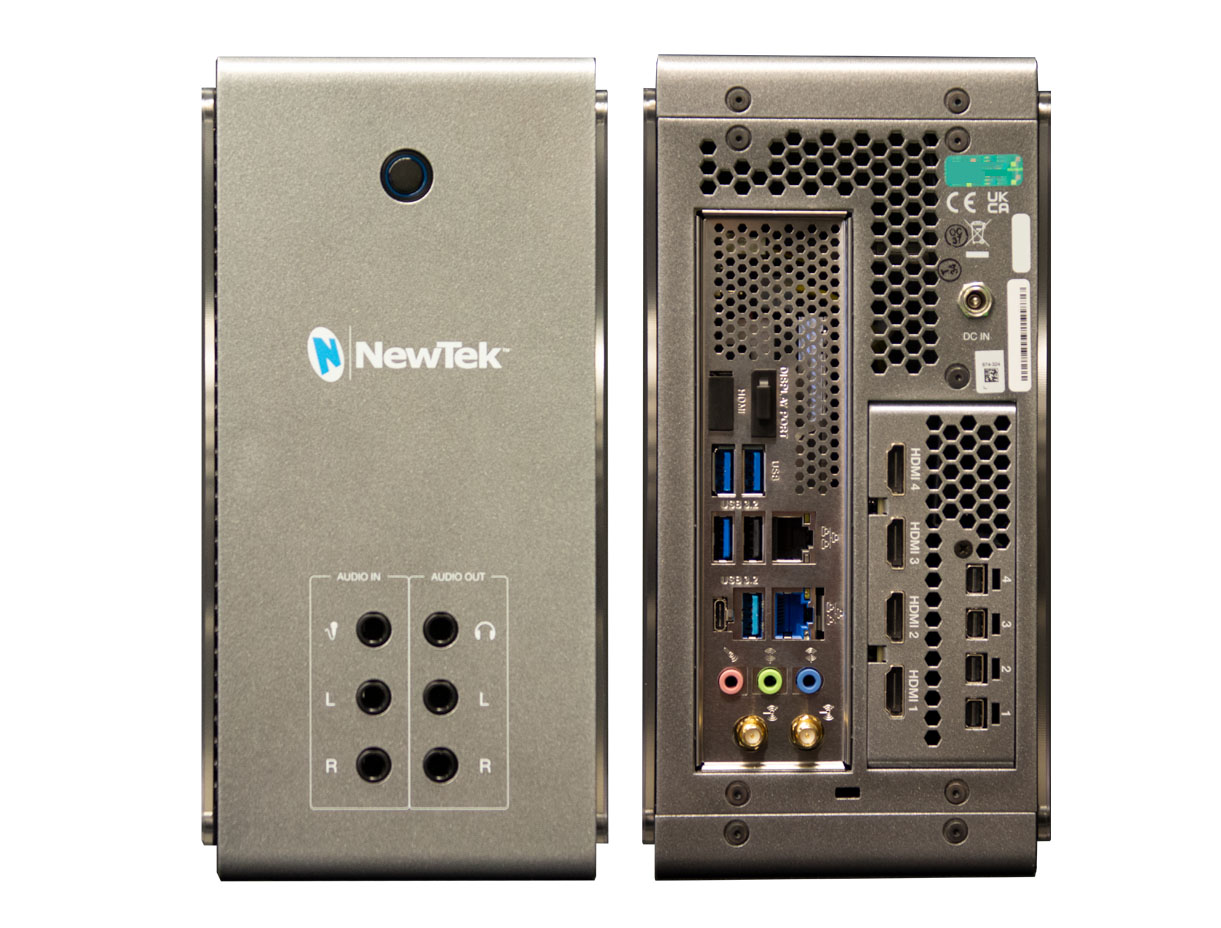

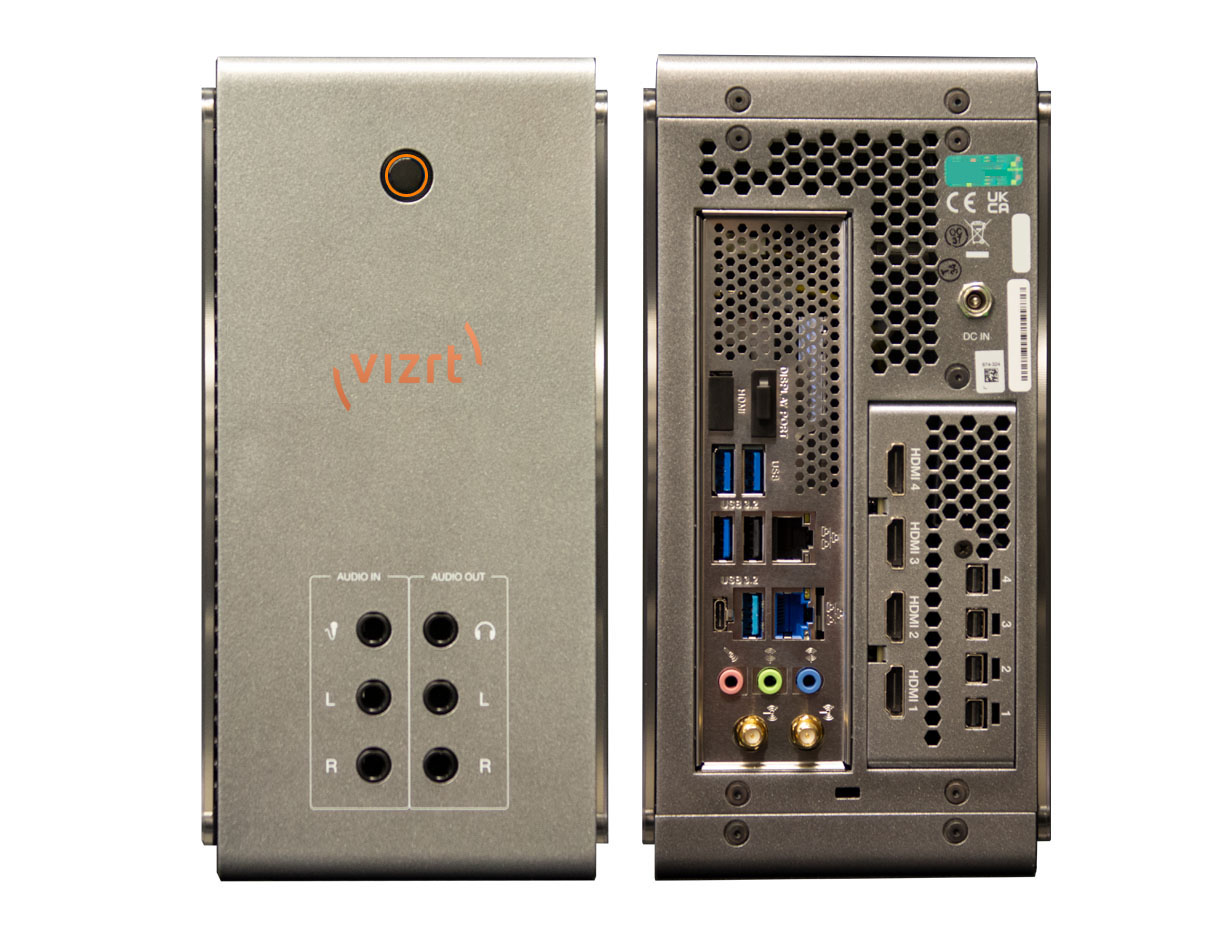

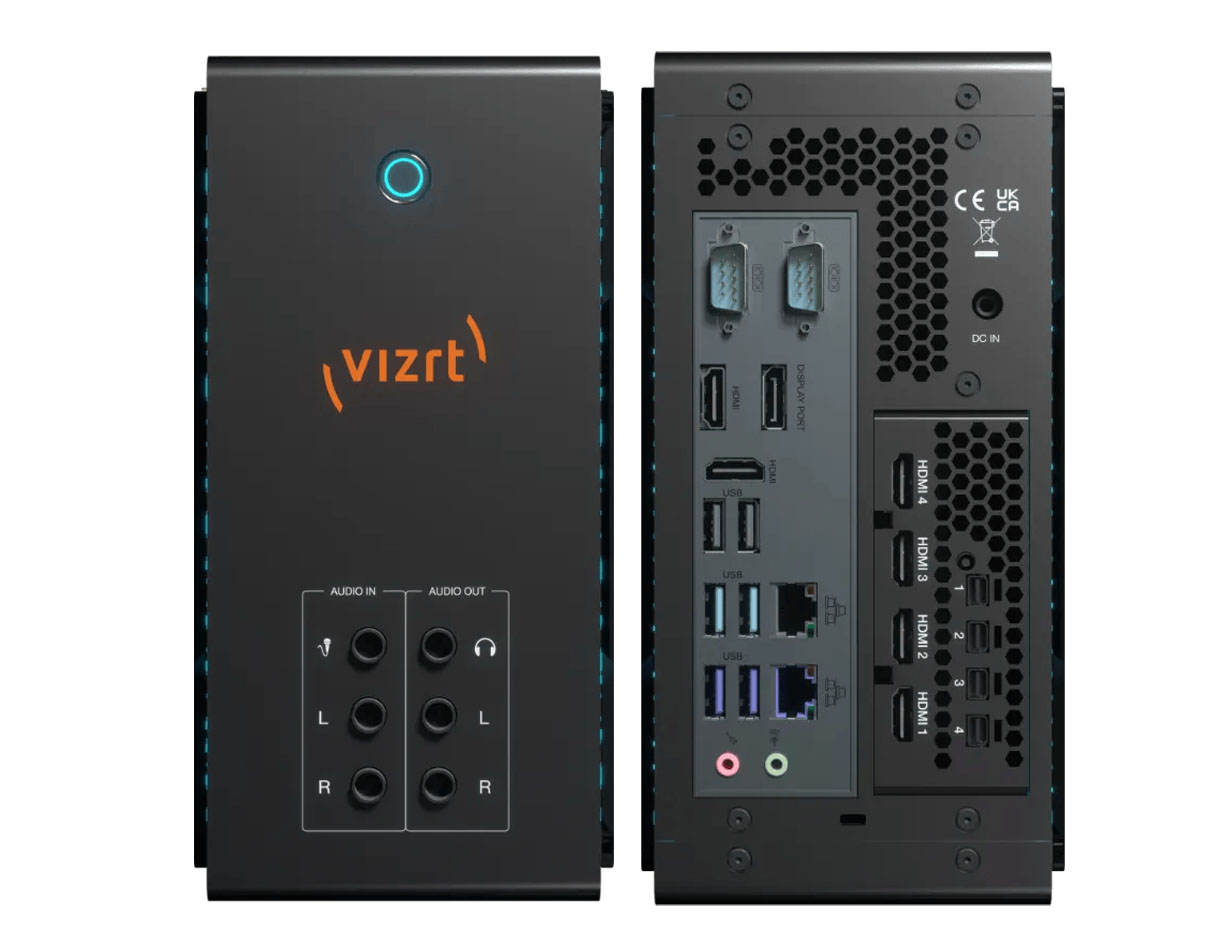

Local Audio Input |
1 x 1/4” (6.35 mm) balanced mic 2 x 1/4” (6.35 mm) balanced line |
Local Audio Output |
2 x 1/4” (6.35 mm) balanced line 1 x 1/4” (6.35 mm) stereo headphones jack |
Network Audio |
3Requires Dante Virtual Soundcard license from Audinate (sold separately) |
Supported Media File Formats |
Import, store, and play back multimedia files, with optional transcoding, including:
|
Processing |
Video: Floating Point YCbCr +A 4:4:4:4 Audio: Floating Point, 96 kHz |
Throughput Latency | ~1.0-1.5 frames |
Tally | Support for network tally via NDI |
MIDI | Support for standard MIDI protocol enabling third-party device control |
NIC | 2 x 1 Gigabit NIC |
System Physical |

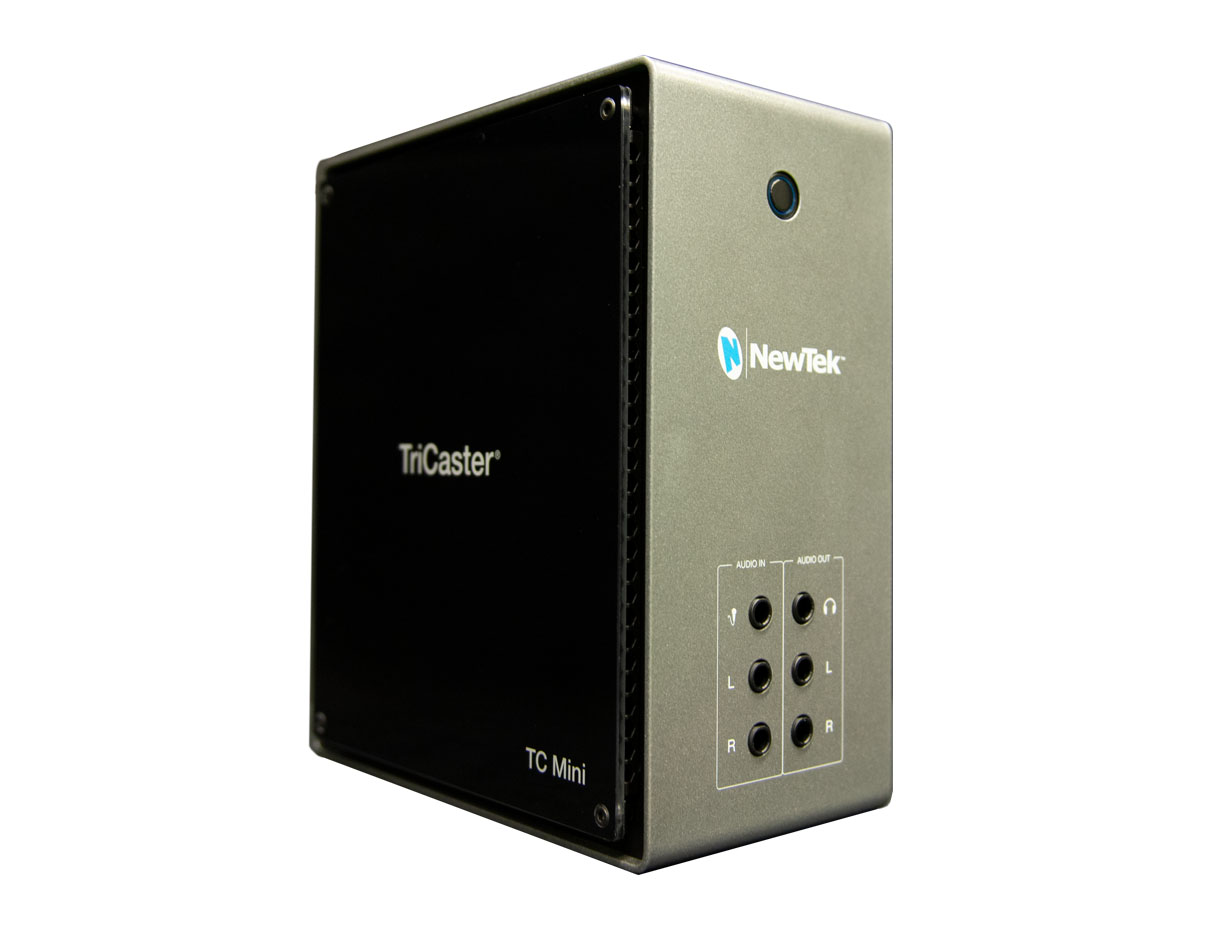

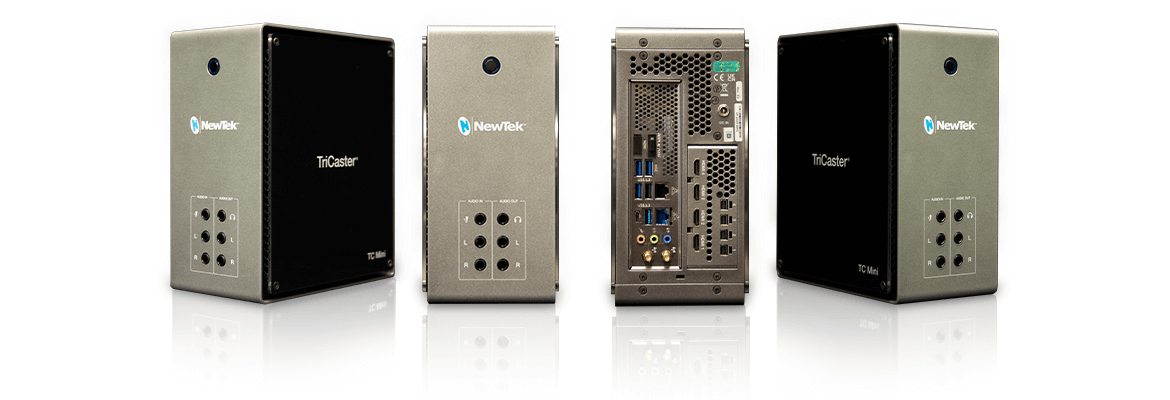

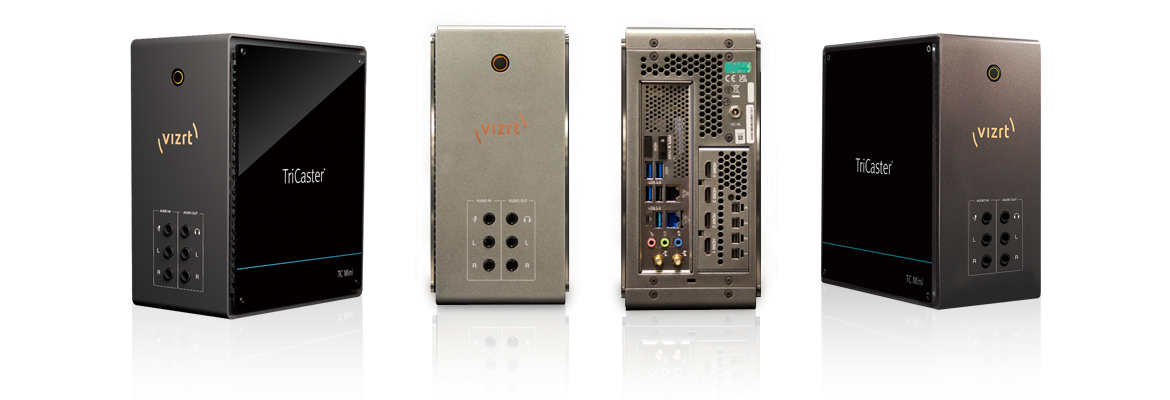

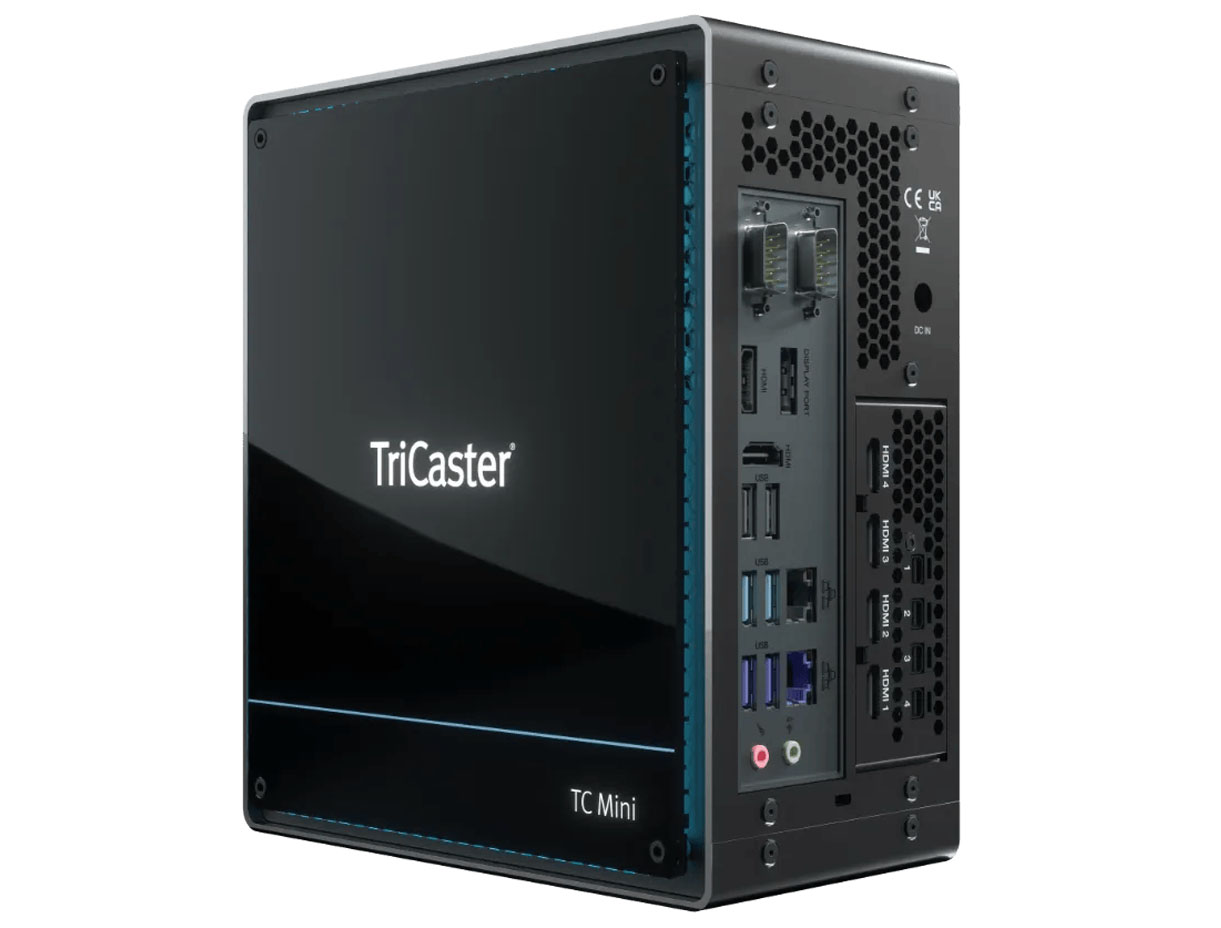

NewTek Mini X system chassis, including adjustable handle and cable retention bracket
|
■ Vizrt Flex Control Panel 專屬控播盤
尺寸: 63.5 x 23.1 x 9.6 cm

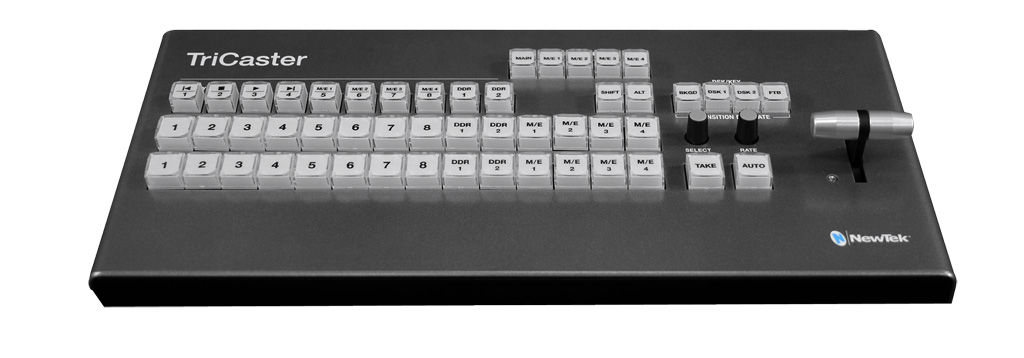

■ TriCaster Mini Control Panel 專屬控播盤
尺寸: 42.0624 x 20.32 x 5.715 cm

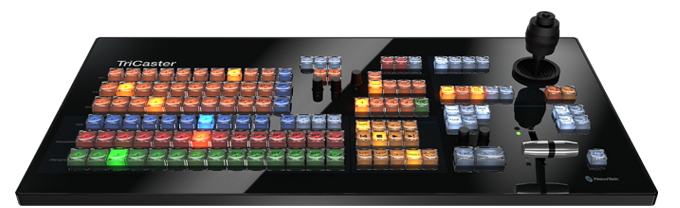

■ 專屬控播盤 TC1SP
尺寸: 59.7 x 6.4 x 29.5 cm
