Matrox Monarch
Matrox Monarch LCS
魔納盒課程影音內容雙路收錄系統
多源串流與錄製應用方案

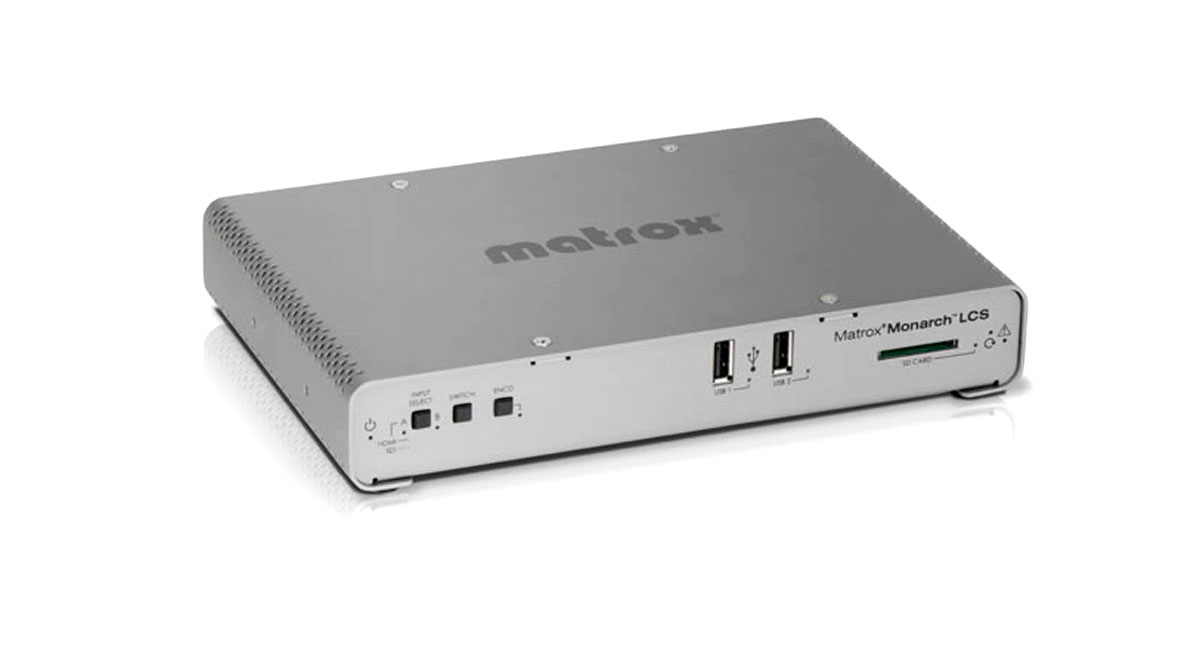

Matrox Monarch LCS 魔納盒課程影音內容雙路收錄系統

Multi-source streaming and recording appliance

Monarch LCS 具有更人性化的設計，使用H.264編碼器可同時擷取高解畫面與 Live HD 視訊，並提供串流與錄製的功能。它是體積小、易於使用的2路輸入擷取設備，且價格合理經濟。Monarch LCS 可以接受 SDI 與 HDMI 攝影機訊號，更可擷取 HDMI 輸入的視訊訊號。而各輸入端可以獨立且同步編碼，以用於最新的多路串流視訊播放器。此外，為符合您的視訊播放器需求，輸入端訊號可以在編碼前針對不同應用做不同的畫面組合，像是畫面疊合、子母畫面或畫面並排等。

Matrox Video 技術市場經理 Dan Maloney 表示：「線上教學對全球的學校與學生來說是不可或缺的，不論大小規模的院校都在尋找簡單且高效率的教學影片串流方法。有了Monarch LCS，每個教室和活動場所都可負擔這樣的設備需求，往後在串流、錄製高解析度與高品質影片等教學內容時就更方便了。」

Monarch LCS 是台性能可靠、單機運行的網路裝置，使用者可輕易安裝並整合至視訊管理系統（VMS，如Opencast和Kaltura）和學習管理系統（LMS，如 Moodle）。它直觀的網路界面讓用戶可以方便地創建，便可應用在現場串流、課程錄製等結合不同攝影機與展示素材的SDI和HDMI來源；它也具有功能強大的縮放、去交錯及降噪功能，以確保原始畫面可被送至編碼器。為了串流需求，編碼器使用RTMP或RTSP協議，來傳遞串流內容到本地端媒體伺服器或是雲端的CDN等；在錄製需求中，編碼器可將視訊以MP4或MOV格式直接傳送至網路磁碟裝置，因此便無需再進行課後的檔案傳輸，或傳輸到本機USB或是SD卡上。

Monarch LCS提供了完整的HTTP API控制。這讓網路或雲端視訊管理介面開發者、A／V整合商，能夠在自己的環境中利用Monarch LCS的串流和錄製功能，創造客製化的用戶體驗。另也支援Crestron的室內媒體控制模組使用。

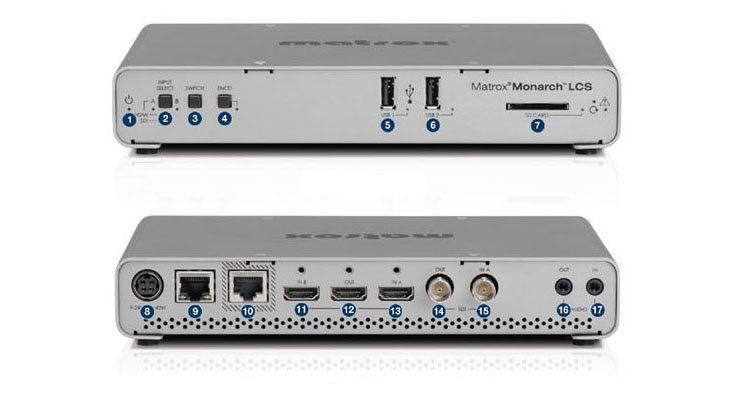

魔納盒 Monarch LCS 功能介紹

01.電源提示
02.輸入選擇鍵
03.切換鍵
04.編碼開始/停止鍵
05.USB端口1
06.USB端口2
07.SD卡插槽
08.電源接口
09.網路接口
10.RS-232接口

11.HDMI輸入端 B(內嵌音訊)
12.HDMI輸出端 B(內嵌音訊)
13.HDMI輸入端 A(內嵌音訊)
14.SDI輸出端(內嵌音訊)
15.SDI輸入端 A(內嵌音訊)
16.類比音訊輸出端(立體聲)
17類比音訊輸入端(立體聲)

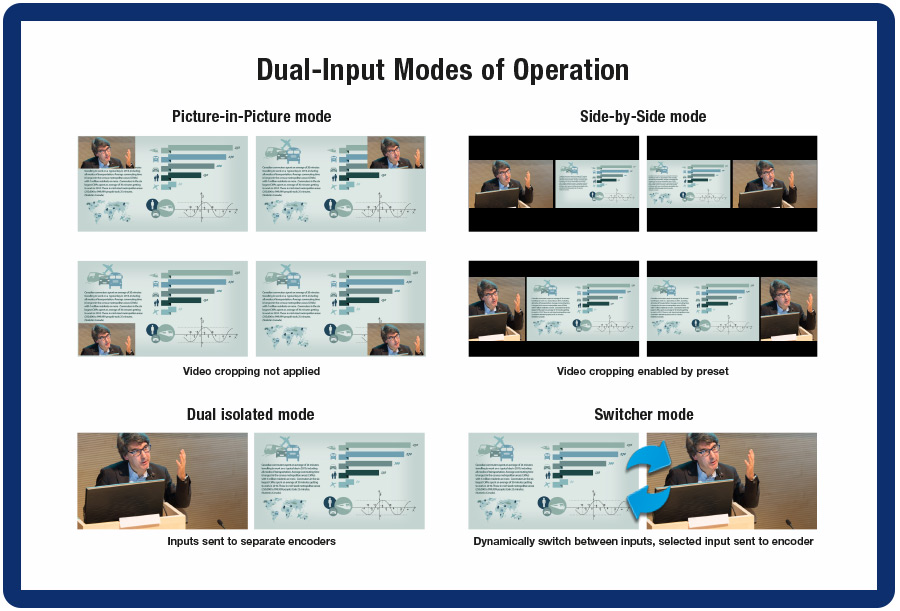

模式豐富

不需複雜的課程錄製設備。Monarch LCS 透過簡單配置，就可將包含課程內容的視訊、音訊與相關素材，匯集成網路直播媒體。製作人員可以選擇不同畫面模式，設定子母畫面或並排等不同的畫面佈局。如果在課程錄製中想隨時改變畫面模式， Monarch LCS 也支援模式切換。透過簡易的設定，Monarch LCS 就能製作完美的畫面佈局，完成課程與發表會的錄製/發布。

I/O 介面

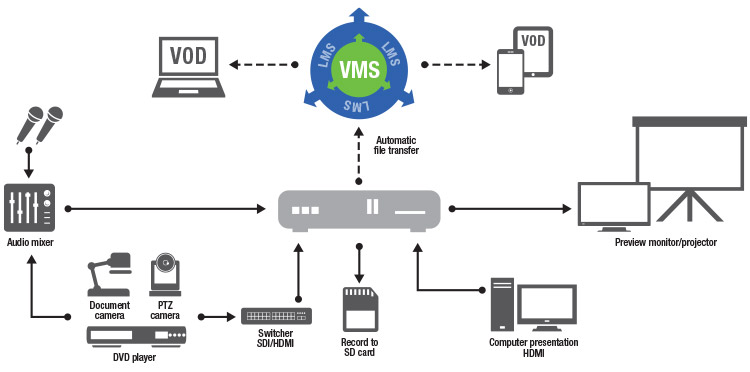

Monarch LCS 線上學習製作流程範例

線上學習製作流程範例1

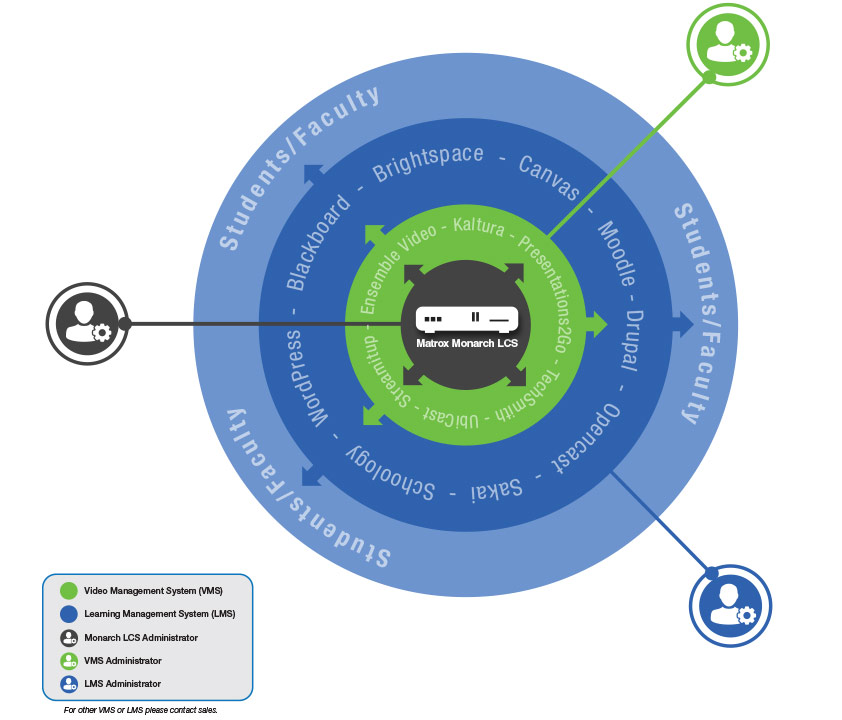

視訊管理系統 Video Management System (VMS) / 學習管理系統 Learning Management System (LMS)

線上學習製作流程範例2

視訊管理系統 Video Management System (VMS) / 學習管理系統 Learning Management System (LMS)

Matrox 簡介

台灣碩方科技長期代理 Matrox 視訊相關產品。邁創 Matrox Electronic Systems Ltd 總公司位在加拿大的魁北克省 Quebec 多瓦勒市 Dorval，生產電腦顯示卡與專業影像廣播視訊裝置：Matrox 名稱來自創辦人 Lorne Trottier 與 Branko Branko Matić 部分名字單字。 Matrox 視訊系列產品有著極佳的顯示效能，在專業多重顯示的顯示卡更有獨到之處，因此應用領域相當廣泛，Matrox 豐富的產品應用涵蓋影片製作、3D動畫、廣播電視、科學、醫療、軍事等各種影像視訊面向。廣播級 Matrox monarch 直播應用產品，更是一推出就深受市場好評 Matrox monarch edge/HDX/LCS。

系列比較表

Matrox Monarch	Monarch HD	Monarch HDX	Monarch LCS
I/O
HDMI Input	1	1	2
HDMI Preview Output	1	1	1
SDI Input	No	1	1
SDI Output	No	1	1
Closed Captioning	No	Yes	No
Pairing to YouTube and Facebook Live	Yes	Yes	No
Frame Synchronizer on Inputs	No	Yes	Yes
Volume Mute	No	Yes	Yes
Video Mixing	No	No	Yes
Scheduling	No	No	Yes
FTP/sFTP/CIF/NFS File Transfers	No	No	Yes
Encoders (Configuration options)
Two Independent Channels: Streaming	No	Yes	Yes
Two Independent Channels: Recording	No	Yes	Yes
Simultaneous independent streaming and recording	Yes *	Yes	Yes
UI
H.264 Preview Stream of Input	No	Yes	No
Control
On Device Buttons	Yes	Yes	Yes
Web Based UI	Yes	Yes	Yes
Centralized Monitoring Tool	No	No	Yes
HTTP Control API	Yes	Yes	Yes
Crestron Module	Yes	Yes	Yes
Auto-Configuration Modes	Yes	Yes	Yes
RS-232	No	Future release	Future release
* For Monarch HD when streaming and recording 1080p30, content will not be independent. Same bitrate must apply.

產品規格

📹魔納盒 Monarch LCS 課程影音內容雙路收錄系統

Multi-source streaming and recording appliance

Inputs and Outputs
Supported HDMI Video Input 1 (Video Sources)	Progressive 1920x1080 @ 60/59.94/50/30/29.97/25 Frames per second 1280x720 @ 60/59.94/50 Frames per second Interlaced 1920x1080i 29.97/25 Frames per second
Supported HDMI Video Input 2 (Computer Sources)	Progressive 1920x1080 @ 60/50 Frames per second 1280x720 @ 60/50 Frames per second Interlaced 1920x1080i 29.97/25 Frames per second
HDMI Video Output	Preview output of video input signals. Preview output can be mapped from either SDI or HDMI input sources. Note that when input is an SD resolution, the HDMI preview output will show video window-boxed on an HD output. When HDMI output is set to Preview Mode, refer to the manual for a complete description of behavior.
Supported SDI Video Input	Progressive 1920x1080 @ 60/59.94/50/30/29.97/25/24/23.98 Frames per second 1280x720 @ 60/59.94/50 Frames per second Interlaced 1920x1080i @ 29.97/25 Frames per second 720x486i @ 29.97 Frames per second 720x576i @ 25 Frames per second Compliant with SMPTE 259M/292M/424M (Level A) / 425M
SDI Video Output	Preview output of video input signals. Preview output can be mapped from either SDI or HDMI input sources.
Audio Input	Processes the first two channels of audio embedded in HDMI or SDI input signals. Unbalanced analog stereo input via 1/8” (3.5mm) jack. Line Level
Audio Output	Passthrough of 8 channel of embedded audio channels in HDMI and SDI signals. Unbalanced analog stereo output via 1/8” (3.5mm) jack—passthrough of input. Line Level Note that all outputs are active regardless of audio and video input selection.
Extra features	Video Input Format is Auto-Detected in SDI and HDMI. All outputs are active regardless of audio and video input selection.
Frame Synchronization
Frame Synchronization	The Monarch LCS contains frame synchronization circuitry designed to compensate for disruptions of the input signal. This circuitry is in place for both SDI and HDMI inputs. Streaming and recording operations will proceed cleanly with repeated or dropped frames.
H.264/MPEG-4 Part 10 (AVC) Video Encoder
Resolutions	Selectable encoding resolutions ranging from: 128x128 to 1920x1080
Bit Rates Ranges	Single Encoder - Streaming mode: 16 Mbps Single Encoder - Recording mode: 20 Mbps Dual Encoder - Maximum of 8 Mbps for streaming channels Dual Encoder - Maximum of 10 Mbps for recording channels
Encode Frame Rates	Encode frame rates selection includes; 60/50, 30/25/24 and 15/12.5. Single Encoder – Maximum of 1080p60 fps Dual Encoder – Maximum of 720p60 fps or 1080p30 fps
Encoding Profiles	Baseline, Main and High
Encoding Controls	2.0, 3.0, 3.1, 4.0, 4.1 Level Support GOP Size Variable bit rate support Average max/min data rate controls Deblocking Filter
MPEG-4 AAC Audio Encoder
Standard	AAC-LCS
Sample Frequency	32, 44.1 and 48 kHz when digitized from an analog source
Channels	2 channels Stereo (L/R)
Bit Rates	Range from 32 kbps to 256 kbps Note that audio codec settings are applied to both encoders.
Scaler
	High Quality multi-tap 10 bit Down Scaler and De-Interlacer Available to both streaming and recording operations
Recording File Format
File Type	Industry Standard MP4 and MOV files with two channels of embedded AAC audio
Recording Lengths	Maximum file length of 300 minutes—irrespective of storage type used. File splitting feature allows a user to record continuously for long periods by defining file segment sizes. The Monarch LCS will create these sequential file segments over the course of the recording operation without losing a single frame of video. File segment can have a length of 1 to 300 minutes.
Network Interfaces
Connector	RJ45 providing 10/100/1000 Base-T Ethernet with Static or DHCP addressing
Protocols	RTMP, RTSP/RTP IPv4 Support Unicast and Multi Unicast (number of clients may vary from 3 to 10)
User Interface
Computer Based control	HTTP via standard PC or Mac web browser using Monarch LCS Command Center.
Physical Interface	On Device push buttons for independent streaming and recording with Start/Stop control
Storage Types for File Recording
2 x USB 2.0	Support for NTFS (3.1) and FAT32 file system The Monarch LCS will support writing to USB3 devices at USB2 speeds. Also note, there is a very high variability in the performance capabilities of “thumb” drives (even USB3 versions). Many are optimized for “read” operations while the Monarch LCS requires sustained “write” capabilities. For best results, Matrox recommends using powered USB drives. If small portable media is required, SD cards may be more suitable.
1 x SD card Slot	Supports SD and SDHC cards. Only NTFS formatted SDXC cards are supported. (Class 10 highly recommended).
Network Mapped Drive	Support for writing to shared folders in computers found on a network using Windows Share protocols (suitable for Windows system) as well as NFS protocols (suitable for Mac and Linux systems).
Physical
Dimensions	Length (shell) - 5.6" (14.2cm), Length (shell +BNCs) - 6"(15.3cm), Width - 8.5" (21.6 cm), Height (shell) - 1.4"(3.6cm), Height (Shell + pads) - 1.5" (3.81cm)
Weight	1.3 lbs, 0.6 kg
Operating conditions	32 to 104 deg. F (0 to 40 deg. C), 20 to 80% relative humidity (non-condensing)
Power	Input: 9-24 volts Connector: Din4 Total Power Consumption: 20-30 watts (42 max)
Power Supply	Line Voltage: 100-240 VAC Frequency: 50-60 Hz Input: External AC/DC adapter - IEC320-C14 DIN4 Locking Power Connector
Transport and Storage	Max Operating Altitude: 3000 meters Max Transport altitude: 12,000 meters Storage Humidity 5 to 95% relative humidity (non-condensing)
Regulatory	EMI: FCC Class A, CE Mark Class A, ACMA C-Tick Mark, VCCI Power-supply Safety: UL/CUL(UL60950-1), TUV-GS(EN60950-1), T-LICENSE(BS EN60950-1), CCC(GB4943.1-2011), PSE(J60950), SAA(AS/NZS60950-1), KC-MARK(K60950), S-MARK(IEC60950-1) RoHS Directive 2002/95/EC
Warranty	2 years with free telephone support
Kit Contents
In the box	Matrox Monarch LCS device Matrox Monarch LCS external power supply IEC320-C14 power cords (US, GB and EU)
Ordering Information
MHLCS/I	Matrox Monarch LCS part number
MRCH/RACK/KIT	Monarch Rack Mount Kit. Can fit up to two Monarch LCS units in a 1RU space.
PWR/SUP/MHLS	Monarch LCS power supply unit. Does not include IEC-C14 power cord. These cables must be sourced locally.
