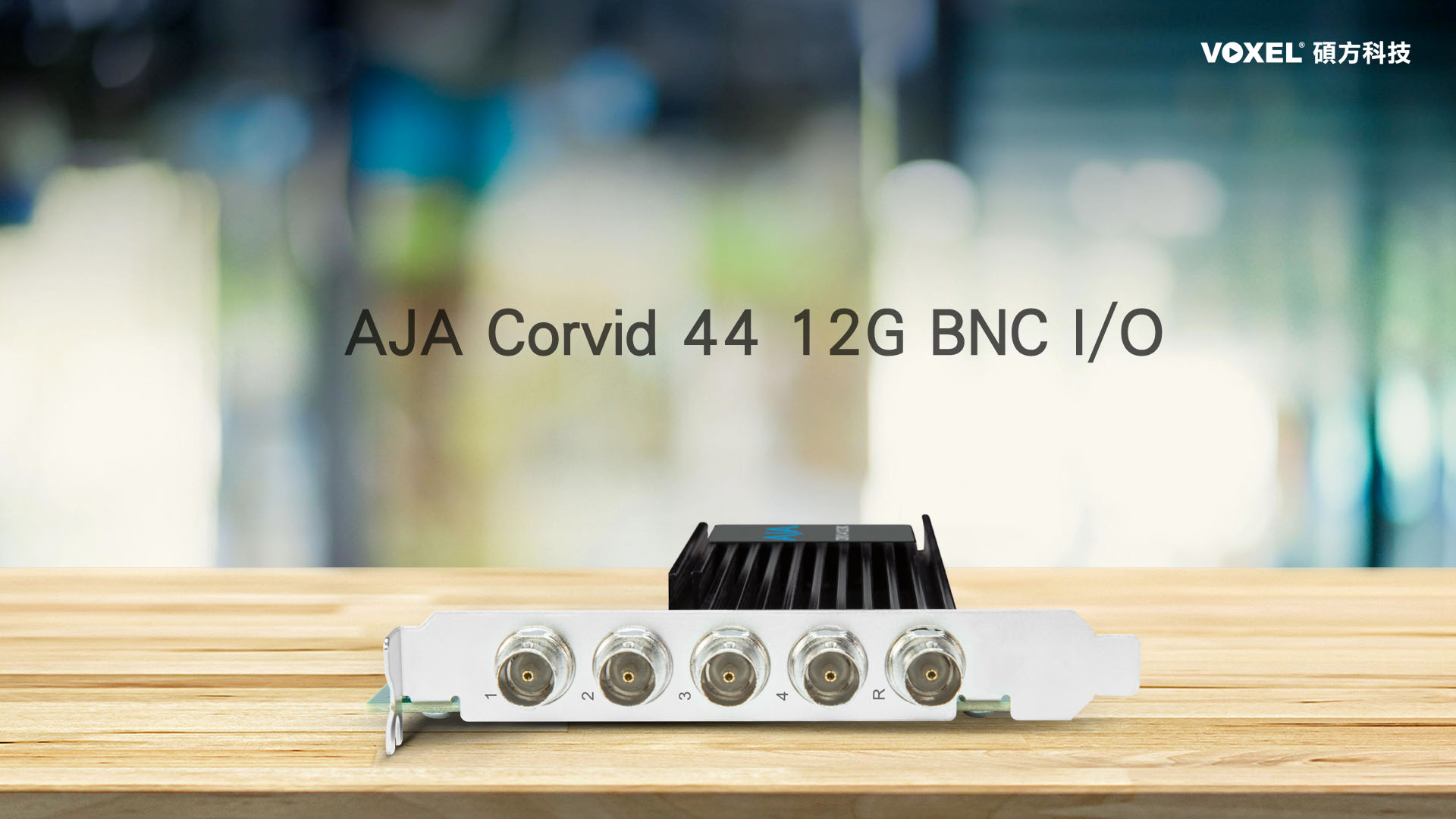

Corvid 44 12G BNC
I/O 影音介面卡
Compact and Powerful 12G-SDI on BNC

Corvid 44 12G BNC

AJA Corvid 44 12G BNC I/O 影音介面卡擁有四個帶有參考輸入的雙向 12G-SDI 連接埠。以四條 12G-SDI 線材可以實現 8K 輸入或輸出，使用單一 12G-SDI/6G-SDI 或四條 3G-SDI 線材則能進行 4K/UltraHD 傳輸。一條 SDI 線材或雙鏈路 SDI 即可進行 2K/HD 傳輸，同時透過 SDI 進行擷取與監控。 Corvid 44 12G BNC 提供主動風扇或無風扇兩種版本，兩種版本均透過卡片頂部邊緣的接頭支援 RS-422 和 LTC 輸入。還有其他 Corvid 44 12G 型號可供選擇，包括帶有HD-BNC連接的低調版本。

產品特色

8K/UltraHD2/4K/UltraHD/2K/HD/SD, including multi-channel 4K up to 50/60p

4x full-size bidirectional 12G-SDI connections with 16-channel embedded audio per connection for a total of 64-channel/32-channel support for 8K workflows

RGB 4:4:4 12-bit and YCbCr 4:2:2 10-bit HFR workflows supported

Up to 12-bit LUT support (.cube)

Dynamic FPGA Firmware Reconfiguration

4K Closed Caption Support

VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and Luminance via SDI

PQ, HLG and Dolby Vision Support

HDR Metadata Capture and Auto Playback Detection

Ref/LTC input on internal header (Analog black burst or Tri-level)

RS-422 on internal header

Active or passive heatsink

Includes support for Apple silicon

AJA Corvid 44 12G BNC 視訊製作流程架構圖

AJA Corvid 44 12G BNC Software Workflow

Corvid 44 12G BNC

Video Formats

(8K) 8192 x 4320p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(UltraHD2) 7680 x 4320p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(2K) 2048 x 1080PsF 23.98, 24, 25
(HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1080i 50, 59.94, 60
(HD) 720p 50, 59.94, 60
(SD) 625i 50
(SD) 525i 59.94

Note: High Frame Rate and 8K/UltraHD2 capabilities are dependent on host system attributes. Not all systems and configurations will support all frame rates and raster sizes.

Video Inputs Digital

12G-SDI, SMPTE-2082, 12-bit*, 10-bit
6G-SDI, SMPTE-2081, 10-bit
3G-SDI, SMPTE 425
- RGB 4:4:4 12-bit*, YCbCr 4:2:2 10-bit
1.5G-SDI, SMPTE 292M
- Single Link HD-SDI YCbCr 4:2:2 10-bit
- Dual Link RGB 4:4:4 12-bit*, Dual link YCbCr 4:2:2 10-bit
270 Mbps SDI, SMPTE 259M-C
- YCbCr 4:2:2 10-bit, 8-bit

*Bit depth support is application dependent. Check with your software manufacturer for compatibility.
Note: Corvid 44 12G BNC SDI connectors are full-size BNC

Video Outputs Digital

12G-SDI*, SMPTE-2082, 12-bit*, 10-bit
6G-SDI*, SMPTE-2081, 10-bit
3G-SDI, SMPTE 425
- RGB 4:4:4 12-bit*, YCbCr 4:2:2 10-bit
1.5G-SDI, SMPTE 292M
- Single Link HD-SDI YCbCr 4:2:2 10-bit
- Dual Link RGB 4:4:4 12-bit*, Dual Link YCbCr 4:2:2 10-bit
270 Mbps SDI, SMPTE 259M-C
- YCbCr 4:2:2 10-bit, 8-bit

*Bit depth support is application dependent. Check with your software manufacturer for compatibility.
Note: Corvid 44 12G BNC SDI connectors are full-size BNC

HDR

SDI: VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and Luminance

SDI I/O

SDI connections are bidirectional
- 2K/HD, capture and monitoring is simultaneous
- 4K/UltraHD with 12G-SDI, capture and monitoring is simultaneous.
- 4K/UltraHD with 3G-SDI, all four connections must be used for either Input or Output.
- 8K/UltraHD2 with 12G-SDI, connections must be used for either Input or Output.

Note: When connections are configured for 12G-SDI or 6G-SDI, only UltraHD/4K/UltraHD2/8K formats are supported.

Audio Inputs Digital

16-channel, 24 and 16-bit SDI embedded audio, 48 kHz sample rate, synchronous

Audio Outputs Digital

16-channel, 24-bit SDI embedded audio, 48 kHz sample rate, synchronous

Downstream Keyer

Supports graphics with alpha channel over video, matte or framebuffer, or framebuffer content over incoming video or matte up to UltraHD/4K

Reference

Analog Color Black (1V) or Composite Sync (2 or 4V) or HD Tri-Level Sync (1V) via 1x HD-BNC on PCIe bracket
Reference input is terminated into 75 ohms when Genlock is set to Ref In

Timecode

LTC timecode input via 2-pin header on PCIe card, or via full-size BNC Ref In connector (switchable) on PCIe bracket

Electrical Interface

8-lane PCIe 3.0

Machine Controls

RS-422, Sony 9-pin protocol via header on PCIe card
9-pin D-connector pinout is as follows:

1	GND
2	RX-
3	TX+
4	GND
5	No Connection
6	GND
7	RX+
8	TX-
9	GND
Shell	GND

Noise

<50dBA (A-weighted at 1m in free air) [models with active cooling (fan)]
Ultra quiet (virtually silent) [models with passive* cooling (no fan)]
Passive cooling requires in-host/chassis air-flow minimum of 150 LFM (linear feet per minute) at 30 C

Size (w x d x h)

0.75" x 7.0" x 4.75" (19 x 178 x 121 mm)

Weight

PCIe Card: 0.6 lbs (0.3 kg)

Power

25W typical, 32W maximum
PC Internal ATX Power Connector (Molex p/n 45559-0002)

Note: Unlike other Corvid cards, Corvid 44 12G can use either PCIe power from a 6 pin ATX connector, or via the PCIe slot

Environment

Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 70 C (-40 to 158 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)
