TriCaster Mini X Desktop Hardware

Video Input	8 x IP video inputs via NDI, resolution-independent
Digital Video Inputt	4 x HDMI video connections supporting video input in any combination of standard formats, resolutions, and frame rates1 2160p 29.97, 25 1080p: 59.94, 50, 29.97, 25 1080i: 59.94, 50 720p: 59.94, 50, 29.97, 25 SD: 59.94, 50, 25 1Available frame rates determined by model and session video standard (NTSC or PAL)
PTZ	Support for up to 8 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232, RS422, and IP, with integrated controls and preset system
Skype TX	Skype TX Native support for up to 2 simultaneous Skype video call inputs via Skype TX software integration, including tally and Talk Back communication
Network Video Output	IP video output via NDI, optionally configurable for: 4 x independent video mix outputs 1 x 4K UHD video mix output
Stream Output	2 x streaming video output, independently configurable, with simultaneous stream archive
Monitor Outputs	UI and multiview outputs available via onboard GPU outputs
Mix/Effect Buses (M/E)	4 x M/E buses supporting video re-entry 1 x Mix/Effect channel per bus with support for up to 2 sources 4 x channels NDI|HX 2 in HD H.264 or HEVC codec
DSK Channels	2 x DSK channels
Media	• 5 x Media Players (2 x DDR, 2 x GFX, 1 x Sound) • 15 x Media Buffers (10 x Live Link or Animation Buffers, 5 x Graphics Buffers)
Keyers	Integrated LiveMatte chroma and luma keying technology on all source channels and M/E buses 8 x input keyers 2 x media player keyers 4 x M/E keyers 15 x buffer keyers
Virtual Sets	Integrated LiveSet technology with 30+ live virtual sets and box effects included
DataLink	Integrated DataLink technology enabling real-time, automated data input from internal and external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII and more
Macros	Record, store, edit and automate commands and user-configured operation sequences • Attach to control panel buttons, keyboard shortcuts, hotspots, MIDI and X-keys buttons or GPI triggers • Attach to internal events and state changes, including audio, media playback, tally and specific switcher actions • Supports control via web-based interface
Recording	4 x recording channels from either NDI inputs or Mix outputs (10 x with Premium Access) Records and retains alpha channel data 4 x QuickTime archival video recorders (Native NDI Codec for recording)2 2QuickTime Player not required for playback in common NLE applications
Storage	Capacity varies by format, resolution and file specification Supports recording to external storage via USB 3.0
Grab	Grab full-resolution, deinterlaced still images from external video sources and outputs
Export	Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding
Audio Mixer	Integrated multi-channel audio mixer with support for stereo audio, and DSP’s

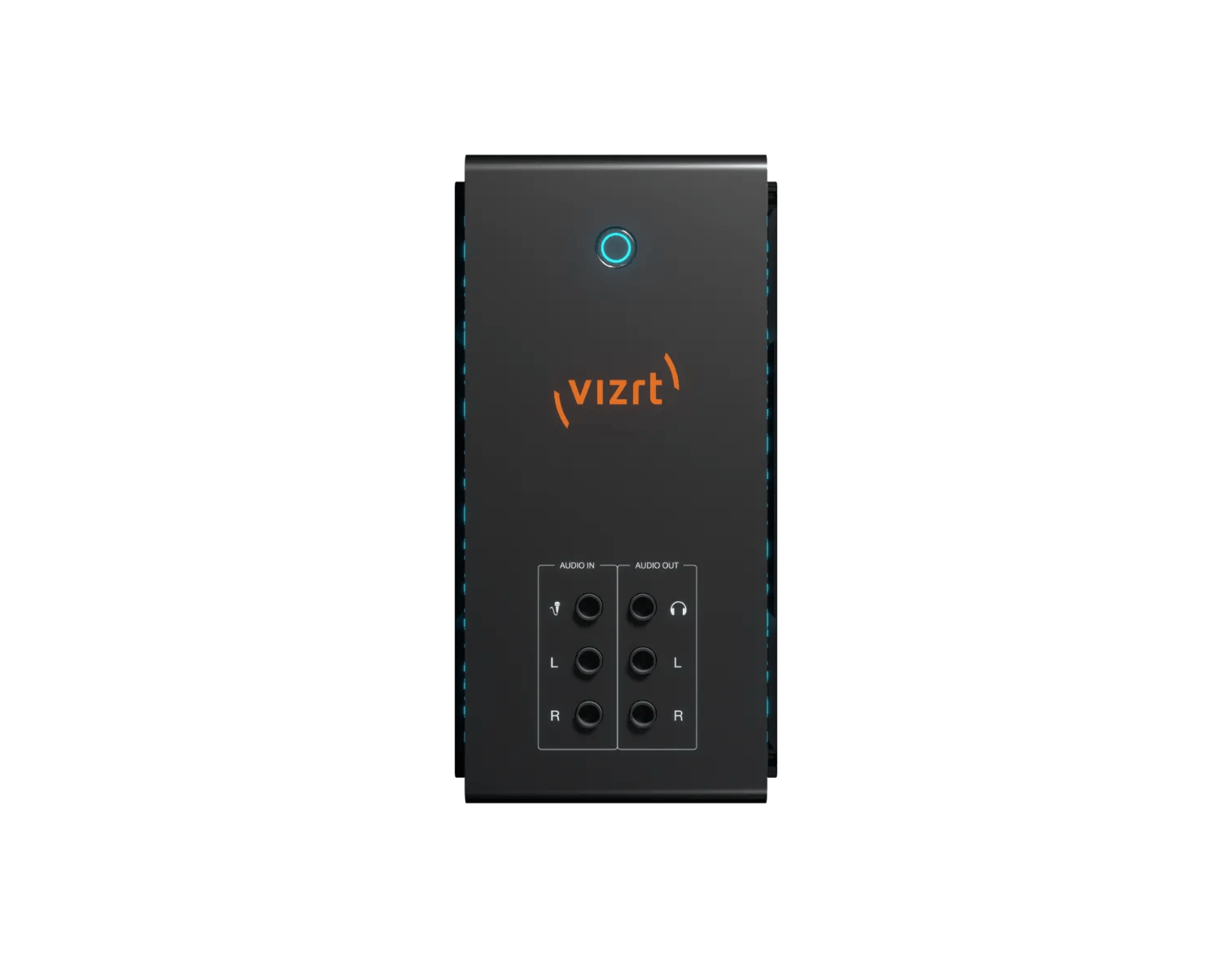

Local Audio Input	1 x 1/4” (6.35 mm) balanced mic 2 x 1/4” (6.35 mm) balanced line
Local Audio Output	2 x 1/4” (6.35 mm) balanced line 1 x 1/4” (6.35 mm) stereo headphones jack
Network Audio	Native support for network audio input and output via NDI Embedded audio supported for all NDI input and output video signals Integrated support3 for Dante networking protocol from Audinate 3Requires Dante Virtual Soundcard license from Audinate (sold separately)
Supported Media File Formats	Import, store, and play back multimedia files, with optional transcoding, including: Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more Audio: AIFF, MP3, WAV, and more
Processing	Video: Floating Point YCbCr +A 4:4:4:4 Audio: Floating Point, 96 kHz
Throughput Latency	~1.0-1.5 frames
Tally	Support for network tally via NDI
MIDI	Support for standard MIDI protocol enabling third-party device control
NIC	2 x 1 Gigabit NIC

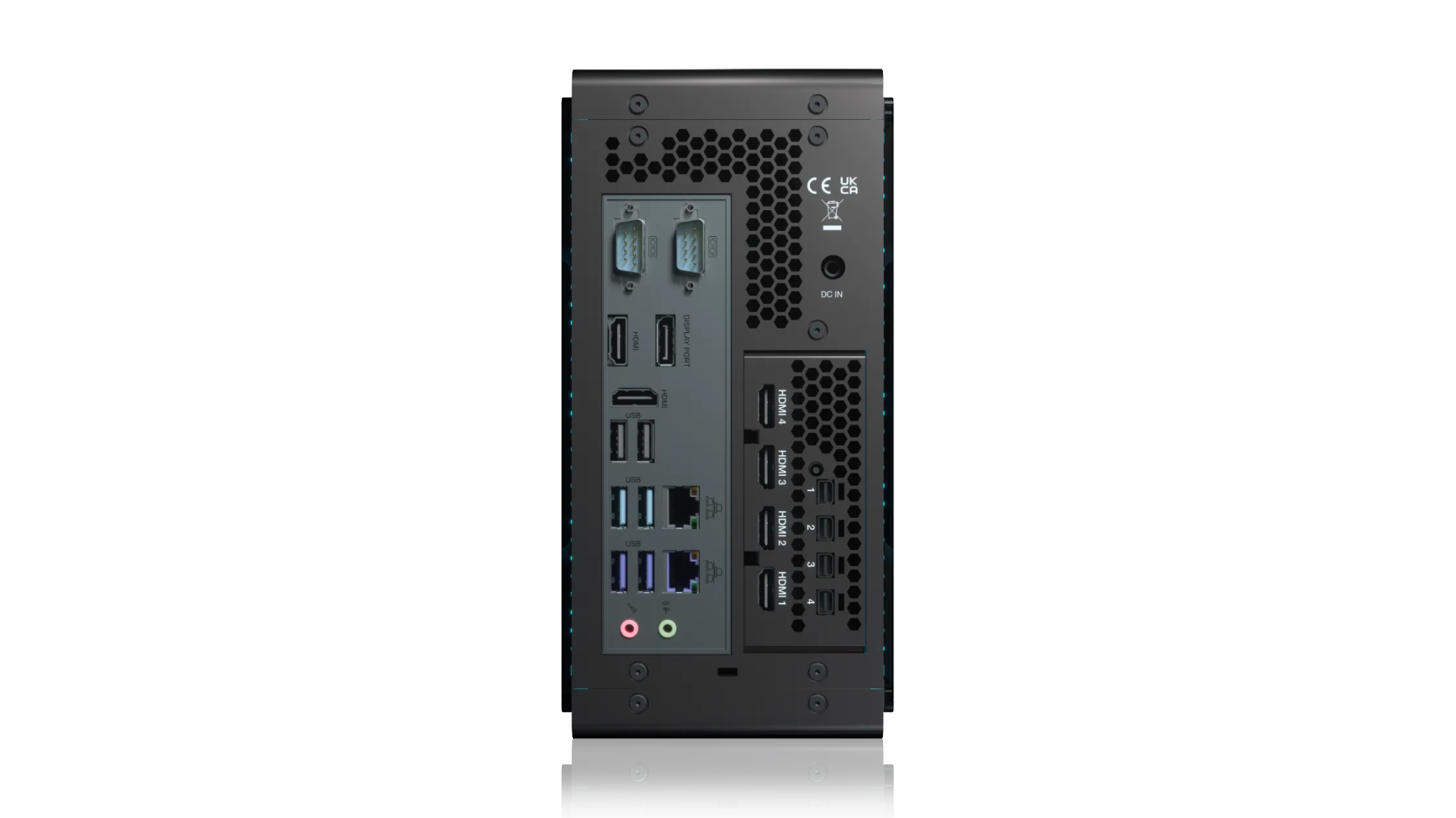

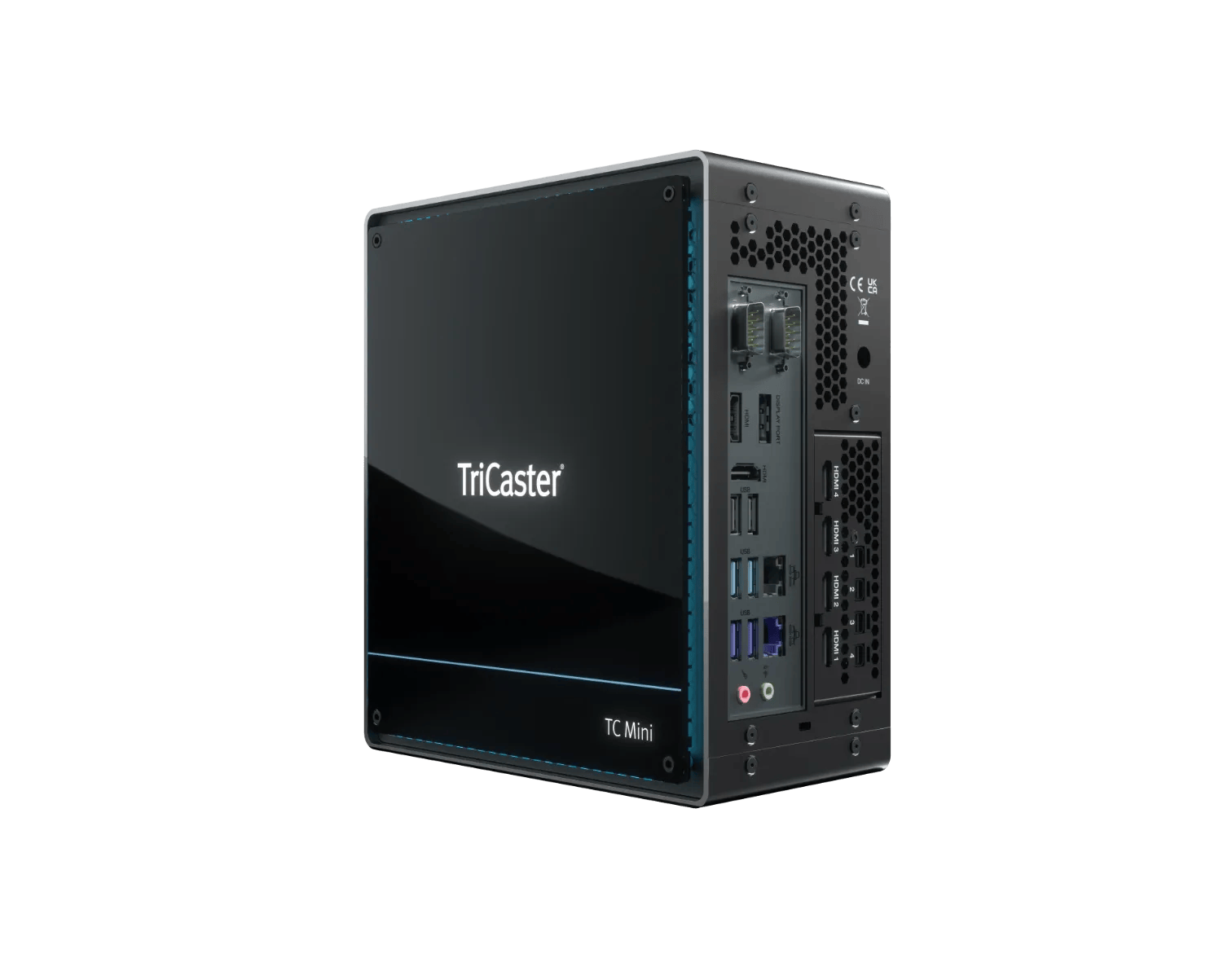

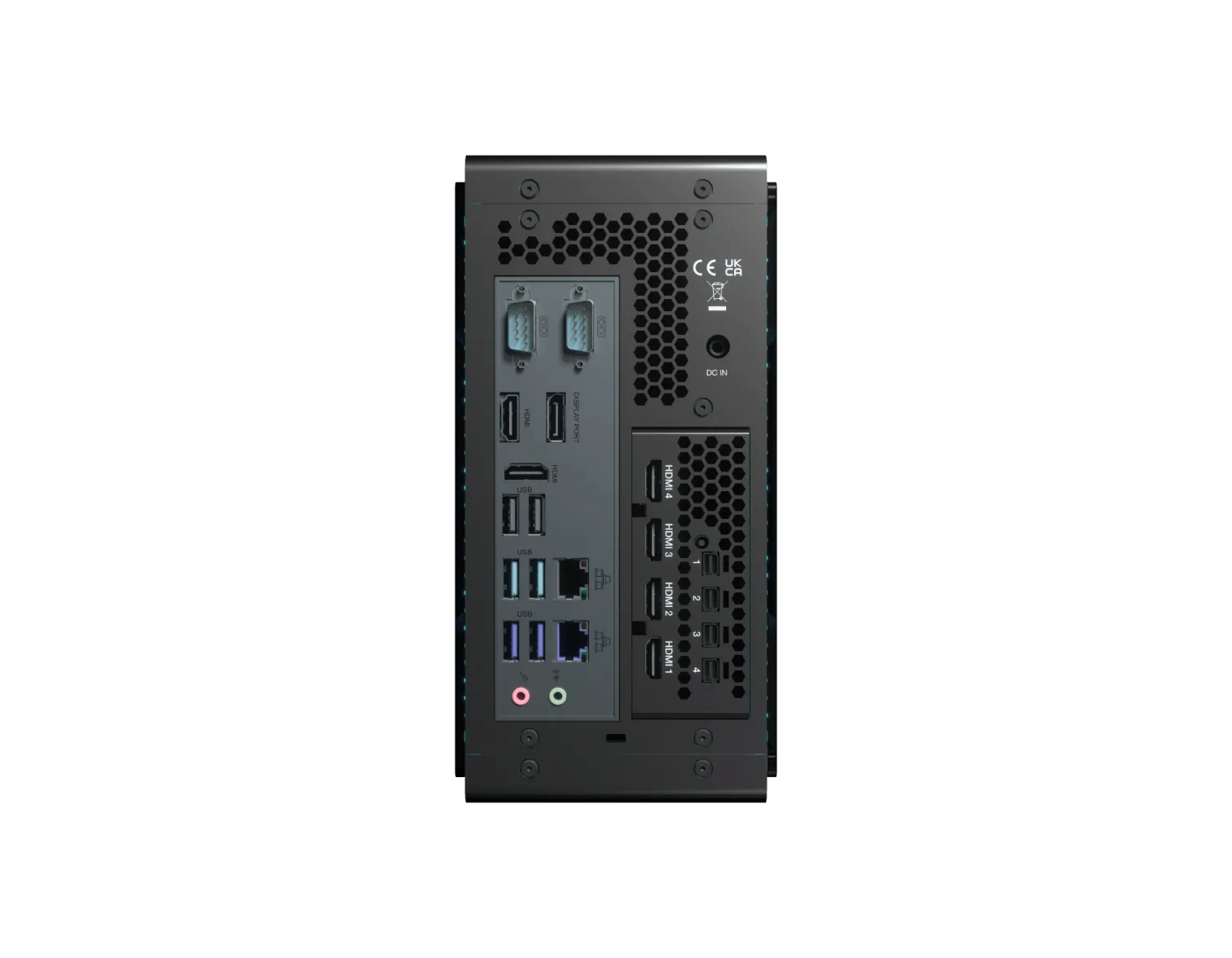

System Physical	NewTek Mini X system chassis, including adjustable handle and cable retention bracket 4.23 x 9.08 x 7.89 in (10.74 x 23.1 x 20.1 cm) 8.4 lbs (3.8 kg)

TriCaster Mini S Software Only

Network Video Input	8 x IP video inputs via NDI, resolution-independent, NDI inputs supporting video input in any combination of standard formats, resolutions, and frame rates1 2160p 59.94, 50, 29.97, 25, 24, 23.976 1080p: 59.94, 50, 29.97, 25, 24, 23.976 1080i: 59.94, 50 720p: 59.94, 50, 29.97, 25 SD: 59.94, 50, 25 1Available frame rates determined by model and session video standard (NTSC or PAL)
PTZ	Support for up to 8 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232, RS422, and IP, with integrated controls and preset system
Skype TX	Native support for up to 2 simultaneous Skype® video call inputs via Skype TX software integration, including tally and Talk Back communication
Network Video Output	IP video output via NDI, optionally configurable for: 4 x independent video mix outputs 1 x UHD video mix output
Stream Output	2 x streaming video output, independently configurable, with simultaneous stream archive
Monitor Outputs	UI and multiview outputs available via onboard GPU outputs
Mix/Effect Buses (M/E)	4 x M/E buses supporting video re-entry 1 x Mix/Effect channel per bus with support for up to 2 sources 4x channels NDI|HX 2 in HD H.264 or HEVC codec
DSK Channels	2 x DSK channels
Media	4 x media players 2 x DDR 1 x GFX 1 x Sound 15 x media buffers 5 x animation buffers 10 x graphic buffers
Keyers	Integrated LiveMatte chroma and luma keying technology on all source channels and M/E buses 8 x input keyers 2 x media player keyers 4 x M/E keyers 15 x buffer keyers
COMPs	Integrated video composition engine on the switcher and each M/E bus to create, store, and apply layer configurations and DVE-style motion sequences 16 x configurable COMP presets per bus
Virtual Sets	Integrated LiveSet technology with 30+ live virtual sets and box effects included
DataLink	Integrated DataLink technology enabling real-time, automated data input from internal and external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII and more
Recording	4 x recording channels from either NDI inputs or Mix outputs (10 x with Premium Access) Records and retains alpha channel data 4 x QuickTime archival video recorders (Native NDI Codec for recording)2 2QuickTime Player not required for playback in common NLE applications
Signal Monitoring	Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709
Grab	Grab full-resolution, deinterlaced still images from external video sources and outputs
Export	Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding
Audio Mixer	Integrated multi-channel audio mixer with support for stereo audio, and DSP’s
Network Audio	Native support for network audio input and output via NDI Embedded audio supported for all NDI input and output video signals Integrated support3 for Dante networking protocol from Audinate 3Requires Dante Virtual Soundcard license from Audinate (sold separately) 3Requires third-party virtual sound card license (sold separately)
Supported Media File Formats	Import, store, and play back multimedia files, with optional transcoding, including: Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more Audio: AIFF, MP3, WAV, and more
Processing	Video: Floating Point YCbCr +A 4:4:4:4 Audio: Floating Point, 96 kHz
Throughput Latency	~1.0-1.5 frames
Tally	Support for network tally via NDI
MIDI	Support for standard MIDI protocol enabling third-party device control
Viz Flowics Go Plan （HTML 5 Graphics）	2 Users 2GB Asset Library 1 Output 1 Team Graphics Editor Timeline-based Animations Text Crawler Assets Library 140 ready-to-use free graphics Data Integrations Google Sheets Data Provider RSS / Atom Data Provider JSON REST Connector JSON WebSocket Connector Security – MFA Control API Knowledge Base Support Powered by Viz Flowics running in cloud, rendered locally via TriCaster Live Link
