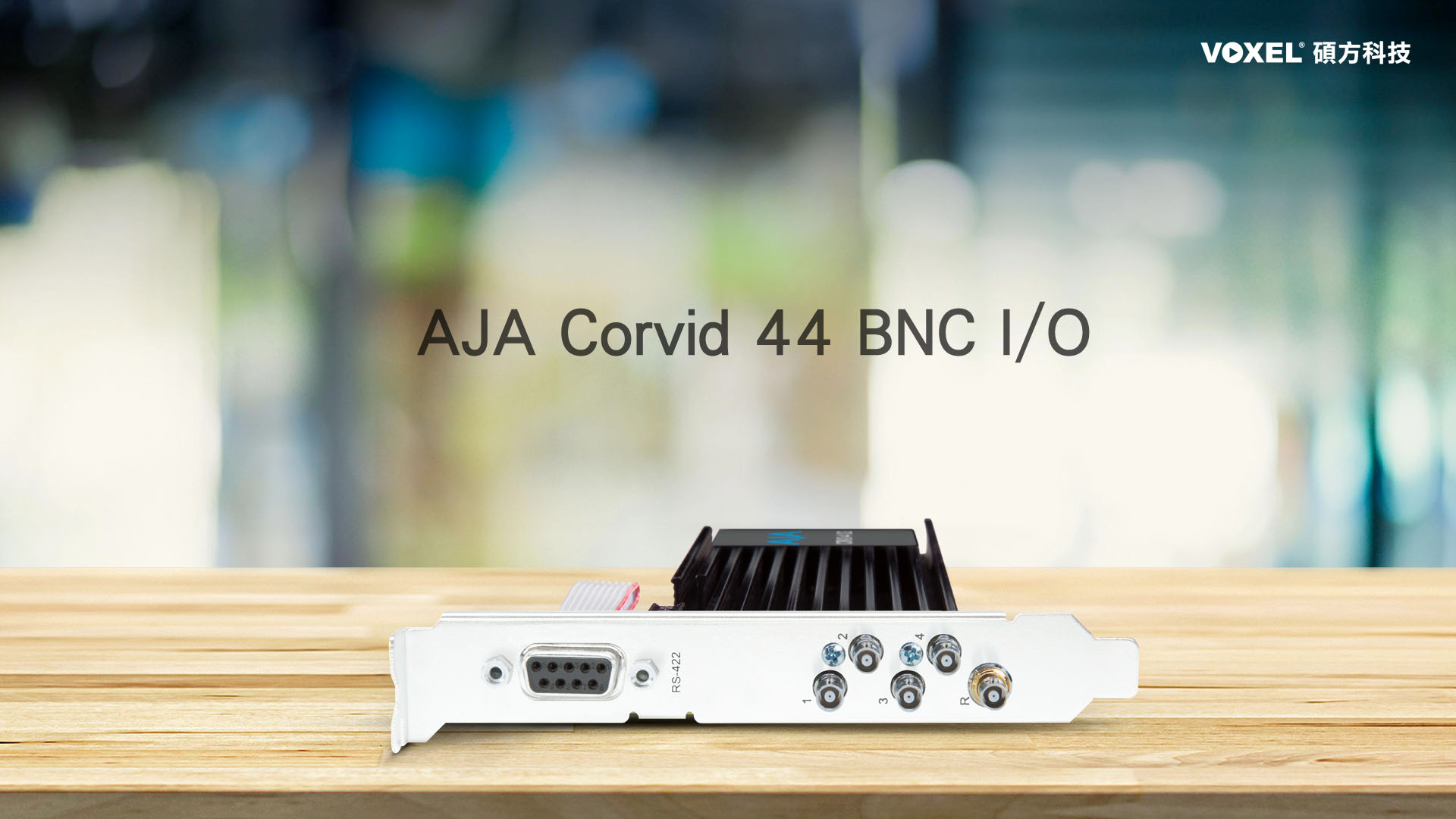

Corvid 44 12G
I/O 影音介面卡
Compact 12G-SDI Power

Corvid 44 12G

AJA Corvid 44 12G I/O 影音介面卡以強大功能掌控最具挑戰性的製作專案，AJA Corvid 44 12G 速度極快，具有 8 通道 PCIe 3.0 I/O ，內建四個雙向 12G-SDI HD-BNC 連接端子，針對當今最苛刻的影音訊號製作流程而設計。無論您使用的是 HFR 8K/4K/UltraHD、2K/HD、SD、Deep Color 或 HDR，都可以體驗 Corvid 44 12G 為您的專案帶來高品質。 AJA Corvid 44 12G 支援 10 位元 4:2:2 和 4:4:4，色彩空間高達 12 位元，可透過 12G-SDI 進行攝取和輸出，支援向下相容 6G-SDI、3G-SDI 和 1.5G-SDI。雙向 12G-SDI 連接埠為一系列解決方案的擷取和同時直通提供了極大的靈活性。

產品特色

8K/UltraHD2/4K/UltraHD/2K/HD/SD, including multi-channel 4K up to 50/60p

4x bidirectional 12G-SDI HD-BNC connections with 16-channel embedded audio per connection for a total of 64-channel/32-channel support for 8K workflows

RGB 4:4:4 12-bit (4K/UltraHD), and YCbCr 4:2:2 10-bit HFR support

Up to 12-bit LUT support (.cube)

Dynamic FPGA Firmware Reconfiguration

4K Closed Caption Support

VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and Luminance via SDI

PQ, HLG and Dolby Vision Support

HDR Metadata Capture and Auto Playback Detection

Reference/LTC Input on card (Analog black burst or Tri-level)

Full height and half height models

RS-422 on internal header or bracket with full height model

LTC input on internal header

Active or passive heatsink

Includes support for the Apple silicon

AJA Corvid 44 12G 視訊製作流程架構圖

AJA Corvid 44 12G Software Workflow

Corvid 44 12G

Video Formats

(8K) 8192 x 4320p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(UltraHD2) 7680 x 4320p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(2K) 2048 x 1080PsF 23.98, 24, 25
(HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1080i 50, 59.94, 60
(HD) 720p 50, 59.94, 60
(SD) 625i 50
(SD) 525i 59.94

Note: High Frame Rate and 8K/UltraHD2 capabilities are dependent on host system attributes. Not all systems and configurations will support all frame rates and raster sizes.

Video Inputs Digital

12G-SDI, SMPTE-2082, 12-bit*, 10-bit
6G-SDI, SMPTE-2081, 10-bit
3G-SDI, SMPTE 425
- RGB 4:4:4 12-bit*, YCbCr 4:2:2 10-bit
1.5G-SDI, SMPTE 292M
- Single Link HD-SDI YCbCr 4:2:2 10-bit
- Dual Link RGB 4:4:4 12-bit*, Dual link YCbCr 4:2:2 10-bit
270 Mbps SDI, SMPTE 259M-C
- YCbCr 4:2:2 10-bit, 8-bit

*Bit depth support is application dependent. Check with your software manufacturer for compatibility.
Note: KONA 5 SDI connectors are HD BNC

Video Outputs Digital

12G-SDI*, SMPTE-2082, 12-bit*, 10-bit
6G-SDI*, SMPTE-2081, 10-bit
3G-SDI, SMPTE 425
- RGB 4:4:4 12-bit*, YCbCr 4:2:2 10-bit
1.5G-SDI, SMPTE 292M
- Single Link HD-SDI YCbCr 4:2:2 10-bit
- Dual Link RGB 4:4:4 12-bit*, Dual Link YCbCr 4:2:2 10-bit
270 Mbps SDI, SMPTE 259M-C
- YCbCr 4:2:2 10-bit, 8-bit

*Bit depth support is application dependent. Check with your software manufacturer for compatibility.
Note: Corvid 44 12G SDI connectors are HD BNC

SDI I/O

SDI connections are bidirectional
- 2K/HD, capture and monitoring is simultaneous
- 4K/UltraHD with 12G-SDI, capture and monitoring is simultaneous.
- 4K/UltraHD with 3G-SDI, all four connections must be used for either Input or Output.
- 8K/UltraHD2 with 12G-SDI, connections must be used for either Input or Output.

Note: When connections are configured for 12G-SDI or 6G-SDI, only UltraHD/4K/UltraHD2/8K formats are supported.

Audio Inputs Digital

16-channel, 24 and 16-bit SDI embedded audio, 48 kHz sample rate, synchronous

Audio Outputs Digital

16-channel, 24-bit SDI embedded audio, 48 kHz sample rate, synchronous

Downstream Keyer

Supports graphics with alpha channel over video, matte or framebuffer, or framebuffer content over incoming video or matte up to UltraHD/4K

Reference

Analog Color Black (1V) or Composite Sync (2 or 4V) or HD Tri-Level Sync (1V) via 1x HD-BNC on PCIe bracket
Reference input is terminated into 75 ohms when Genlock is set to Ref In

Timecode

LTC timecode input via 2-pin header on PCIe card [both short (low profile) and tall (full height) models]
LTC timecode input via HD-BNC Ref In connector (switchable) on PCIe bracket [tall (full height) models only]

Electrical Interface

8-lane PCIe 3.0

Machine Controls

RS-422, Sony 9-pin protocol via header on PCIe card [both short (low profile) and tall (full height) models]
RS-422, Sony 9-pin protocol via port on PCIe bracket connected to header via DB9 cable [tall (full height) models only]
9-pin D-connector pinout is as follows:

1	GND
2	RX-
3	TX+
4	GND
5	No Connection
6	GND
7	RX+
8	TX-
9	GND
Shell	GND

Noise

<50dBA (A-weighted at 1m in free air) [models with active cooling (fan)]
Ultra quiet (virtually silent) [models with passive* cooling (no fan)]
Passive cooling requires in-host/chassis air-flow minimum of 150 LFM (linear feet per minute) at 30 C

Size (w x d x h)

0.75" x 7.0" x 3.15" (19 x 178 x 80 mm) [short (low profile) models]
0.75" x 7.0" x 4.75" (19 x 178 x 121 mm) [tall (full height) models]

Weight

PCIe Card: 0.6 lbs (0.3 kg)
Cables (all combined): 0.6 lbs (0.3 kg)

Power

25W typical, 32W maximum
PC Internal ATX Power Connector (Molex p/n 45559-0002)

Note: Unlike other Corvid cards, Corvid 44 12G can use either PCIe power from a 6 pin ATX connector, or via the PCIe slot

Environment

Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 70 C (-40 to 158 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)
