專業影音製作應用解決方案
Corvid 44
I/O 影音介面卡
Flexible Multi-Format I/O

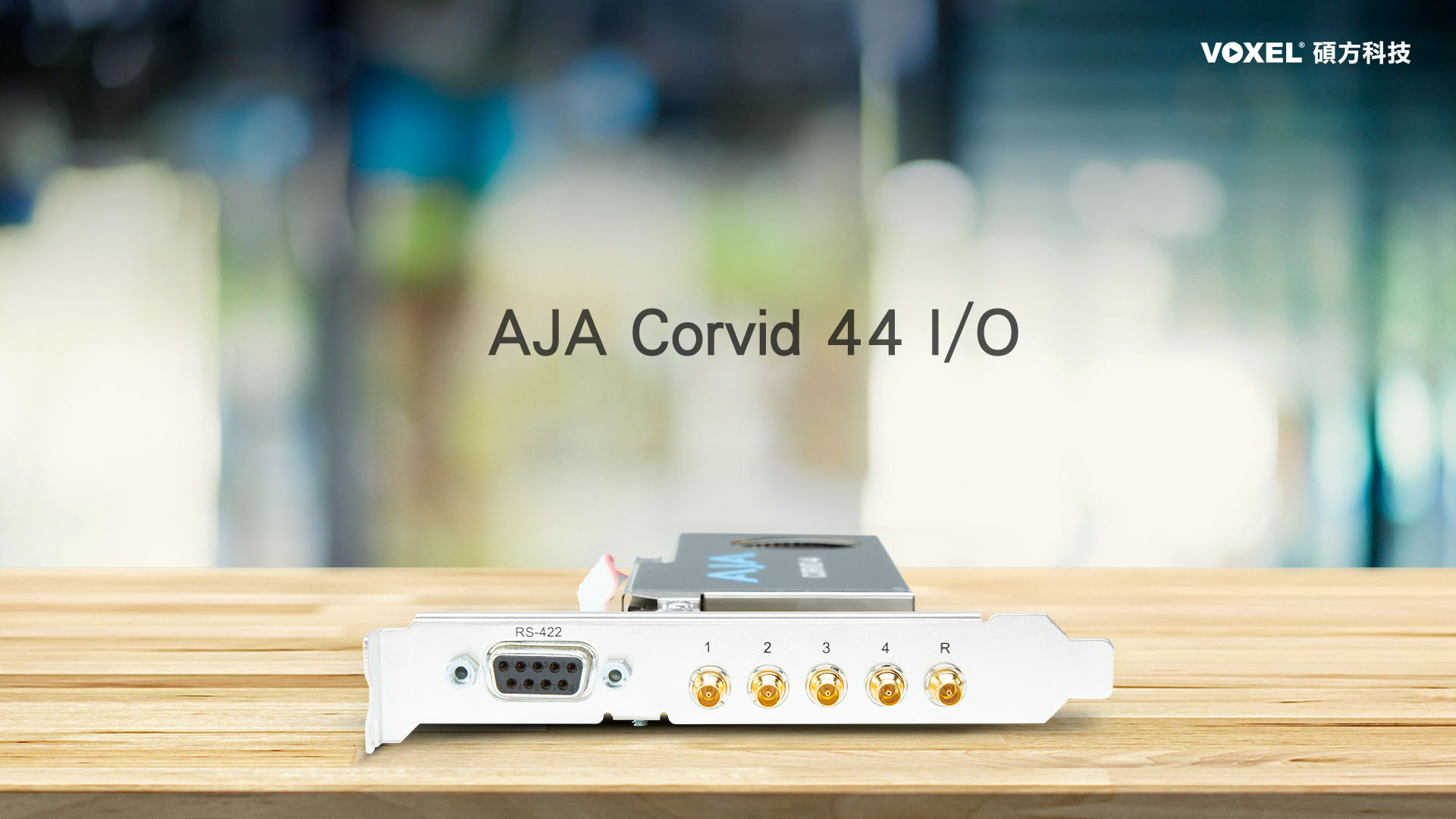

Corvid 44

AJA Corvid 44 I/O 影音介面卡讓 AJA 開發者能在單一 PCIe 卡上，存取最多四個同時的 SDI 輸入或輸出，適合各種中型製作應用。

產品特色

  • 4K/UltraHD/2K/HD/SD up to 50/60p
  • 4x bidirectional 3G-SDI connections with 16-channel embedded audio per connection, up to a total of 64-channel/32-channel support
  • RGB 4:4:4 12-bit and YCbCr 4:2:2 10-bit HFR workflows supported
  • 2x independent Mixer/Keyer widgets.
  • 4x independent 16-ch 48 kHz SDI embedded audio I/O engines
  • 4K Closed Caption Support
  • VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and Luminance via SDI
  • PQ, HLG and Dolby Vision Support
  • HDR Metadata Capture and Auto Playback Detection
  • Reference/LTC Input on card (Analog black burst or Tri-level)
  • Full height and half height models
  • RS-422 on internal header or bracket with full height model
  • LTC input on internal header
  • Includes support for the Apple silicon

    • AJA Corvid 44 視訊製作流程架構圖

    AJA Corvid 44 Software Workflow



    產品規格

    📹Corvid 44 I/O 影音介面卡

    Corvid 44
    Video Formats
    • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    • (2K) 2048 x 1080PsF 23.98, 24, 25
    • (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (HD) 1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1080i 50, 59.94, 60
    • (HD) 720p 50, 59.94, 60
    • (SD) 625i 50
    • (SD) 525i 59.94
    Video Inputs Digital
    • 3G-SDI, SMPTE 425
      • RGB 4:4:4 12-bit*, YCbCr 4:2:2 10-bit
    • 1.5G-SDI, SMPTE 292M
      • Single Link HD-SDI YCbCr 4:2:2 10-bit
      • Dual Link RGB 4:4:4 12-bit*, Dual link YCbCr 4:2:2 10-bit
    • 270 Mbps SDI, SMPTE 259M-C
      • YCbCr 4:2:2 10-bit, 8-bit

    *Bit depth support is application dependent. Check with your software manufacturer for compatibility.
    Note: Corvid 44 12G BNC SDI connectors are full-size BNC
    Video Outputs Digital
    • 3G-SDI, SMPTE 425
      • RGB 4:4:4 12-bit*, YCbCr 4:2:2 10-bit
    • 1.5G-SDI, SMPTE 292M
      • Single Link HD-SDI YCbCr 4:2:2 10-bit
      • Dual Link RGB 4:4:4 12-bit*, Dual Link YCbCr 4:2:2 10-bit
    • 270 Mbps SDI, SMPTE 259M-C
      • YCbCr 4:2:2 10-bit, 8-bit

    *Bit depth support is application dependent. Check with your software manufacturer for compatibility.
    Note: Corvid 44 12G BNC SDI connectors are full-size BNC
    HDR SDI: VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and Luminance
    Audio Inputs Digital 16-channel, 24 and 16-bit SDI embedded audio, 48 kHz sample rate, synchronous
    Audio Outputs Digital 16-channel, 24-bit SDI embedded audio, 48 kHz sample rate, synchronous
    Reference Analog Color Black or HD Tri-level sync
    BNC
    • 4x 3G-SDI . Din 1.0/2.3n
    Electrical Interface 8-lane PCIe 2.0
    Size (w x d x h)
    • 0.88" x 7.25" x 4.88" (22.36 × 184.15 × 123.96 mm)
    Weight
    • 0.4 lb (0.2 kg)
    Power
    • 17W typical, 19W maximum
    Environment
    • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
    • Safe Storage Temperature (Power OFF): -40 to 70 C (-40 to 158 F)
    • Operating Relative Humidity: 10-90% noncondensing
    • Operating Altitude: <3,000 meters (<10,000 feet)
    • Airflow across the board for fanless models

      100LFM @25deg C or lower, computer chassis must have vented opening to exterior, immediately adjacent to PCIe shield (heatsink side), to permit 100LFM across heatsink



    關鍵字 : #tricaster. #aja..#aja bridge live.#3g-8.#NDI.

    *本產品將持續創新，規格可能會有變動，當產品設計／規格變動，恕不另行通知。
