專業影音製作應用解決方案

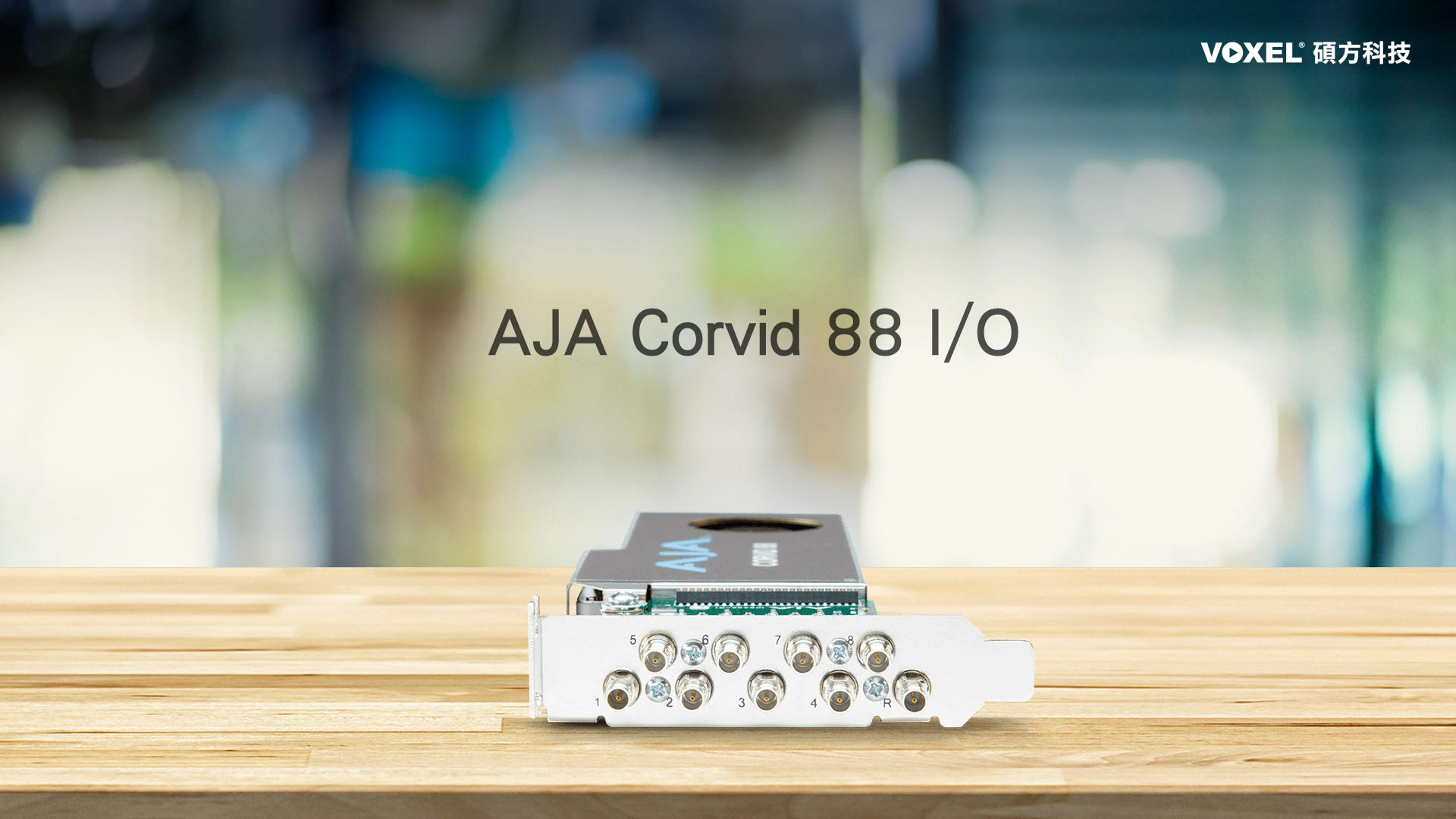

AJA Corvid 88
I/O 影音介面卡
High Density I/O in Any Format

AJA Corvid 88

AJA Corvid 88 I/O 影音介面卡可增加靈活的 I/O 應用，方便將每個 SDI 連線單獨配置為輸入或輸出，支援混合 8 通道 HD/SD 格式。 還可將多個 4K/UltraHD 通道的 SDI 連接結合起來，因應更高解析度的需求。

產品特色

  • 4K/UltraHD/2K/HD/SD up to dual 4K 50/60p
  • 8x bidirectional 3G-SDI connections with 16-channel embedded audio per connection, up to a total of 64-channel/32-channel support
  • RGB 4:4:4 12-bit and YCbCr 4:2:2 10-bit HFR workflows supported
  • 4x independent Mixer/Keyer widgets.
  • 8x independent 16-channel 48 kHz SDI embedded audio I/O engines
  • 4K Closed Caption Support
  • VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and Luminance via SDI
  • PQ, HLG and Dolby Vision Support
  • HDR Metadata Capture and Auto Playback Detection
  • Reference/LTC Input on card (Analog black burst or Tri-level)
  • Full height and half height models
  • RS-422 on internal header or bracket with full height model
  • LTC input on internal header
  • Includes support for the Apple silicon

Corvid 88 is also available in a Fanless version for sound sensitive environments.

AJA Corvid 88 視訊製作流程架構圖

AJA Corvid 88 Software Workflow



產品規格

📹AJA Corvid 88 I/O 影音介面卡

AJA Corvid 88
Video Formats
  • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 47.95 A/B, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
  • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
  • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 47.95 A/B, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
  • (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30, 47.95 A/B, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
  • (HD) 1080p 23.98, 24, 25, 29.97, 30, 50 A/B, 59.94 A/B, 60 A/B
  • (HD) 1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1080i 50, 59.94, 60
  • (HD) 720p 50, 59.94, 60
  • (SD) 625i 50
  • (SD) 525i 59.94
Video Input Digital
  • 3G-SDI, SMPTE 425
    • RGB 4:4:4 12-bit*, YCbCr 4:2:2 10-bit
  • 1.5G-SDI, SMPTE 292M
    • Single Link HD-SDI YCbCr 4:2:2 10-bit
    • Dual Link RGB 4:4:4 12-bit*, Dual Link YCbCr 4:2:2 10-bit
  • 270 Mbps SDI, SMPTE 259M-C
    • YCbCr 4:2:2 10-bit, 8-bit

*Bit depth support is application dependent. Check with your software manufacturer for compatibility.
Video Output Digital
  • 3G-SDI, SMPTE 425
    • RGB 4:4:4 12-bit*, YCbCr 4:2:2 10-bit
  • 1.5G-SDI, SMPTE 292M
    • Single Link HD-SDI YCbCr 4:2:2 10-bit
    • Dual Link RGB 4:4:4 12-bit*, Dual Link YCbCr 4:2:2 10-bit
  • 270 Mbps SDI, SMPTE 259M-C
    • YCbCr 4:2:2 10-bit, 8-bit

*Bit depth support is application dependent. Check with your software manufacturer for compatibility.
HDR SDI: VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and Luminance
Audio Input Digital 16-Channel 24-bit SDI embedded, 48 kHz synchronous
Audio Output Digital 16-Channel 24-bit SDI embedded, 48 kHz synchronous
Reference Analog Color Black or HD Tri-level sync
BNC
  • 8x 3G-SDI
    • Din 1.0/2.3
Electrical Interface 8-lane PCIe 2.0
Size (w x d x h) 0.88" x 7.25" x 4.88" (22.36 × 184.15 × 123.96 mm)
Weight 0.4 lb (0.2 kg)
Power 21W typical, 23W maximum
Environment
  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 70 C (-40 to 158 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
  • Airflow across the board for fanless models
    • 100LFM @25deg C or lower, computer chassis must have vented opening to exterior, immediately adjacent to PCIe shield (heatsink side), to permit 100LFM across heatsink



關鍵字 : #tricaster. #aja..#aja bridge live.#3g-8.#NDI.

*本產品將持續創新，規格可能會有變動，當產品設計／規格變動，恕不另行通知。
