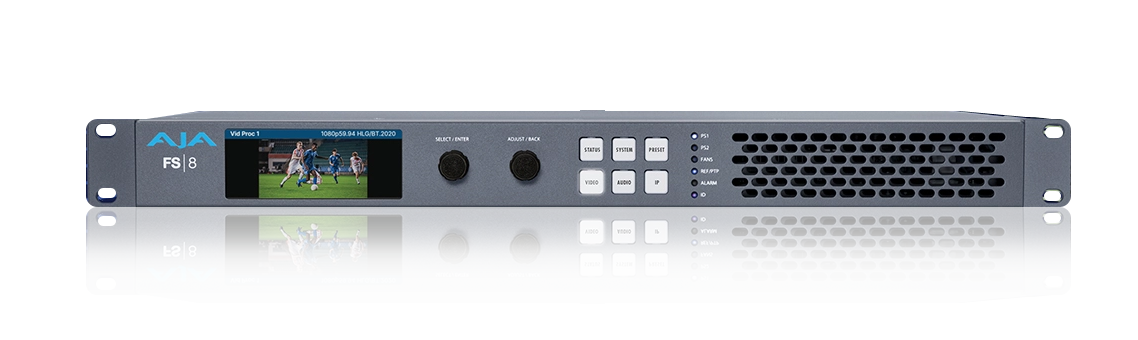

HDR/WCG Real Time Processor	HDR Conversions HDR to HDR HDR to SDR SDR to HDR Colorimetry BT.709 and BT.2020
Video Processing Transforms	Each processing channel can independently select from: Colorfront Engine NBCU 3D LUTs BBC HLG 3D LUTs User 3D LUTs Dynamic 3D LUTs
Colorfront Engine (CFE) Advanced HDR Conversions	Processing Based on Human Perception Model Perceptually optimized color volume remapping  Preserves the original creative intent Parametric controls including HDR functions and color corrector TV Mode for applications such as television broadcast Live Mode for applications such as broadcast, OTT, A/V Film Mode for applications such as on-set camera preview and look creation SDR to Dolby Vision Preview Mode for applications supporting Dolby Vision grading workflows Input Video Dynamic Range/Color Gamut SDR BT.709 100 Nits SDR Extended BT.709 PQ BT.2020 1000 Nits PQ P3D65 1000 Nits  P3D65 Gamma 2.6 (Live mode only) Hybrid Log Gamma BT.2100 HLG Extended BT.709 HLG Extended BT.2100 Sony S-Log3 S-Gamut3 Sony S-Log3 S-Gamut3 Cine  Sony S-Log3 BT.2020 ARRI Log C Wide Gamut                                                   ARRI LogC4 Wide Gamut 4 Panasonic V-log  RED Log3G10 Wide Gamut  Canon Log 2  Canon Log 3 BMDFilm Wide Gamut Gen5 (Live mode only) DJI D-Log D-Gamut (Live mode only) ACEScct (Film mode only) Output Video Dynamic Range/Color Gamut SDR BT.709 100 Nits SDR Extended BT.709 PQ BT.2020 1000 Nits PQ P3D65 1000 Nits PQ BT.2020 6000 Nits (Live mode only) PQ BT.2020 6000 Nits ConstrainP3 (Live mode only) PQ BT.2020 8000 Nits (Live mode only) PQ BT.2020 8000 Nits ConstrainP3 (Live mode only) PQ BT.2020 10000 Nits (Live mode only) PQ BT.2020 10000 Nits ConstrainP3 (Live mode only) Hybrid Log Gamma BT.2100 HLG Extended BT.709 HLG Extended BT.2100 Sony S-Log3 S-Gamut3 Sony S-Log3 BT.2020 ARRI Log C Wide Gamut ARRI LogC4 Wide Gamut 4  ACEScct (Film mode only) SDR Preview mode Ambient Light Compensation control PQ Output Nit level: 48-10000 Nits PQ Output P3 Colorspace Clamp Exposure, Color Temp, Tint controls TV Mode controls Highlight management: Brightness, Highlight, Super Highlight Color Correction: Lift, Gamma, Gain, Saturation Camera Correction: Exposure, Color Temp, Tint Live Mode controls Grading: Lift, Gamma, Gain, SDR Softness control ITU-R BT.2408 control Film Mode controls Grading space: LogC, ACEScct, or S-Log3 ACES CDL: Offset, Power, Slope, Saturation      A/B Look Selection A/B Look Mix MasterLook MasterBroadcast MasterLookBright MasterLookCool MasterLookLowCon MasterLookSoftColor MasterLookVivid MasterLookWarm MasterPastelD60 MasterPastelD65 Agfa ARRI K1S1 Bleach ClassicFilm Ektachrome FilmBlended FilmBlendedLoCon FujiDI FujiXD GenericFilm Kodachrome ReversalClassic SDR to Dolby Vision Preview controls Highlights: Low, Mid, High Contrast: Low, Mid, High
BBC HLG 3D LUT HDR Conversions	Mathematical dynamic range mapping per ITU-R BT.2408 SDR/BT.709 Scene Referred to HLG/BT.2100 v1.7 SDR/BT.709 Scene Referred to HLG/BT.2100 Strict v1.7 SDR/BT.709 Scene Referred UpMap to HLG/BT.2100 v1.7 SDR/BT.709 Scene Referred UpMap to HLG/BT.2100 Strict v1.7 SDR/BT.709 Display Referred to HLG/BT.2100 v.1.7 SDR/BT.709 Display Referred UpMap to HLG/BT.2100 v1.7 SDR/BT.2020 Display Referred to HLG/BT.2100 v1.7 SDR/BT.2020 Display Referred UpMap to HLG/BT.2100 v1.7 PQ 1000 Nits Display Referred to HLG/BT.2100 v1.7 PQ 4000 Nits Display Referred to HLG/BT.2100 v1.7 S-Log3/BT.2020 100% Scene Referred to HLG/BT.2100 v1.7 S-Log3/BT.2020 200% Scene Referred(SR-Live) to HLG/BT.2100 v1.7 HLG/BT.2100 to SDR/BT.709 Scene Referred v1.7 HLG/BT.2100 to SDR/BT.709 Scene Referred Strict v1.7 HLG/BT.2100 to SDR/BT.709 Display Referred Color Appearance Model v1.7 HLG/BT.2100 to SDR/BT.709 Display Referred Super White v1.7 HLG/BT.2100 to PQ 1000 Nits Display Referred v1.7 HLG/BT.2100 to SDR/BT.2020 Display Referred Super White v1.7 SDR/BT.709 Scene Referred UpMap to HLG/BT.2100 to SDR/BT.709 Display Referred v1.7
NBCU 3D LUT Processing	NBCU LUTs developed by NBCUniversal Media, LLC • 1-NBCU_SDR2HLG_DL_v1.1, SDR UpMap to HLG using Display Light v1.1 • 2-NBCU_SDR2HLG_SL_v1, SDR to HLG using Scene Light v1.0 • 3-NBCU_HLG2SDR_DL_v1.1, HLG to SDR using Display Light v1.1 • 4-NBCU_SDR2PQ_DL_v1, SDR UpMap to PQ using Display Light v1.0 • 5-NBCU_PQ2SDR_DL_v1, PQ to SDR using Display Light v1.0 • 7-NBCU_HLG10002PQ_v1, HLG 1000 Nits to PQ v1.0
User 3D LUT Processing	• Supports custom 33 point .cube format 3D LUTs • Tetrahedral LUT interpolation • Configurable Colorimetry, Transfer Characteristic, Signal Range • Nonvolatile storage of 16 fixed LUTs

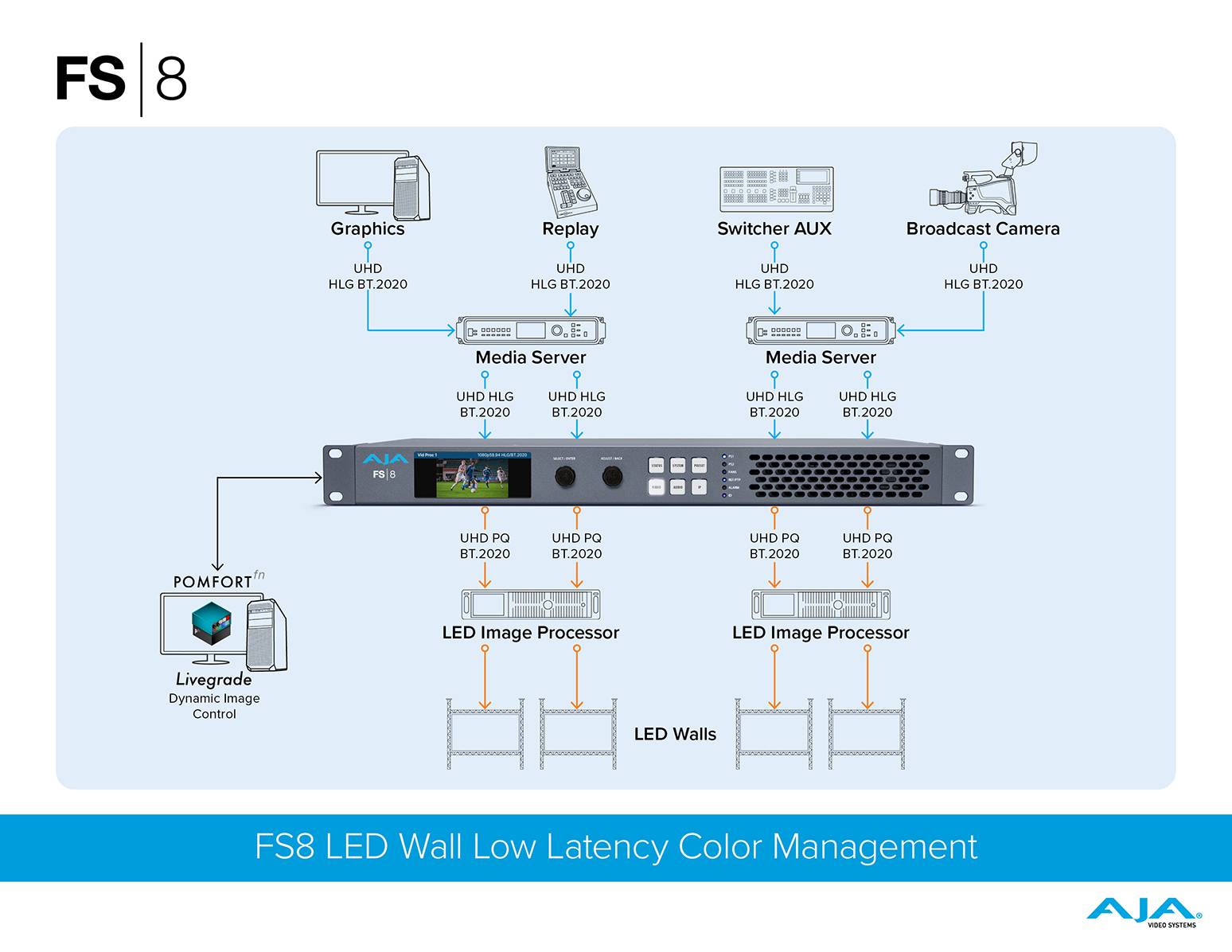

Dynamic 3D LUT Processing	• Supports third party apps for automatic loading and processing of 3D LUTs • Reflects dynamic changes in real time from source software • Supported by Pomfort Livegrade Pro
Video Formats	• (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 • (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30 • (HD) 1920x1080i 50, 59.94, 60 • (HD) 1280x720p 50, 59.94, 60

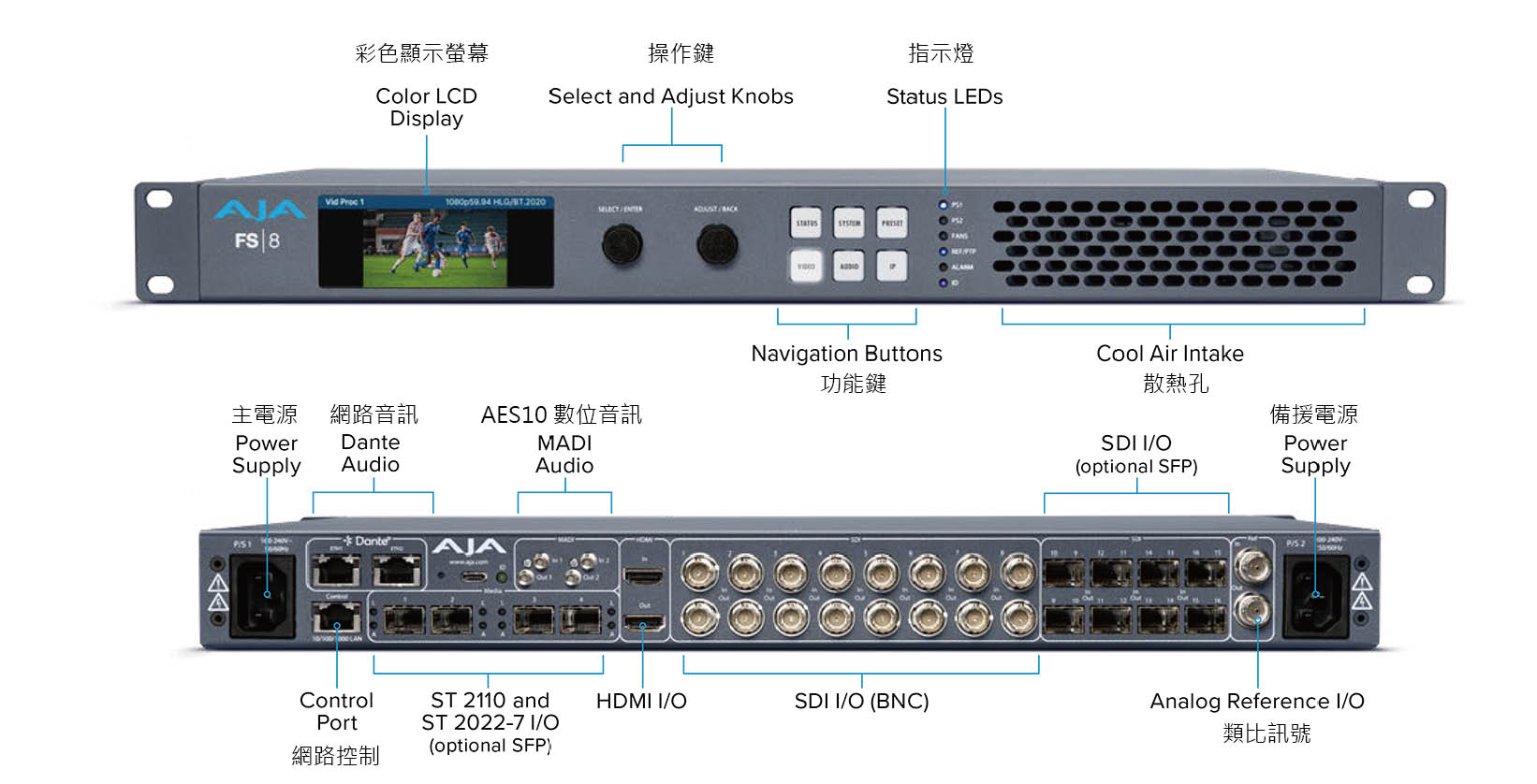

Video Inputs	8x 12G-SDI inputs, 8x BNC 12G/6G/3G/HD, SMPTE 292/424/2081/2082 YCbCr, 4:2:2, 10-bit Single Link 12G/6G-SDI Single Link 3G-SDI Level A, SMPTE 425 Single Link 1.5G-SDI 8x Fiber or HD-BNC (optional SFP modules) SFP coax module, 12G/6G-SDI, dual HD-BNC SFP fiber module, 12G/6G-SDI, Single Mode, dual LC or single LC, SMPTE 297 SFP fiber module, 3G-SDI, Single Mode, dual LC, single LC, or single SC, SMPTE 297 SFP fiber module, 3G-SDI, Multi-Mode, dual LC or single LC, SMPTE 297 4x UHD or 8x HD, SMPTE ST 2110-20 Video YCbCr 4:2:2 10-bit RX support for Class-A, B, C, D SMPTE ST 2022-7 redundancy Rx support for Narrow and Wide Senders
Video Outputs	8x 12G-SDI outputs 12G/6G/3G/HD, SMPTE 292/424/2081/2082 YCbCr, 4:2:2, 10-bit Single Link 12G/6G-SDI Single Link 3G-SDI Level A, SMPTE 425 Single Link 1.5G-SDI 8x Fiber or HD-BNC (optional SFP modules) SFP coax module, 12G/6G-SDI, dual HD-BNC SFP fiber module, 12G/6G-SDI, Single Mode, dual LC or single LC, SMPTE 297 SFP fiber module, 3G-SDI, Single Mode, dual LC, single LC, or single SC, SMPTE 297 SFP fiber module, 3G-SDI, Single Mode, dual LC, SMPTE 297  SFP fiber module, 3G-SDI, Multi-Mode, dual LC or single LC, SMPTE 297 4x UHD or 8x HD, SMPTE ST 2110-20 Video YCbCr 4:2:2 10-bit Tx support for SMPTE ST 2022-7 Tx senders are Narrow Gapped

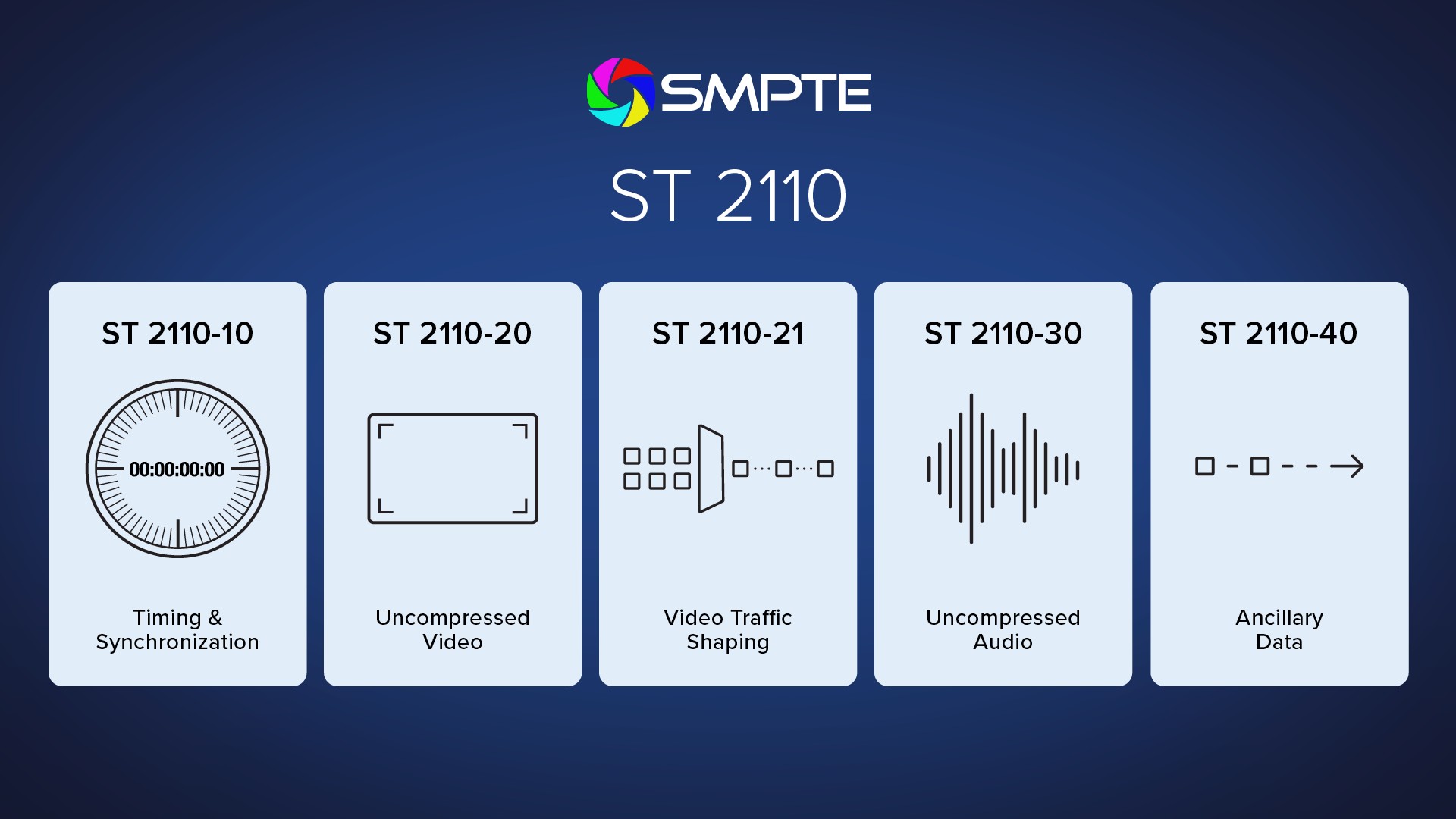

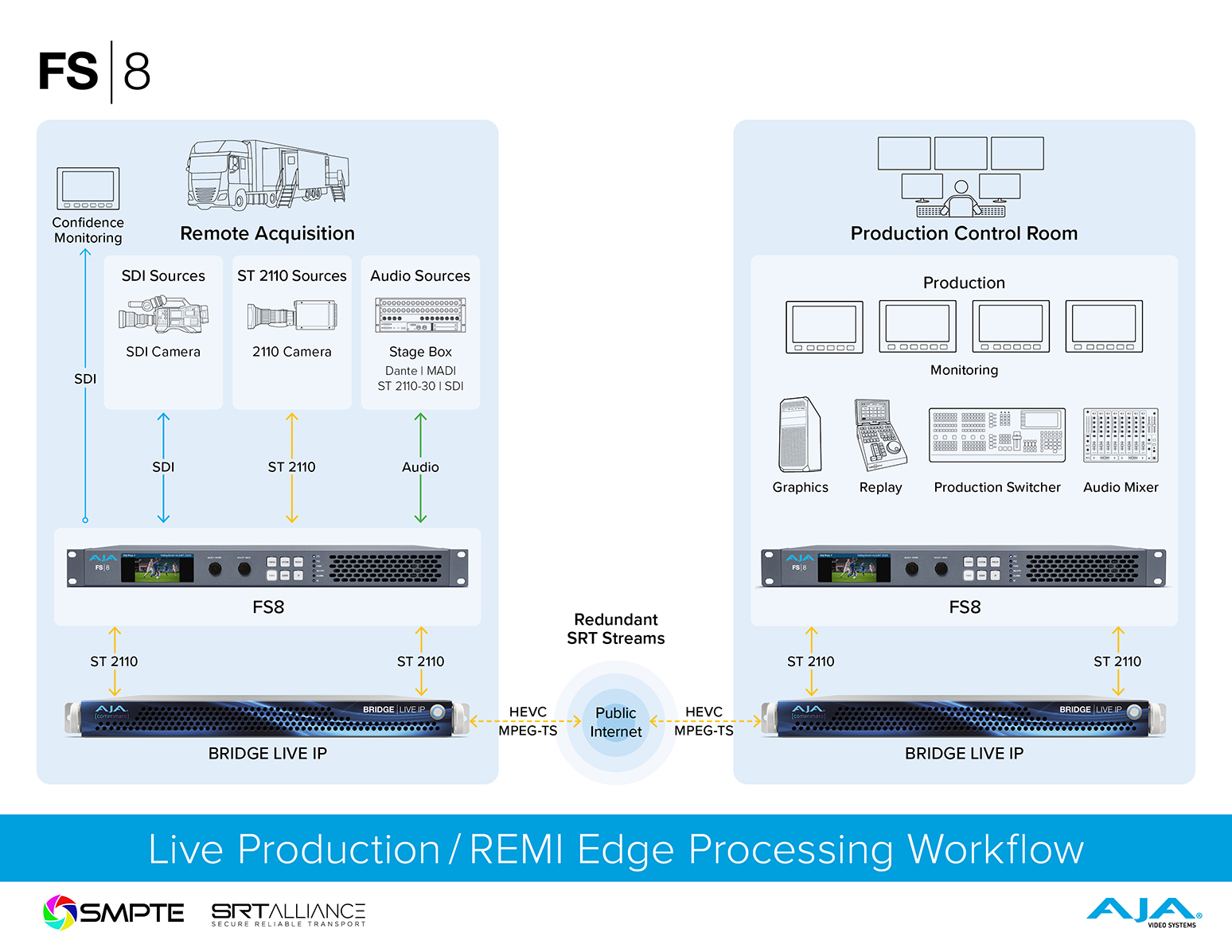

Media Interfaces (In-Band)	4x SFP28 Cages  Supports 10 GigE and 25 GigE SFPs (SFPs not included) Uncompressed media (SMPTE ST 2110-20, 30, 40) PTP NMOS Discovery, Registration, and Control NMOS Tx/Rx support according to standards IS-04 v1.3 and IS-05 v1.1 LLDP In-Band and Out-of-Band L2, L3 with SSM IGMP v2, v3

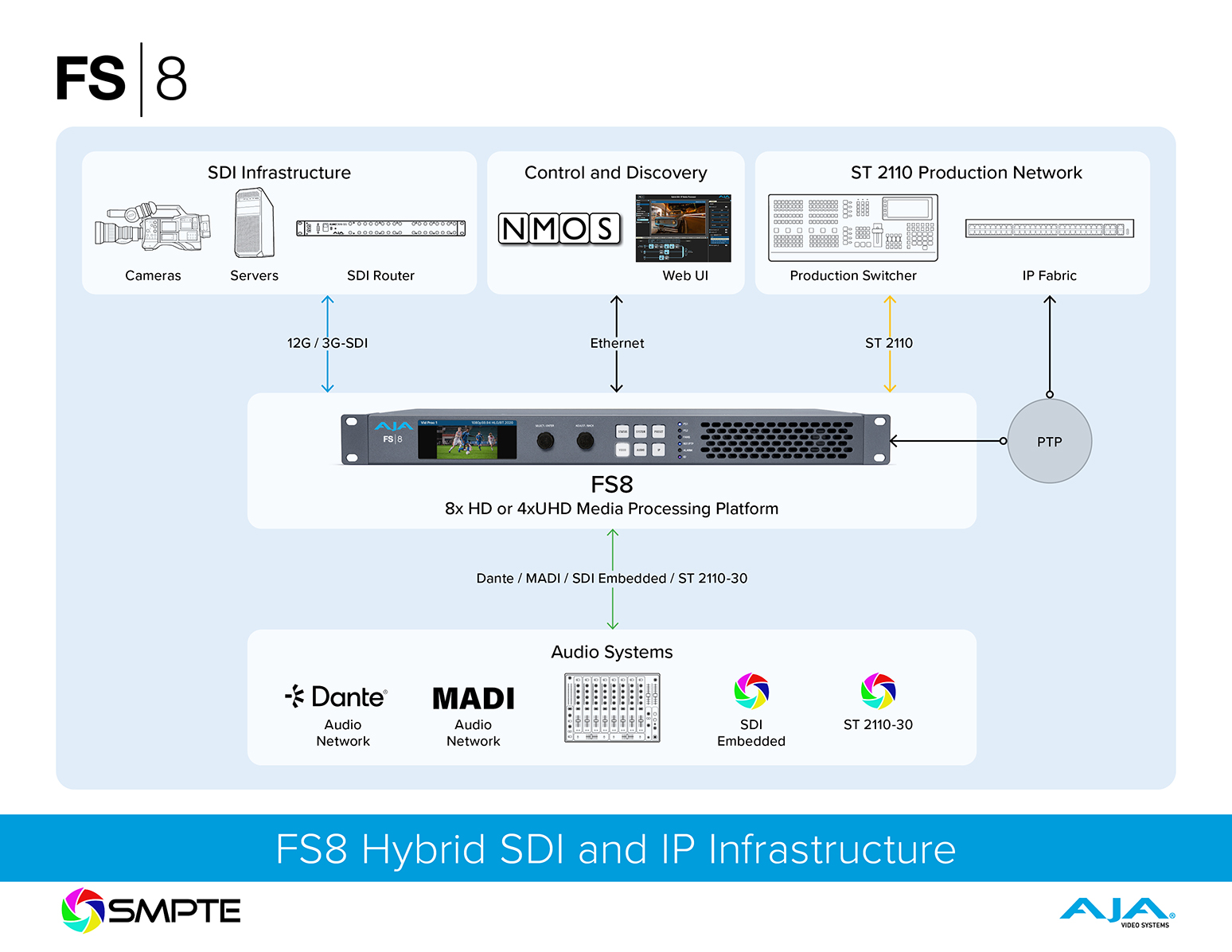

Operating Modes	• SDI Only Mode: Supports up to 16x16 12G-SDI (8x8 SDI BNC and 8x8 SDI SFPs, optical and HD-BNC) • Hybrid Mode 1: Supports mix of 8x8 12G-SDI BNC and ST 2110 • Hybrid Mode 2: Supports mix of 8x8 12G-SDI SFPs (optical and HD-BNC) and ST 2110
IP Gateway	• 8x HD (where "x" is a gateway in or out) • 4x UHD Examples: • 4+0, 2+2, 0+4 UHD (where 4+0 is 4 IP inputs to 4 UHD Vid Procs to 4 SDI and or IP outputs and 0 SDI to IP gateways) • 8+0, 4+4, 0+8 HD (where 8+0 is 8 IP inputs to 8 HD Vid Procs to 8 SDI and or IP outputs and 0 SDI to IP gateways)

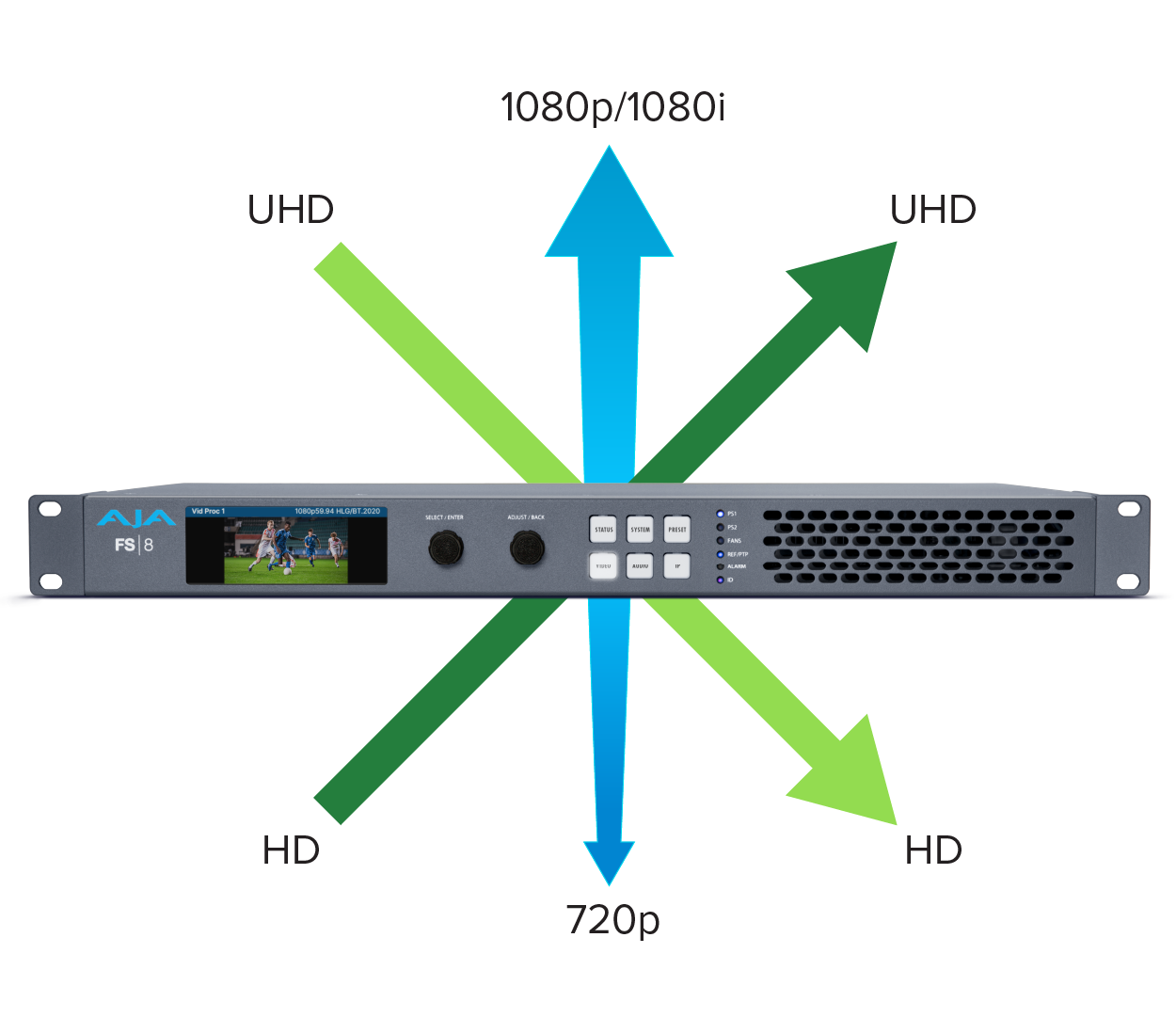

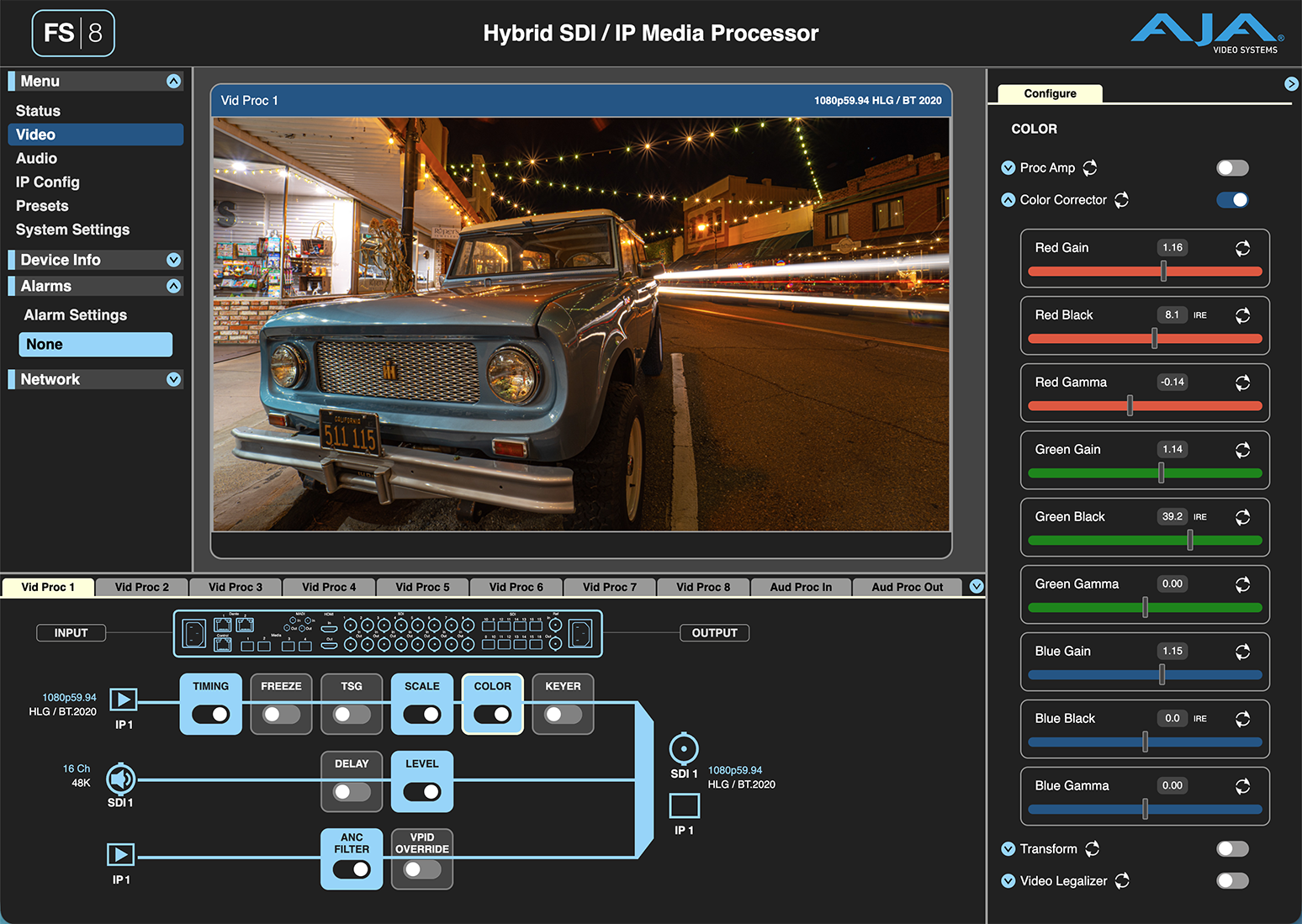

Video Processing	• Frame synchronization • Up, Down, Cross conversion • Frame rate conversion • Motion adaptive deinterlacer • Proc amp controls • Color corrector • Color transforms • Legalizer • Freeze (manual or on input signal loss) • Matte generator for background fill • Test signal generator, SDR and HDR patterns, moving box, text overlay • Nominal video delay 2 frames • Adjustable delay (0-30 frames UHD, 0-60 frames HD) with H and V timing controls in pixels and lines
Ancillary Data	• All embedded ANC packets pass-through when output format equals input format • Ancillary Timecode (LTC, VITC1, VITC2) pass-through for wide range of conversions • SCTE-104 and Closed Captioning pass-through for wide range of conversions • Configurable output VPID / SDP for Colorimetry, Transfer Characteristic, and Signal Range • SMPTE ST 2110-40 Ancillary
Scaling	• Supported in 4K/UltraHD/2K/HD formats • Zoom in and out • Reposition • Region of Interest (ROI) • Video processor layering, max 2
Audio Inputs	48 kHz sample rate 16x SDI embedded inputs (16-channels each) 128-channels, 24-bit, 48 kHz synchronous, SMPTE 299 4x UHD or 8x HD SMPTE ST 2110-30 Audio input streams 1x16, 2x8, 4x4 modes, up to 16-channels audio per stream, 24-bit, 48 kHz synchronous 1ms and 125us timing DANTE input, 2x RJ-45 (Primary and Secondary) 64-channels, 44.1kHz, 48kHz, 88.2kHz, 96kHz (Sample Rate Converted to 48 kHz) PCM 16, PCM 24, PCM 32 2x MADI inputs, (56 or 64-channels each), 2x HD-BNC 128-channels, 24-bit, AES-10
Audio Outputs	48 kHz sample rate 1x embedded output per Video Processor (16-channels each) 128-channels, 24-bit, 48 kHz synchronous, SMPTE 299 4x UHD or 8x HD ST 2110-30 Audio output streams 1x16, 2x8, 4x4 modes, up to 16-channels audio per stream, 24-bit, 48 kHz synchronous 1ms and 125us timing DANTE output, 2x RJ-45 (Primary and Secondary) 64-channels, 48kHz synchronous PCM 16, PCM 24, PCM 32 2x MADI outputs, 2x HD-BNC 128-channels, 24-bit, AES-10

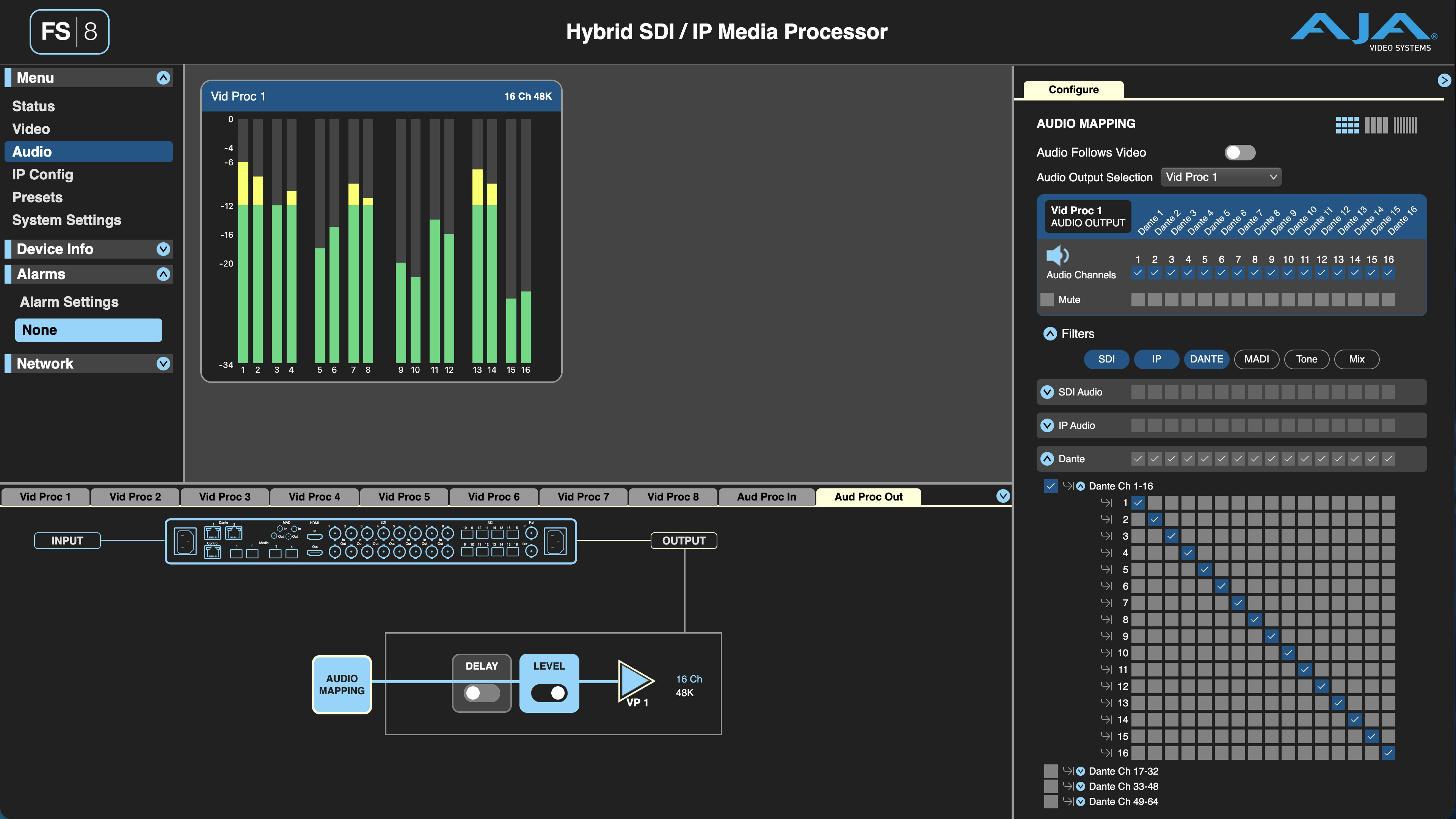

Audio Processing	459 x 448 mono audio matrix, route 1 to 1, 1 to many Inputs: 256 SDI embedded, 128 SMPTE 2110-30, 64 DANTE, 128 MADI, 4 stereo mixdowns (8-channels), 3 tone generators Outputs: 128 from Vid Procs (to SDI embedded and ST 2110-30 streams), 64 DANTE, 128 MADI Input adjustment controls for each channel Gain +18 to -18 dB in 0.5 dB steps Phase invert Input adjustment controls for each channel Delay 0sec to +0.25sec in 20.8 us steps Audio delay can automatically follow video timing delay adjustments Four independent 5.1 or 7.1 to stereo mixdown processors with gain adjust High quality Sample Rate Conversion supported on all audio inputs SRC bypass for non-PCM audio (e.g. Dolby E, AC-3, etc) Output adjustment controls for each channel Gain +18 to -18 dB in 0.5 dB steps Phase invert Output adjustment controls for each channel Delay 0sec to +2.5sec in 20.8 us steps Test signal generator (Silence, 400 Hz, 1 kHz) Audio group control
Analog Reference Input	External, 1x BNC • Blackburst or tri-level sync
Analog Reference Output	External, 1x BNC • Blackburst or tri-level sync • Configurable

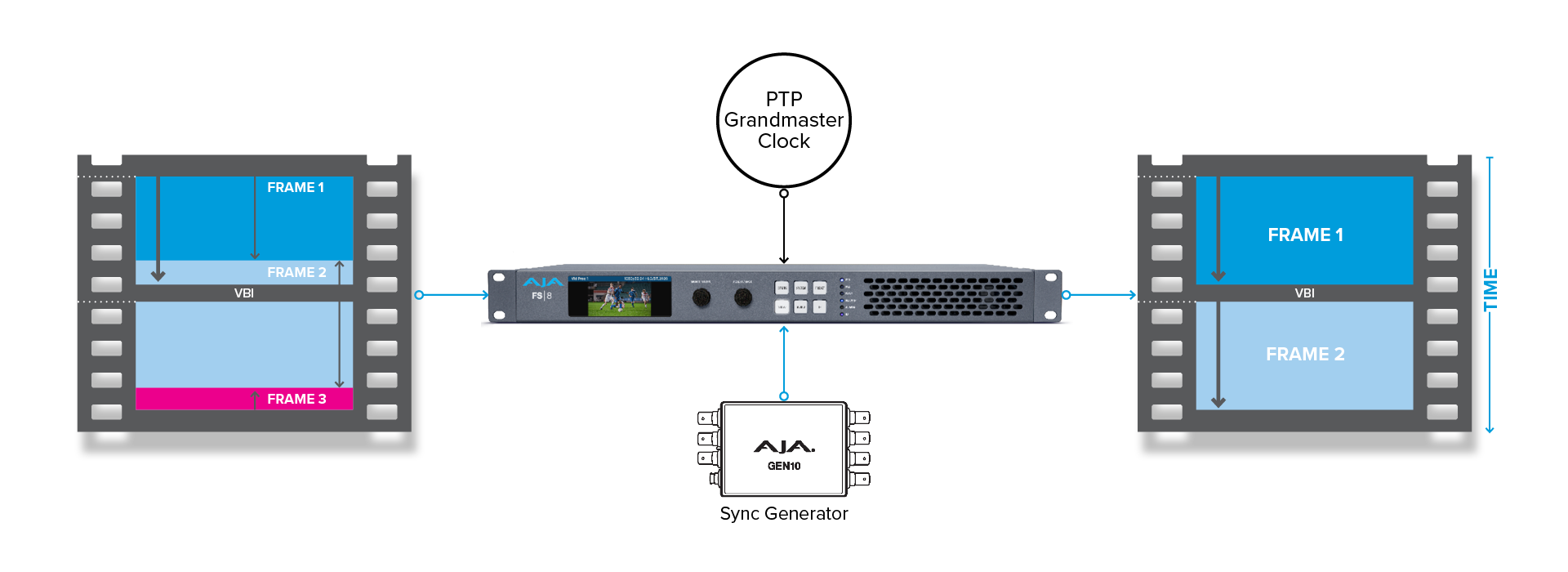

Genlock	• Analog Reference Input • PTPv2 SMPTE ST 2059-2 / IEEE 1588-2008 : In-Band only • Free run
Control Network Interfaces	1x RJ-45, 10/100/1000 Ethernet Embedded web server for remote control REST Interface 2x RJ-45, 10/100/1000 Ethernet DANTE Controller 4x SFP28 Media Interfaces NMOS Discovery, Registration, and Control

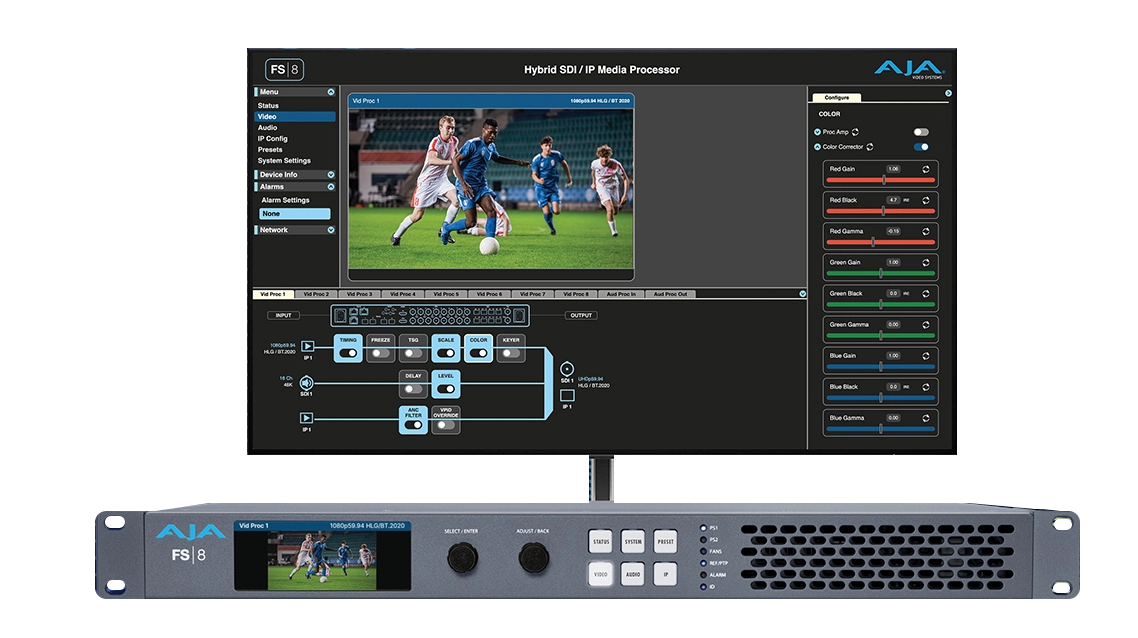

User Interfaces	• AJA webUI • DANTE Controller, Dante Domain Manager & Network Management Applications • Color LCD Display with backlit button keypad • Two rotary/push knobs • LED alarm indicators
Presets	System, Video Processor, Audio Processor, User 3D LUT, IP Config, and component levels within
Size (w x d x h)	17.5” x 16.0” x 1.75” (1RU) (444.5 x 406.4 x 44.45 mm)
Weight	7.9 lb (3.6 kg)
Power	100-240 VAC 50/60 Hz (Dual, redundant power supplies), 70W typical; 90W max.
Environment	• Safe Operating Temperature: 0 to 40 C (32 to 104 F) • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F) • Operating Relative Humidity: 10-90% noncondensing • Operating Altitude: <3,000 meters (<10,000 feet)
