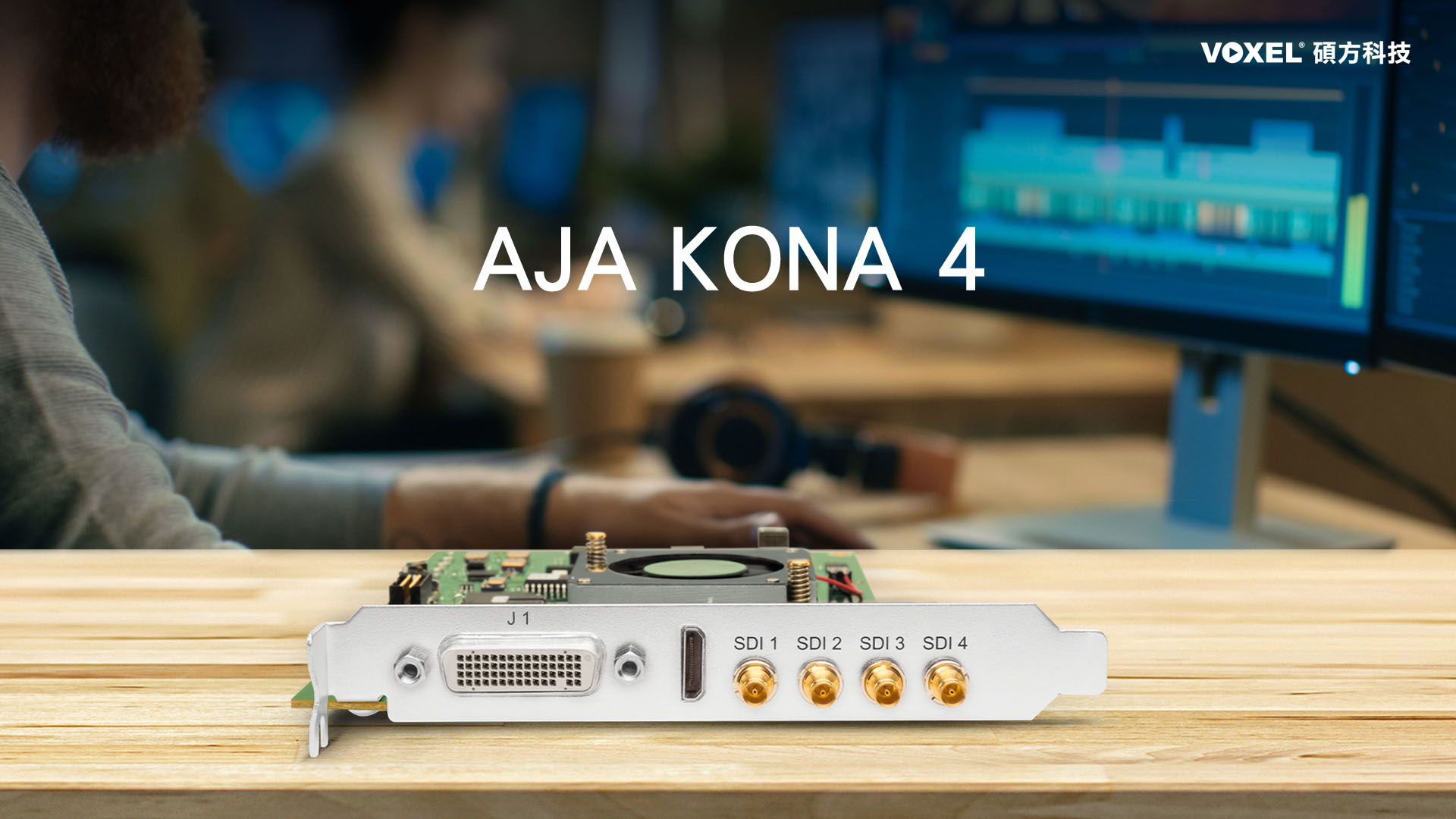

AJA KONA 4
I/O 影音介面卡
Powerful Integration. Professional Connectivity.

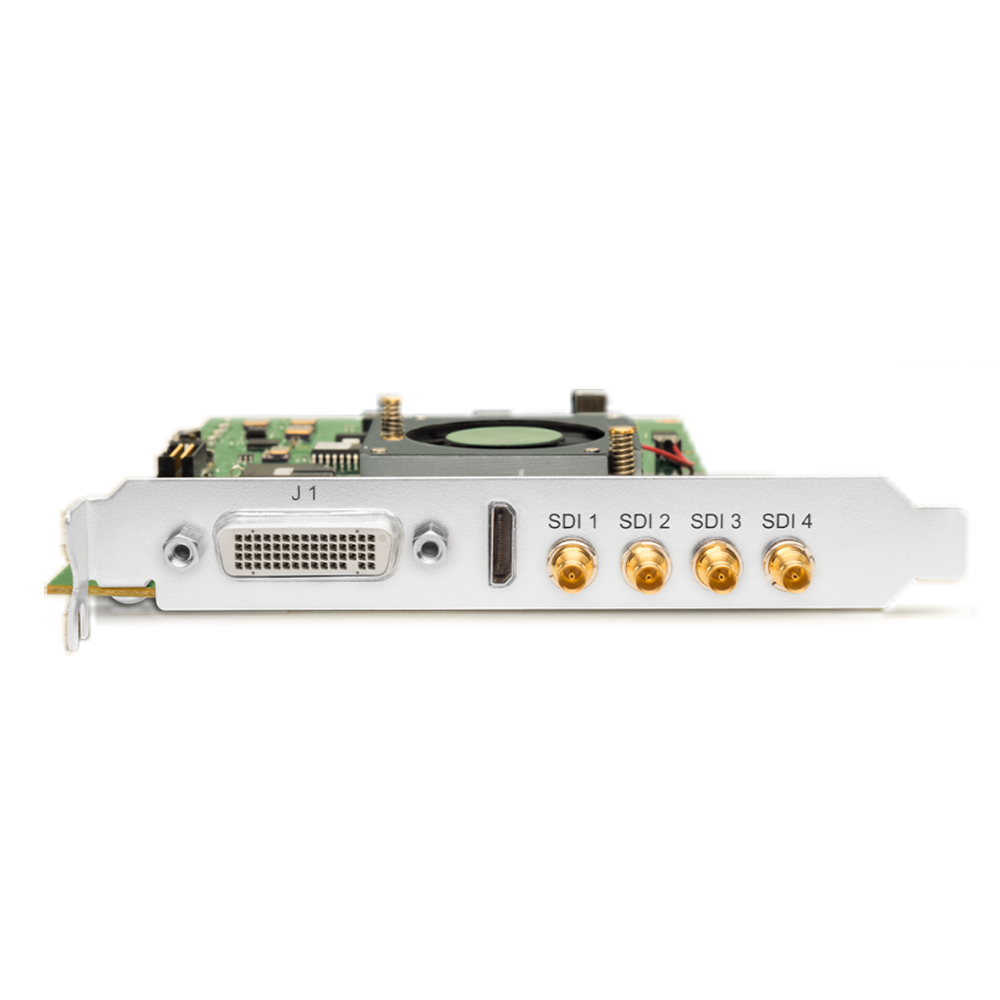

AJA KONA 4

AJA KONA 4 I/O 影音介面卡具有 4 通道視訊和音訊強大功能，支援 SD、HD、2K 和 4K，提供完整的 10 位元 4:2:2 和 4:4:4 格式，可處理 12 位元與高品質影像。具備 HDR 製作流程，支援 HDR10、HLG、PQ 和 Dolby Vision，能以 SDI/HDMI 傳送豐富的色彩。輕鬆整合 Adobe Premiere Pro、Apple Final Cut Pro、Avid Media Composer、FilmLight 等編輯製作。 KONA 4 擁有強大的功能，能滿足您今日及未來的工作需求。

產品特色

4K/UltraHD/2K/HD/SD up to 50/60p

4x bidirectional 3G-SDI spigots with 16-channel embedded audio

HDMI 1.4b monitoring with 8-channel embedded audio, plus 4K to HD downsampling

RGB 4:4:4 12-bit and YCbCr 4:2:2 10-bit HFR workflows supported

10-bit LUT support (.cube)

Real time up, down, cross-conversion (HD/SD)

4K Closed Caption Support

VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry, and Luminance via SDI

PQ, HLG, HDR10, and Dolby Vision Support

HDR Metadata Capture and Auto Playback Detection

Includes support for the Apple M1 chip

Compatible with OBS Studio, vMix, Telestream Wirecast, Adobe Creative Suite, Apple FCP, Avid Media Composer, and much more.

Includes support for Apple silicon

Included breakout cable for Ref (Analog or Tri-level), LTC, RS-422, 8-ch AES/EBU

Extend external connectivity with K3G-BOX breakout box

支援 HDR

HDR 或高動態範圍 (High Dynamic Range)，可提供比標準訊號更寬廣、更豐富的色彩範圍、更明亮的白色，以及更深、更暗的黑色。讓您的影像看起來更具「動感」，並讓您的觀眾感受到自然逼真的色彩。 KONA 4 HDR 製作流程能以 AJA 控制室應用程式與搭配的控制面板，應用完整的 HDR 功能。

支援 Apple 晶片

AJA 控製軟體針對最新的 Apple 晶片進行了優化，支援 AJA macOS 驅動程式。

支援多平台

KONA 支援 macOS, Windows, 與 Linux Ubuntu / Rocky.

相容主流編輯軟體

AJA KONA 4 提供與主流製作應用軟相容的工作流程，整合相關製作、後製和傳送。

支援 4K CC 隱藏字幕 Closed Captioning

AJA Control Room software

Supports CEA-608 or 608-in-708 via ANC extraction firmware.

Supplied Avid & Adobe Plugins

All SMPTE-291 (ANC) based captions supported.

Adobe Premiere Pro supports native 708 if the raw data is available. For instance in the Adobe plug-ins we handle the case where Premiere hands us full 708 data, we just pass it through to the device.

Avid Media Composer supports active video ANC (line 21) or ANC via ANC extractor/inserter (up to UltraHD/4K).

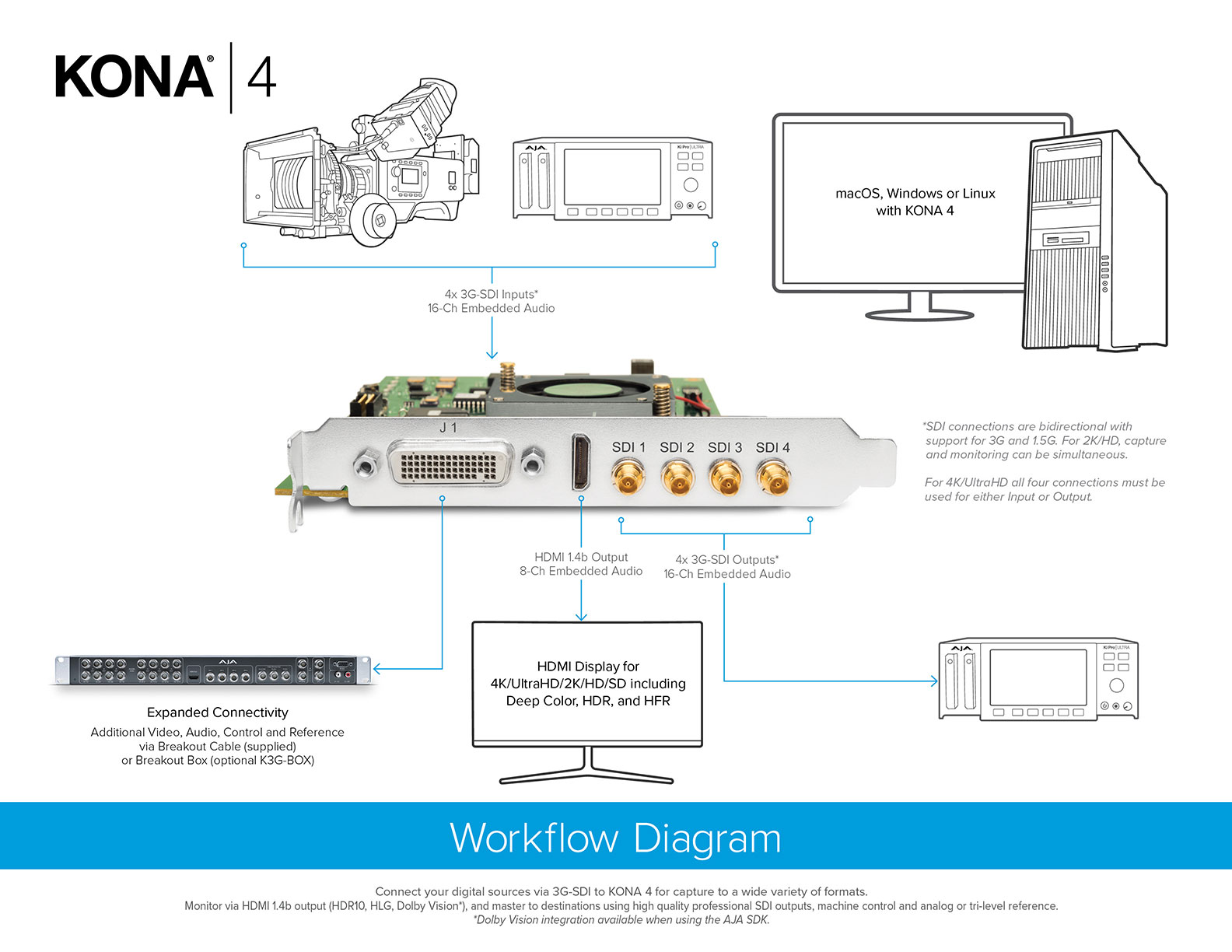

AJA KONA 4 視訊製作流程架構圖

KONA 4 Production Workflow

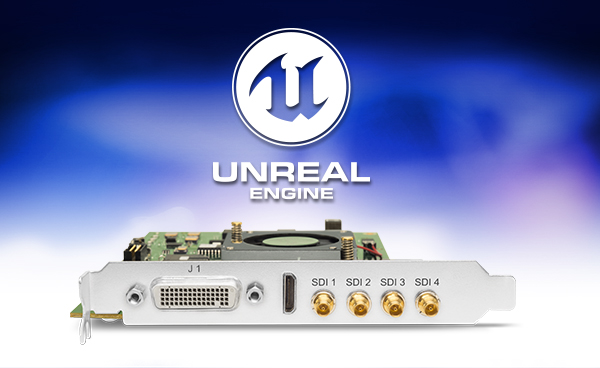

KONA 4 Support with Unreal Engine

產品規格

📹AJA KONA 4 I/O 影音介面卡

AJA KONA 4

SDI Video Formats

(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(2K) 2048 x 1080PsF 23.98, 24, 25
(HD) 1080i 50, 59.94, 60
(HD) 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 720p 23.98*, 24*, 25*, 29.97*, 30*, 50, 59.94, 60
(SD) 625i 50
(SD) 525i 23.98*, 59.94

*These formats are dependent on specific software functionality and are not normal over the wire formats.

Video Input Digital

3G-SDI, SMPTE 425
- RGB 4:4:4 12-bit*, YCbCr 4:2:2 10-bit
1.5G-SDI, SMPTE 292M
- Single Link HD-SDI YCbCr 4:2:2 10-bit
- Dual Link RGB 4:4:4 12-bit*, Dual Link YCbCr 4:2:2 10-bit
270 Mbps SDI, SMPTE 259M-C
- YCbCr 4:2:2 10-bit, 8-bit

*Bit depth support is application dependent. Check with your software manufacturer for compatibility.

Video Output Digital

3G-SDI, SMPTE 425
- RGB 4:4:4 12-bit*, YCbCr 4:2:2 10-bit
1.5G-SDI, SMPTE 292M
- Single Link HD-SDI YCbCr 4:2:2 10-bit
- Dual Link RGB 4:4:4 12-bit*, Dual Link YCbCr 4:2:2 10-bit
270 Mbps SDI, SMPTE 259M-C
- YCbCr 4:2:2 10-bit, 8-bit
HDMI v1.4b
- 30/36-bits/pixel, RGB or YUV, 2.25 Gbps
- 2K, HD, and SD with HFR support up to 60p 4:2:2 10-bit
- 4K/UltraHD with LFR support up to 60p 4:2:2 10-bit and HFR support up to 60p 4:2:0 8-bit

*Bit depth support is application dependent. Check with your software manufacturer for compatibility.

HDR

SDI: VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and Luminance
HDMI: HDR10 Support - HDR Infoframe metadata, compatible with HDMI 2.0a/CTA-861.3
HDMI: HLG Support - compatible with HDMI 2.0b/CTA-861-G

Note: HDR support is application dependent. Check with your software manufacturer for compatibility.

Video Output Analog

Composite/S-Video (Y/C) (1x BNC/2 x BNC+adapter)
NTSC, NTSCJ, PAL
Component (3x BNC)
HD: YPbPr, RGB
SD: YPbPr, RGB (component mode)
SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
12-bit D/A, 8x oversampling
+/- .2 dB to 5.0 MHz Y frequency response
+/- .2 dB to 1 MHz C frequency response
5% 2T pulse response
<1% Diff Phase
<1% Diff Gain
<1% ns Y/C delay inequity

Audio Input Digital

16-channel, 16 and 24-bit SDI embedded audio, 48 kHz sample rate, synchronous
16-channel, 16 and 24-bit AES/EBU audio, 48 kHz sample rate, synchronous (via 8x BNC on optional K3G-Box)
8-channel, 16 and 24-bit AES/EBU audio, 48 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (via 4x BNC on breakout cable)

Audio Output Digital

16-channel, 16 and 24-bit SDI embedded audio, 48 kHz sample rate, synchronous
16-channel, 16 and 24-bit AES/EBU audio, 48 kHz sample rate, synchronous (via 8x BNC on optional K3G-Box)
8-channel, 16 and 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous
8-channel, 16 and 24-bit AES/EBU audio, 48 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (via 4x BNC on breakout cable)

Downstream Keyer

Supports graphics up to 2K/HD with alpha channel over video, matte or framebuffer, or framebuffer content over incoming video or matte

SD to SD Aspect Ratio Conversion

Letterbox: This transforms SD anamorphic material to a letterboxed image
H Crop: Will produce a horizontally stretched effect on the image; transforms anamorphic SD to full frame
SD Pillarbox: Will produce an image in the center of the screen with black borders on the left and right sides and an anamorphized image in the center
V Crop: Will transform SD letterbox material to an anamorphic image

Timecode

LTC timecode input and output (via 1x BNC each)

Reference Input

Analog Color Black (1V) or Composite Sync (2 or 4V) or HD Tri-Level Sync (1V) (via breakout cable or optional K3G-Box)
Reference input is terminated into 75 ohms when Genlock is set to Ref In on optional K3G-Box, also terminated on supplied breakout cable.

Electrical Interface

8-lane PCIe 2.0

Machine Control

RS-422, Sony 9-pin protocol (via breakout cable or optional K3G-Box)
9-pin D-connector pinout is as follows:

1	GND
2	RX-
3	TX+
4	GND
5	No Connection
6	GND
7	RX+
8	TX-
9	GND
Shell	GND

Size (w x d x h)

0.75" x 6.9" x 5.0" (19.05 x 175.26 x 127.00 mm)

Weight

0.7 lb (0.4 kg)

Power

22W typical, 24W maximum

Environment

Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)
