AJA KONA 5
I/O 影音介面卡
Next Generation Video I/O with Streaming DMA

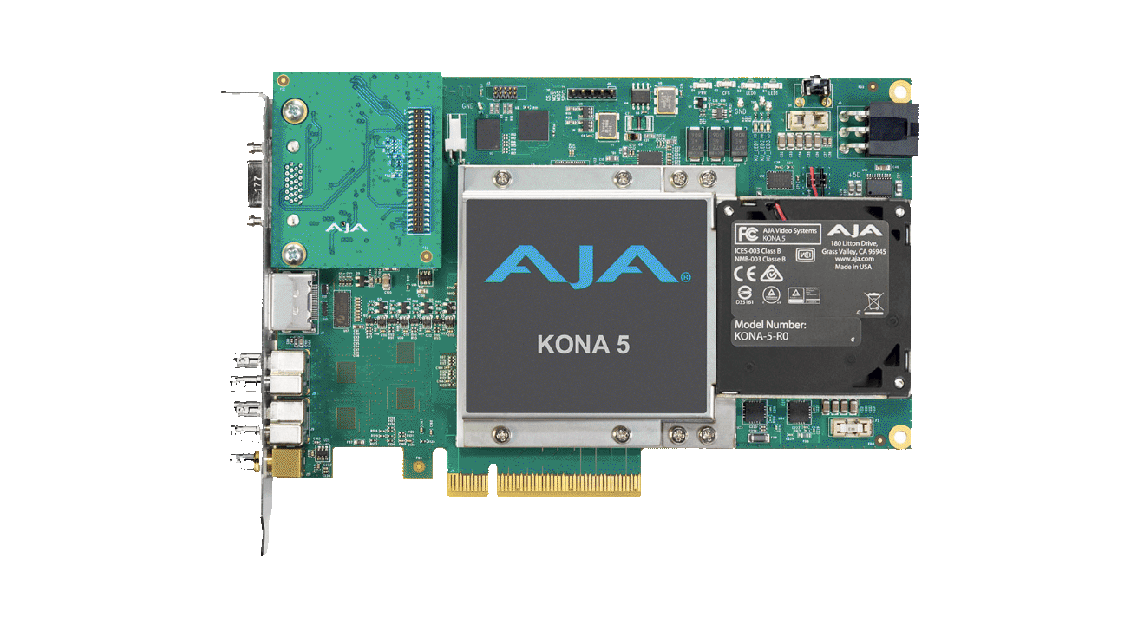

AJA KONA 5

AJA KONA 5 視訊 I/O 影音介面卡具有的超快 8 通道 PCIe 3.0 I/O，強大的功能協助您掌控最具挑戰性的影音專案。無論您是處理 HFR 8K/UltraHD2、4K/UltraHD、2K/HD、SD、Deep Color 和/或 HDR，都能體驗 KONA 5 為您的世界帶來的高品質與安心。 KONA 5 支援 4:2:2、10bits 4:2:2 和 4:4:4、12bits 色彩空間，可提供純淨的影像，靈活地使用 12G-SDI 進行攝取和輸出，使用標準 HDMI 2.0 連接埠進行監控。雙向的 12G-SDI 連接埠提供擷取與同步傳輸的極大靈活性，搭配適當的軟體，可進行多頻道擷取與串流，並向後相容於 6G/3G/HD-SDI。 KONA 5可與AJA的Control Room和Control Panel軟體搭配使用，其強大的驅動程式和應用外掛程式可支援領先的內容製作應用程式，例如 Adobe Premiere Pro、Apple Final Cut Pro、Avid Media Composer、FilmLight、OBS Studio、vMix等。 KONA 5也相容於AJA多平台且廣為開發者採用的SDK。對於 HDR 工作流程，KONA 5 支援 HDR10、HLG、PQ 和 Dolby Vision，可透過 SDI 和/或 HDMI 傳送豐富的色彩。KONA 5 能滿足您當前和未來的工作需求

產品特色

8K/UltraHD2/4K/UltraHD/2K/HD/SD up to 50/60p

4x bidirectional 12G-SDI connections with 16-channel embedded audio

HDMI 2.0 output, 4K/UltraHD HFR, plus 8K to 4K downsampling

RGB 4:4:4 12-bit (4K/UltraHD) workflows supported

YCbCr 4:2:2 10-bit and HFR workflows supported

Up to 12-bit LUT support (.cube)

8K support for Apple Final Cut Pro, Adobe Premiere Pro and Avid Media Composer and much more

Multi-Channel support with OBS Studio, vMix and Telestream Wirecast

8K or multi-channel 4K support for OEM applications with AJA SDK

Dynamic FPGA Firmware Reconfiguration for quick mode changes

4K Closed Caption Support

VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and Luminance via SDI

PQ, HLG, HDR10 and Dolby Vision Support

HDR Metadata Capture and Auto Playback Detection

Includes support for the latest Apple silicon

Reference Input on card (Analog black burst or Tri-level)

Included breakout cable for LTC, RS-422, 8-ch AES/EBU

支援 HDR NLE / VFX 軟體

AJA Desktop Software 支援許多第三方專業視訊軟體應用程式的 HDR 功能，包括 Adobe Premiere Pro、Apple Final Cut Pro 和 Avid Media Composer。以 HLG、PQ、HDR10 工作流程的優勢，快速整合 709、BT2020 與 DCI-P3 各種色彩體系。

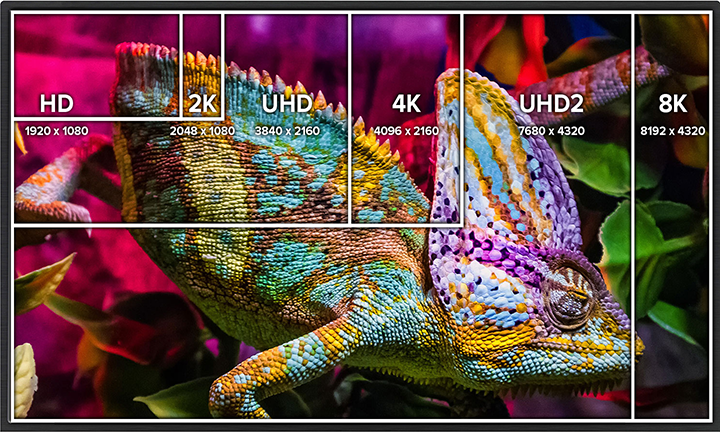

KONA 5 支援 8K 播放與擷取

KONA 5 釋放新一代 8K 擷取與播放的能力，提供性價比更高的製作方式。提供 Windows、Linux 或 macOS 平台，擷取 8K 的製作能力，立即搭配您的 NLE 或其他應用程式，快速編輯使用。

支援 Apple 晶片

AJA 控製軟體針對最新的 Apple 晶片進行了優化，支援 AJA macOS 驅動程式。

KONA 5 支援多平台

KONA 支援 macOS, Windows, 與 Linux Ubuntu / Rocky.

KONA 5 相容主流編輯軟體

AJA KONA X 提供與主流製作應用軟相容的工作流程，整合相關製作、後製和傳送。

支援 4K CC 隱藏字幕 Closed Captioning

AJA Control Room software

Supports CEA-608 or 608-in-708 via ANC extraction firmware.

Supplied Avid & Adobe Plugins

All SMPTE-291 (ANC) based captions supported.

Adobe Premiere Pro supports native 708 if the raw data is available. For instance in the Adobe plug-ins we handle the case where Premiere hands us full 708 data, we just pass it through to the device.

Avid Media Composer supports active video ANC (line 21) or ANC via ANC extractor/inserter (up to UltraHD/4K).

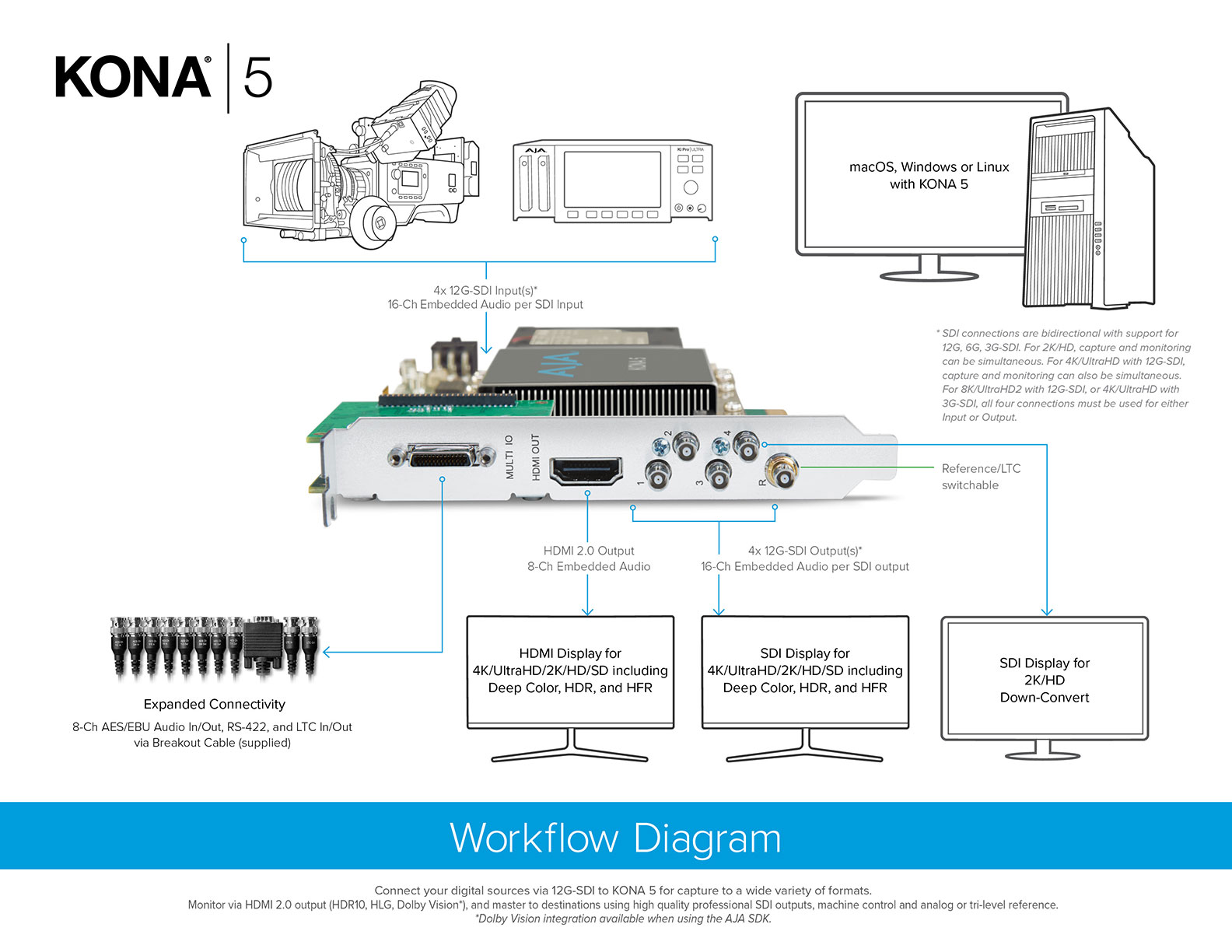

AJA KONA 5 視訊製作流程架構圖

KONA 5 Production Workflow

KONA 5 Support with Unreal Engine

產品規格

📹AJA KONA 5 I/O 影音介面卡

AJA KONA 5

SDI Video Formats

(8K) 8192 x 4320p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(UltraHD2) 7680 x 4320p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(2K) 2048 x 1080PsF 23.98, 24, 25
(HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1080i 50, 59.94, 60
(HD) 720p 50, 59.94, 60
(SD) 625i 50
(SD) 525i 59.94

Note: High Frame Rate and 8K/UltraHD2 capabilities are dependent on host system attributes. Not all systems and configurations will support all frame rates and raster sizes.

Video Inputs Digital

12G-SDI, SMPTE-2082, 12-bit*, 10-bit
6G-SDI, SMPTE-2081, 10-bit
3G-SDI, SMPTE 425
- RGB 4:4:4 12-bit*, YCbCr 4:2:2 10-bit
1.5G-SDI, SMPTE 292M
- Single Link HD-SDI YCbCr 4:2:2 10-bit
- Dual Link RGB 4:4:4 12-bit*, Dual Link YCbCr 4:2:2 10-bit
270 Mbps SDI, SMPTE 259M-C
- YCbCr 4:2:2 10-bit, 8-bit

*Bit depth support is application dependent. Check with your software manufacturer for compatibility.
Note: KONA 5 SDI connectors are HD BNC

Video Outputs Digital

12G-SDI*, SMPTE-2082, 12-bit*, 10-bit
6G-SDI*, SMPTE-2081, 10-bit
3G-SDI, SMPTE 425
- RGB 4:4:4 12-bit*, YCbCr 4:2:2 10-bit
1.5G-SDI, SMPTE 292M
- Single Link HD-SDI YCbCr 4:2:2 10-bit
- Dual Link RGB 4:4:4 12-bit*, Dual Link YCbCr 4:2:2 10-bit
270 Mbps SDI, SMPTE 259M-C
- YCbCr 4:2:2 10-bit, 8-bit
HDMI v2.0
- 30/36-bits/pixel, RGB or YUV, 6 Gbps per color component
- 4K, UltraHD, 2K, HD, and SD with HFR support up to 60p (4:2:2), 10-bit

*Bit depth support is application dependent. Check with your software manufacturer for compatibility.
Note: KONA 5 SDI connectors are HD BNC

HDR

SDI: VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and Luminance
HDMI: HDR10 Support - HDR Infoframe metadata, compatible with HDMI 2.0a/CTA-861.3
HDMI: HLG Support - compatible with HDMI 2.0b/CTA-861-G

Note: HDR support is application dependent. Check with your software manufacturer for compatibility.

SDI I/O

SDI connections are bidirectional
- 2K/HD, capture and monitoring is simultaneous
- 4K/UltraHD with 12G-SDI, capture and monitoring is simultaneous.
- 4K/UltraHD with 3G-SDI, all four connections must be used for either Input or Output.
- 8K/UltraHD2 with 12G-SDI, connections must be used for either Input or Output.

Note: When connections are configured for 12G-SDI or 6G-SDI, only UltraHD/4K/UltraHD2/8K formats are supported.

Audio Inputs Digital

16-channel, 24-bit SDI embedded audio, 48 kHz sample rate, synchronous• 8-channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous
8-channel, 16 and 24-bit AES/EBU audio, 48 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (via 4x BNC on breakout cable )

Audio Outputs Digital

16-channel, 24-bit SDI embedded audio, 48 kHz sample rate, synchronous
8-channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous
8-channel, 16 and 24-bit AES/EBU audio, 48 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (via 4x BNC on breakout cable)

Audio Output Analog

2-channel, 24-bit D/A analog audio, 48 kHz sample rate, balanced, using 2x XLR
+24 dBu full scale digital (0 dBFS)
+/- 0.2 dB 20 to 20 kHz frequency response
Note: Requires the optional KONA Xpand card

Downstream Keyer

Supports graphics up to 2K/HD with alpha channel over video, matte or framebuffer, or framebuffer content over incoming video or matte

Reference

Analog Color Black (1V) or Composite Sync (2 or 4V) or HD Tri-Level Sync (1V)
Reference input is terminated into 75 ohms when Genlock is set to Ref In

Timecode

LTC timecode input and output (via 2x BNC on breakout cable)
LTC timecode input (via 2-pin header on PCIe card)
LTC timecode input (via HD-BNC at PCIe bracket)

Electrical Interface

8-lane PCIe 3.0

Machine Control

RS-422, Sony 9-pin protocol
9-pin D-connector pinout is as follows:

1	GND
2	RX-
3	TX+
4	GND
5	No Connection
6	GND
7	RX+
8	TX-
9	GND
Shell	GND

Note: Available via optional KONA Xpand card, or via customer supplied breakout connection to internal card

Noise

<50dBA (A-weighted at 1m in free air)

Size (w x d x h)

0.75" x 6.9" x 5.0" (19.05 x 175.26 x 127.00 mm)

Weight

PCIe Card: 0.6 lbs (0.3 kg))
Cables (all combined): 1.3 lbs (0.6 kg)

Power

28W typical, 35W maximum via ATX power.
PC Internal ATX Power Connector (Molex p/n 45559-0002)

Note: Unlike other KONA cards, KONA 5 uses PCIe power from a 6 pin ATX connector, rather than the PCIe slot.

Environment

Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)
