AJA KONA IP25
I/O 影音介面卡
SMPTE ST 2110 Uncompressed IP I/O

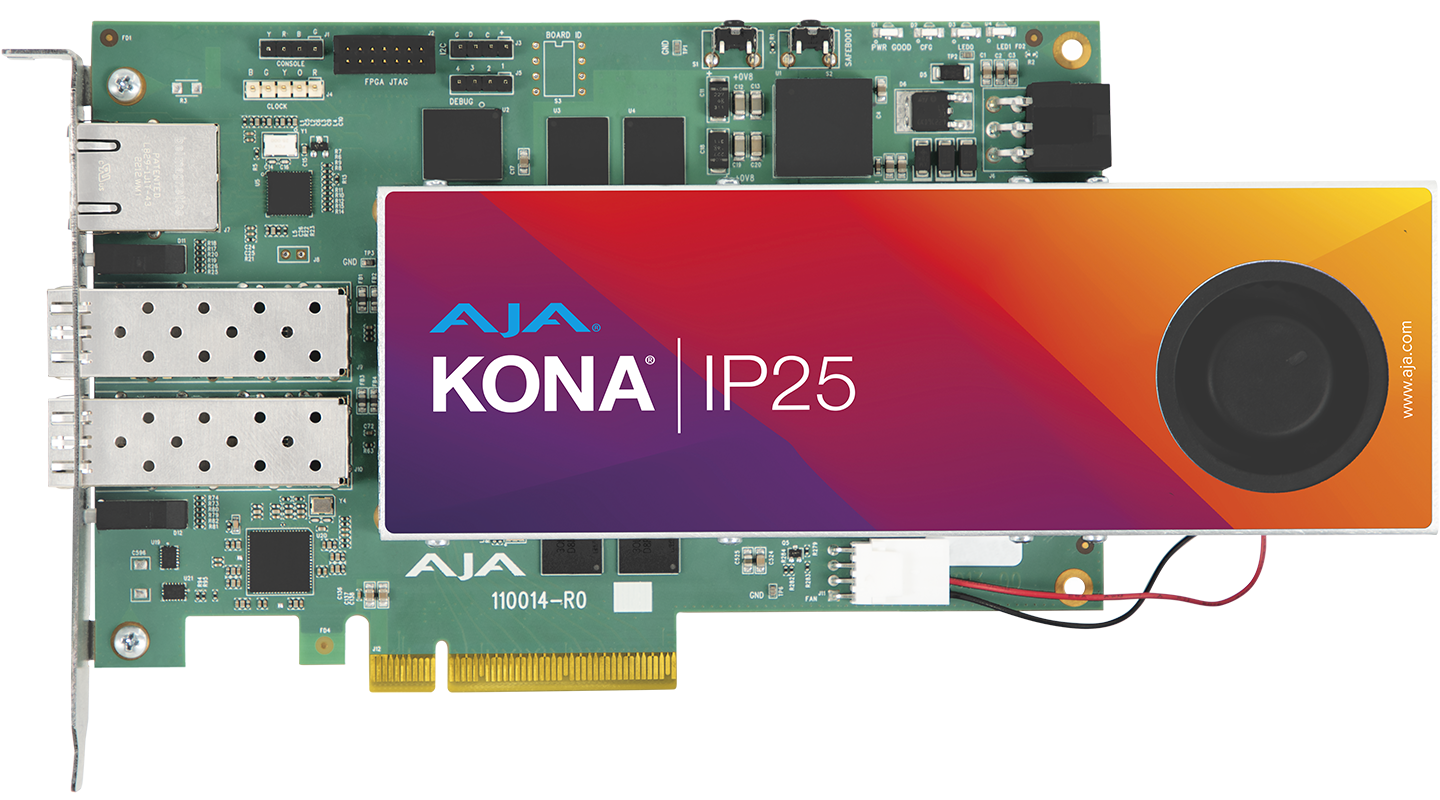

AJA KONA IP25

AJA KONA IP25 I/O 影音介面卡以 AJA 專業技術、功能、品質和可靠性為基礎，專為 SMPTE ST 2110 製作流程而設計。KONA IP25 提供靈活的視訊和音訊 I/O 平台，可支援 SMPTE ST 2110 4K/UltraHD、2022-6 2K/HD 與 2022-7 備援技術實用製作架構。隨著 IP 視訊的普及， KONA IP25 具有各種必要的製作技術。桌上型電腦 KONA IP 支援 Apple FCPX、Adobe Premiere Pro CC、Avid Media Composer、AJA Control Room以及其他領先的編輯、特效和製作工具。對於創意使用者而言，使用喜愛的應用程式的體驗維持不變，僅在設定擷取或輸出時與創意使用者習慣使用的 AJA 控制面板有些差異。對開發人員而言，用於SDI和HDMI設備的AJA SDK同樣適用於KONA IP25，這意味著使用這款功能強大的PCIe擷取和輸出卡編寫應用程式和創建系統時不會有任何延遲。

產品特色

ST 2110-20 Video: Supports up to 4 Rx and 4 Tx simultaneously

10-bit 4:2:2 up to 3840x2160p

12-bit 4:4:4 up to 2048x1080p (Future Firmware)

SDR/HDR support for Transfer Characteristics, Colorimetry, and Luminance via SDP file

ST 2110-30 Audio: Supports up to 4 Rx and 4 Tx simultaneously

Up to 16 channels of audio per stream

ST 2110-40 Ancillary: Supports up to 4 Rx and 4 Tx simultaneously

ST 2022-7 redundancy

ST 2059-2 (PTPv2) accessed only via media network SFPs

LLDP (Link Layer Description Protocol)

DNS SD (service discovery)

In-Band / media network (via SFPs): PTPv2/ST2059-2, control via NMOS

Out-of-band / management network (via 1 GigE RJ-45): control via NMOS

Single slot 8-lane PCIe 4.0, Full height

2x SFP cages supports 10 GigE or 25 GigE SFPs*

macOS, Windows, and Linux Support

KONA IP25: SMPTE ST 2110 I/O 標準

KONA IP25 支援 ST 2110 架構標準:

ST 2110-10 (System Timing)

ST 2110-20 (Uncompressed video)

ST 2110-21 (Traffic shaping for Uncompressed Video)

ST 2110-30 (PCM Audio)

ST 2110-40 (Ancillary Data)

Further, the KONA IP25 supports ST 2022-7 for both Rx and Tx via the dual 25G SFPs to provide hitless redundancy and ensure peace of mind for broadcast ingest and playout scenarios.

支援 Apple 晶片

AJA 控製軟體針對最新的 Apple 晶片進行了優化，支援 AJA macOS 驅動程式。

KONA IP25 支援多平台

KONA IP25 支援 macOS, Windows, 與 Linux Ubuntu / Rocky.

KONA IP25 相容主流編輯軟體

AJA KONA IP25 可相容您日常的編輯工具，支援最廣泛的創意和工作流程應用程式。

AJA KONA IP25 視訊製作流程架構圖

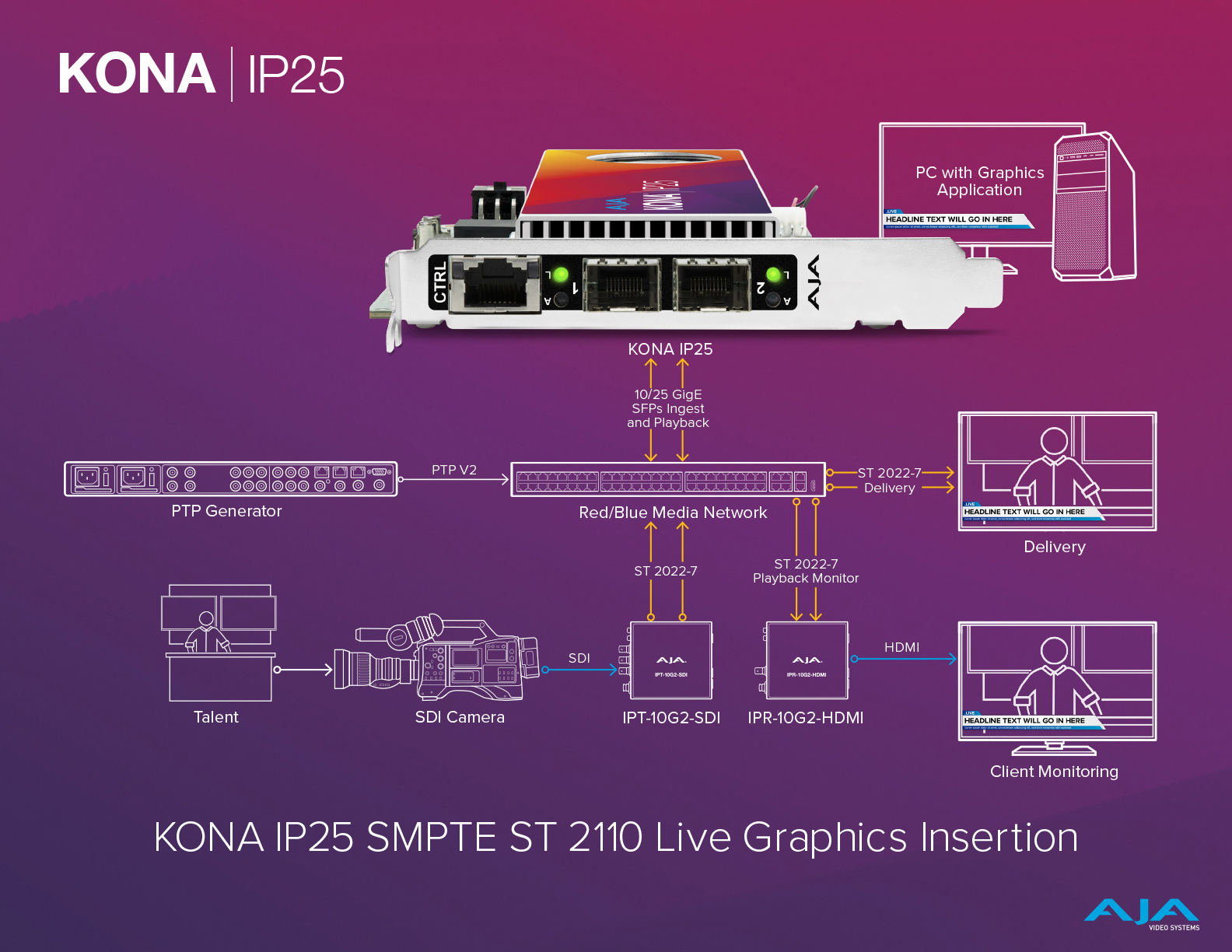

KONA IP25 SMPTE ST 2110 Live Graphics Insertion

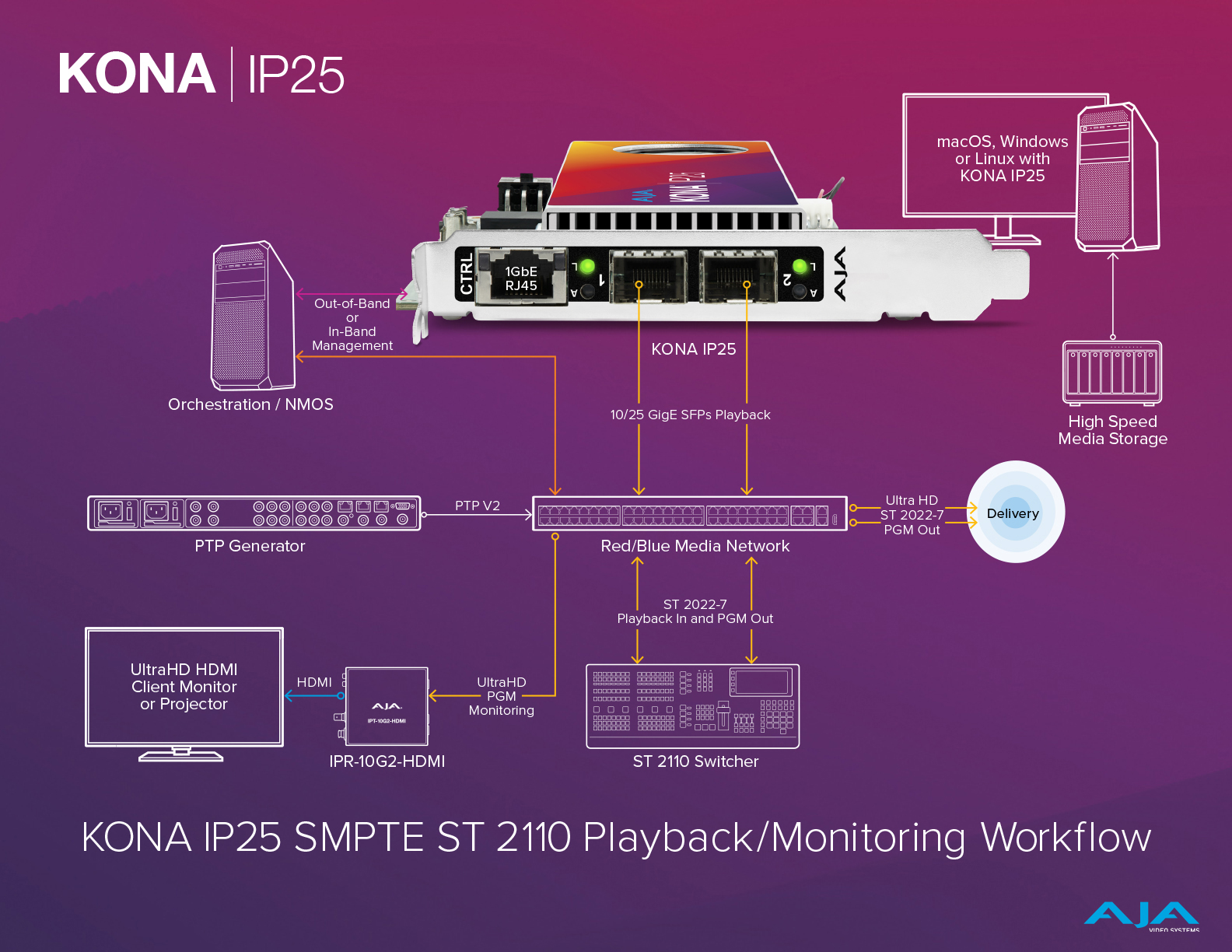

KONA IP25 SMPTE ST 2110 Playback/Monitoring Workflow

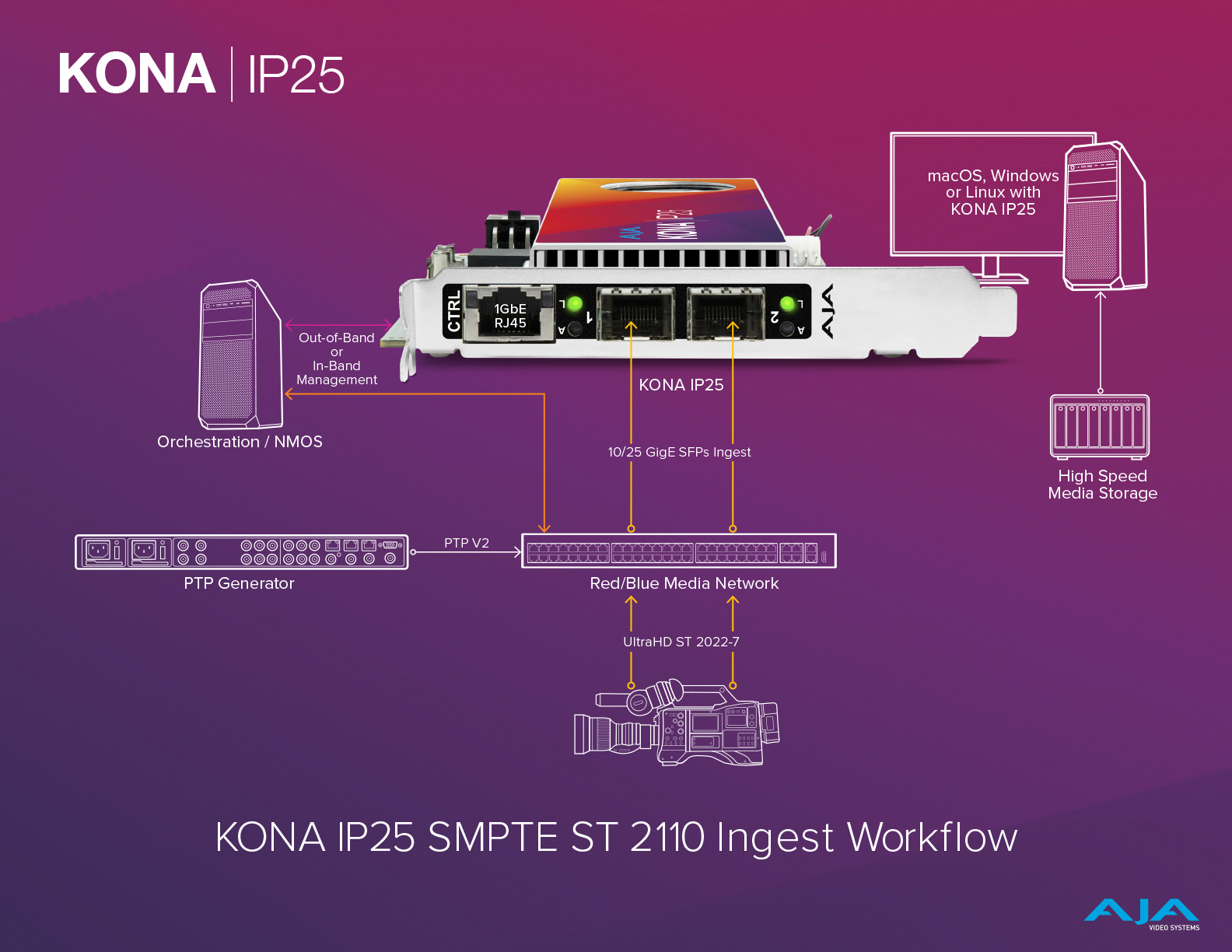

KONA IP25 SMPTE ST 2110 Ingest Workflow

產品規格

📹AJA KONA IP25 SMPTE ST 2110 I/O 影音介面卡

AJA KONA IP25
Video Formats	(UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HD) 1080i 50, 59.94 (HD) 720P 50, 59.94, 60 Note: High Frame Rate capabilities are dependent on host system attributes.
Media Transport Interfaces (In-Band)	Uncompressed media (SMPTE ST 2110-20, 30, 40) PTP Configuration & Control 2x SFP28 Cages (redundant only), SFPs not included Supports 10 GigE and 25 GigE SFPs
RJ-45 1 GigE Interface (Out-Of-Band)	Configuration & Control
Input Uncompressed IP	SMPTE ST 2110-20 Video YCbCr 4:2:2 10-bit 4-channel input* Rx support for Narrow and Wide Senders RX support for Class-A,B,C,D SMPTE ST 2022-7 redundancy *Format and application dependent
SMPTE ST2110-30 Audio Input	4x stream input* Up to 16-channel audio per stream, 24-bit per channel, 48 kHz synchronous 1ms and 125us timing *Application dependent
SMPTE ST2110-40 Ancillary Input	4x stream input, application dependent
Output Uncompressed IP	SMPTE ST 2110-20 YCbCr 4:2:2 10-bit 4-channel output* Tx support for SMPTE ST 2022-7 Tx senders are Narrow Gapped *Format dependent
SMPTE ST 2110-30 Audio Output	4x stream output Up to 16-channel audio per stream, 24-bit per channel, 48 kHz synchronous 1ms and 125us timing
SMPTE ST 2110-40 Ancillary Output	4x stream output
SDR / HDR	SDP file support for SDR/HDR Transfer Characteristics, Colorimetry, and Luminance
Discovery, Registration, and Control	NMOS Tx/Rx support according to standards IS-04 v1.3 and IS-05 v1.1 LLDP In-Band and Out-of-Band
IP Clock	PTPv2 SMPTE ST 2059-2 / IEEE 1588-2008 In-Band only
Electrical Interface	8-lane PCIe 4.0
Noise	<50dBA (A-weighted at 1m in free air) Fan is rated at 33.1dBA
Regulatory Compliance	UL 62368-1: 2014 CSA-C22.2 62368-1-14 EN 62368-1: 2014 + A11 RoHS 3
Size (w x d x h)	9.75" x 0.63" x 3.88" (247.7 x 15.9 x 98.6 mm) Bracket Height: 5.0" (127 mm)
Weight	0.6 lbs (0.4 kg)
Power	40W typical, 50W maximum PC Internal or PCI Aux Power Connector (6 pin 2x3 Molex part number 45558-0003) Note: It is recommended to provide power with PCI Aux Power connector
Environment	Safe Operating Temperature Range: 0 to 40 C (32 to 104 F) Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F) Operating Relative Humidity: 10-90% noncondensing Operating Altitude: <3,000 meters (<10,000 feet)
