專業影音製作應用解決方案

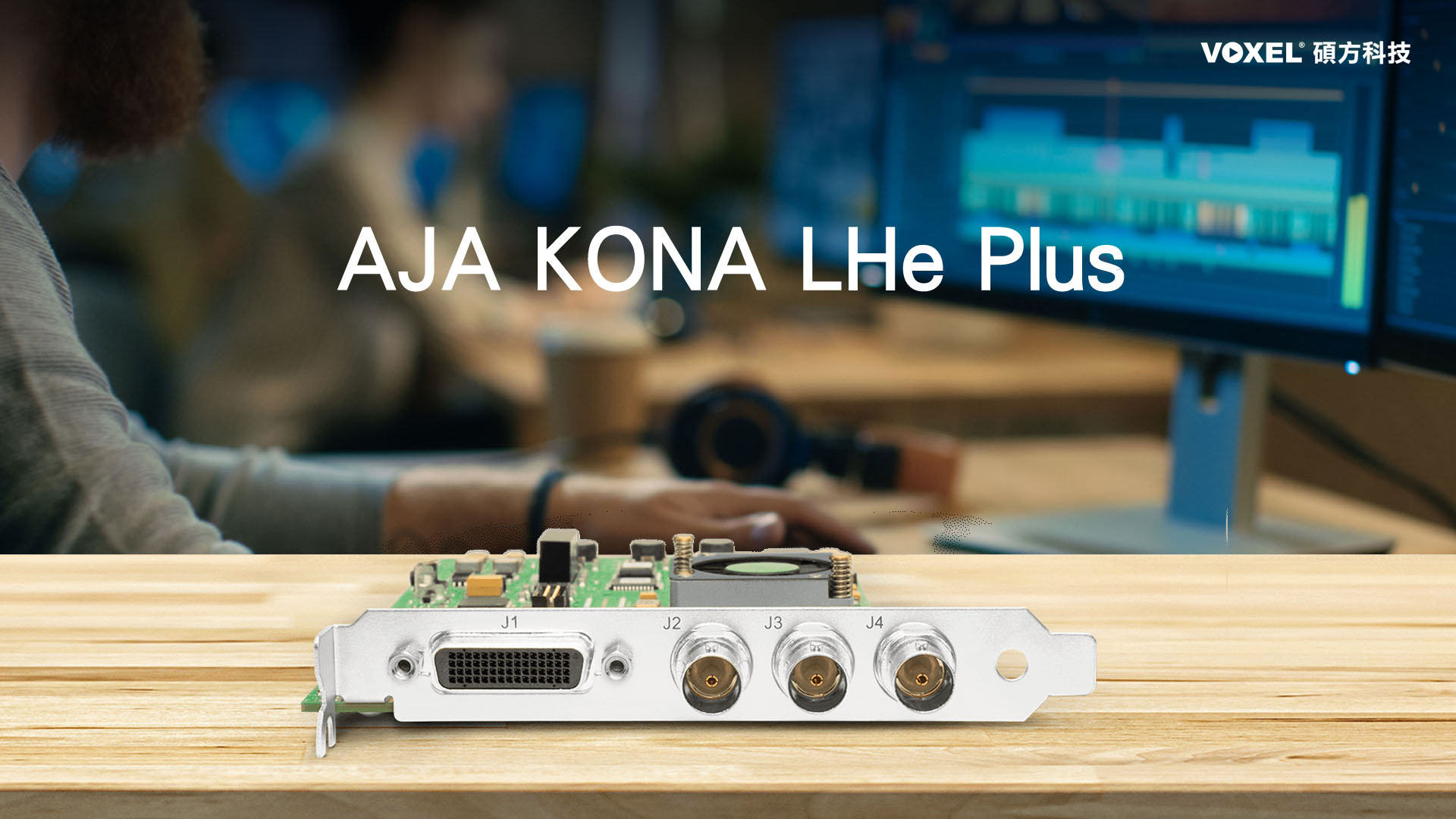

AJA KONA LHe Plus
I/O 影音介面卡
Affordable, Flexible KONA Power

AJA KONA 5

AJA KONA LHe Plus 視訊 I/O 影音介面卡專為廣播、後製製作、ProAV 專業影音與 OEM 開發商設計，具有堅固、經濟高效與單通道 SDI I/O，提供 serial control, reference/LTC 與類比影音訊號。 KONA LHe Plus 控制軟體支援 AJA、Adobe、Avid、Apple、Telestream 等應用程式，方便進行擷取、監控、播放，與 AJA SDK 支援。 KONA LHe Plus 還支援在捕獲（直通）期間同時進行監控。

產品特色

  • HD-SDI and SD-SDI up to 1080 30p / 720 60p
  • 3x 1.5G-SDI connections (1x In, 2x Out) with 8-channel embedded audio
  • YCbCr 4:2:2 10-bit workflows supported
  • 10-bit LUT support (.cube)
  • Real time HD to SD down-conversion with pristine 10-bit quality
  • Compatible with leading creative apps
  • Includes support for Apple silicon
  • Supports AES and Analog Audio I/O for Telestream Wirecast
  • Included breakout cable for Ref (Analog Color Black or Composite Sync), RS-422, 2-ch AES/EBU, Analog composite or S-video, or SD/HD component, 2-ch analog audio I/O
  • Extend external connectivity with KL-BOX-LH breakout box

支援 Apple 晶片

AJA 控製軟體針對最新的 Apple 晶片進行了優化，支援 AJA macOS 驅動程式。

AJA KONA LHe Plus 支援多平台

支援 macOS, Windows, 與 Linux Ubuntu / Rocky.

AJA KONA LHe Plus 相容主流編輯軟體

AJA KONA LHe Plus 提供與主流製作應用軟相容的工作流程，整合相關製作、後製和傳送。

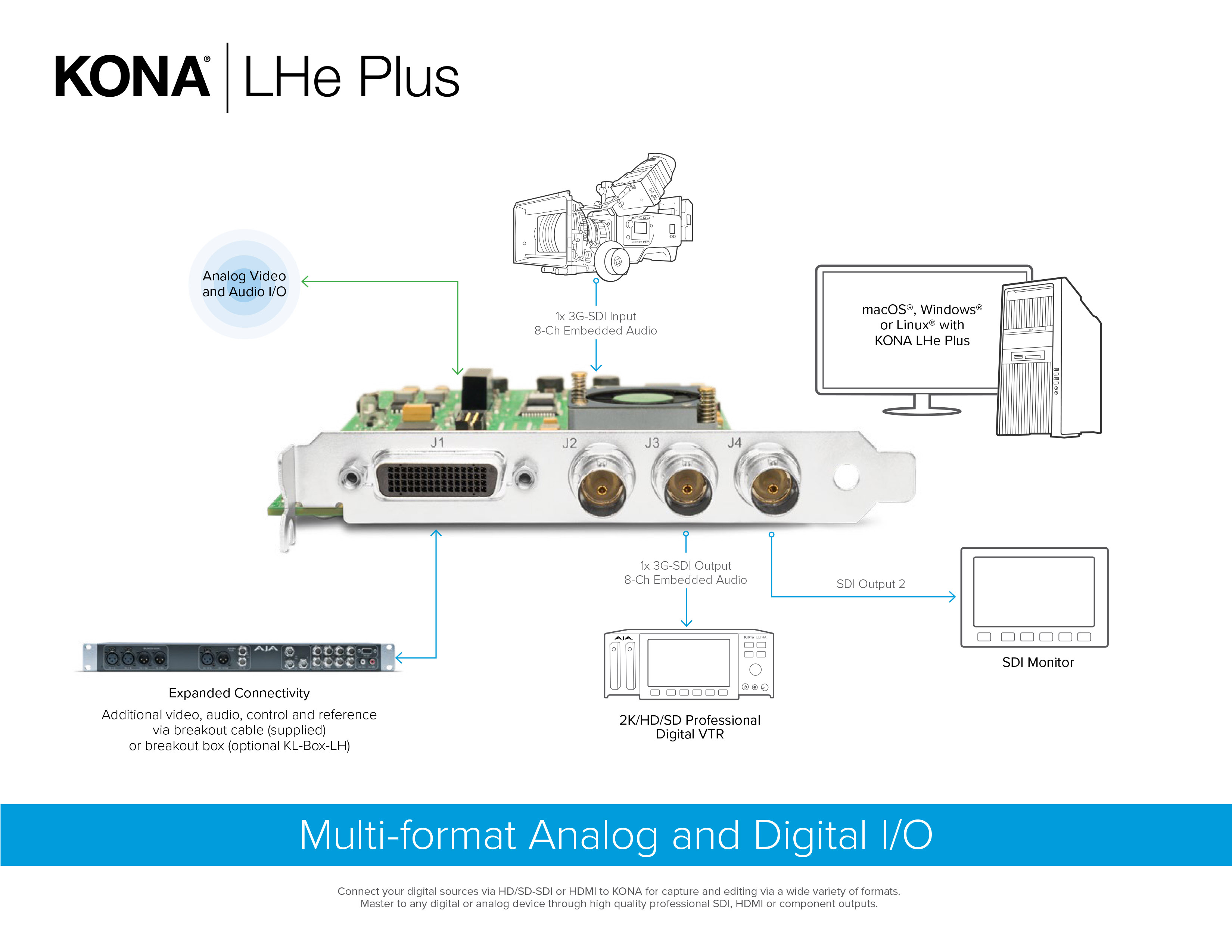

AJA KONA LHe Plus 視訊製作流程架構圖

AJA KONA LHe Plus Production Workflow



產品規格

📹AJA KONA Lhe Plus I/O 影音介面卡

AJA KONA Lhe Plus
SDI Video Formats
  • (HD) 1080i 50, 59.94, 60
  • (HD) 1080p 23.98, 24, 25, 29.97, 30
  • (HD) 1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 720p 50, 59.94, 60
  • (SD) 625i 50
  • (SD) 525i 59.94
Video Input Digital
  • 1.5G-SDI, SMPTE 292M
    • Single Link HD-SDI YCbCr 4:2:2 10-bit
  • 270 Mbps SDI, SMPTE 259M-C
    • YCbCr 4:2:2 10-bit, 8-bit
Video Output Digital
  • 1.5G-SDI, SMPTE 292M
    • Single Link HD-SDI YCbCr 4:2:2 10-bit
  • 270 Mbps SDI, SMPTE 259M-C
    • YCbCr 4:2:2 10-bit, 8-bit
Video Input Analog
  • Composite/S-Video (Y/C) (1x BNC/2x BNC+Adapter)
  • NTSC, NTSCJ, PAL
  • Component (3x BNC)
  • HD: YPbPr, RGB
  • SD: YPbPr, RGB (component mode)
  • SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
  • 12-bit A/D, 8x oversampling
  • +/- .2 dB to 5.0 MHz Y Frequency Response
  • +/- .2 dB to 1 MHz C Frequency Response
  • .5% 2T pulse response
  • <1% Diff Phase
  • <1% Diff Gain
  • <1 ns Y/C delay inequity
Video Output Analog
  • Composite/S-Video (Y/C) (1 x BNC/2x BNC+Adapter)
  • NTSC, NTSCJ, PAL
  • Component (3 x BNC)
  • HD: YPbPr, RGB
  • SD: YPbPr, RGB (component mode)
  • SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
  • 12-bit D/A, 8x oversampling
  • +/- .2 dB to 5.0 MHz Y Frequency Response
  • +/- .2 dB to 1 MHz C Frequency Response
  • .5% 2T pulse response
  • <1% Diff Phase
  • <1% Diff Gain
  • <1 ns Y/C delay inequity
Audio Input Digital
  • 8-channel, 16 and 24-bit SMPTE-259 SDI embedded audio, 48 kHz sample rate, synchronous
  • 2-channel, 16 and 24-bit AES/EBU audio, 48 kHz or 96 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (via 1x XLR on breakout cable or optional KL-Box)
Audio Input Analog
  • 2-channel, 16 and 24-bit A/D analog audio, 48 kHz sample rate, balanced (via 2 x XLR on breakout cable or optional KL-Box)
  • +24 dBu full scale digital
  • +/- 0.2 dB 20 Hz to 20 kHz frequency response
Audio Output Digital
  • 8-channel, 16 and 24-bit SMPTE-259 SDI embedded audio, 48 kHz sample rate, synchronous
  • 2-channel, 16 and 24-bit AES/EBU audio, 48 kHz or 96 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (via 1x XLR on breakout cable or optional KL-Box)
Audio Output Analog
  • 2-channel, 16 and 24-bit D/A analog audio, 48 kHz sample rate, balanced (via 2x XLR on breakout cable or optional KL-Box)
  • +24 dBu full scale digital (0 dBFS)
  • +/- 0.2 dB 20 Hz to 20 kHz frequency response
  • 2-Channel unbalanced output (via 2x RCA jacks on optional KL-Box)
Down-Conversion
  • Hardware 10-bit
  • Anamorphic: fullscreen
  • Letterbox: image is reduced with black top and bottom added to image area with the aspect ratio preserved
  • Crop: image is cropped to fit new screen size
Reference Input
  • Analog Color Black (1V) or Composite Sync (2 or 4V)
  • Looping
  • 75 ohms on optional KL-Box, terminated on supplied breakout cable
Electrical Interface 4-lane PCIe 1.0
Machine Control
  • RS-422, Sony 9-pin protocol (via breakout cable or optional KL-BOX)
  • 9-pin D-connector pinout is as follows:

1

GND

2

RX-

3

TX+

4

GND

5

No Connection

6

GND

7

RX+

8

TX-

9

GND

Shell

GND
Size (w x d x h) 0.75" x 8.25" x 5.0" (19.05 x 209.55 x 127.00 mm)
Weight 0.7 lb (0.4 kg)
Power 13W typical, 15W maximum
Environment
  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)



關鍵字 : #tricaster. #aja..#aja bridge live.#3g-8.#NDI.

*本產品將持續創新，規格可能會有變動，當產品設計／規格變動，恕不另行通知。
