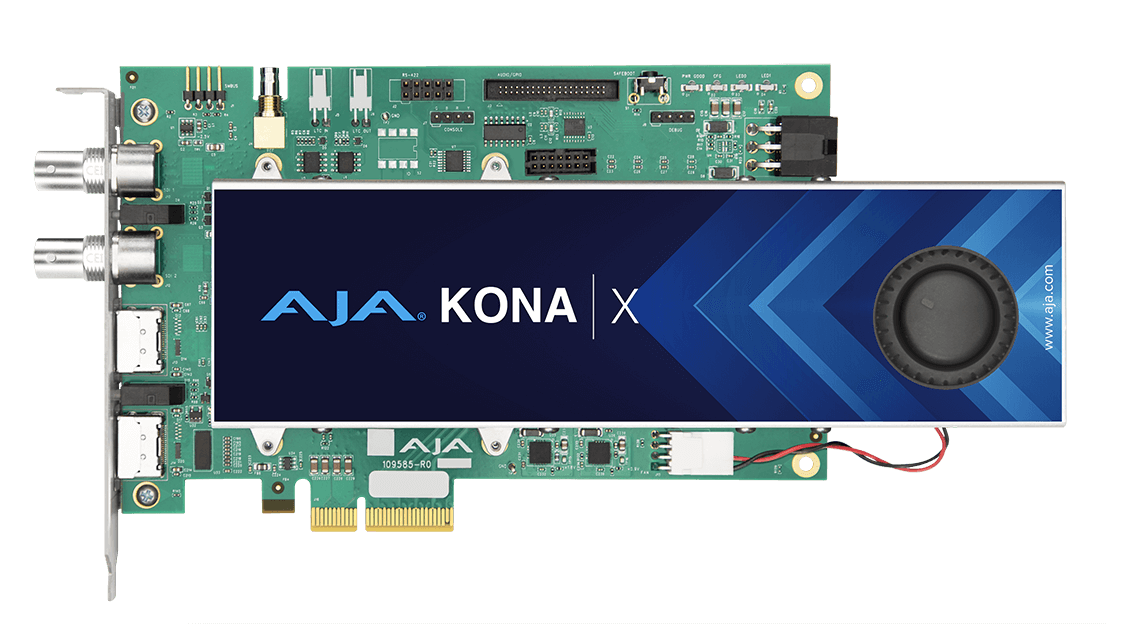

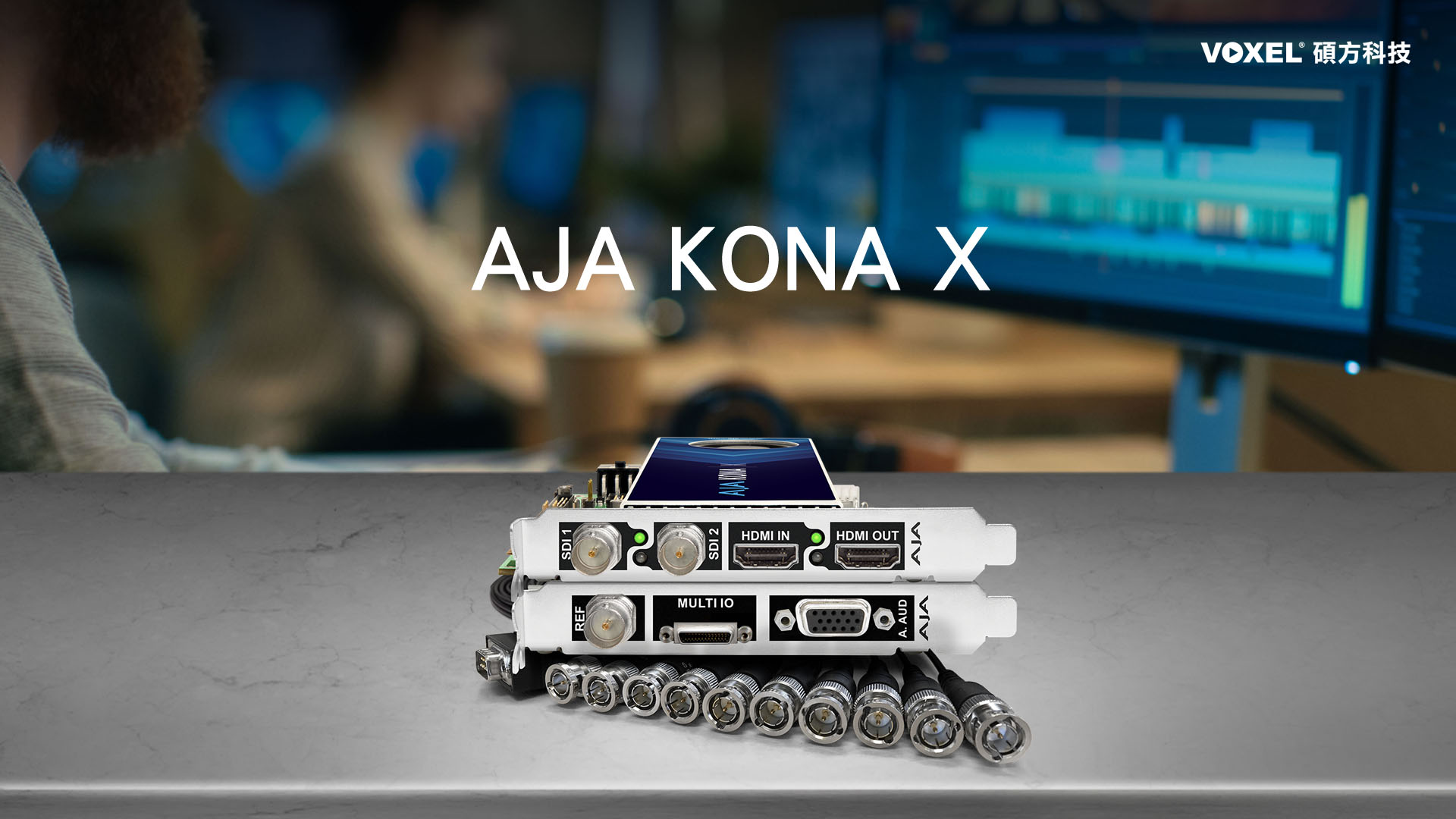

AJA KONA X
I/O 影音介面卡
Next Generation Video I/O with Streaming DMA

AJA KONA X

AJA KONA X 視訊 I/O 影音介面卡專為下一代 AI 和 AR 工作流程而設計，具有 4 通道 PCIe 3.0 ，具有兩個 12G-SDI BNC 和 HDMI 2.0 連接埠。 KONA X 支援 Streaming DMA (Direct Memory Access 直接記憶體存取)功能，具有低延遲，可應用於即時工作流程，這對即時體育和虛擬製作至關重要。 KONA X 提供 4K/UltraHD、2K/HD、SD、10bits 4:2:2、4:4:4 和 12位元色彩空間，具備純淨的影像品質，能以 12G-SDI 和 HDMI 2.0 連接端子，靈活地進行擷取和輸出。雙向 12G-SDI 連接埠可提供擷取與同步傳輸的絕佳靈活性，搭配適當的軟體，更可進行多聲道擷取與串流。針對HDR工作流程，KONA X支援HDR10、HLG、PQ和Dolby Vision，可透過SDI和/或HDMI傳送豐富的色彩。KONA X 能滿足您當前和未來的工作需求。

產品特色

4K/UltraHD/2K/HD/SD up to 50/60p

2x bidirectional 12G-SDI with up to 16-channels of embedded audio

HDMI 2.0 input and output with up to 8-channels of embedded audio

RGB 4:4:4 12-bit (4K/UltraHD) workflows supported

YCbCr 4:2:2 10-bit and HFR workflows supported

VESA HDMI I/O compatibility - the video subsystem timing is agnostic, enabling capture and playback of a myriad of HDMI formats

Support for Apple Final Cut Pro, Adobe Premiere Pro and Avid Media Composer and much more

Support for OEM applications with the AJA Developer SDK and In-Firmware Microcontroller

4K Closed Caption Support

VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and Luminance via SDI

PQ, HLG, HDR10 and Dolby Vision Support

HDR Metadata Capture and Auto Playback Detection

Includes support for the latest Apple silicon

Optional KONA Xpand board provides Bi-level / Tri-level Video Reference (BNC), LTC in/out, RS-422, 8-channels of AES/EBU audio (with included breakout cable) and 2-channels of analog audio in and out (via user supplied DB-15 to XLR cable)

Three year warranty

KONA X is also available in a fanless version for sound sensitive environments. Note that precautions should be taken to maintain card temperature under maximum levels.*

支援 HDR NLE / VFX 軟體

AJA Desktop Software 支援許多第三方專業視訊軟體應用程式的 HDR 功能，包括 Adobe Premiere Pro、Apple Final Cut Pro 和 Avid Media Composer。以 HLG、PQ、HDR10 工作流程的優勢，快速整合 709、BT2020 與 DCI-P3 各種色彩體系。

支援 Apple 晶片

AJA 控製軟體針對最新的 Apple 晶片進行了優化，支援 AJA macOS 驅動程式。

KONA X 支援多平台

KONA 支援 macOS, Windows, 與 Linux Ubuntu / Rocky.

KONA X 相容主流編輯軟體

AJA KONA X 提供與主流製作應用軟相容的工作流程，整合相關製作、後製和傳送。

支援 4K CC 隱藏字幕 Closed Captioning

AJA Control Room software

Supports CEA-608 or 608-in-708 via ANC extraction firmware.

Supplied Avid & Adobe Plugins

All SMPTE-291 (ANC) based captions supported.

Adobe Premiere Pro supports native 708 if the raw data is available. For instance in the Adobe plug-ins we handle the case where Premiere hands us full 708 data, we just pass it through to the device.

Avid Media Composer supports active video ANC (line 21) or ANC via ANC extractor/inserter (up to UltraHD/4K).

AJA KONA X 視訊製作流程架構圖

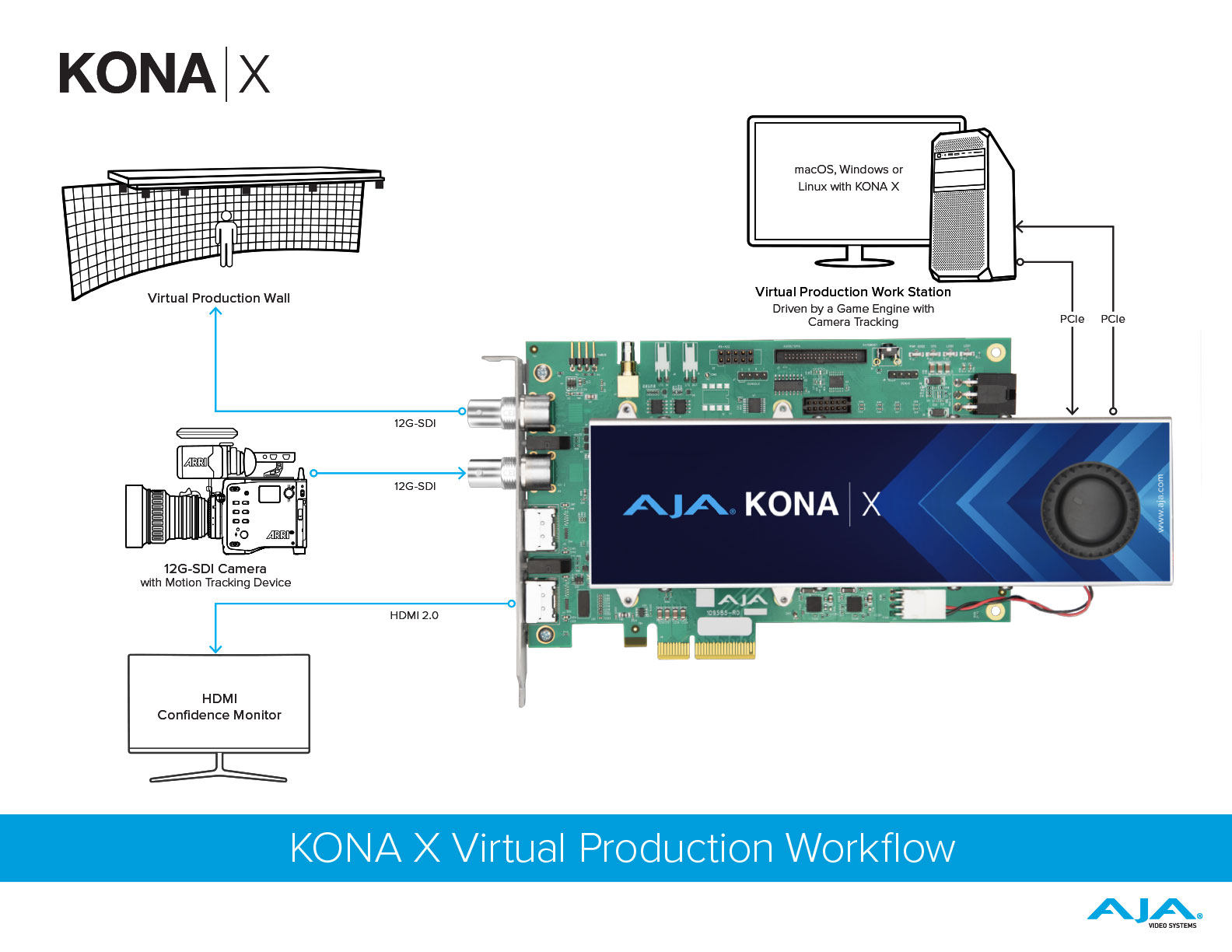

Virtual Production Workflow

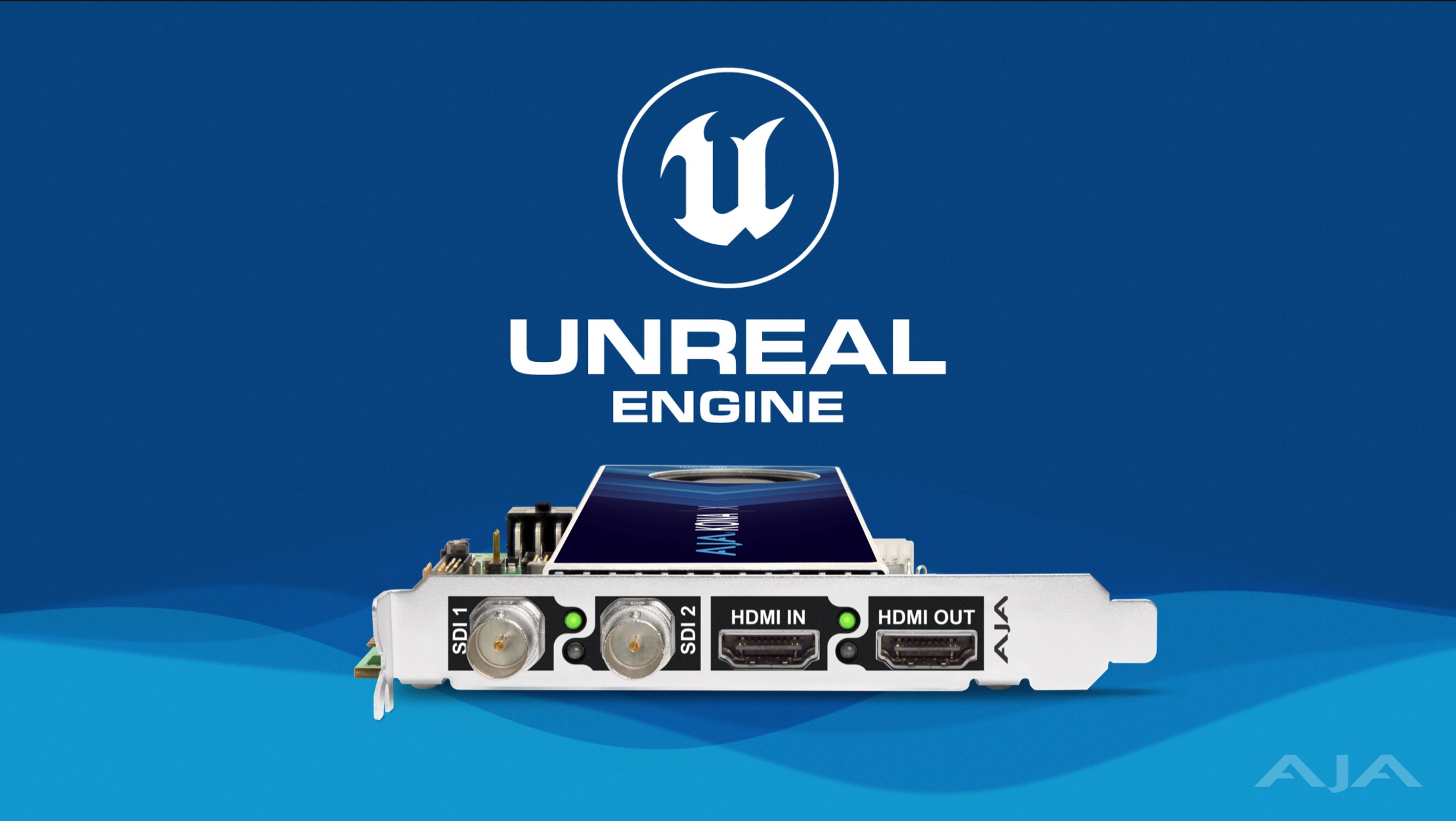

AR Support with Unreal Engine

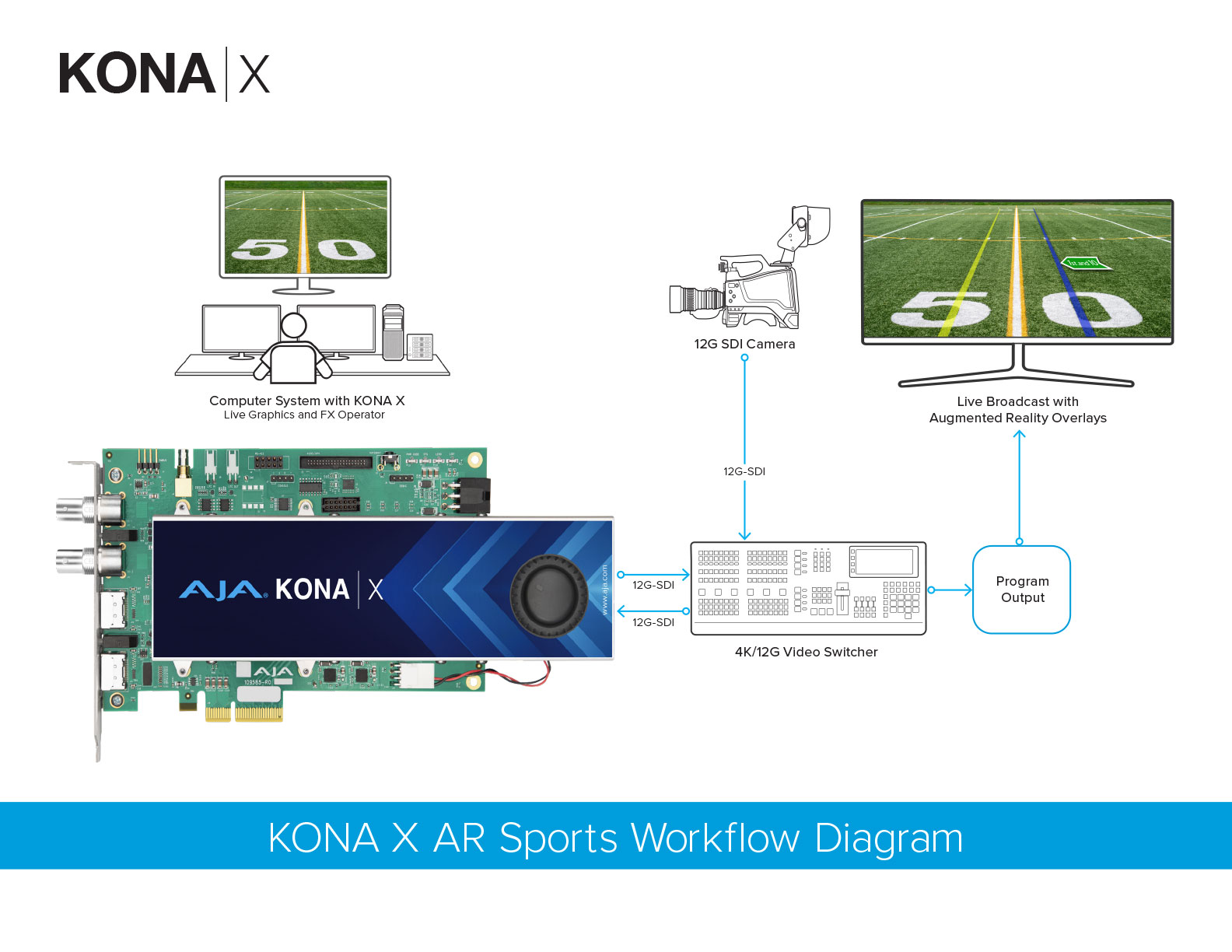

Augmented Reality (AR) Sports Workflow

Hardware Keying

產品規格

📹AJA KONA X I/O 影音介面卡

AJA KONA X

SDI Video Formats

(4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1920x1080i 50, 59.94, 60
(HD) 1280x720p 50, 59.94, 60
(SD) 625i 50
(SD) 525i 59.94

HDMI Video Formats

(4K CEA) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(2K CEA) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920x1080i 50, 59.94, 60
(VESA DMT) 1600x1200p 60
(VESA DMT) 1280x1024p 60
(HD) 1280x720p 50, 59.94, 60
(VESA DMT) 1024x768p 60
(VESA DMT) 800x600p 60
(SD) 625i 50
(SD) 525i 59.94
(VESA DMT) 640 x 480p 60

Note: Additional VESA (DMT) formats supported for certain applications

Video Inputs Digital

12G-SDI, SMPTE-2082, 12-bit, 10-bit
- YCbCr 4:2:2 10-bit up to 60p, RGB 4:4:4 12-bit up to 30p
6G-SDI, SMPTE-2081, 10-bit
3G-SDI, SMPTE 425
- RGB 4:4:4 12-bit, YCbCr 4:2:2 10-bit
1.5G-SDI, SMPTE 292M
- Single Link HD-SDI YCbCr 4:2:2 10-bit
270 Mbps SDI, SMPTE 259M-C
- YCbCr 4:2:2 10-bit, 8-bit
HDMI v2.0
- 30/36-bits/pixel, RGB or YUV, 6 Gbps per color component
- 4K, UltraHD, 2K, HD, and SD
- YCbCr 4:2:2 10-bit up to 60p, RGB 4:4:4 12-bit up to 30p
- Connectors are full size BNC / full size HDMI
- HDMI Inputs and Outputs support VESA (DMT) rasters at limited rates

Video Outputs Digital

12G-SDI, SMPTE-2082*, 12-bit, 10-bit
- YCbCr 4:2:2 10-bit up to 60p, RGB 4:4:4 12-bit up to 30p
6G-SDI, SMPTE-2081*, 10-bit
3G-SDI, SMPTE 425
- RGB 4:4:4 12-bit, YCbCr 4:2:2 10-bit
1.5G-SDI, SMPTE 292M
- Single Link HD-SDI YCbCr 4:2:2 10-bit
270 Mbps SDI, SMPTE 259M-C
- YCbCr 4:2:2 10-bit, 8-bit
HDMI v2.0
- 30/36-bits/pixel, RGB or YUV, 6 Gbps per color component
- 4K, UltraHD, 2K, HD, and SD
- YCbCr 4:2:2 10-bit up to 60p, RGB 4:4:4 12-bit up to 30p
- Connectors are full-size BNC / full-size HDMI
- HDMI Input and Output support VESA rasters

*Compliant with subsets of specification for supported formats

HDR

SDI: VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry, and Luminance
HDMI: HDR10 Support - HDR Infoframe metadata, compatible with HDMI 2.0a/CTA-861.3
HDMI: HLG Support - compatible with HDMI 2.0b/CTA-861-G

SDI I/O (via PCIe Bracket)

2x full-size 12G-SDI connections
SDI connections are bidirectional
- Single channel SDI capture (plus simultaneous SDI pass-through monitoring)
- Single channel SDI output

HDMI I/O (via PCIe Bracket)

2x full-size (Type A) HDMI 2.0 connections
HDMI connections are unidirectional (1x Input, 1x Output)
- Single channel HDMI input
- Single channel HDMI output

HDMI Monitoring for SDI Inputs

HDMI output connector supports
- Single channel SDI source monitoring

Video I/O Performance

Capable of two channel 4K p60 capture or playback

Audio Inputs Digital

16-channel, 24-bit SDI embedded audio, 48 kHz sample rate, synchronous• 8-channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous
8-channel, 16 and 24-bit AES/EBU audio, 48 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (via 4x BNC on breakout cable )

Note: Audio I/O is available via optional KONA Xpand card, or via customer supplied breakout connection to internal card connector

Audio Input Analog

2-channel, 24 and 16-bit D/A analog audio, 48 kHz sample rate, balanced, using industry standard 2x XLR on DB-25 breakout cable (cable not included)
+24 dBu full scale digital (0 dBFS)
+/- 0.2 dB 20 to 20 kHz frequency response

Note: Requires the optional KONA Xpand card

Audio Outputs Digital

16-channel, 24-bit SDI embedded audio, 48 kHz sample rate, synchronous
8-channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous
8-channel, 16 and 24-bit AES/EBU audio, 48 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (via 4x BNC on breakout cable)

Note: AES audio requires the optional KONA Xpand card. SDI and HDMI audio do not require the Xpand card.

Audio Output Analog

2-channel, 24-bit D/A analog audio, 48 kHz sample rate, balanced, using 2x XLR
+24 dBu full scale digital (0 dBFS)
+/- 0.2 dB 20 to 20 kHz frequency response
Note: Requires the optional KONA Xpand card

Downstream Keyer

Supports graphics up to 4K/UltraHD with alpha channel over video, matte or framebuffer, or framebuffer content over incoming video or matte

Reference

Analog Color Black (1V) or Composite Sync (2 or 4V) or HD Tri-Level Sync (1V)
Reference input is terminated into 75 ohms when Genlock is set to Ref In

Note: Available via optional KONA Xpand card, or via customer supplied breakout connection to internal card

Timecode

LTC timecode input
LTC timecode output

Note: Available via optional KONA Xpand card, or via customer supplied breakout connection to internal card

Electrical Interface

PCIe Gen 3x4

Machine Control

RS-422, Sony 9-pin protocol
9-pin D-connector pinout is as follows:

1	GND
2	RX-
3	TX+
4	GND
5	No Connection
6	GND
7	RX+
8	TX-
9	GND
Shell	GND

Note: Available via optional KONA Xpand card, or via customer supplied breakout connection to internal card

Noise

<50dBA (A-weighted at 1m in free air) <40-45dBA preferred (Phase 01 )>
Fan is rated at 33.1dBA

Regulatory Compliance

RoHS 3
IEC 62368-1: 2014 2nd Edition safety standard

Size (w x d x h)

Passive Configuration (no fan): 190.5 x 15.9 x 98.6 mm (7.5" x 0.63" x 3.88") Bracket Height: 127 mm (5.0")
Active Configuration (with fan): 247.7 x 15.9 x 98.6 mm (9.75" x 0.63" x 3.88") Bracket Height: 127 mm (5.0")
Xpand Card: 108.0 x 15.9 x 98.6 mm (4.25" x 0.63" x 3.88") Bracket Height: 127 mm (5.0")

Weight

PCIe Card: Active (with fan): 290.3g (10.2oz), Passive (no fan): 217.7g (7.7oz)
Xpand Card: 90.7g (3.2oz)

Power

20W typical with 16W on +12V and 4W on +3.3V
PC Internal or PCi Aux Power Connector: Molex part number 45558-0003

Note: Card can utilize PCIe power from a 6 pin PCi 2x3 Aux Power connector or the PCIe slot

Environment

Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)
