AJA KONA XM
I/O 影音介面卡
Next Generation Video I/O with Streaming DMA

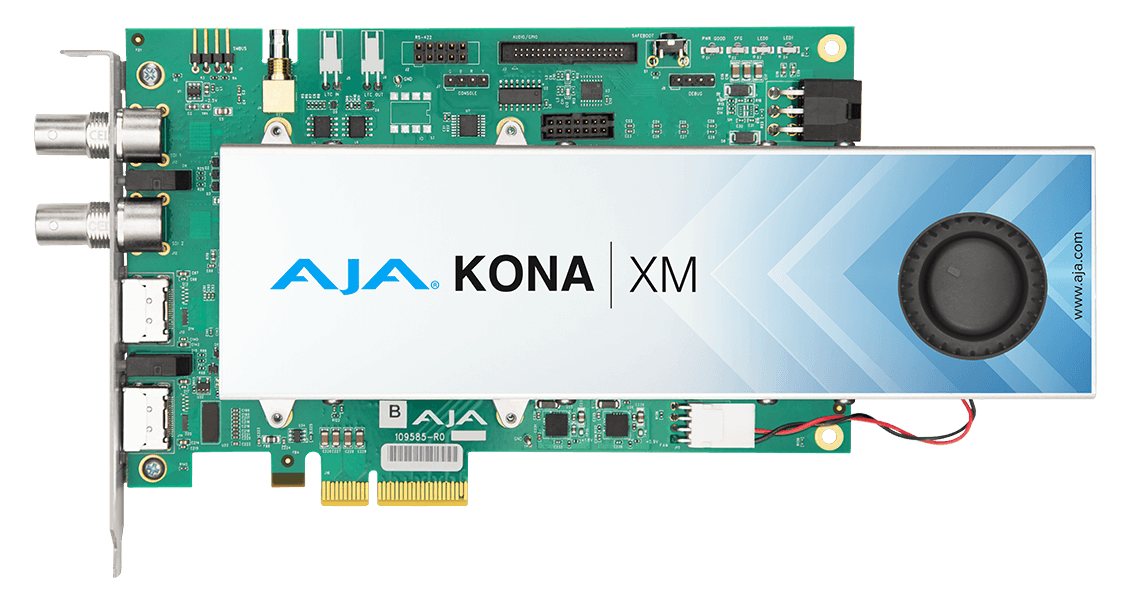

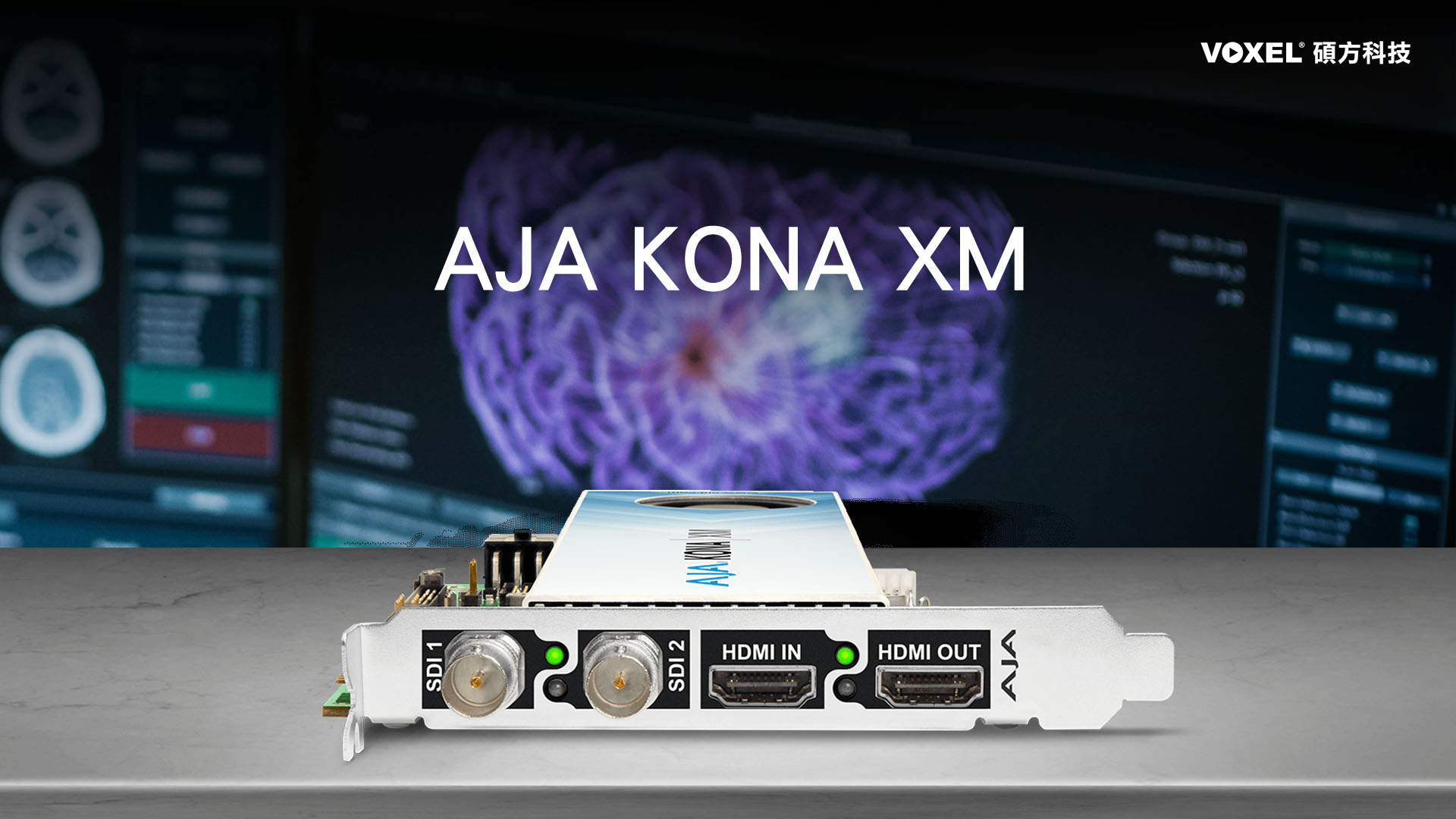

AJA KONA XM

AJA KONA XM 視訊 I/O 影音介面卡採用新一代 I/O 技術，支援醫療 OEM 開發人員利用超低延遲串流 DMA（直接記憶體存取）來確保大多數關鍵任務視訊應用。KONA XM 是下一代醫療視訊技術解決方案的核心。 KONA XM 具備 4 通道 PCIe 3.0 I/O 、雙 12G-SDI BNC 與 HDMI 2.0 連接埠，可提供超低延遲串流，實現強大的即時工作流程。 KONA XM 以 GPUDirect DMA 實現子訊框延遲；能夠將資料從主機記憶體傳輸到硬體加速器，並將結果流回主機內存，而無需使用本地 FPGA 記憶體作為臨時緩衝區。 KONA XM 支援視訊醫療創新，非常適合尋求可靠、一流視訊 I/O 技術的 OEM 開發機構。

產品特色

4K/UltraHD/2K/HD/SD capture and playback, up to 60p

Ultra-Low Latency: As low as sub-frame delay on processed video output

2x uni-directional 12G-SDI connections with 16-channel embedded audio

HDMI 2.0 input and output, with VESA support

RGB 4:4:4 12-bit workflows supported

YCbCr 4:2:2 10-bit workflows supported

Windows and Linux support for OEM applications via the AJA SDK

In Firmware Microcontroller

Supports graphics up to 4K/UltraHD with alpha channel

VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and Luminance via SDI

HLG and HDR10 HDR support, via HDMI

Audio accessed through the AJA SDK

Available in active and passive cooling options

KONA X is also available in a fanless version for sound sensitive environments. Note that precautions should be taken to maintain card temperature under maximum levels.

支援 Ultra-Low Latency / Streaming DMA

KONA XM 支援 DMA（直接記憶體存取）數據㐬； DMA 可不經由介面卡記憶體，直接存取於視訊 I/O 和電腦緩衝區之間。 OEM 開發人員能夠實現低延遲，以更簡單的方式處理動態視訊。

支援 WINDOWS/LINUX 平台

Linux Ubuntu support for 20.04 LTS, 22.04

Linux Rocky 8.5 and Rocky 9.1

Windows 11, 10 and updates

IEC 60601-1-2 EMI/ESDA 醫療規範

KONA XM 經過嚴格測試，符合醫療設備組件所需的 IEC 60601-1-2 EMI/ESD 標準。

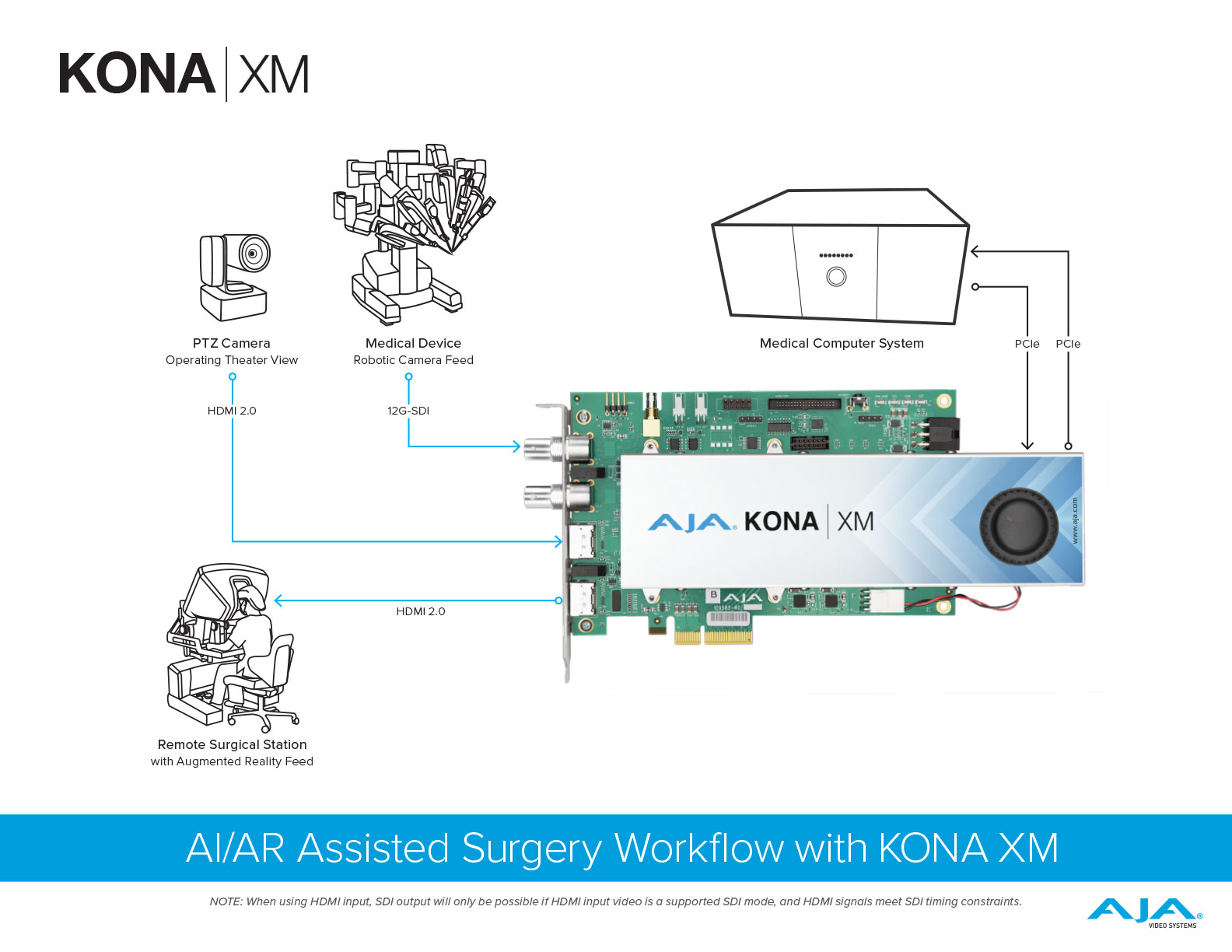

AJA KONA XM 視訊製作流程架構圖

KONA XM Augmented Reality Assisted Surgery Workflow 醫療製作流程

產品規格

📹AJA KONA XM I/O 影音介面卡

AJA KONA XM

SDI Video Formats

(4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1920x1080i 50, 59.94, 60
(HD) 1280x720p 50, 59.94, 60
(SD) 625i 50
(SD) 525i 59.94

HDMI Video Formats

(4K CEA) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(2K CEA) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920x1080i 50, 59.94, 60
(VESA DMT) 1600x1200p 60
(VESA DMT) 1280x1024p 60
(HD) 1280x720p 50, 59.94, 60
(VESA DMT) 1024x768p 60
(VESA DMT) 800x600p 60
(SD) 625i 50
(SD) 525i 59.94
(VESA DMT) 640 x 480p 60

Note: Additional VESA (DMT) formats supported for certain applications

Video Inputs Digital

12G-SDI, SMPTE-2082, 12-bit, 10-bit
- YCbCr 4:2:2 10-bit up to 60p, RGB 4:4:4 12-bit up to 30p
6G-SDI, SMPTE-2081, 10-bit
3G-SDI, SMPTE 425
- RGB 4:4:4 12-bit, YCbCr 4:2:2 10-bit
1.5G-SDI, SMPTE 292M
- Single Link HD-SDI YCbCr 4:2:2 10-bit
270 Mbps SDI, SMPTE 259M-C
- YCbCr 4:2:2 10-bit, 8-bit
HDMI v2.0
- 30/36-bits/pixel, RGB or YUV, 6 Gbps per color component
- 4K, UltraHD, 2K, HD, and SD
- YCbCr 4:2:2 10-bit up to 60p, RGB 4:4:4 12-bit up to 30p
- Connectors are full-size BNC / full-size HDMI
- HDMI Inputs and Outputs support VESA (DMT) rasters and at limited rates

Video Outputs Digital

12G-SDI, SMPTE-2082*, 12-bit, 10-bit
- YCbCr 4:2:2 10-bit up to 60p, RGB 4:4:4 12-bit up to 30p
6G-SDI, SMPTE-2081*, 10-bit
3G-SDI, SMPTE 425
- RGB 4:4:4 12-bit, YCbCr 4:2:2 10-bit
1.5G-SDI, SMPTE 292M
- Single Link HD-SDI YCbCr 4:2:2 10-bit
270 Mbps SDI, SMPTE 259M-C
- YCbCr 4:2:2 10-bit, 8-bit
HDMI v2.0
- 30/36-bits/pixel, RGB or YUV, 6 Gbps per color component
- 4K, UltraHD, 2K, HD, and SD
- YCbCr 4:2:2 10-bit up to 60p, RGB 4:4:4 12-bit up to 30p
- Connectors are full-size BNC / full-size HDMI
- HDMI Input and Output support VESA rasters

*Compliant with subsets of specification for supported formats

HDR

SDI: VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry, and Luminance
HDMI: HDR10 Support - HDR Infoframe metadata, compatible with HDMI 2.0a/CTA-861.3
HDMI: HLG Support - compatible with HDMI 2.0b/CTA-861-G

SDI I/O
(Via PCIe Bracket)

2x full-size 12G-SDI connections
SDI connections are one for input and one for output
- Single channel SDI capture (plus simultaneous SDI pass-through monitoring)
- Single channel SDI output

HDMI I/O
(Via PCIe Bracket)

2x full-size (Type A) HDMI 2.0 connections
HDMI connections are uni-directional (1x Input, 1x Output)
- Single channel HDMI input
- Single channel HDMI output

HDMI Monitoring for SDI Inputs

HDMI output connector supports
- Single channel SDI source monitoring

Video I/O Performance

Capable of two channel 4K p60 capture or playback

Audio Support

KONA XM card is equipped with on-board hardware to support embedded audio, and the optional KONA Xpand board contains the hardware to support AES/EBU digital audio and discreet analog audio (and other functions). However, audio functionality is controlled by firmware programming. If you require audio functionality with KONA XM, please consult AJA SDK Support for more information.

Downstream Keyer

Supports graphics up to 4K/UltraHD with alpha channel over video, matte or framebuffer, or framebuffer content over incoming video or matte

Reference

Analog Color Black (1V) or Composite Sync (2 or 4V) or HD Tri-Level Sync (1V)
Reference input is terminated into 75 ohms when Genlock is set to Ref In

Timecode

LTC timecode input
LTC timecode output

Note: Available via optional KONA Xpand card or via customer supplied breakout connection to internal card

Electrical Interface

PCIe Gen 3x4

Machine Control

RS-422, Sony 9-pin protocol
9-pin D-connector pinout is as follows:

1	GND
2	RX-
3	TX+
4	GND
5	No Connection
6	GND
7	RX+
8	TX-
9	GND
Shell	GND

Note: Available via optional KONA Xpand card or via customer supplied breakout connection to internal card

Noise

<50dBA (A-weighted at 1m in free air) <40-45dBA preferred (Phase 01 )>
Fan is rated at 33.1dBA

Regulatory Compliance

RoHS 3
IEC 62368-1: 2014 2nd Edition safety standard
Performed testing to the IEC/EN 60601-1-2: 2015 + A1: 2021 EMC standard
EMC testing against other EMC standards, including EN 55032 and EN 55035

Size

Passive Configuration (no fan): 190.5 x 15.9 x 98.6 mm (7.5" x 0.63" x 3.88") Bracket Height: 127 mm (5.0")
Active Configuration (with fan): 247.7 x 15.9 x 98.6 mm (9.75" x 0.63" x 3.88") Bracket Height: 127 mm (5.0")
Xpand Card: 108.0 x 15.9 x 98.6 mm (4.25" x 0.63" x 3.88") Bracket Height: 127 mm (5.0")

Weight

PCIe Card: Active (with fan): 290.3g (10.2oz), Passive (no fan): 217.7g (7.7oz)
Xpand Card: 90.7g (3.2oz)

Power

20W typical with 16W on +12V and 4W on +3.3V
PC Internal or PCi Aux Power Connector: Molex part number 45558-0003

Note: Card can utilize PCIe power from a 6 pin PCi 2x3 Aux Power connector or from the PCIe slot

Environment

Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)
