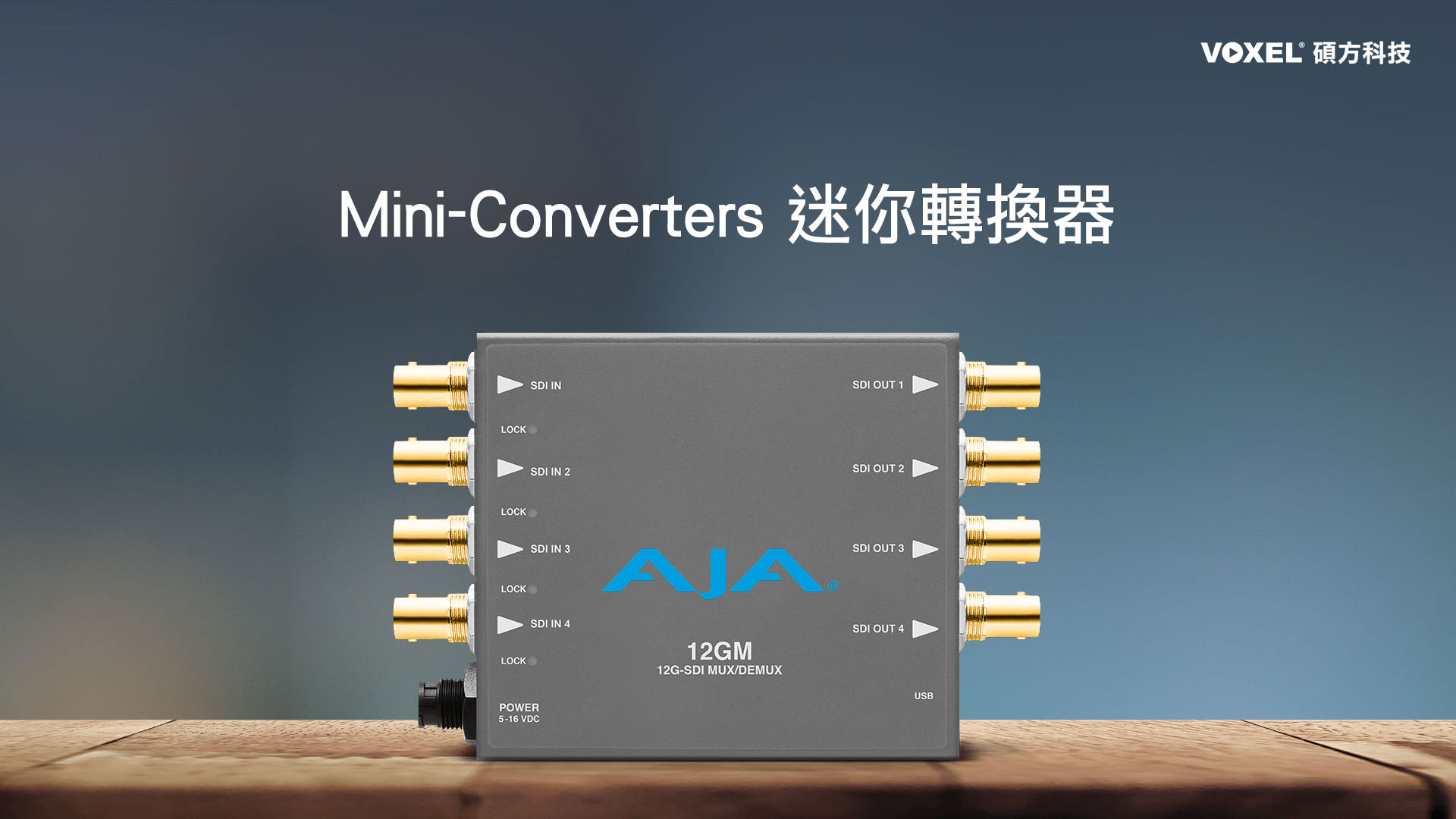

12GM 迷你轉換器

Video Formats	(4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60 (4K) 4096x2160PsF 23.98, 24, 25, 29.97, 30 (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (UltraHD) 3840x2160PsF 23.98, 24, 25, 29.97, 30 (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60 (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30 (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30 (HD) 1920x1080i 50, 59.94, 60 (HD) 1280x720p 50, 59.94, 60  (SD) 625i 50 (SD) 525i 59.94 YCbCr 4:2:2/4:4:4 RGB 4:4:4, SMPTE or Full level 10 or 12-bit   Note: Raster and Frame Rate Dependent, please see 12GM Video Formats in the Download / Documents section of the website product page.
Video Input Digital	4x 12G-SDI BNC, SMPTE 259/292/372/424/2081/2082 4x 3 Gb SDI (Level A or B Dual Link) (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60 (4K) 4096x2160PsF* 23.98, 24, 25, 29.97, 30 (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (Ultra HD) 3840x2160PsF* 23.98, 24, 25, 29.97, 30 4x 1.5 Gb SDI (4K) 4096x2160p 23.98, 24, 25, 29.97, 30 (4K) 4096x2160PsF 23.98, 24, 25, 29.97, 30 (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30 (UltraHD) 3840x2160PsF 23.98, 24, 25, 29.97, 30 2x 6 Gb SDI (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60 (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 2x 3 Gb SDI (Level B Dual Stream) (4K) 4096x2160p 23.98, 24, 25, 29.97, 30 (4K) 4096x2160PsF 23.98, 24, 25, 29.97, 30 (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30 (UltraHD) 3840x2160PsF 23.98, 24, 25, 29.97, 30 2x 1.5 Gb SDI (Dual Link HD-SDI), SMPTE-372 (HD) 1920x1080p 47.95, 48, 50, 59.94, 60 2x 1.5 Gb SDI (Dual Stream HD-SDI) (HD) 2x 1920x1080p 23.98, 24, 25, 29.97, 30 1x 12 Gb SDI  (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60 (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1x 6 Gb SDI (4K) 4096x2160p 23.98, 24, 25, 29.97, 30 (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30 (2K) 2048x1080p 47.95, 48, 50, 59.94, 60 (HD) 1920x1080p 50, 59.94, 60 1x 3 Gb SDI (Level A or B Dual Link) (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60 (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30 (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30 (HD) 1920x1080i 50, 59.94, 60 (HD) 1280x720p** 50, 59.94, 60 1x 3 Gb SDI (Level B Dual Stream) (HD) 2x 1920x1080p 23.98, 24, 25, 29.97, 30 1x 1.5 Gb SDI (2K) 2048x1080p 23.98, 24, 25, 29.97, 30 (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30 (HD) 1920x1080p 23.98, 24, 25, 29.97, 30 (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30 (HD) 1920x1080i 50, 59.94, 60 (HD) 1280x720p 50, 59.94, 60 1x 270 Mb SDI (SD) 625i 50 (SD) 525i 59.94   *PsF is Level B Dual Link **1280x720p is Level A Only
Video Output Digital	4x 12G-SDI BNC, SMPTE 259/292/372/424/2081/2082 4x 3 Gb SDI (Level A or B Dual Link) (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60 (4K) 4096x2160PsF* 23.98, 24, 25, 29.97, 30 (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (Ultra HD) 3840x2160PsF* 23.98, 24, 25, 29.97, 30 4x 1.5 Gb SDI (4K) 4096x2160p 23.98, 24, 25, 29.97, 30 (4K) 4096x2160PsF 23.98, 24, 25, 29.97, 30 (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30 (UltraHD) 3840x2160PsF 23.98, 24, 25, 29.97, 30 2x 6 Gb SDI (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60 (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 2x 3 Gb SDI (Level B Dual Stream) (4K) 4096x2160p 23.98, 24, 25, 29.97, 30 (4K) 4096x2160PsF 23.98, 24, 25, 29.97, 30 (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30 (UltraHD) 3840x2160PsF 23.98, 24, 25, 29.97, 30 2x 1.5 Gb SDI (Dual Link HD-SDI), SMPTE-372 (HD) 1920x1080p 47.95, 48, 50, 59.94, 60 2x 1.5 Gb SDI (Dual Stream HD-SDI) (2K) 2x 1920x1080p 23.98, 24, 25, 29.97, 30 (2K) 2x 1920x1080PsF 23.98, 24, 25, 29.97, 30 (HD) 2x 1920x1080p 23.98, 24, 25, 29.97, 30 (HD) 2x 1920x1080PsF 23.98, 24, 25, 29.97, 30 (HD) 2x 1280x720p 47.95, 48, 50, 59.94, 60 (HD) 2x 1920x1080i 47.95, 48, 50, 59.94, 60 1x 12 Gb SDI  (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60 (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1x 6 Gb SDI (4K) 4096x2160p 23.98, 24, 25, 29.97, 30 (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30 (2K) 2048x1080p 47.95, 48, 50, 59.94, 60 (HD) 1920x1080p 50, 59.94, 60 1x 3 Gb SDI (Level A or B Dual Link) (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60 (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30 (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30 (HD) 1920x1080i 50, 59.94, 60 (HD) 1280x720p** 50, 59.94, 60 1x 3 Gb SDI (Level B Dual Stream) (2K) 2x 1920x1080p 23.98, 24, 25, 29.97, 30 (2K) 2x 1920x1080PsF 23.98, 24, 25, 29.97, 30 (HD) 2x 1920x1080p 23.98, 24, 25, 29.97, 30 (HD) 2x 1920x1080PsF 23.98, 24, 25, 29.97, 30 (HD) 2x 1280x720p 47.95, 48, 50, 59.94, 60 (HD) 2x 1920x1080i 47.95, 48, 50, 59.94, 60 1x 1.5 Gb SDI (2K) 2048x1080p 23.98, 24, 25, 29.97, 30 (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30 (HD) 1920x1080p 23.98, 24, 25, 29.97, 30 (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30 (HD) 1920x1080i 50, 59.94, 60 (HD) 1280x720p 50, 59.94, 60 1x 270 Mb SDI (SD) 625i 50 (SD) 525i 59.94   *PsF is Level B Dual Link **1280x720p is Level A Only
Supported Conversions and Functions	Quad 3G-SDI Level A to Single 12G-SDI  Quad 3G-SDI Level B Dual Link to Single 12G-SDI  Quad 3G-SDI Level A to Dual 6G-SDI Quad 3G-SDI Level B Dual Link to Dual 6G-SDI Quad 3G-SDI Level A to Quad 3G-SDI Level B Dual Link Quad 3G-SDI Level B Dual Link to Quad 3G-SDI Level A   Quad 1.5G-SDI to Single 6G-SDI  Dual 6G-SDI to Single 12G-SDI Dual 6G-SDI to Quad 3G-SDI Level A Dual 6G-SDI to Quad 3G-SDI Level B Dual Link Dual 3G-SDI Level A to Single 6G-SDI Dual 3G-SDI Level B Dual Stream to Single 6G-SDI Dual Link 1.5G-SDI to Single 3G-SDI Level A Dual Link 1.5G-SDI to Single 3G-SDI Level B Dual Link Dual Stream 1.5G-SDI to Single 3G-SDI Level B Dual Stream Single 12G-SDI to Quad 3G-SDI Level A Single 12G-SDI to Quad 3G-SDI Level B Dual Link Single 12G-SDI to Dual 6G-SDI Single 6G-SDI to Dual 3G-SDI Level A Single 6G-SDI to Dual 3G-SDI Level B Dual Stream Single 6G-SDI to Quad 1.5G-SDI  Single 3G-SDI Level A to Dual Link 1.5G-SDI Single 3G-SDI Level B Dual Link to Dual Link 1.5G-SDI Single 3G-SDI Level B Dual Stream to Dual Stream 1.5G-SDI Two Sample Interleave (2SI) to Square Division (Quadrant) pixel mapping Square Division (Quadrant) to Two Sample Interleave (2SI) pixel mapping HDR VPID pass-through or override for Colorimetry and Transfer Characteristic Pass-through of Single Link 12G, 6G, 3G, 1.5G, and 270M SDI video Distribution Amplifier support Single Link Outputs duplicated on outputs 2, 3, and 4 Dual Link Outputs duplicated on outputs 3, and 4 Input signal diagnostics Input timing analyzer for Quad/Dual link signals
Cable Equalization	(Belden 1694A coax) 12 Gbps, 70m 6 Gbps, 100m 3 Gbps, 140m 1.5 Gbps, 200m 270 Mbps, 300m
Audio Input/Output Digital	Passes SDI embedded audio, 24-bit, up to 16-channels
User Interface	USB port used with supplied cable and Mini-Config software application to configure the device and access diagnostics via macOS or Windows.
Size (w x d x h)	5.76" x 4.02" x 0.90" (146.31 × 102.11 × 22.86 mm)
Weight	0.6 lb (0.3 kg)
Power	5-16 VDC regulated, 12 watts, power supply required, included with purchase AC Adapter: 100-240VAC, 50/60 Hz, universal input
Environment	Safe Operating Temperature: 0 to 40 C (32 to 104 F)* Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F) Operating Relative Humidity: 10-90% noncondensing Operating Altitude: <3,000 meters (<10,000 feet)   *12GM uses approximately 12 watts of power and convection cooling. It will be very warm to the touch, which is normal. When installing the unit, mount in a location where it has access to air for proper cooling. Do not stack the 12GM with other Mini-Converters.



*本產品將持續創新，規格可能會有變動，當產品設計／規格變動，恕不另行通知。
