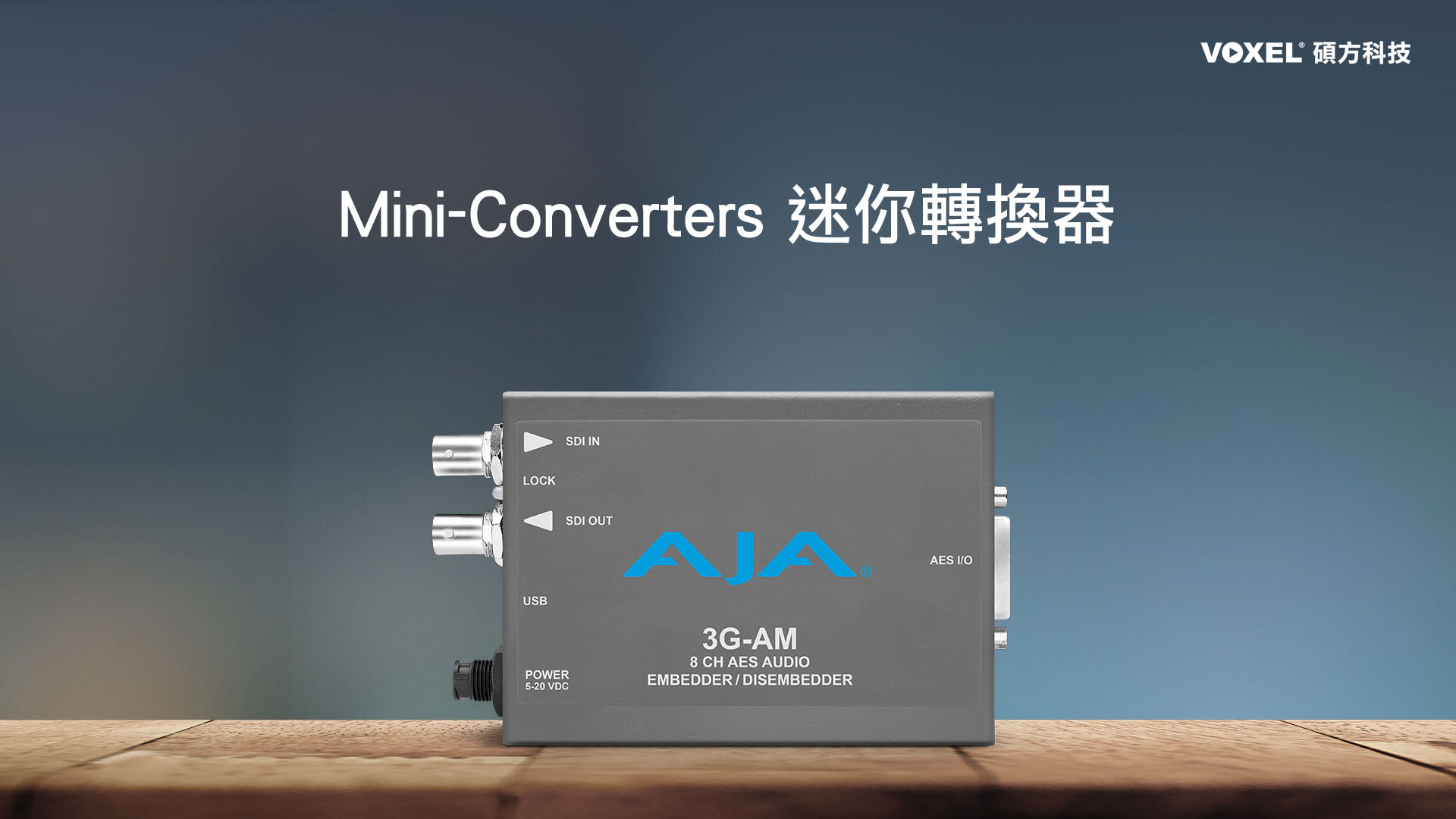

3G-AM 迷你轉換器

Video Input Formats	1x 3 Gb SDI (level A or B) (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30 (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30 (HD) 1920x1080i 50, 59.94, 60 (HD) 1280x720p 50, 59.94, 60 1x 1.5 Gb SDI (2K) 2048x1080p 23.98, 24, 25, 29.97, 30 (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30 (HD) 1920x1080p 23.98, 24, 25, 29.97, 30 (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30 (HD) 1920x1080i 50, 59.94, 60 (HD) 1280x720p 50, 59.94, 60  1x 270 Mb SDI (SD) 625i (SD) 525i RGB and YCbCr, 4:4:4/4:2:2, 10-bit
Video Input Digital	1x 3G-SDI BNC, SMPTE-259/292/424
Video Output Digital	1x 3G-SDI BNC, SMPTE-259/292/424

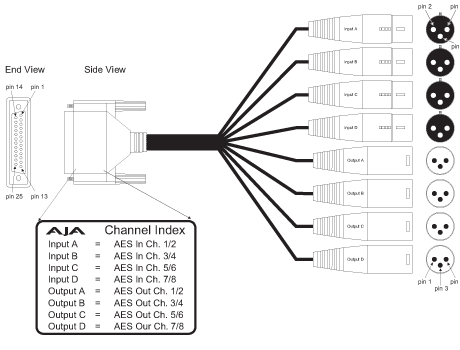

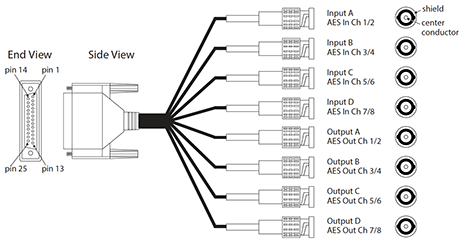

Audio Inputs and Outputs	AES PCM audio, 1x 25 pin D female connector on converter, 8-channels in, 8-channels out, selectable in pairs Breakout cable provided with 1x 25 pin D male connector: 4x XLR female input breakout connectors (AES3 110 ohm) 4x XLR male output breakout connectors (AES3 110 ohm)
Audio Data Formats	AES3-2003 SMPTE 337M
Digital Audio Converters	24-bit
Embedded Audio	SMPTE 272M (SD): 20-bit, 48 kHz synchronous SMPTE 299M (3G/HD): 24-bit, 48 kHz synchronous Incoming embedded audio can be passed, removed, or overridden Up to 16-channels supported   Note: 2048x1080p/PsF 29.97 and 30 formats support a maximum of 8-channels embedded audio.
Embed Path Audio Latency	(Time measured between audio input and video output connector): 1500 µsec (SRC ON) 400 µsec (SRC OFF)
Disembed Path Audio Latency	(Time measured between video input and audio output connector): 210 µsec
User Interface	External DIP switch USB port used with Mini-Config software application to configure the device via PC/Mac
Size (w x d x h)	5.8" x 3.1" x 1.0" (147.32 x 78.74 x 25.4 mm)
Weight	0.61 lb. (0.28 kg)
Power	+5-20VDC, 5 watts power supply required, included with purchase
Environment	Safe Operating Temperature: 0 to 40 C (32 to 104 F) Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F) Operating Relative Humidity: 10-90% noncondensing Operating Altitude: <3,000 meters (<10,000 feet)



*本產品將持續創新，規格可能會有變動，當產品設計／規格變動，恕不另行通知。
