AJA OG-12G-AMA
I/O 影音介面卡
12G-SDI Analog Audio Embedder/Disembedder

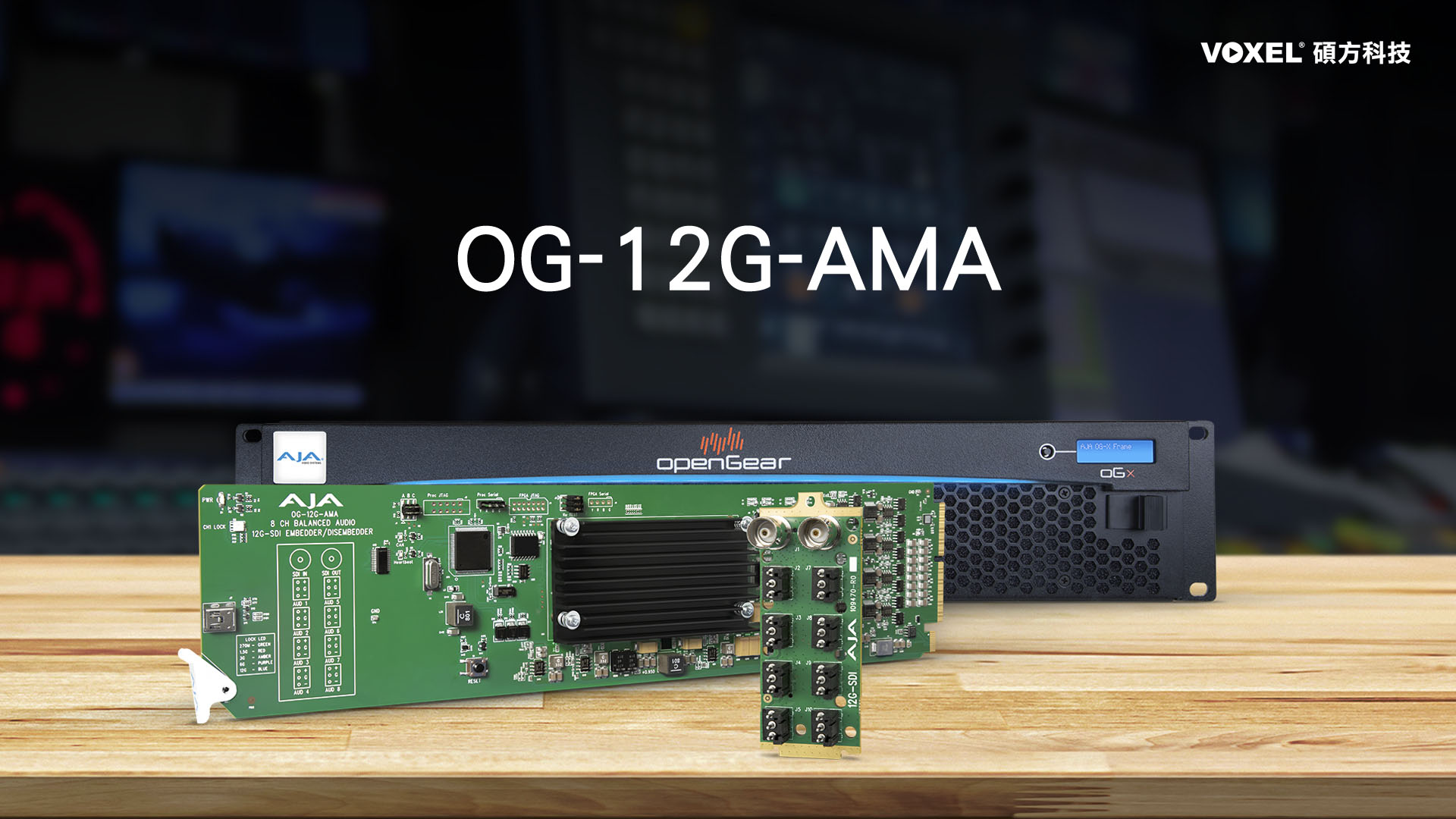

AJA OG-12G-AMA

AJA OG-12G-AMA I/O 影音介面卡具有 16 通道 openGear AES/EBU 音訊內嵌/解嵌功能,支援 12G-SDI 4K/UltraHD 輸入和輸出。 使用者可控制頻道 AES/EBU 音訊嵌入/解嵌、12G-SDI 輸入音訊解嵌、或嵌入 AES/EBU 輸入音訊,以 BNC 連接器設定執行音訊輸入或輸出。 AJA OG-12G-AM 具備自動偵測或手動設定輸入視訊格式。支援 SDI 工作流程,以 12G、6G、3G 和 1.5G 四通道 SDI 訊號轉換為單通道 SDI 訊號, 還支援雙鏈路和雙流轉換。同時支援Quadrant和2SI輸入和輸出映射。

產品特色

  • 12G-SDI analog audio embedder/disembedder
  • 8-channel balanced analog audio I/O
  • 8x 3-Pin Terminal Block connectors (included)
  • Compatible with OG-X-FR, OG-3-FR and DFR-8321 openGear frames
  • Monitor and control with Ross DashBoard software
  • 8 watts max per card

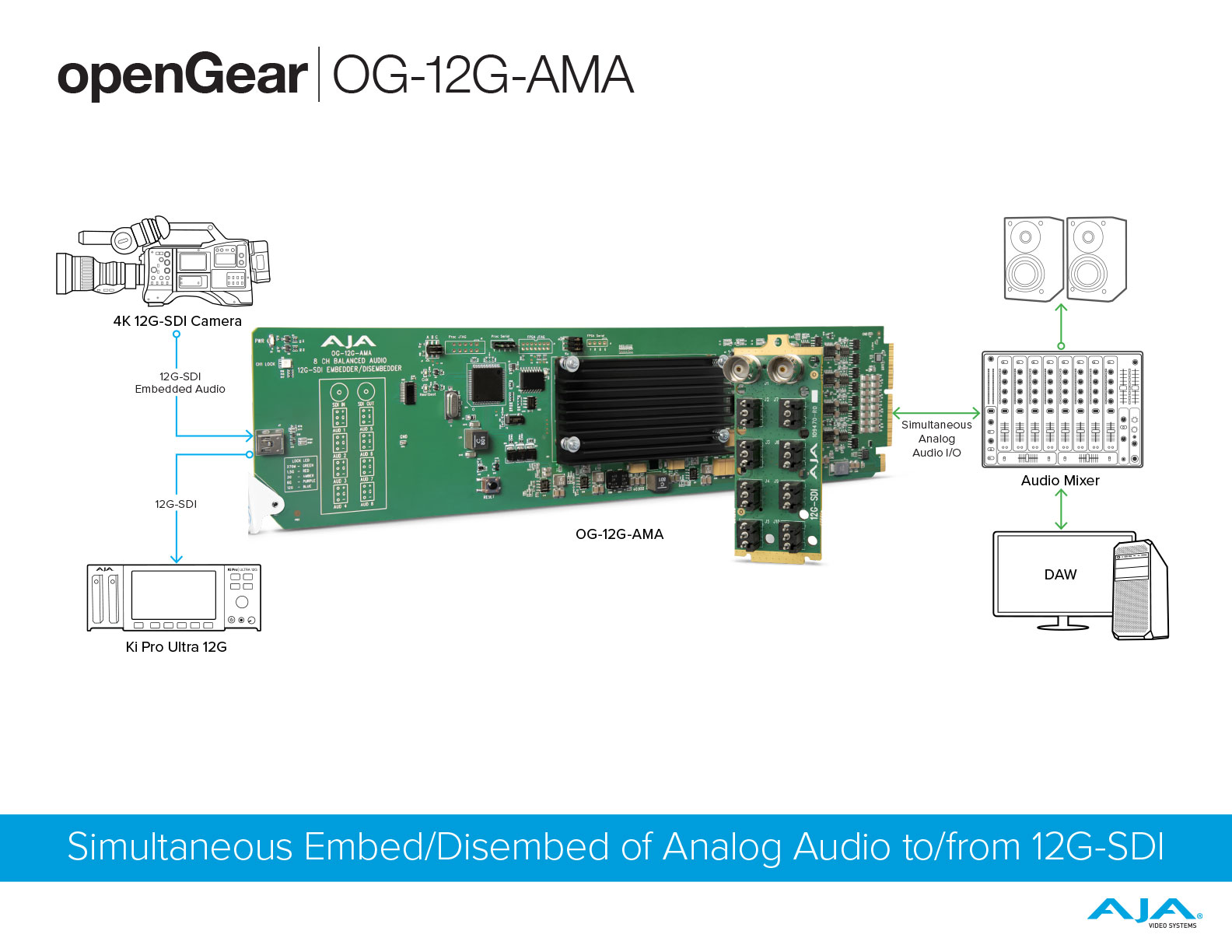

AJA 視訊製作流程架構圖

OG-12GM-AMA Workflow Diagram 1



產品規格

📹AJA OG-12G-AMA I/O 影音介面卡

AJA OG-12G-AMA
Video Formats
  • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920x1080i 50, 59.94, 60
  • (HD) 1280x720p 50, 59.94, 60
  • (SD) 625i 50
  • (SD) 525i 59.94
  • RGB and YCbCr, 4:4:4/4:2:2, 10-bit

Note: Raster and frame rate dependent. Please see OG-12G-AM Video Formats in Documents and Manual.

Video Input Digital
  • 1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
    • Single Link SD/HD/2K/UltraHD/4K
    • Single Link 3G-SDI Level A, Level B (DL or DS), SMPTE 425
Video Output Digital 1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
  • Single Link SD/HD/2K/UltraHD/4K
  • Single Link 3G-SDI Level A, Level B (DL or DS), SMPTE 425
Video Path Delay

Video Out is a delayed, reclocked version of Video In, at same frame rate, etc. Video Out is undefined when no input.

  • Video Latency, time measured between video input and video output connector:
    • 12G = 4 µsec
    • 6G = 4 µsec
    • 3G level A = 4 µsec
    • 3G level B = 8 µsec
    • HD (1.5 Gb) = 8 µsec
    • SD (270 Mb) = 22 µsec
Audio Inputs and Outputs Digital
  • Audio Connectors
    • 8 Balanced analog audio connections (4 pairs total)
      • Each pair configurable to Inputs or Outputs
Audio Converters 24-bit
Embedded Audio
  • SMPTE 272M (SD): 20-bit, 48 kHz synchronous
  • SMPTE 299M (3G/HD): 24-bit, 48 kHz synchronous
  • Incoming embedded audio can be passed, removed, or overridden
  • Up to 16-channels supported

Note: 2048x1080p/PsF 29.97 and 30 formats support a maximum of 8-channels embedded audio.

Path Audio Latency
  • Embed Path 1100 µsec
  • Disembed Path 1200 µsec
Analog Audio Levels
  • Configured via Mini-Config software:

    • Pro 1: 0 dBfs = +24 dBu
    • Pro 2: 0 dBfs = +18 dBu
    • Pro 3: 0 dBfs = +15 dBu
    • Consumer 1: 0 dBfs = +12 dBu
User Interface openGear DashBoard network control software via Windows, macOS, or Linux
Size (w x d x h)
  • openGear standard form factor, front slot and rear card
  • Two slots required for each card
Weight 0.5 lb (0.3 kg)
Power openGear frame compatible, 6 watts max per card
Environment
  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)



關鍵字 : #tricaster.#aja.#NDI.#opengear.#developer.

*本產品將持續創新,規格可能會有變動,當產品設計/規格變動,恕不另行通知。
