AJA OG-12GDA-2x4
I/O 影音介面卡
openGear Dual 1x4 12G-SDI Distribution Amplifier

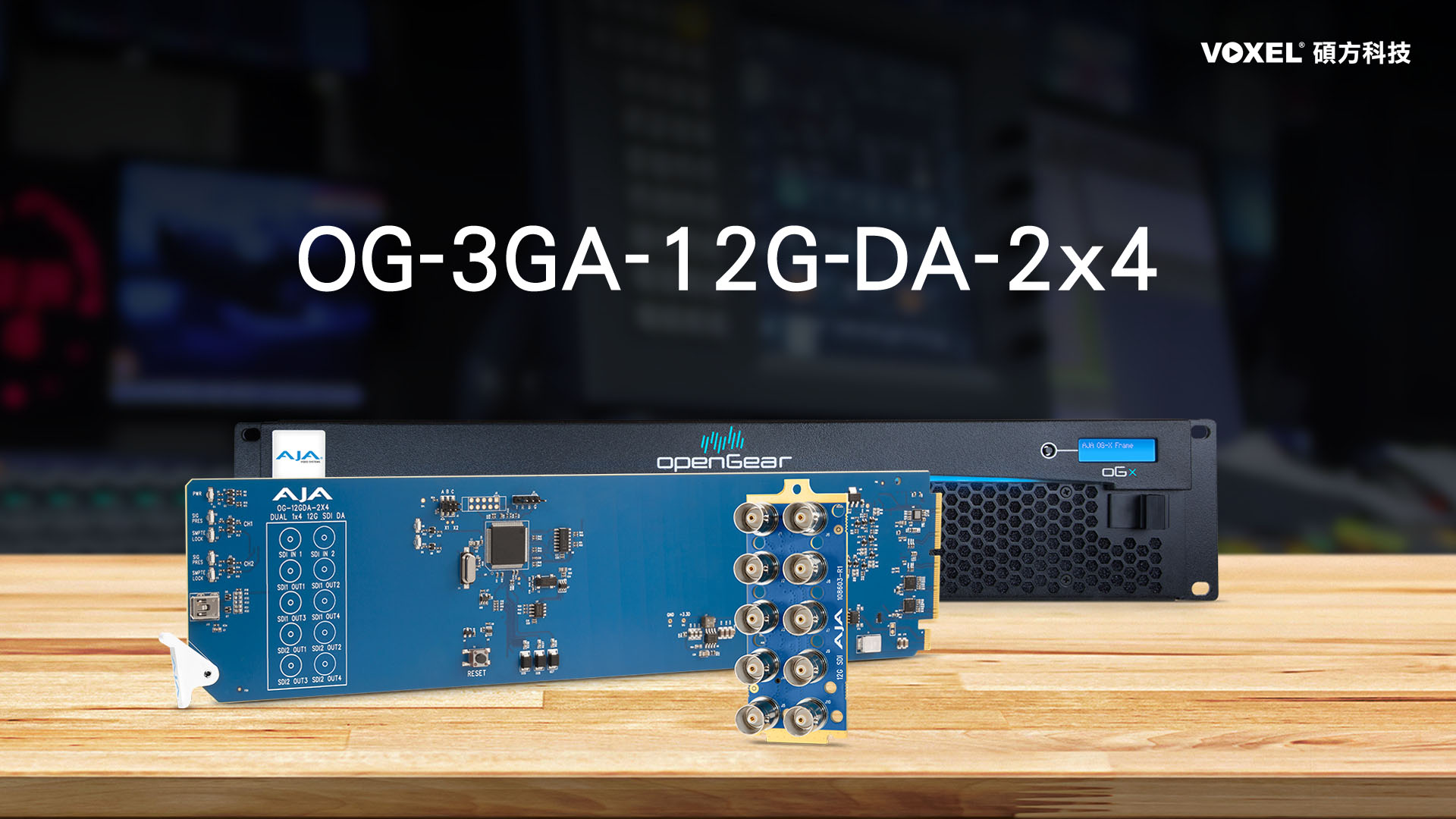

AJA OG-12GDA-2x4
AJA OG-12GDA-2x4 I/O 影音介面卡具有 openGear 最先進的 12G-SDI 分配擴大轉換功能。AJA OG-12GDA-2x4 內建 10x BNC 後連接器模組。 AJA OG-12GDA-2x4 支援 12G-SDI 雙輸入通道訊號，可為每四個 12G-SDI 輸出自動重新計時，將雙輸入 DA 的數量增加一倍。
產品特色
- Dual 1x4 12G-SDI openGear Distribution Amplifiers
- 2x 12G-SDI BNC inputs
- 8x noninverting 12G-SDI BNC outputs
- Format agnostic 270 Mbps – 12 Gbps video formats
- Automatic input equalization and output reclocking
- Support for HDR video
- Passes embedded audio, all ancillary data including closed caption and time code
- Input Present and Input SMPTE Lock LEDs
- 10x 12G-BNC rear connector module included
- Power: 4.5 watts
- Hot swappable
- DashBoard Support with OG-X-FR, OG-3-FR and DFR-8321 openGear frames
AJA 視訊製作
DashBoard Software
產品規格
📹AJA OG-12GDA-2x4 I/O 影音介面卡
| AJA OG-12GDA-2x4 | |
| Video Formats | 150 Mbps - 12 Gbps, format agnostic |
| Video Input Digital | 2x 12G-SDI BNC, SMPTE-259/292/424/2081/2082 |
| Video Output Digital | 8x 12G-SDI BNC, SMPTE-259/292/424/2081/2082, noninverting |
| Cable Equalization | (Belden 1694A coax)
|
| Reclocking |
|
| User Interface | openGear DashBoard network control software via Windows, macOS or Linux |
| Size (w x d x h) |
|
| Weight | 0.5 lb (0.3 kg) |
| Power | openGear frame compatible, 4.5 watts max per card |
| Environment |
|
關鍵字 : #tricaster.#aja.#NDI.#opengear.#developer.
*本產品將持續創新，規格可能會有變動，當產品設計／規格變動，恕不另行通知。
