專業影音製作應用解決方案
AJA OG-12GM
I/O 影音介面卡
12G-SDI to/from SDI Muxer/DeMuxer

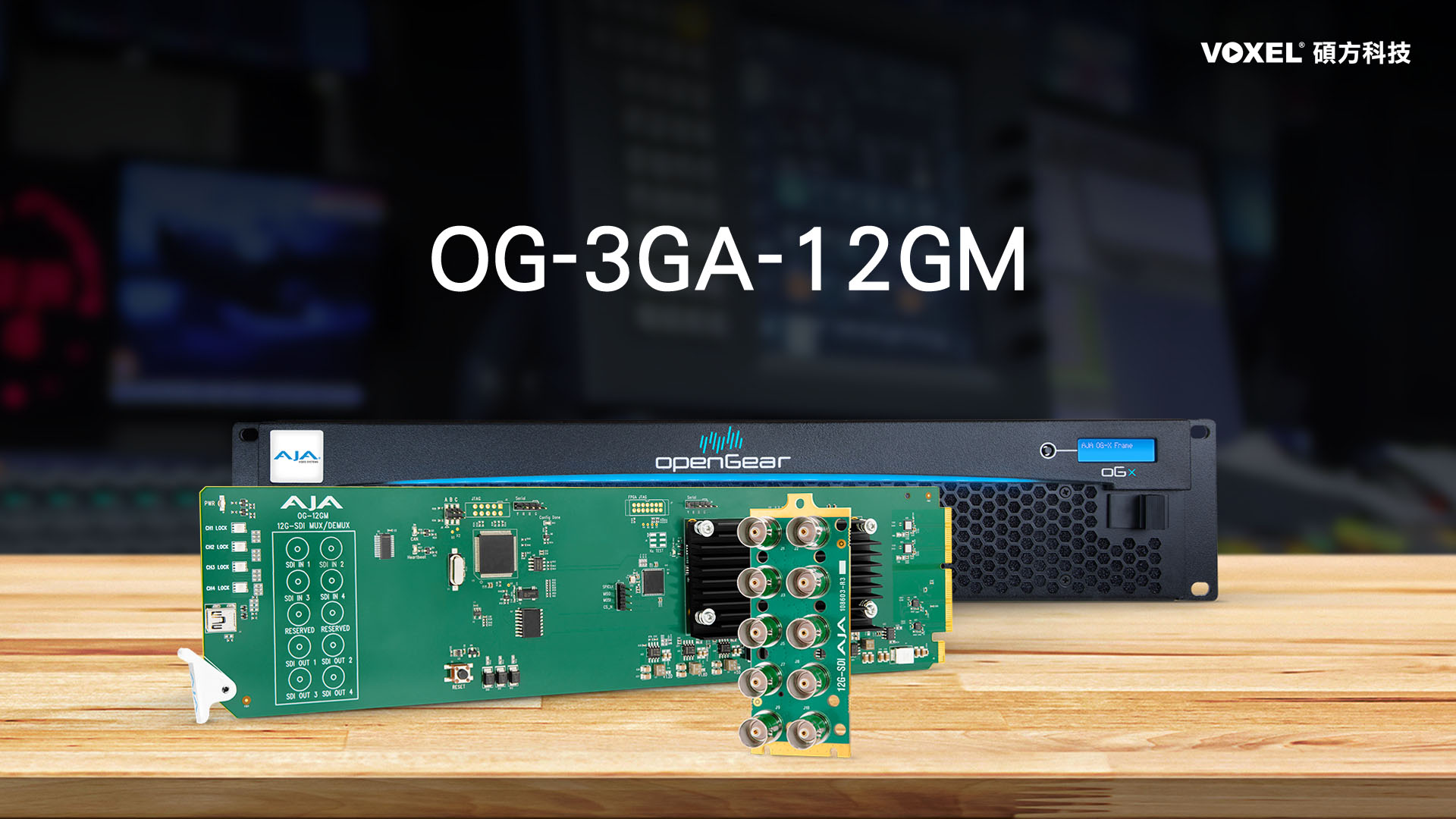

AJA OG-12GM

AJA OG-12GM I/O 影音介面卡具有 SDI openGear 介面，可轉換 12G-SDI 到四鏈路 3G-SDI 與 四鏈路 3G-SDI 到 12G-SDI。 AJA OG-12GM muxer/demuxer 功能方便進行 4K、UltraHD、2K、HD 和 SD 工作流程，能以 12G、6G、3G 和 1.5G 四通道 SDI 訊號轉換為單通道 SDI 訊號， 還支援雙鏈路和雙流轉換。同時支援Quadrant和2SI輸入和輸出映射。

產品特色

  • openGear compatible card
  • SDI Transport Converter for 12G, 6G, 3G and 1.5G-SDI
  • Supports multiple types of Quad, Dual, and Single type conversions
  • Two Sample Interleave (2SI) to/from Square Division (Quadrant) pixel mapping
  • 3G-SDI Level A to/from 3G-SDI Level B Dual Link (DL)
  • 3G-B Dual Stream Support
  • Simple Frame Rate Conversion (FRC)
  • HDR signaling metadata pass-through and optional override
  • Pass-through of Single Link 12G, 6G, 3G, 1.5G and 270M SDI video
  • Distribution Amplifier support (1x4)
  • Input signal diagnostics and timing analyzer for quad link signals
  • Automatic or manual control
  • Detailed timing analysis for validating alignment of quad link SDI inputs
  • Passes SDI embedded audio, 24-bit, up to 16-Channels
  • Remote Ethernet configuration through Ross DashBoard software
  • Power: 13 watts
  • Hot-swappable
  • Rear I/O card included
  • Two slots required for each card
  • Compatible with OG-X-FR and OG-3-FR openGear frames

AJA 視訊製作流程架構圖

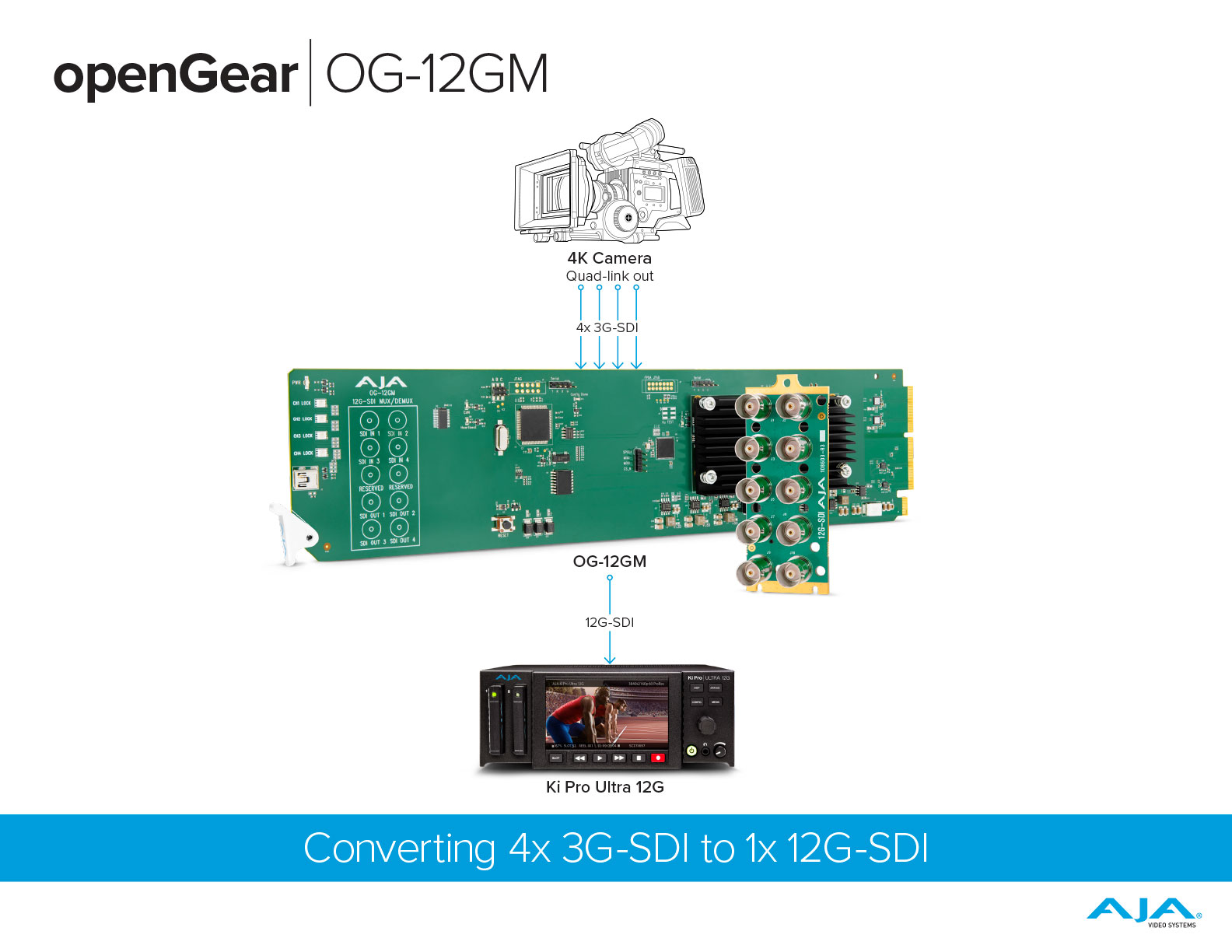

OG-12GM Workflow Diagram 1

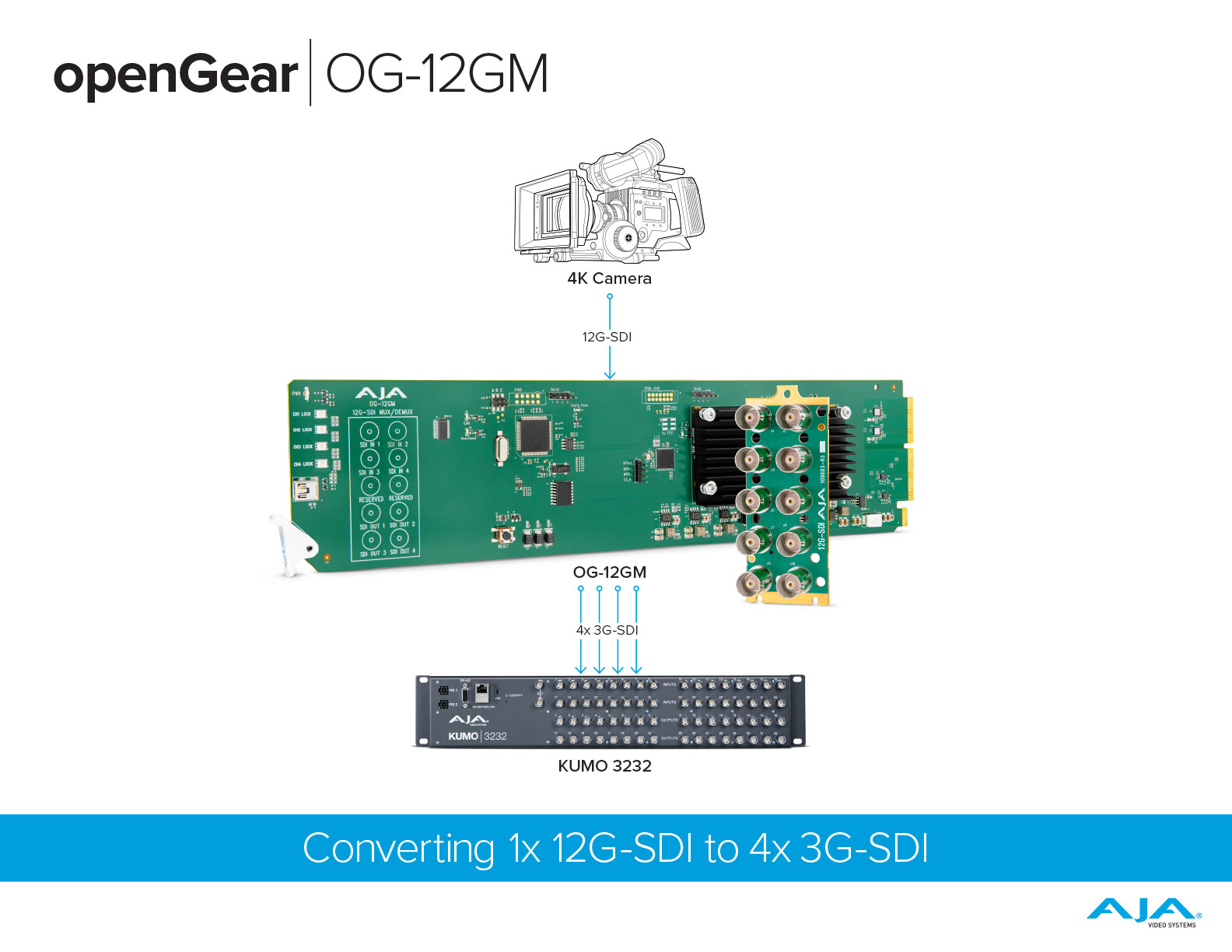

OG-12GM Workflow Diagram 2

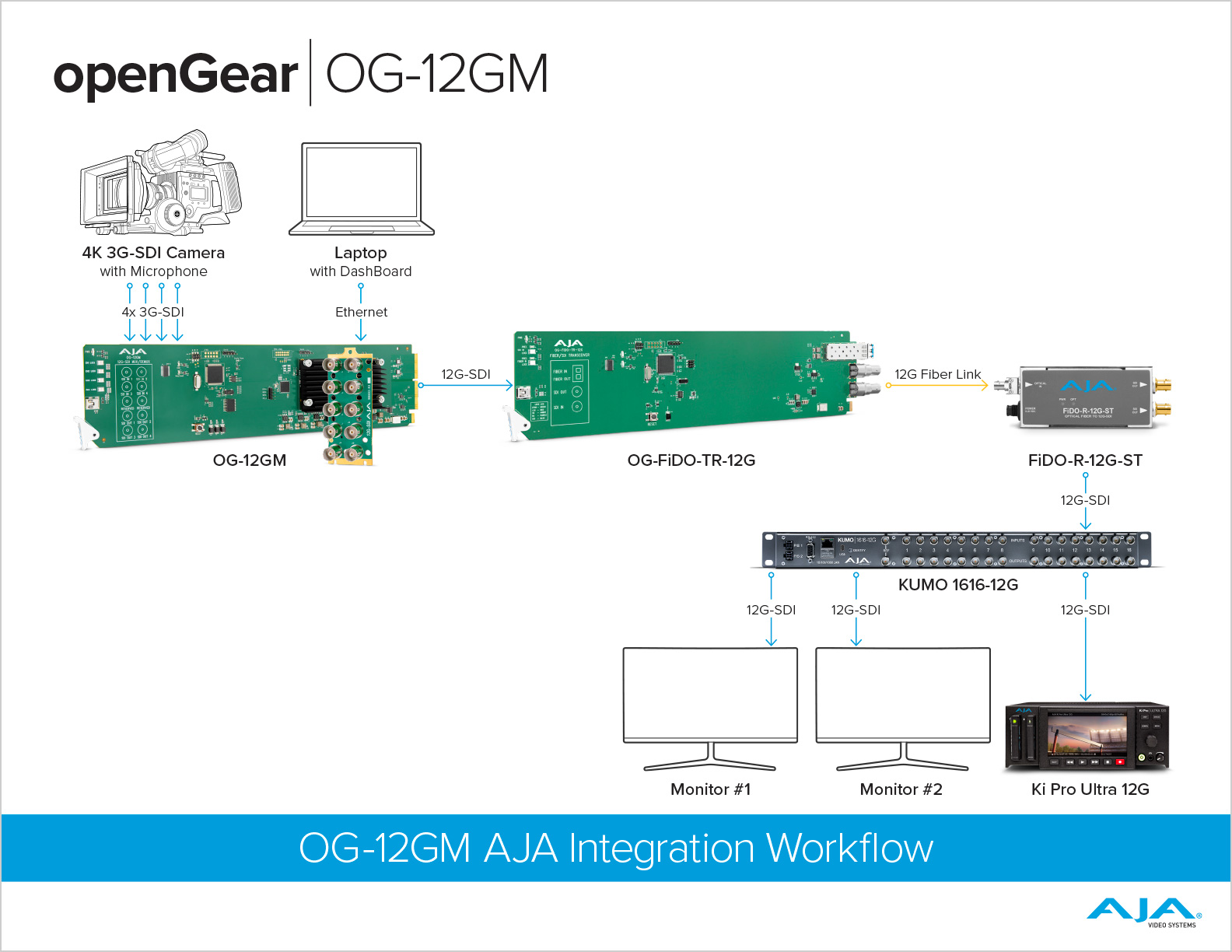

OG-12GM Integration Diagram



產品規格

📹AJA OG-12GM I/O 影音介面卡

AJA OG-12GM
Video Formats
  • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • (4K) 4096x2160PsF 23.98, 24, 25, 29.97, 30
  • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (UltraHD) 3840x2160PsF 23.98, 24, 25, 29.97, 30
  • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920x1080i 50, 59.94, 60
  • (HD) 1280x720p 50, 59.94, 60
  • (SD) 625i 50
  • (SD) 525i 59.94
  • YCbCr 4:2:2/4:4:4
  • RGB 4:4:4, SMPTE or Full level
  • 10 or 12-bit

Note: Raster and Frame Rate Dependent, please see OG-12GM Video Formats in the Download / Documents section of the website product page.
Video Input Digital
  • 4x 12G-SDI BNC, SMPTE 259/292/372/424/2081/2082
  • 4x 3 Gb SDI (Level A or B Dual Link)
    • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    • (4K) 4096x2160PsF* 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (Ultra HD) 3840x2160PsF* 23.98, 24, 25, 29.97, 30
  • 4x 1.5 Gb SDI
    • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30
    • (4K) 4096x2160PsF 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840x2160PsF 23.98, 24, 25, 29.97, 30
  • 2x 6 Gb SDI
    • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • 2x 3 Gb SDI (Level B Dual Stream)
    • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30
    • (4K) 4096x2160PsF 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840x2160PsF 23.98, 24, 25, 29.97, 30
  • 2x 1.5 Gb SDI (Dual Link HD-SDI), SMPTE-372
    • (HD) 1920x1080p 47.95, 48, 50, 59.94, 60
  • 2x 1.5 Gb SDI (Dual Stream HD-SDI)
    • (HD) 2x 1920x1080p 23.98, 24, 25, 29.97, 30
  • 1x 12 Gb SDI
    • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • 1x 6 Gb SDI
    • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30
    • (2K) 2048x1080p 47.95, 48, 50, 59.94, 60
    • (HD) 1920x1080p 50, 59.94, 60
  • 1x 3 Gb SDI (Level A or B Dual Link)
    • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    • (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080i 50, 59.94, 60
    • (HD) 1280x720p** 50, 59.94, 60
  • 1x 3 Gb SDI (Level B Dual Stream)
    • (HD) 2x 1920x1080p 23.98, 24, 25, 29.97, 30
  • 1x 1.5 Gb SDI
    • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30
    • (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080i 50, 59.94, 60
    • (HD) 1280x720p 50, 59.94, 60
  • 1x 270 Mb SDI
    • (SD) 625i 50
    • (SD) 525i 59.94



*PsF is Level B Dual Link
**1280x720p is Level A Only
Video Output Digital
  • 4x 12G-SDI BNC, SMPTE 259/292/372/424/2081/2082
  • 4x 3 Gb SDI (Level A or B Dual Link)
    • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    • (4K) 4096x2160PsF* 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (Ultra HD) 3840x2160PsF* 23.98, 24, 25, 29.97, 30
  • 4x 1.5 Gb SDI
    • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30
    • (4K) 4096x2160PsF 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840x2160PsF 23.98, 24, 25, 29.97, 30
  • 2x 6 Gb SDI
    • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • 2x 3 Gb SDI (Level B Dual Stream)
    • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30
    • (4K) 4096x2160PsF 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840x2160PsF 23.98, 24, 25, 29.97, 30
  • 2x 1.5 Gb SDI (Dual Link HD-SDI), SMPTE-372
    • (HD) 1920x1080p 47.95, 48, 50, 59.94, 60
  • 2x 1.5 Gb SDI (Dual Stream HD-SDI)
    • (2K) 2x 1920x1080p 23.98, 24, 25, 29.97, 30
    • (2K) 2x 1920x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 2x 1920x1080p 23.98, 24, 25, 29.97, 30
    • (HD) 2x 1920x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 2x 1280x720p 47.95, 48, 50, 59.94, 60
    • (HD) 2x 1920x1080i 47.95, 48, 50, 59.94, 60
  • 1x 12 Gb SDI
    • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • 1x 6 Gb SDI
    • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30
    • (2K) 2048x1080p 47.95, 48, 50, 59.94, 60
    • (HD) 1920x1080p 50, 59.94, 60
  • 1x 3 Gb SDI (Level A or B Dual Link)
    • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    • (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080i 50, 59.94, 60
    • (HD) 1280x720p** 50, 59.94, 60
  • 1x 3 Gb SDI (Level B Dual Stream)
    • (2K) 2x 1920x1080p 23.98, 24, 25, 29.97, 30
    • (2K) 2x 1920x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 2x 1920x1080p 23.98, 24, 25, 29.97, 30
    • (HD) 2x 1920x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 2x 1280x720p 47.95, 48, 50, 59.94, 60
    • (HD) 2x 1920x1080i 47.95, 48, 50, 59.94, 60
  • 1x 1.5 Gb SDI
    • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30
    • (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080i 50, 59.94, 60
    • (HD) 1280x720p 50, 59.94, 60
  • 1x 270 Mb SDI
    • (SD) 625i 50
    • (SD) 525i 59.94



*PsF is Level B Dual Link
**1280x720p is Level A Only
Supported Conversions and Functions
  • Quad 3G-SDI Level A to Single 12G-SDI
  • Quad 3G-SDI Level B Dual Link to Single 12G-SDI
  • Quad 3G-SDI Level A to Dual 6G-SDI
  • Quad 3G-SDI Level B Dual Link to Dual 6G-SDI
  • Quad 3G-SDI Level A to Quad 3G-SDI Level B Dual Link
  • Quad 3G-SDI Level B Dual Link to Quad 3G-SDI Level A
  • Quad 1.5G-SDI to Single 6G-SDI
  • Dual 6G-SDI to Single 12G-SDI
  • Dual 6G-SDI to Quad 3G-SDI Level A
  • Dual 6G-SDI to Quad 3G-SDI Level B Dual Link
  • Dual 3G-SDI Level A to Single 6G-SDI
  • Dual 3G-SDI Level B Dual Stream to Single 6G-SDI
  • Dual Link 1.5G-SDI to Single 3G-SDI Level A
  • Dual Link 1.5G-SDI to Single 3G-SDI Level B Dual Link
  • Dual Stream 1.5G-SDI to Single 3G-SDI Level B Dual Stream
  • Single 12G-SDI to Quad 3G-SDI Level A
  • Single 12G-SDI to Quad 3G-SDI Level B Dual Link
  • Single 12G-SDI to Dual 6G-SDI
  • Single 6G-SDI to Dual 3G-SDI Level A
  • Single 6G-SDI to Dual 3G-SDI Level B Dual Stream
  • Single 6G-SDI to Quad 1.5G-SDI
  • Single 3G-SDI Level A to Dual Link 1.5G-SDI
  • Single 3G-SDI Level B Dual Link to Dual Link 1.5G-SDI
  • Single 3G-SDI Level B Dual Stream to Dual Stream 1.5G-SDI
  • Two Sample Interleave (2SI) to Square Division (Quadrant) pixel mapping
  • Square Division (Quadrant) to Two Sample Interleave (2SI) pixel mapping
  • HDR VPID pass-through or override for Colorimetry and Transfer Characteristic
  • Pass-through of Single Link 12G, 6G, 3G, 1.5G, and 270M SDI video
  • Distribution Amplifier support
    • Single Link Outputs duplicated on outputs 2, 3, and 4
    • Dual Link Outputs duplicated on outputs 3, and 4
  • Input signal diagnostics
  • Input timing analyzer for Quad/Dual link signals
Cable Equalization

(Belden 1694A coax)

  • 12 Gbps, 70m
  • 6 Gbps, 100m
  • 3 Gbps, 140m
  • 1.5 Gbps, 200m
  • 270 Mbps, 300m
Audio Input/Output Digital Passes SDI embedded audio, 24-bit, up to 16-channels
User Interface openGear DashBoard network control software via Windows, macOS, or Linux
Size
  • openGear standard form factor, front slot, and rear card
  • Two slots required for each card
Weight 0.5 lb (0.3 kg)
Power openGear frame compatible, 13 watts max per card
Environment
  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)



關鍵字 : #tricaster.#aja.#NDI.#opengear.#developer.

*本產品將持續創新，規格可能會有變動，當產品設計／規格變動，恕不另行通知。
