專業影音製作應用解決方案

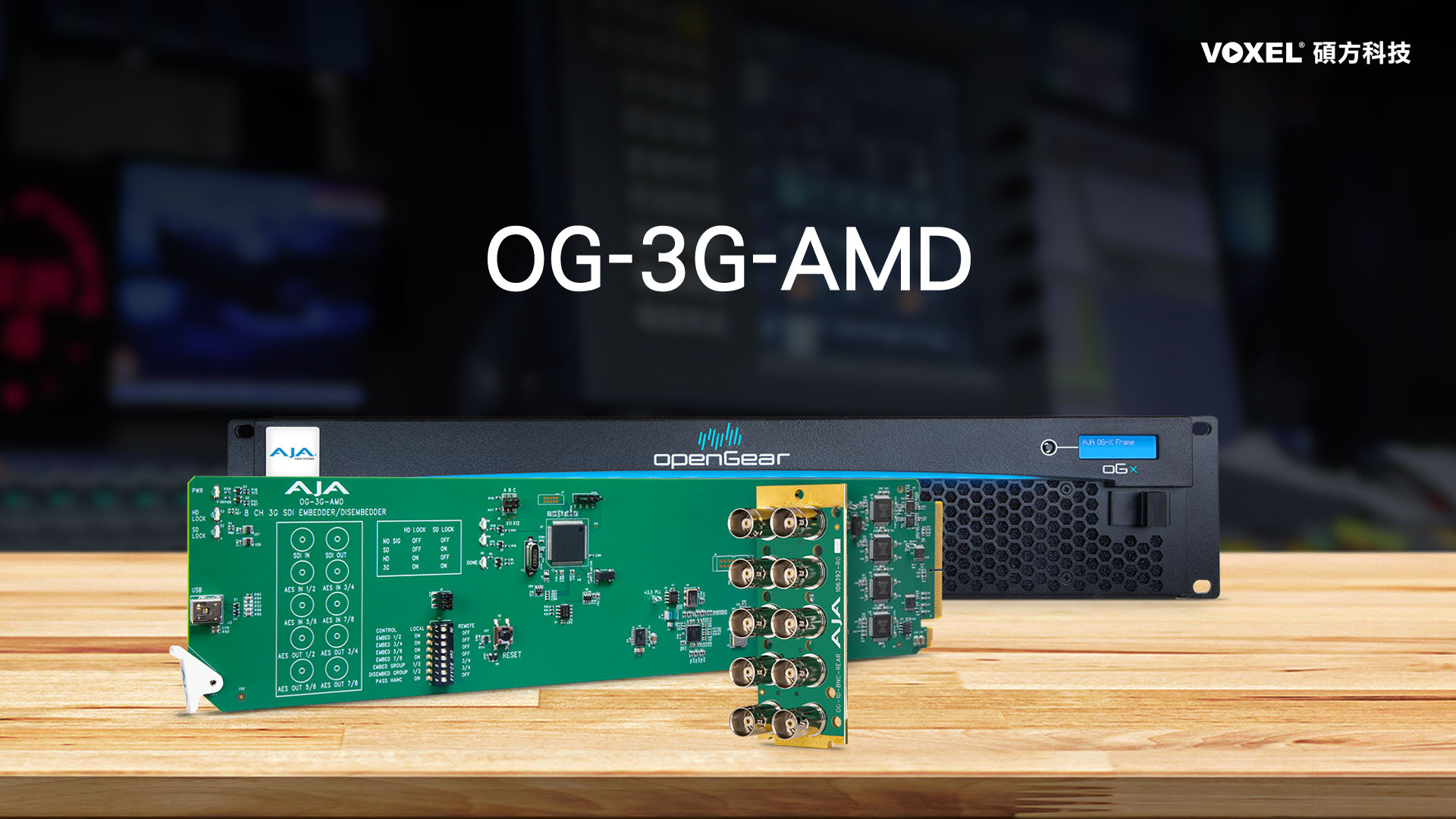

AJA OG-3G-AMD
I/O 影音介面卡
openGear 3G-SDI 8-Channel 24-bit AES Embedder/Disembedder

AJA OG-3G-AMD

AJA OG-3G-AMD I/O 影音介面卡具有 openGear 8 通道 AES 音訊加嵌器/解嵌器，內建 3G-SDI 端子，支援 1080p 60 輸入和輸出。隨附 10x BNC 背板連接模組。

產品特色

  • Video Formats: 3G-SDI
  • 3G-SDI Embedder / Disembedder in one board
  • Input: 1x 3G-SDI BNC
  • Outputs: 1x 3G-SDI BNC
  • 4x AES BNC (2 channels per input)
  • Local and Remote modes
  • Incoming embedded audio passed, removed, or overridden
  • Configure via openGear DashBoard, or DIP switch
  • Power: 5.0 watts
  • Hot swappable
  • Compatible with OG-X-FR, OG-3-FR and DFR-8321 openGear frames

AJA 視訊製作

DashBoard Software



產品規格

📹AJA OG-3G-AMD I/O 影音介面卡

AJA OG-3G-AMD
Video Formats
  • 1x 3 Gb SDI (level A or B)
    • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080i 50, 59.94, 60
    • (HD) 1280x720p 50, 59.94, 60
  • 1x 1.5 Gb SDI
    • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30
    • (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080i 50, 59.94, 60
    • (HD) 1280x720p 50, 59.94, 60
  • 1x 270 Mb SDI
    • (SD) 625i
    • (SD) 525i
  • RGB and YCbCr, 4:4:4/4:2:2, 10-bit
Video Input Digital 1x 3G-SDI BNC, SMPTE-259/292/424
  • Single Link SD/HD/2K
  • Single Link 3G-SDI Level A, Level B (Dual Link or Dual Stream), SMPTE 425
Video Output Digital 1x 3G-SDI BNC, SMPTE-259/292/424
  • Single Link SD/HD/2K
  • Single Link 3G-SDI Level A, Level B (Dual Link or Dual Stream), SMPTE 425
Audio Input Digital 4x BNC, AES3id
Audio Output Digital 4x BNC, AES3id
Audio Data Formats
  • AES3 2003
  • SMPTE ST 337
Digital Audio Converters 24-bit
Embedded Audio
  • SDI embedded audio, 24-bit, 16-channel*
  • SMPTE ST 272 (SD): 20-bit, 48 KHz synchronous
  • SMPTE ST 299 (3G/HD): 24-bit, 48 KHz synchronous
  • Incoming embedded audio can be passed, removed, or overridden

2048x1080p/PsF 29.97 and 30 formats support a maximum of 8-channels embedded audio
Embed Path Audio Latency

(Time measured between audio input and video output connector):

  • 1500 usec (SRC ON)
  • 400 usec (SRC OFF)
Disembed Path Audio Latency

(Time measured between video input and audio output connector):

  • 210 usec
User Interface
  • openGear DashBoard network control software via Windows, macOS, or Linux
  • External DIP switch
Size (w x d x h)
  • openGear standard form factor, front slot and rear card
  • Two slots required for each card
Weight 0.5 lb (0.3 kg)
Power openGear frame compatible, 5.0 watts max per card
Environment
  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)



關鍵字 : #tricaster.#aja.#NDI.#opengear.#developer.

*本產品將持續創新，規格可能會有變動，當產品設計／規格變動，恕不另行通知。
