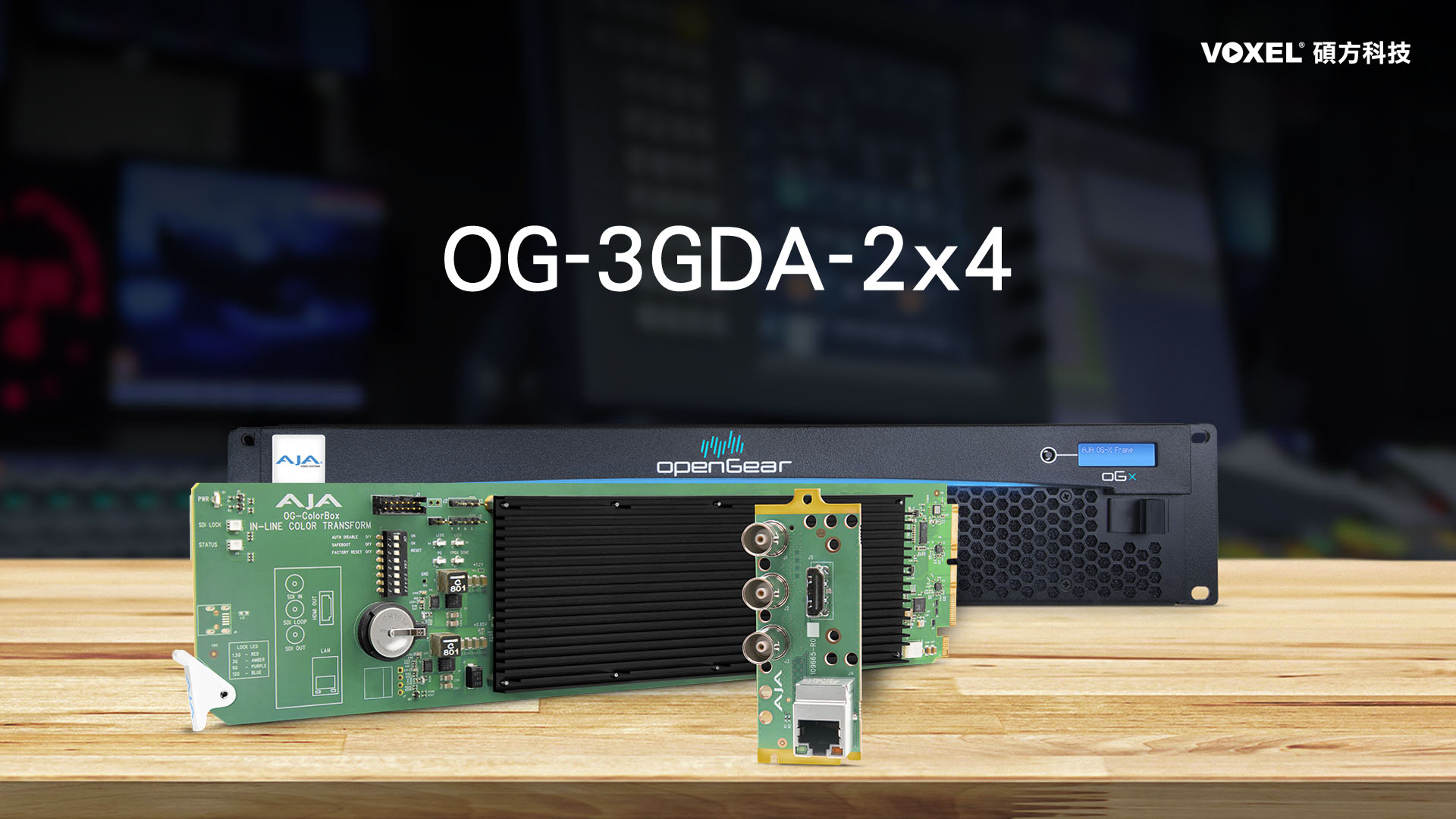

AJA OG-3GDA-2x4
I/O 影音介面卡
openGear 2x4 3G-SDI reclocking DA
AJA OG-3GDA-2x4
AJA OG-3GDA-2x4 I/O 影音介面卡具有 openGear 最先進 3G-SDI 訊號分配放大功能。支援 3G-SDI 雙輸入通道訊號，可為每四個 3G-SDI 輸出自動重新計時，或 1x 8 通道 DA 數位類比轉換，同時傳送到8個目的地。 隨附 10x BNC 連接器模組。
產品特色
- Video Formats: 150 Mbps - 3 Gbps, format agnostic
- Input: 1x 3G-SDI BNC (1x8 mode); 2x 3G-SDI BNC (2x4 mode)
- Outputs: 8x 3G-SDI BNC
- 4 outputs noninverting (1x8 mode)
- 2 outputs noninverting (2x4 mode)
- Support for HDR – High Dynamic Range video
- Monitor via openGear DashBoard
- Passes embedded audio, all ancillary data including closed caption and time code
- Input Present and Input SMPTE Lock LEDs
- Automatic input equalization and output reclocking
- 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
- Power: 2.6 watts max per card
- Hot swappable
- Compatible with OG-X-FR, OG-3-FR and DFR-8321 openGear frames
AJA 視訊製作
DashBoard Software
產品規格
📹AJA OG-3GDA-2x4 I/O 影音介面卡
| AJA OG-3GDA-2x4 | |
| Video Formats | 150 Mbps - 3 Gbps, format agnostic |
| Video Input Digital |
|
| Video Output Digital |
|
| Cable Equalization |
(Belden 1694A coax)
|
| Reclocking |
|
| User Controls | openGear DashBoard network control software via Windows, macOS or Linux |
| Size (w x d x h) |
|
| Weight | 0.5 lb (0.3 kg) |
| Power | openGear frame compatible, 2.6 watts max per card |
| Environment |
|
關鍵字 : #tricaster.#aja.#NDI.#opengear.#developer.
*本產品將持續創新，規格可能會有變動，當產品設計／規格變動，恕不另行通知。
