AJA OG-C10DA
I/O 影音介面卡
Analog Video 1x9 openGear Distribution Amplifie

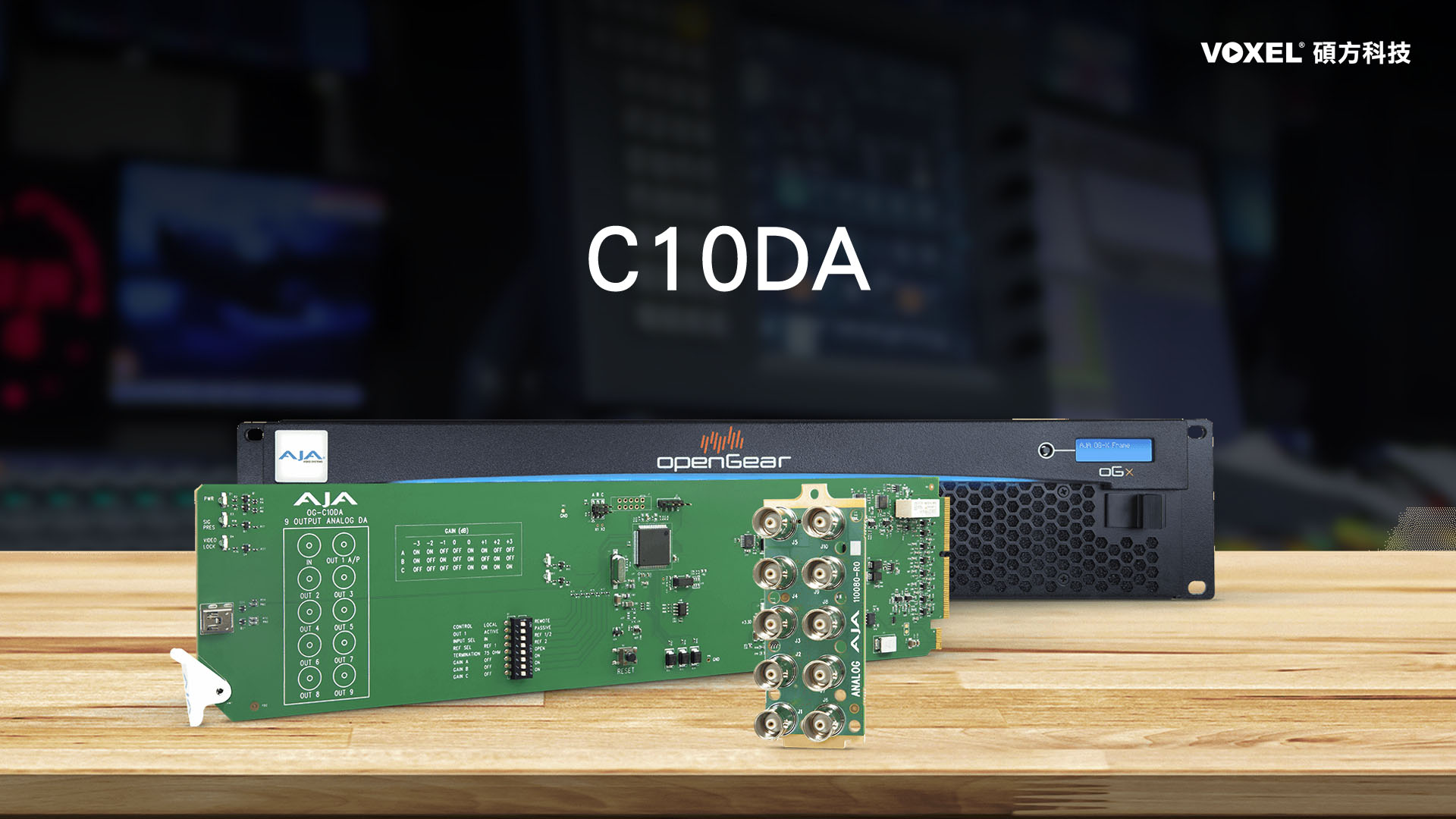

AJA OG-C10DA
AJA OG-C10DA I/O 影音介面卡具有 openGear 1x9 類比分配放大器，支援 NTSC 和 PAL，可分配多輸入訊號，或延伸複合視訊內容，可調整增益以補償長距離的纜線傳輸。 當同步訊號從外部饋送至視訊輸入端時，OG-C10DA 也可用於在 HD 設備中分配 tri-level sync 同步訊號。
產品特色
- 1x9 analog distribution amplifier, (1x loop out option)
- Supports analog NTSC, PAL, blackburst, or tri-level sync
- Supports AES3-id (digital unbalanced audio) and LTC
- Selectable input - external BNC, frame input Ref 1 or frame input Ref 2
- Monitor and control via Ross DashBoard software
- DIP switches for local control (Loop, Ref In, Termination, and Gain)
- Input Present LED
- Power: 6.75 watts max per card
- Hot-swappable
- Compatible with OG-X-FR, OG-3-FR and DFR-8321 openGear frames

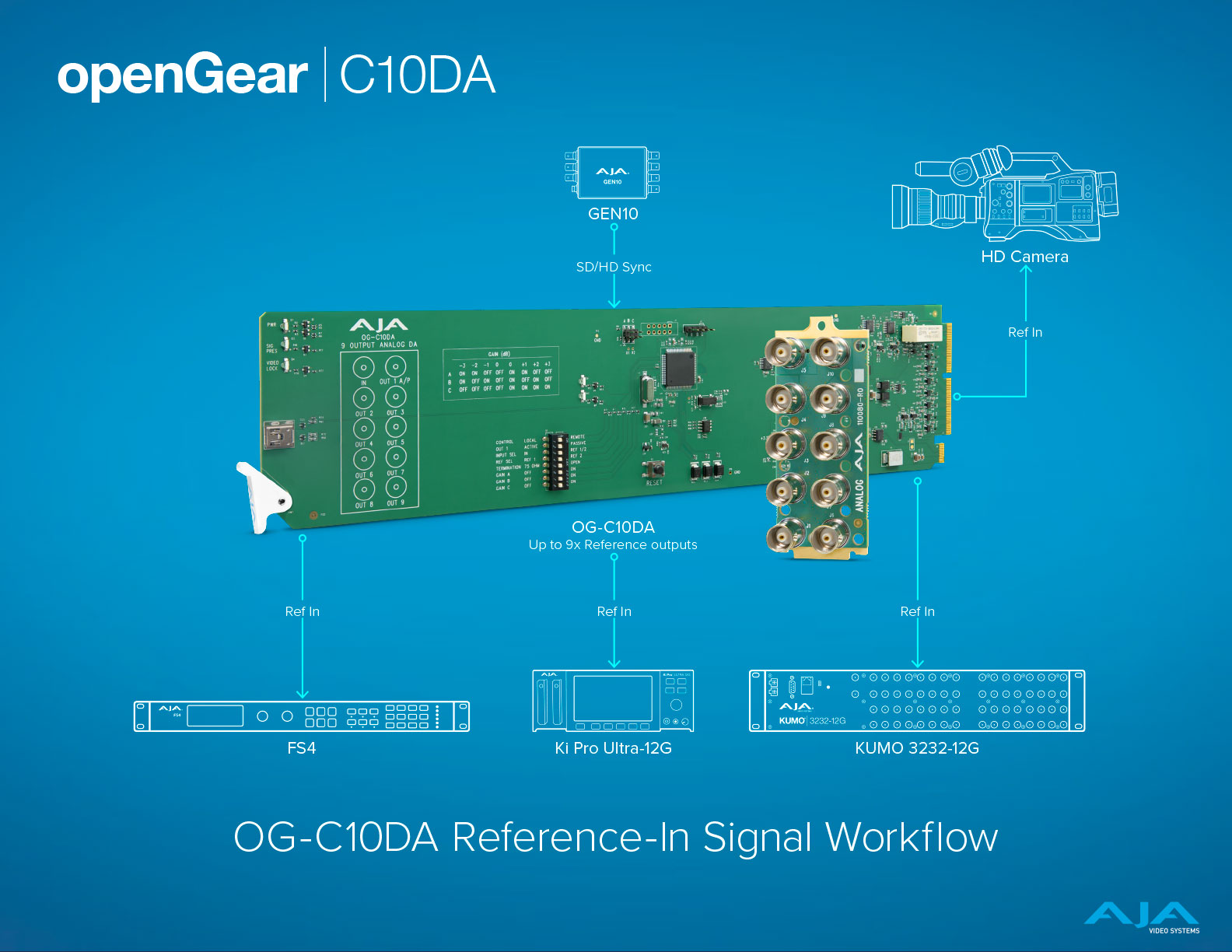

AJA 視訊製作流程架構圖
HD Reference Distribution Workflows
產品規格
📹AJA OG-C10DA I/O 影音介面卡
| AJA OG-C10DA | |
| Formats |
|
| Inputs |
|
| Video Output Digital |
|
| Termination | 75 Ohms or nonterminated |
| Video Bandwidth | 0 – 6 MHz +/- 0.1dB |
| Gain | -3dB, -2dB, -1dB, 0dB, +1dB, +2dB, or +3dB, +/- 0.3dB |
| Diff Gain | 0.15%, not load dependent |
| Diff Phase | 0.1 degree, not load dependent |
| H/V Tilt | < 0.1% |
| Response Variation | < 0.1dB 1 to 9 loads |
| Coupling | DC |
| Max Common Mode Signal | 8Vp-p |
| Return Loss | > 15dB to 6 MHz all inputs and outputs |
| Output Isolation |
|
| User Interface |
|
| Size |
|
| Weight | 0.5 lb (0.3 kg) |
| Power | openGear frame compatible, 6.75 watts max per card |
| Environment |
|
