AJA OG-ColorBox
I/O 影音介面卡
openGear In-line HDR/SDR Algorithmic and LUT Color Transforms

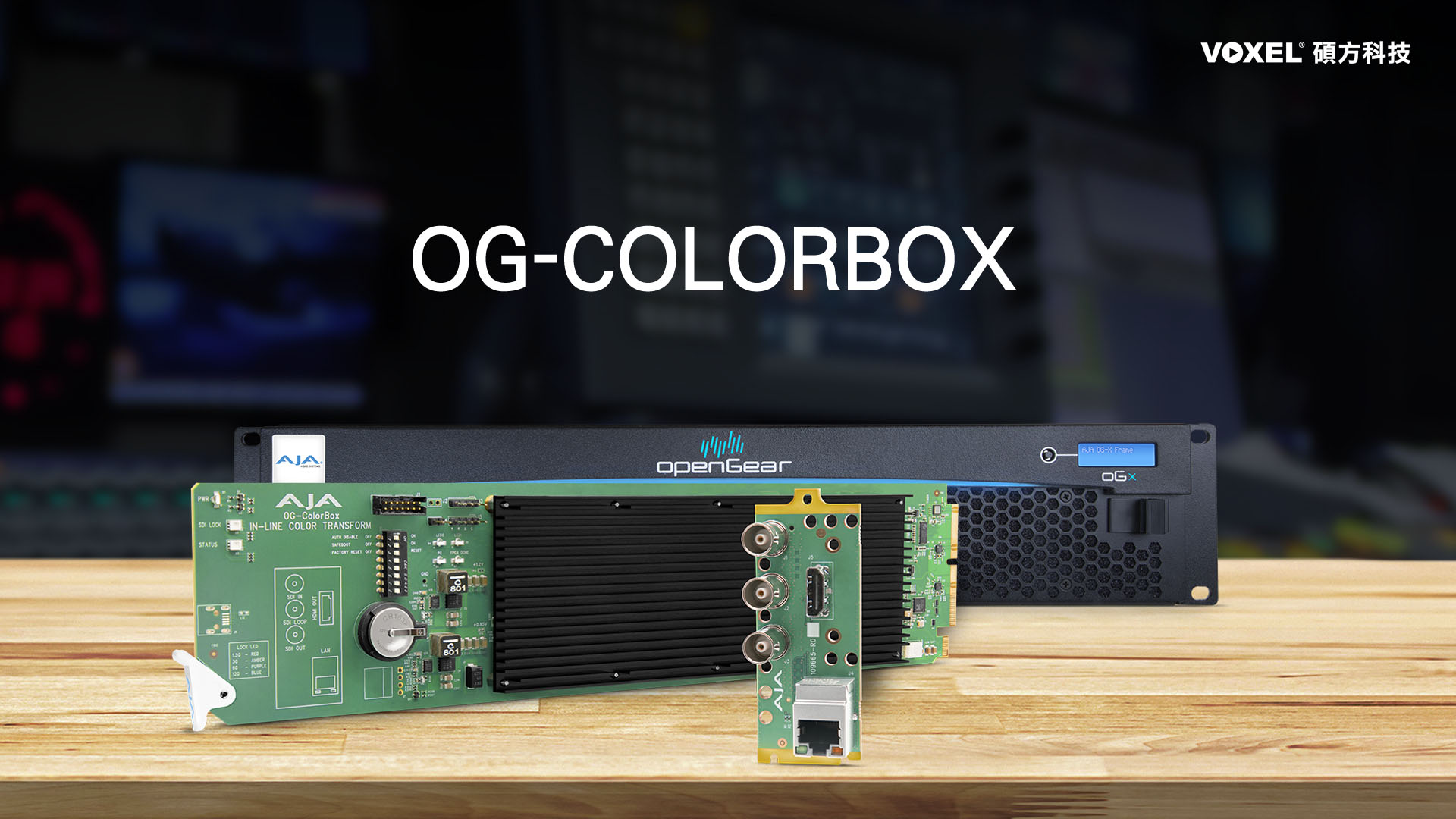

AJA OG-ColorBox
AJA OG-ColorBox I/O 影音介面卡能提供高效能色彩管理，專為滿足廣播、現場活動和現場應用的色彩轉換和色彩校正需求而設計。支援 HDR、SDR 和寬色域 (WCG) 訊號，支援 12G-SDI 單線 4K/UltraHD 4:2:2 10 位元 60p 或 4:4:4 12 位元 30p。 AJA OG-ColorBox 的超低延遲功能，是現場製作色彩管理工作流程的理想選擇。AJA OG-ColorBox 支援 33 點 3D LUT 處理器構建，與 4x 1D LUT 和 2x 3x3 矩陣，每個矩陣都可以支援單獨配置或轉換為 Proc Amps 或 RGB 色彩校正。 能透過 Web 使用者介面輕鬆進行色彩管理。

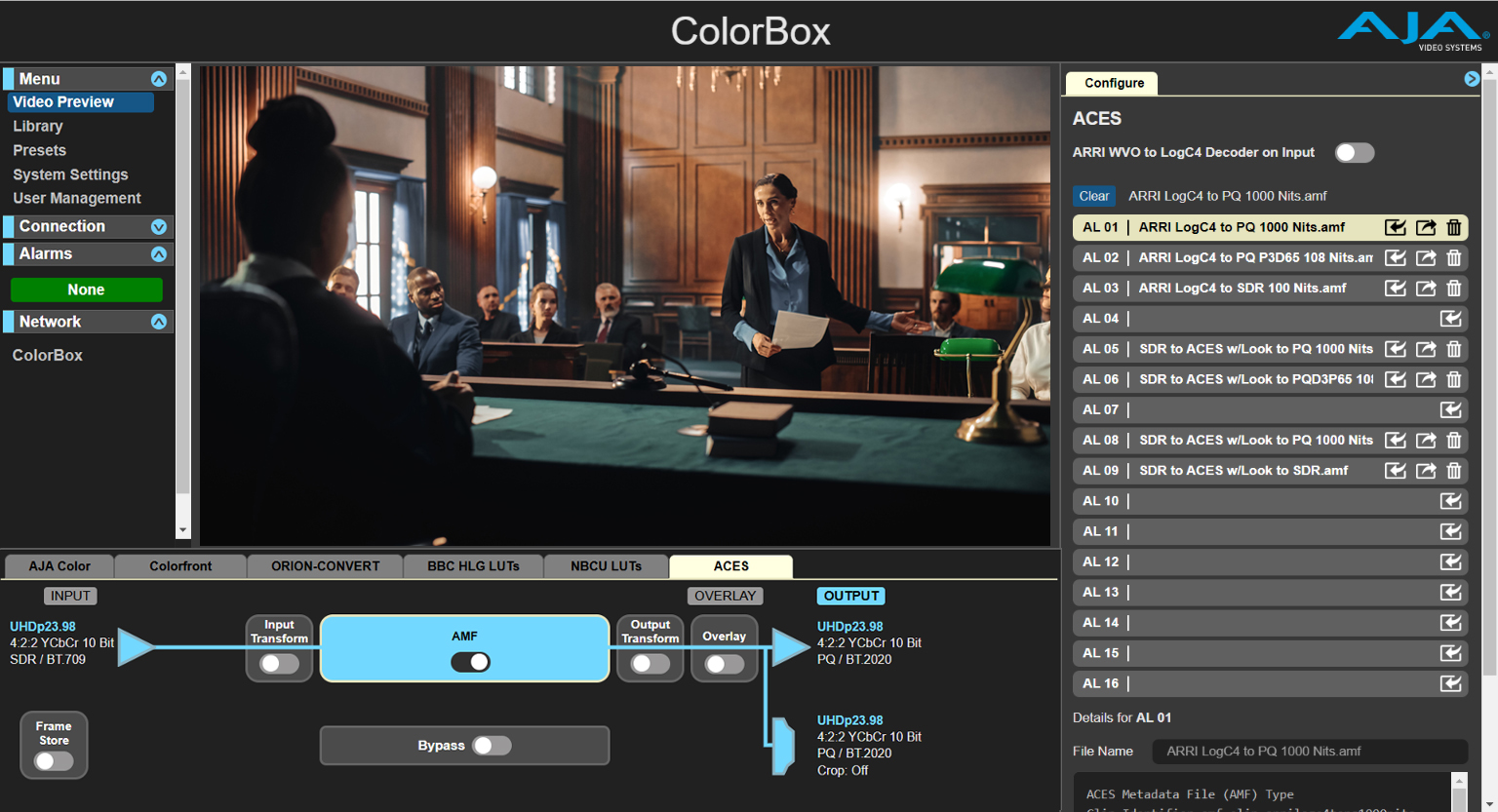

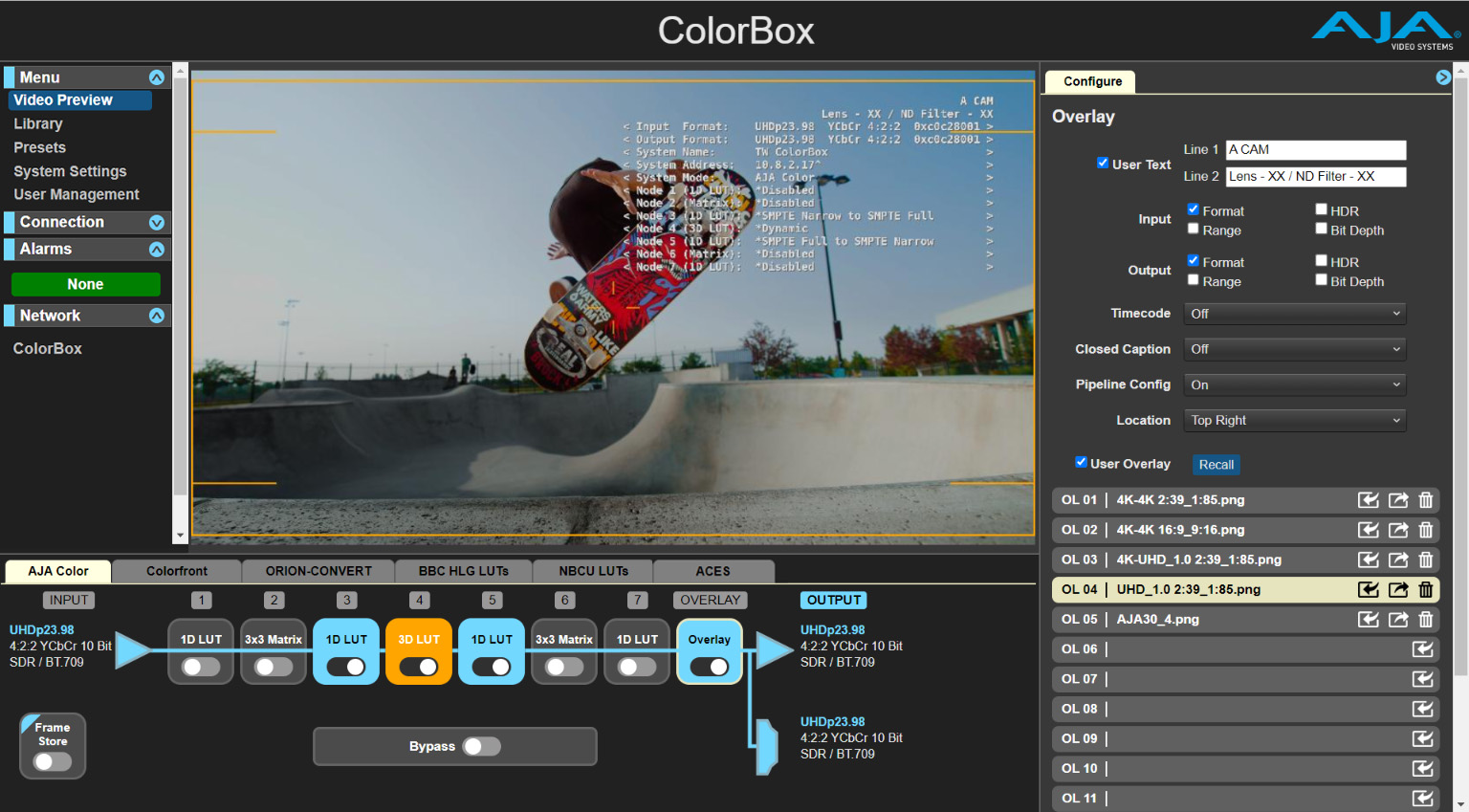

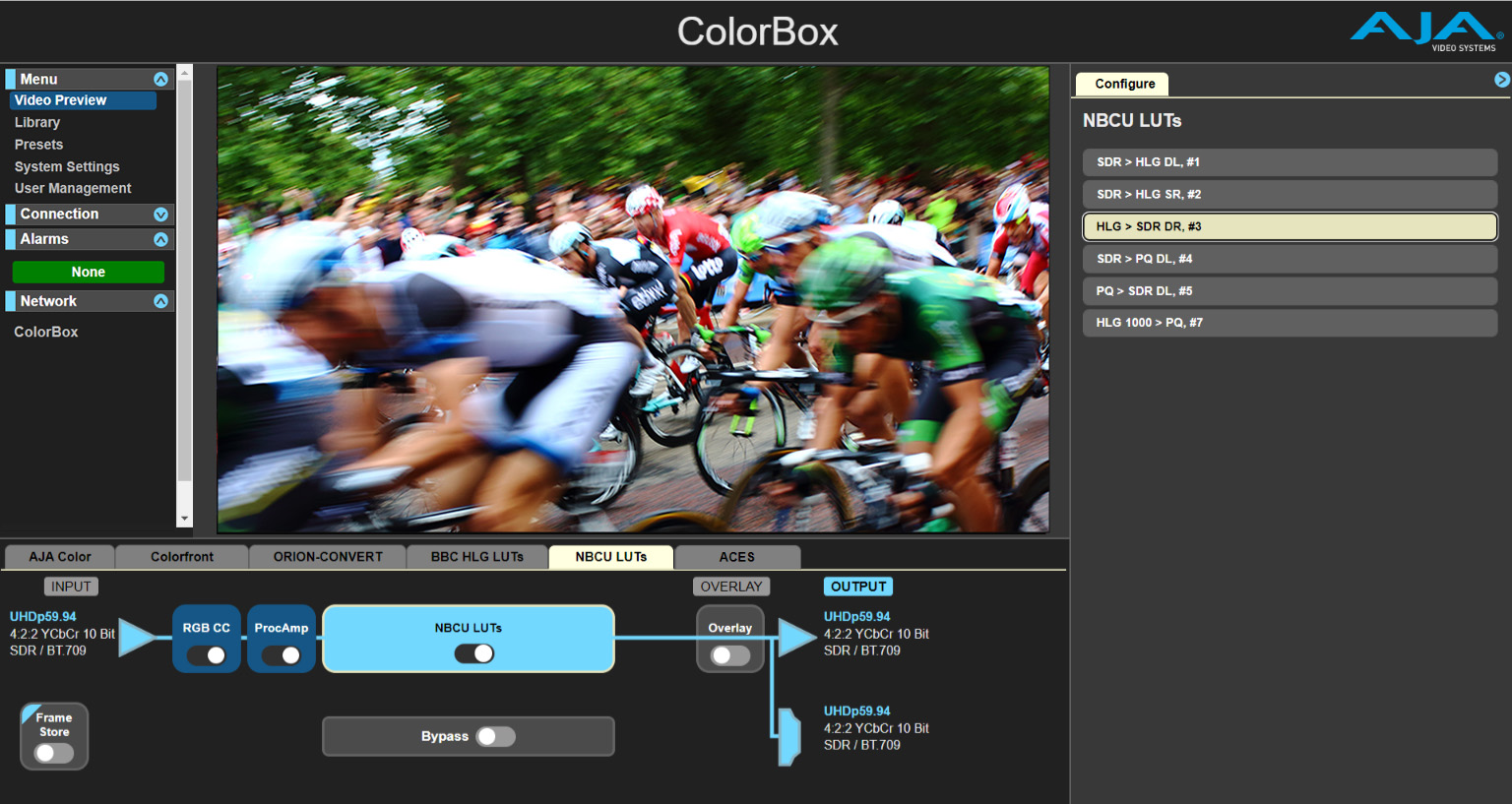

OG-ColorBox also includes processing pipelines from NBCU LUTs and ACES. Additionally, OG-ColorBox offers licensable upgrade options for advanced color managed workflows, including the Colorfront Engine, BBC HLG LUTs, and ORION-CONVERT. ORION-CONVERT’s unique real time floating point math approach to color transformations produces higher precision results to get “access to the colors between the colors.” This enables pixel perfect color transforms and round-tripping where maintaining color fidelity is paramount. The ACES Pipeline includes support for ACES Metadata File (AMF). Internal AMF processing is built on the OpenColorIO (OCIO) from the Academy Software Foundation and supports configurable input and output transforms. The OG-ColorBox is an officially ACES logoed device ensuring end-to-end ACES compliance. OG-ColorBox can overlay information onto the image, including helpful user definable text fields, user loaded images such as graphic elements and frame lines, and more. OG-ColorBox also offers a sophisticated 4K test pattern generator and frame store, bringing useful tools to your workflow, including capturing up to a 4K image as a 16-bit .tiff file for the highest quality reference stills. These captures can be saved locally on OG-ColorBox or onto third party connected computers, which can simultaneously be running applications like Pomfort’s Livegrade Pro/Studio, Assimilate Live Looks, and QTAKE Video Assist software.
AJA OG-ColorBox 產品特色
- openGear compatible card
- 12-bit 4:4:4 12G-SDI I/O for up to 4K/UltraHD HDR/WCG 30p
- 10-bit 4:2:2 12G-SDI I/O for up to 4K/UltraHD HDR/WCG 60p
- 12-bit 4:4:4 HDMI 2.0 output for up to 4K/UltraHD HDR/WCG 30p
- 10-bit 4:2:2 HDMI 2.0 output for up to 4K/UltraHD HDR/WCG 60p
- Ultra-low latency, less than ½ a video line
- Extensive AJA Color Pipeline built around the 33pt. 3D LUT processor with tetrahedral interpolation
- 7x nodes plus Overlay
- 1x 3D LUT processor, user configurable as 3D LUT or Dynamic
- 4x 1D LUT processors, user configurable as 1D LUT, Dynamic, or Color Corrector
- 2x 3x3 Matrix processors, user configurable as 3x3 Matrix, Dynamic, or ProcAmp
- Supports industry standard file types, no conversion to proprietary format required
- Configurable Color Space, Range, and Transfer Characteristic
- Full frame LUT processing
- 7x nodes plus Overlay
- Six Color Processing Pipelines
- AJA Color
- Colorfront (Licensable option)
- ORION-CONVERT (Licensable option)
- BBC HLG LUT (Licensable option)
- NBCU LUTs
- ACES
- Down-convert 4K to 2K or UltraHD to HD via SDI and/or HDMI outputs
- 4K/2K Crop for HDMI output
- Video Preview in web user interface for confidence monitoring
- Built-in Frame Store
- Up to 4K/UltraHD frame capture and recall
- Capture pre or post processed images
- Test Pattern up to 4K/UltraHD, 14 test patterns built-in
- Overlay information on output
- User Text
- User Overlay
- Input and Output signal information
- Pipeline Configuration
- Overlay can be captured with image for future reference
- Onboard library for file management
- 16x 1D LUTs
- 16x 3D LUTs
- 16x 3x3 Matrices
- 16x Images
- 16x Overlays
- 16x AMFs
- Preset Management, 10 per Pipeline plus Startup Preset
- HDR signaling metadata management
- ANC metadata pass-through
- Embedded audio pass-through, SDI 16-ch, and HDMI 8-ch
- Support for ARRI Alexa 35's Wireless Video Optimized LogC4 (WVO)
- Extensive API for third party control integrations
- Embedded web server for remote control
- IP configuration and monitoring through Ross DashBoard software
- Power: 19 watts
- Hot-swappable
- Rear I/O card included
- Two slots required for each card
- Compatible with OG-X-FR and OG-3-FR openGear frames
- Redundant power supply option available on openGear frames

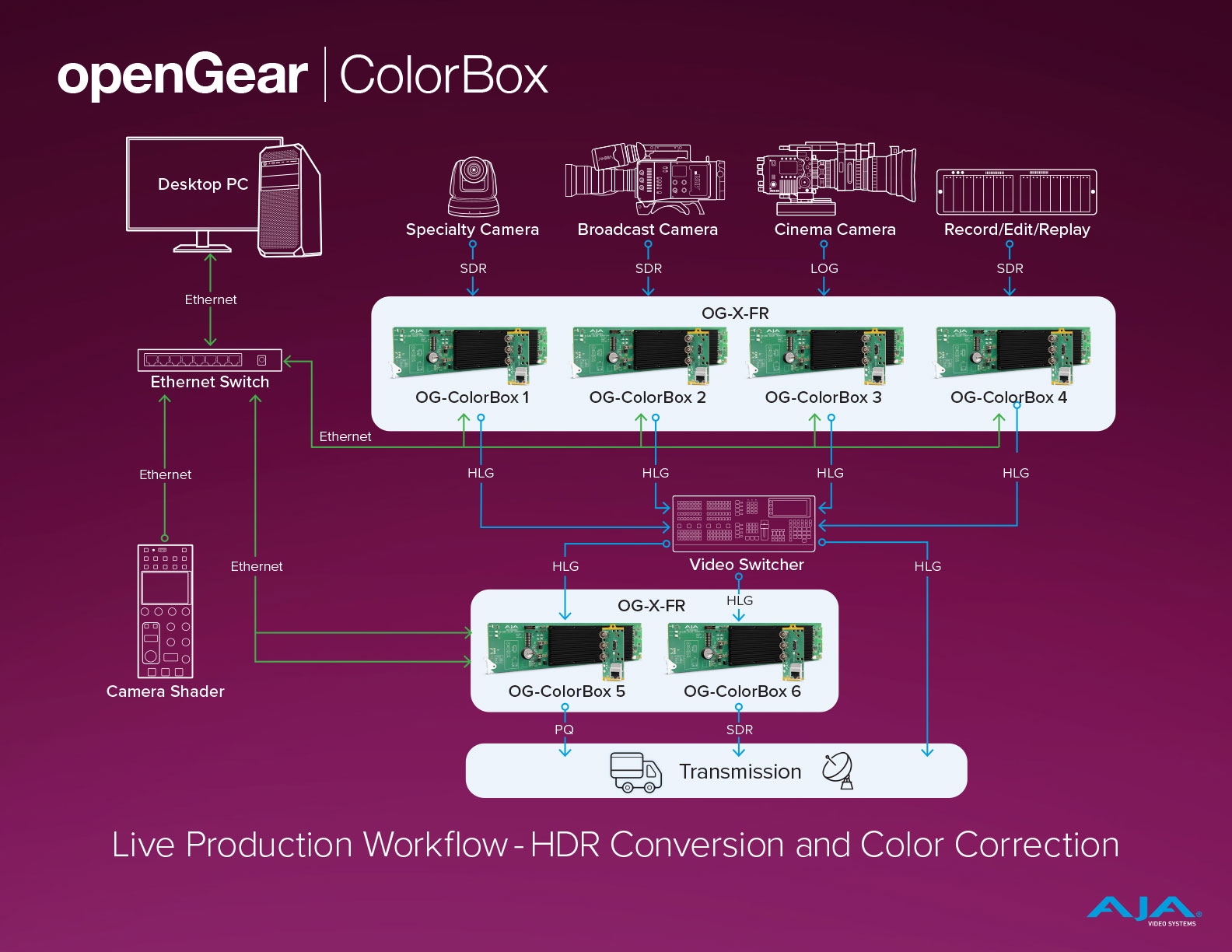

AJA OG-ColorBox 視訊製作流程架構圖
UltraHD Live Production Workflow HDR Conversion and Management
產品規格
📹AJA OG-ColorBox I/O 影音介面卡
| AJA OG-ColorBox | |
| HDR/WCG Real Time Processor |
|
| Video Formats |
|
| Color Processing Pipeline |
|
| AJA Color Pipeline (ACP) |
*Various 3D LUT sizes are supported but will be converted to 33-point for processing |
| Dynamic LUT Processing |
|
| Colorfront Pipeline |
|
| ORION-CONVERT Pipeline |
|
| BBC HLG LUTs Pipeline |
|
| NBCU LUTs Pipeline |
|
| ACES Pipeline |
|
| Video Input and Output SDI |
Note: Raster and Frame Rate Dependent, please see OG-ColorBox Video Formats in Documents and Manual |
| Video Output HDMI |
*If a connected monitor doesn’t support HDMI protocol, the unit automatically switches to DVI protocol (which does not pass audio) |
| Video Processing |
|
| Down-Conversion |
|
| Frame Store |
|
| Test Pattern Generator |
|
| Ancillary Data |
|
| Overlay |
|
| Audio Input Digital | SDI embedded audio, 24-bit, 16-channel |
| Audio Output Digital |
|
| Network Interface |
|
| USB Interface |
|
| Presets |
|
| Size (w x d x h) |
|
| Weight | 0.7 lb (0.3 kg) |
| Power | openGear frame compatible, 19 watts max per card |
| Environment |
|
