專業影音製作應用解決方案

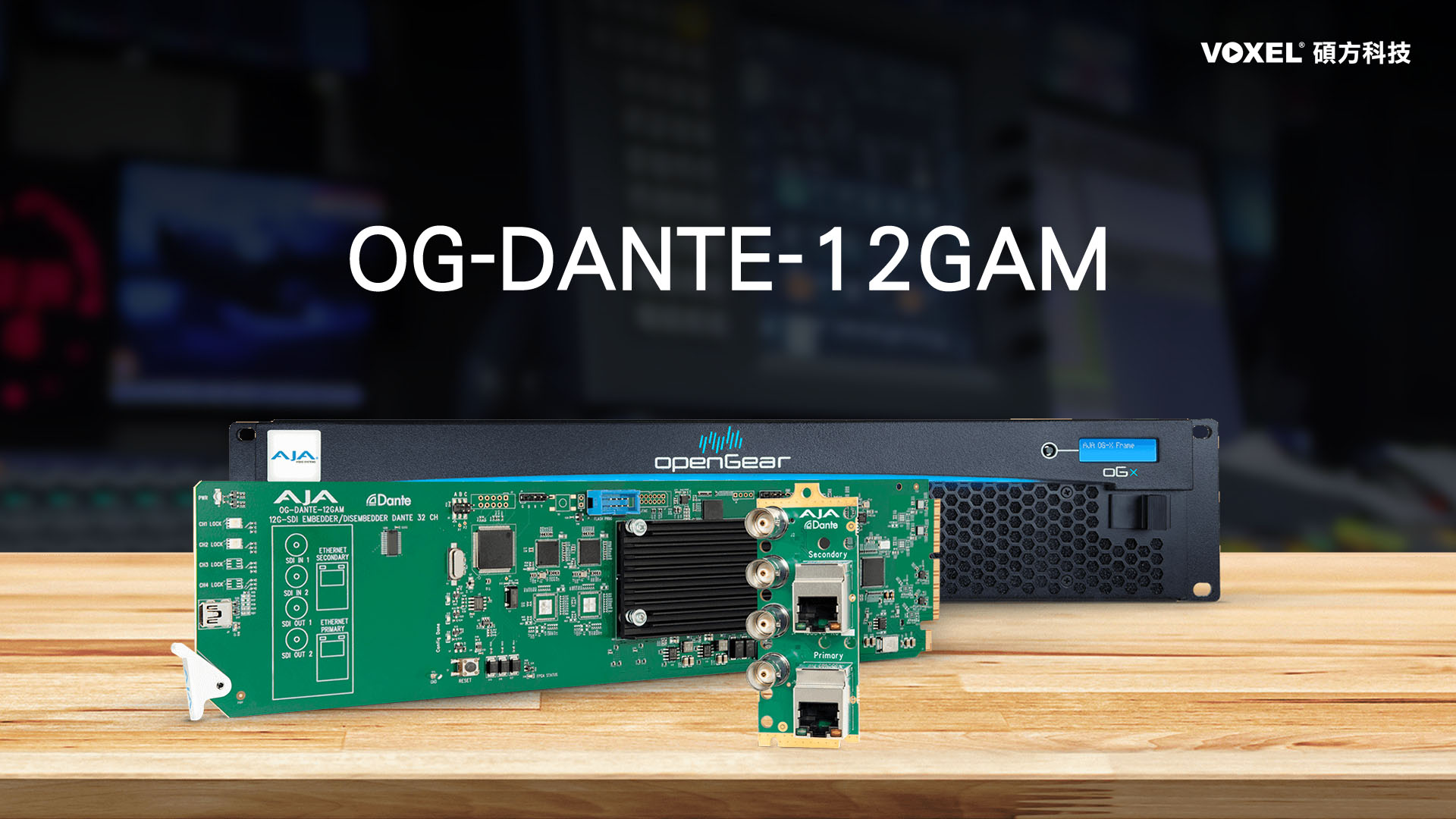

AJA OG-DANTE-12GAM
I/O 影音介面卡
openGear 12G-SDI/DANTE 64-Channel Embedder/Disembedder

AJA OG-DANTE-12GAM

AJA OG-DANTE-12GAM I/O 影音介面卡具有 openGear、Dante 音訊嵌入/解嵌功能，內建 2 個 12G-SDI I/O 介面，可同時提供多達 32 個音訊嵌入通道和 32 個解嵌通道。 AJA OG-DANTE-12GAM 能輕鬆橋接 SDI 和 Dante 基礎設施。 Dante 音訊網路使用標準網路硬體或連接到標準網路基礎設施，透過區域網路和廣域網路提供低延遲的數位音訊分發。 這比類比、AES 和 MADI 基礎設施具有許多優勢，包括音訊系統可擴展性、更容易的安裝和簡化的佈線。

AJA OG-DANTE-12GAM 產品特色

  • Support for 12G/6G/3G-SDI audio embedding to and from the Dante audio ecosystem
  • Dual, and independent 12G-SDI Input and Output ports, each supporting 16 audio channels, totaling 64-channels per card in a compact design
  • 1x Primary and 1x Secondary GigE ports for Dante network redundancy
  • 64-channels of simultaneous SDI/Dante audio bridging per card
  • 2x Internal Signal Generators which enables transmitting Dante audio channels over SDI without having an external SDI source signal
  • DashBoard support for remote signal status and configuration
  • Compatible with a range of Dante software from Audinate including Dante Controller for routing and configuration choices
  • High density and small form factor, enabling 10 cards to be utilized in a single openGear frame for up to 640-channels of SDI/Dante audio bridging
  • Supported within OG-X-FR and OG-3-FR openGear frames
  • Hot swap capable

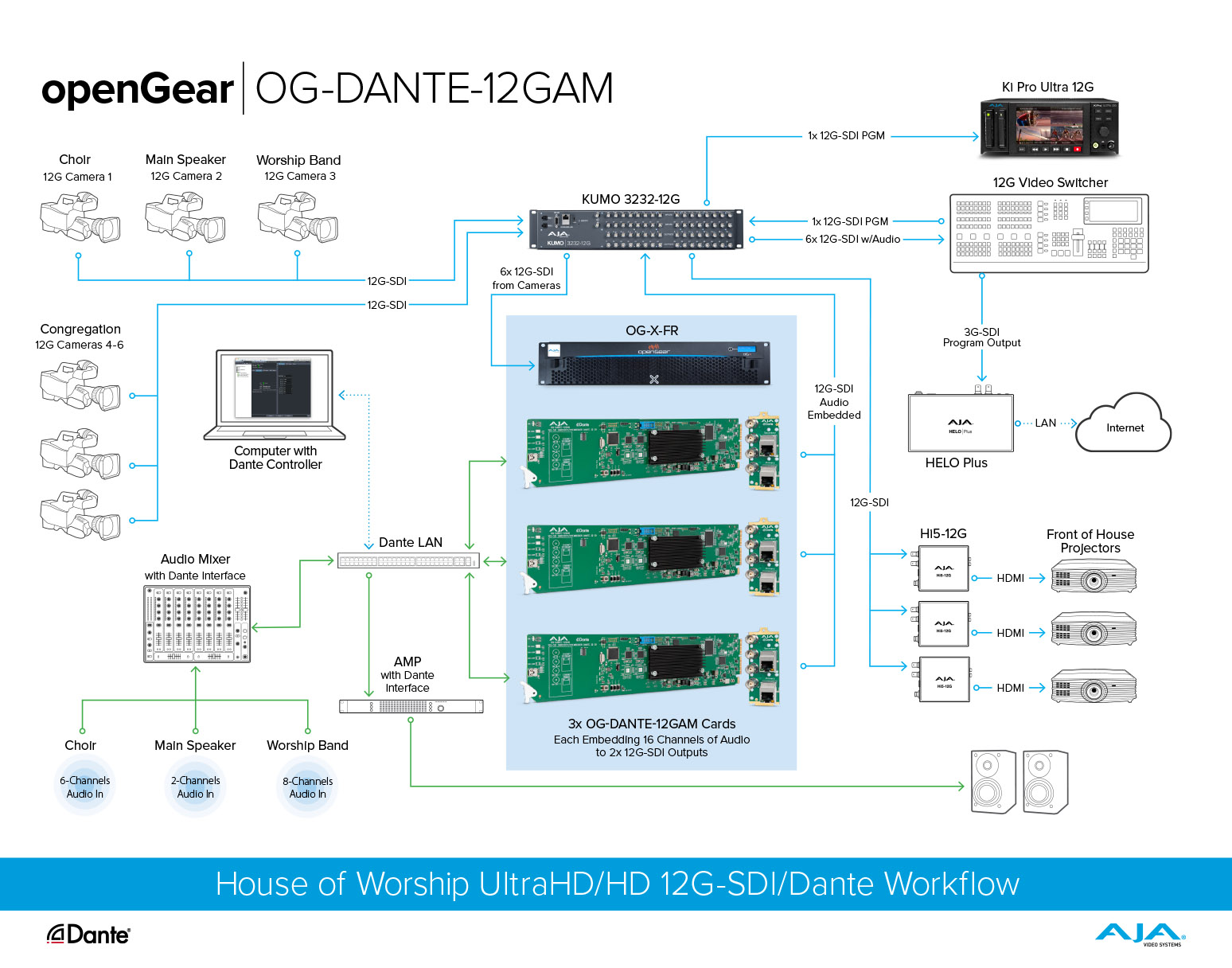

AJA 視訊製作流程架構圖

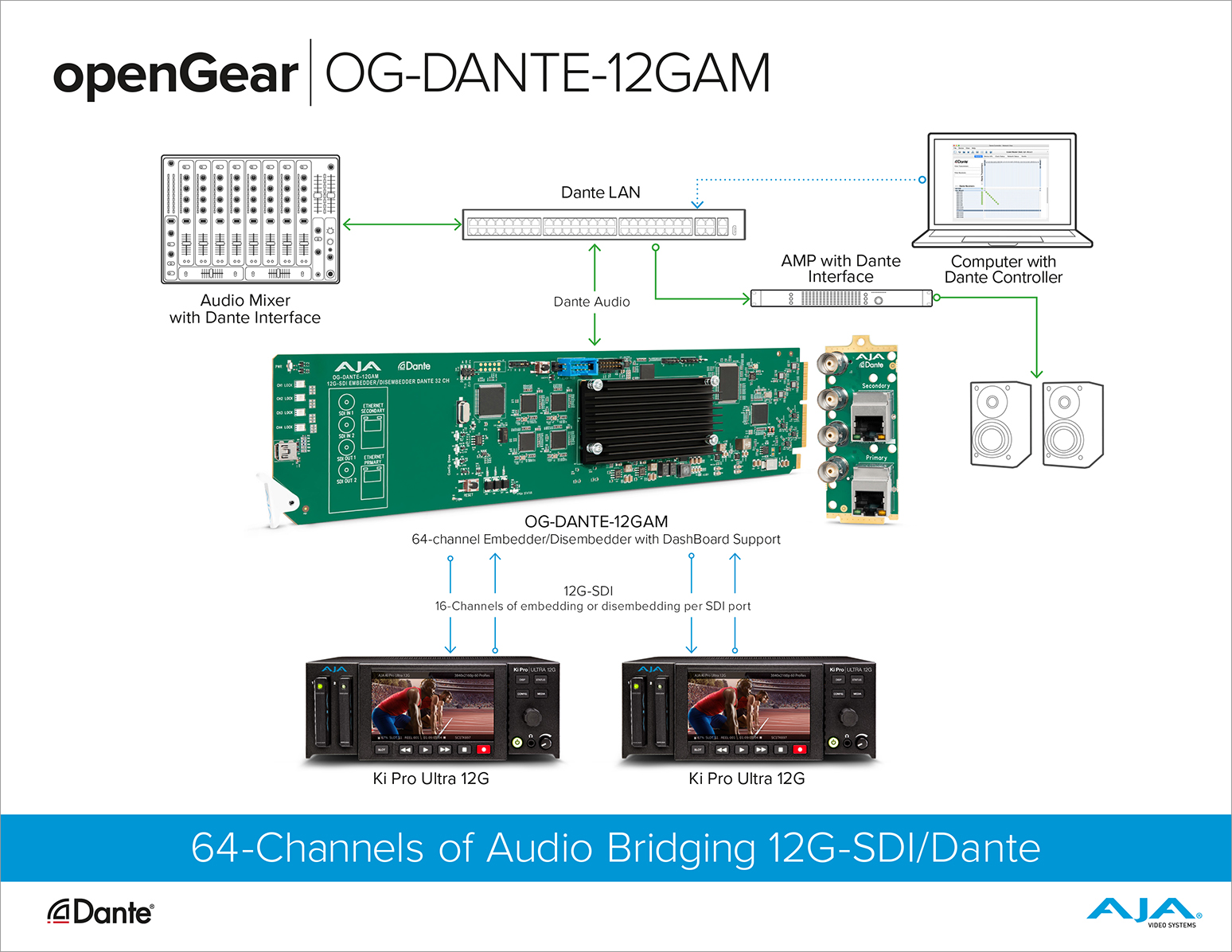

Bridge Between SDI/Dante Sources and Destinations



OG-DANTE-12GAM Workflow



產品規格

📹AJA OG-DANTE-12GAM I/O 影音介面卡

AJA OG-DANTE-12GAM
Video Formats
  • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920x1080i 50, 59.94, 60
  • (HD) 1280x720p 50, 59.94, 60*
  • (SD) 625i 50
  • (SD) 525i 59.94
  • RGB and YCbCr, 4:4:4/4:2:2, 10-bit

Note: Raster and frame rate dependent, please see OG-Dante-12GAM Video Formats in Documents and Manual.
Video Input Digital
  • 2-channel independent 12G-SDI BNC connectors, SMPTE 259/292/424/2081/2082
    • Single Link SD/HD/2K/UltraHD/4K
Video Output Digital 2-channel independent 12G-SDI BNC connectors, SMPTE 259/292/424/2081/2082
  • Single Link SD/HD/2K/UltraHD/4K
Internal Signal Generator
  • 2x independent internal signal generators
Cable Equalization

(Belden 1694A coax)

  • 12 Gbps, 65m
  • 6 Gbps, 120m
  • 3 Gbps, 180m
  • 1.5 Gbps, 200m
  • 270 Mbps, 405m
Video Path Delay

Video Out is a delayed, reclocked version of Video In, at the same format and frame rate. Video Out is undefined when no input.

  • Video Latency, time measured between video input and video output connector:
    • 12G = 3.2 µsec
    • 6G = 3.2 µsec
    • 3G level B-DL = 6.3 µsec
    • 3G level A = 3.2 µsec
    • HD (1.5 Gb) = 6.3 µsec
    • SD (270 Mb) = 17.2 µsec
Audio Input Digital
  • SDI: Two independent 12G-SDI BNC connectors, 16 embedded channels each
  • Dante: 1x Primary Ethernet port and 1x Secondary Ethernet port, 32-channels
Audio Output Digital
  • SDI: Two  independent 12G-SDI BNC connectors, 16 embedded channels each
  • Dante: 1x Primary and 1x Secondary Gigabit Ethernet ports, 32-channels
SDI Embedded Audio
  • SMPTE 299M (12G/6G/3G/1.5G): 24-bit, 48 kHz synchronous
  • SMPTE 272M (SD): 20-bit, 48 kHz synchronous
  • Incoming embedded audio can be passed, removed, or overridden
  • 4 groups (16-channels) of audio supported per SDI path

Note: 2048x1080p/PsF 29.97 and 30 formats support a maximum of 8-channels embedded audio.
Dante Audio
  • Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz
  • Encoding: PCM 16, PCM 24, PCM 32
Audio Latency
  • Embed Path     1500 µsec
  • Disembed Path  1410 µsec
User Interface
  • openGear DashBoard network control software via Windows, macOS or Linux
  • Dante Controller
Size openGear standard form factor, front slot and rear card. Two slots required for each card.
Weight 0.5 lb (0.3 kg)
Power openGear frame compatible, 15 watts max per card
Environment
  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)



關鍵字 : #tricaster.#aja.#NDI.#opengear.#developer.

*本產品將持續創新，規格可能會有變動，當產品設計／規格變動，恕不另行通知。
