AJA OG-FiDO-2T-12G
I/O 影音介面卡
openGear 2-Channel 12G-SDI to Single-Mode LC Fiber Transmitter

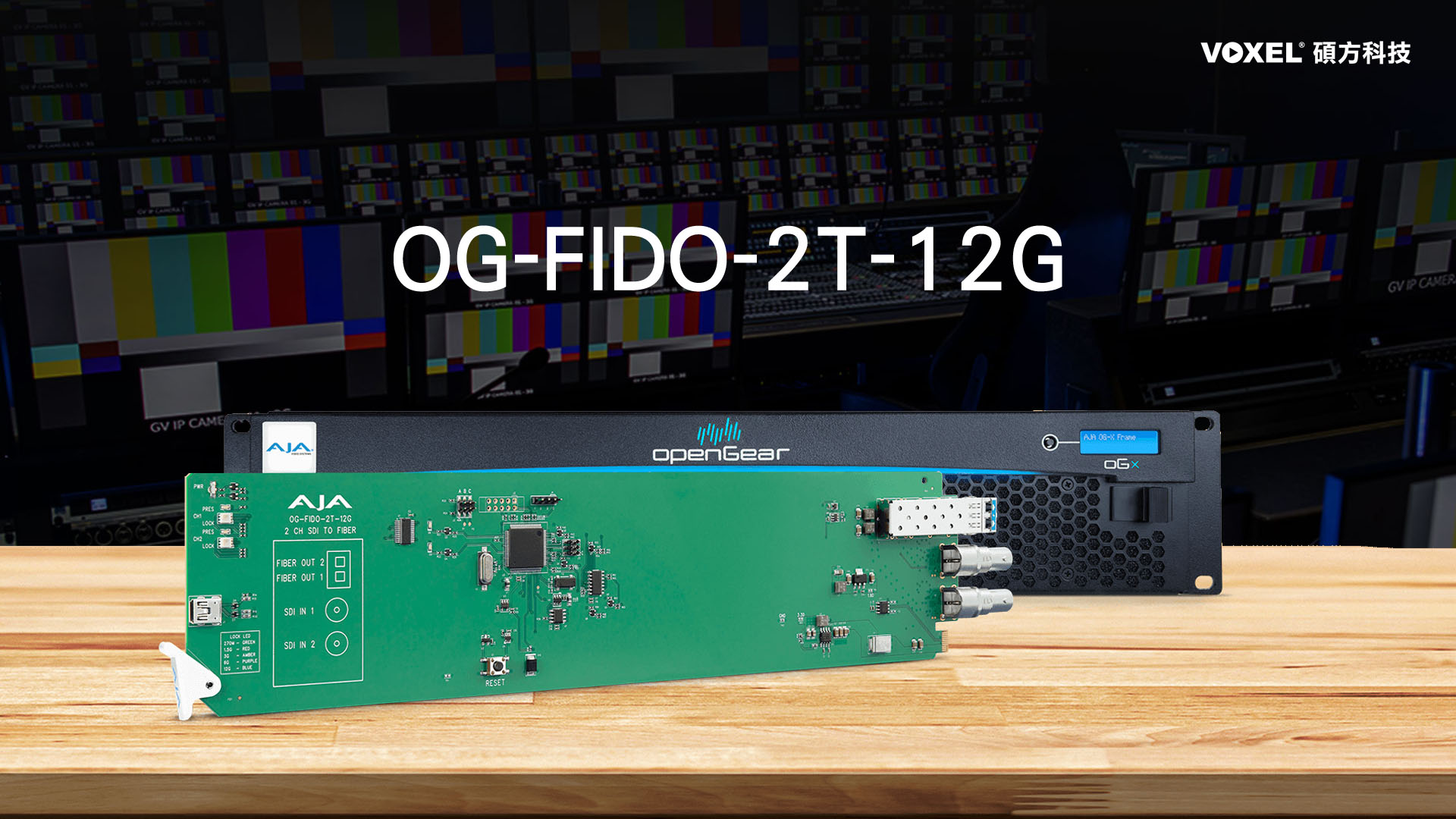

AJA OG-FiDO-2T-12G
AJA OG-FiDO-2T-12G I/O 影音介面卡支援雙通道 12G-SDI 轉光纖轉換器，相容於 openGear，可將 12G-SDI 訊號透過標準單模光纖延長至 10 公里（32,808 英尺）。提供兩路 12G-SDI 獨立輸入，每路通道可傳輸不同的 12G-SDI 速率。
產品特色
- Video Formats: 270 Mbps - 12 Gbps, format agnostic
- Inputs: 2x Independent 12G-SDI Inputs, BNC connectors
- Outputs: 2x Independent Single-Mode LC Fiber Connectors
- Monitor via openGear DashBoard software
- Support for HDR - High Dynamic Range video
- Input Present and Input SMPTE Lock LEDs
- Automatic detection and reclocking
- 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
- Nominal Wavelength; Tx: 1310 nm (typ)
- Power: 3 watts Max
- Hot-swappable
- Appropriate Fiber SFP included
- Rear I/O card included
- Two slots required for each card
- Compatible with OG-X-FR, OG-3-FR, and DFR-8321 openGear frames
AJA 視訊製作
DashBoard Software
製作流程

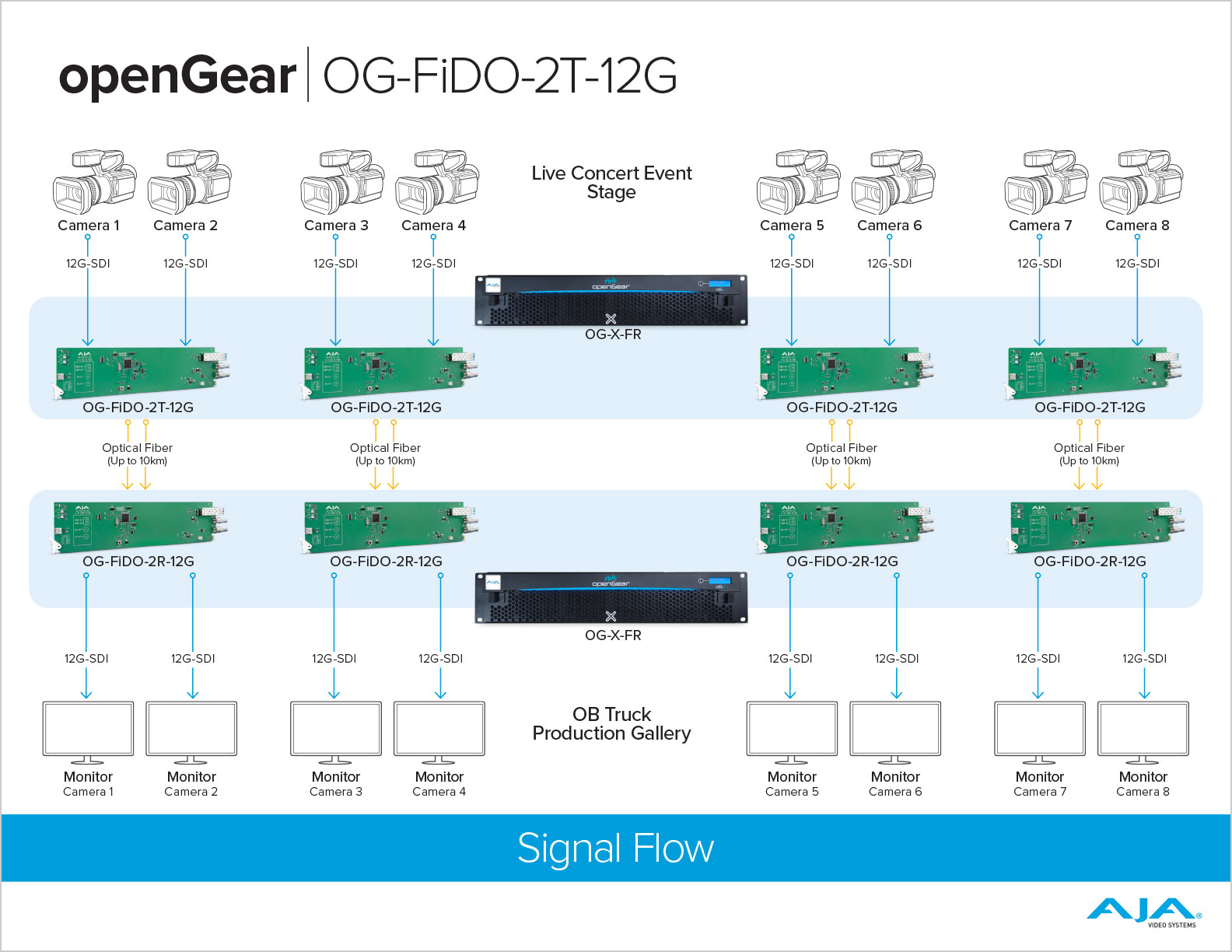

Example OG-FiDO-2T-12G Signal Flow Diagram
產品規格
📹AJA OG-FiDO-2T-12G I/O 影音介面卡
| AJA OG-FiDO-2T-12G | |
| Video Formats | 270 Mbps - 12 Gbps, format agnostic |
| Video Input Digital |
|
| Video Output Digital |
|
| Reclocking |
|
| User Interface | openGear DashBoard network control software via Windows, macOS, or Linux |
| Size (w x d x h) |
|
| Weight | 0.5 lb (0.3 kg) |
| Power | openGear frame compatible, 3.0 watts max per card |
| Environment |
|
