AJA OG-FiDO-4 Family
I/O 影音介面卡
4-Channel openGear SDI/LC Fiber Converters

AJA OG-FiDO-4 Family

AJA OG-FiDO-4 I/O 影音介面卡系列產品可為廣播、製作、體育賽事、現場活動、教堂、校園安裝和專業視聽基礎設施等應用，提供高密度四通道 SDI 和光纖轉換。 AJA OG-FiDO-4 專為增長的攝影機數量和超長的 SDI 線纜的應用而設計， 能夠滿足更高的光纖密度需求，單一 openGear 機架可支援高達 40 個獨立的 SDI/光纖通道。 OG-FiDO-4 系列產品基於通用的四通道架構，提供九種配置，支援12G-SDI單模、3G-SDI單模和3G-SDI多模LC光纖。 使用者可依不同安裝環境的訊號方向和光纖需求，選擇四通道發射、四通道接收或雙通道發射/雙通道接收型號。

AJA OG-FiDO-4 I/O 影音介面卡具有獨立個 SDI BNC，可同時傳輸不同的 SDI 資料速率。 具有自動偵測速率和重整時脈功能，有助於維持傳輸訊號完整性。其中的 SDI 輔助資料，亦可透過訊號路徑傳輸。 透過 openGear DashBoard 軟體進行遠端監控可提供集中式運作狀態視覺化，增加板載輸入狀態和 SMPTE 鎖定指示燈，方便快速進行本機狀態驗證。

產品特色

  • 4個獨立的 SDI 通道
  • 單一 openGear 機架最多可容納 40 個 SDI/光纖通道
  • 通用四通道架構的九種配置
  • 提供 12G-SDI 和 3G-SDI 選購項目
  • 支援單模和多模光纖配置
  • 支援四通道發射、四通道接收，與兩通道發射/兩通道接收配置
  • 可以同時傳輸不同的SDI資料速率
  • 自動偵測SDI資料速率與重新定時
  • 支援HDR
  • SDI輔助資料的傳遞
  • 支援透過光纖傳輸ASI訊號
  • 以 openGear DashBoard 軟體進行遠端監控
  • 輸入存在和輸入 SMPTE 鎖定指示燈

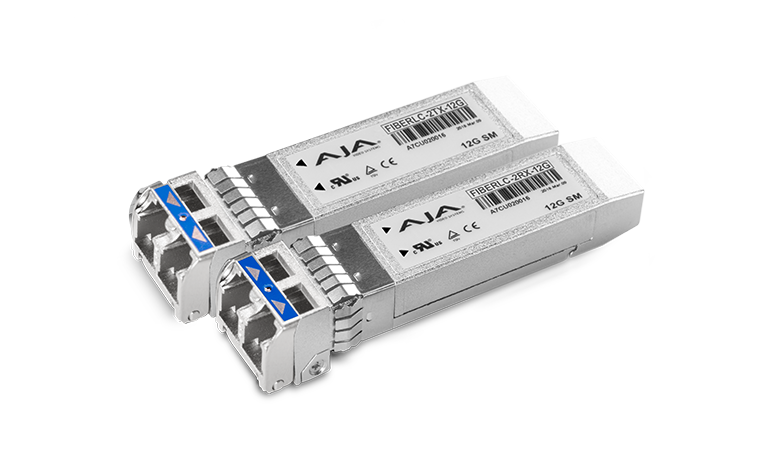

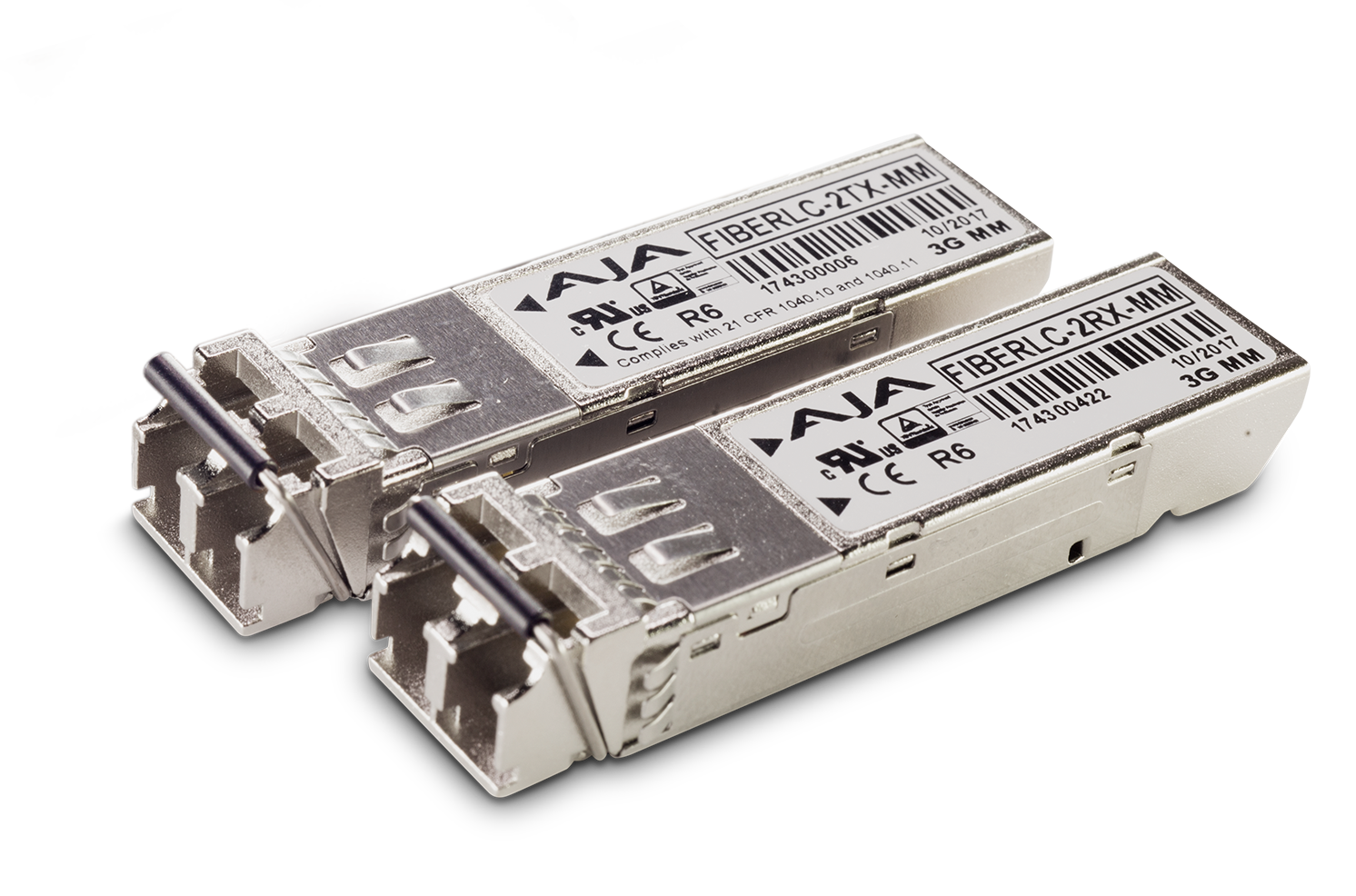

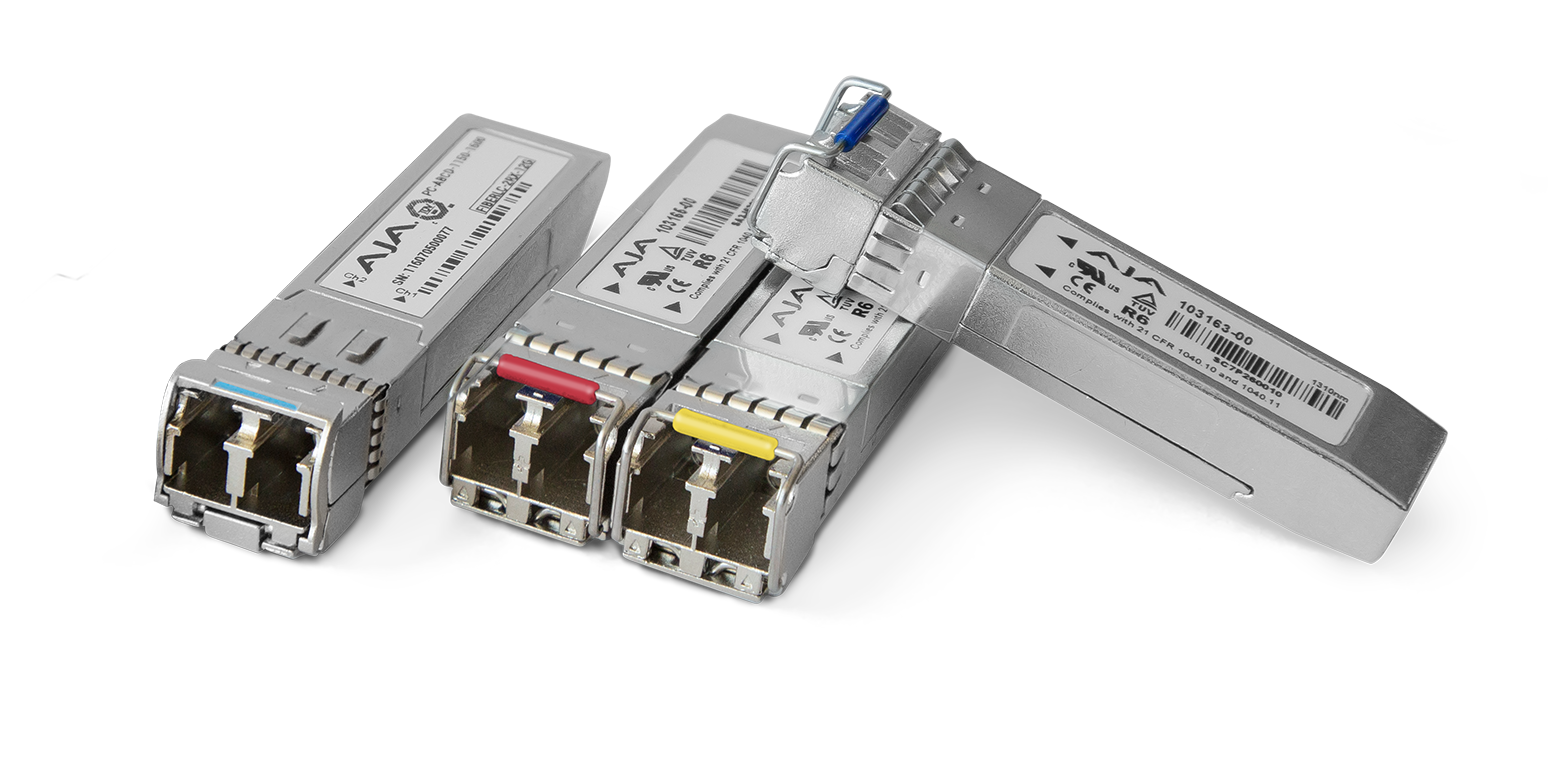

  • 與現有 AJA FIBERLC TX 和 RX SFP 模組相容
  • 支援熱插拔
  • 含後置I/O卡
  • 每張卡片需要兩個 openGear 框架插槽
  • 最大功耗 8.0 瓦

AJA OG-FiDO-4 Family IO 主卡與背板

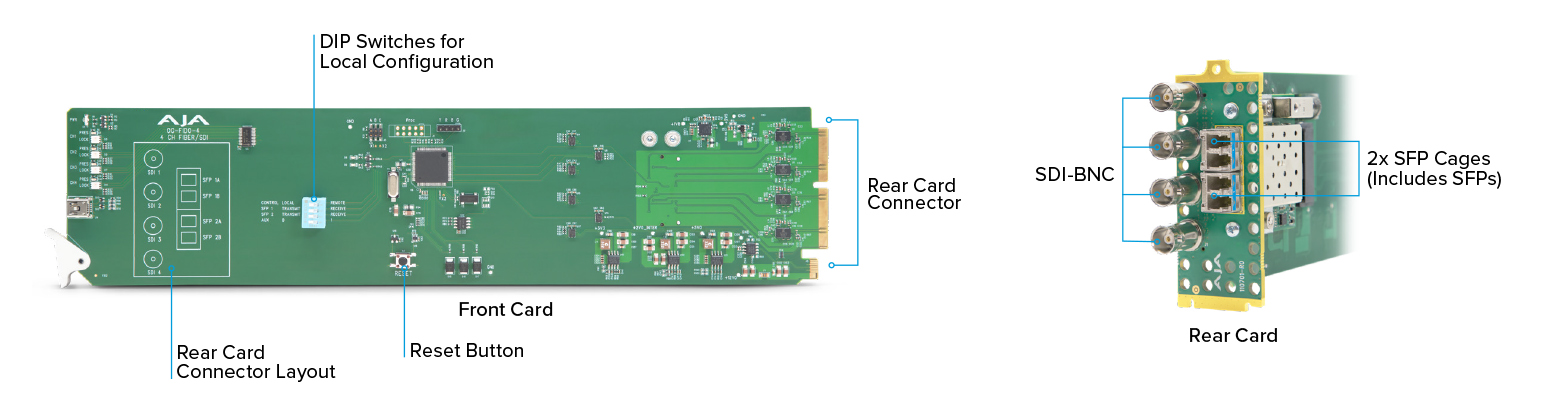

AJA AJA OG-FiDO-4 Connections



AJA OG-FiDO-4 系列產品配置

12G Single Mode Configurations

  • OG-FiDO-4T-12G : 4-Channel 12G-SDI to Single Mode LC Fiber Transmitter
  • OG-FiDO-4R-12G : 4-Channel Single Mode LC Fiber to 12G-SDI Receiver
  • OG-FiDO-4X-12G : 4-Channel 12G-SDI / Single Mode LC Fiber, 2 Tx / 2 Rx

3G Single Mode Configurations

  • OG-FiDO-4T : 4-Channel 3G-SDI to Single Mode LC Fiber Transmitter
  • OG-FiDO-4R : 4-Channel Single Mode LC Fiber to 3G-SDI Receiver
  • OG-FiDO-4X : 4-Channel 3G-SDI / Single Mode LC Fiber, 2 Tx / 2 Rx

3G Multi-Mode Configurations

  • OG-FiDO-4T-MM : 4-Channel 3G-SDI to Multi-Mode LC Fiber Transmitter
  • OG-FiDO-4R-MM : 4-Channel Multi-Mode LC Fiber to 3G-SDI Receiver
  • OG-FiDO-4X-MM : 4-Channel 3G-SDI / Multi-Mode LC Fiber, 2 Tx / 2 Rx

AJA 視訊製作流程架構圖

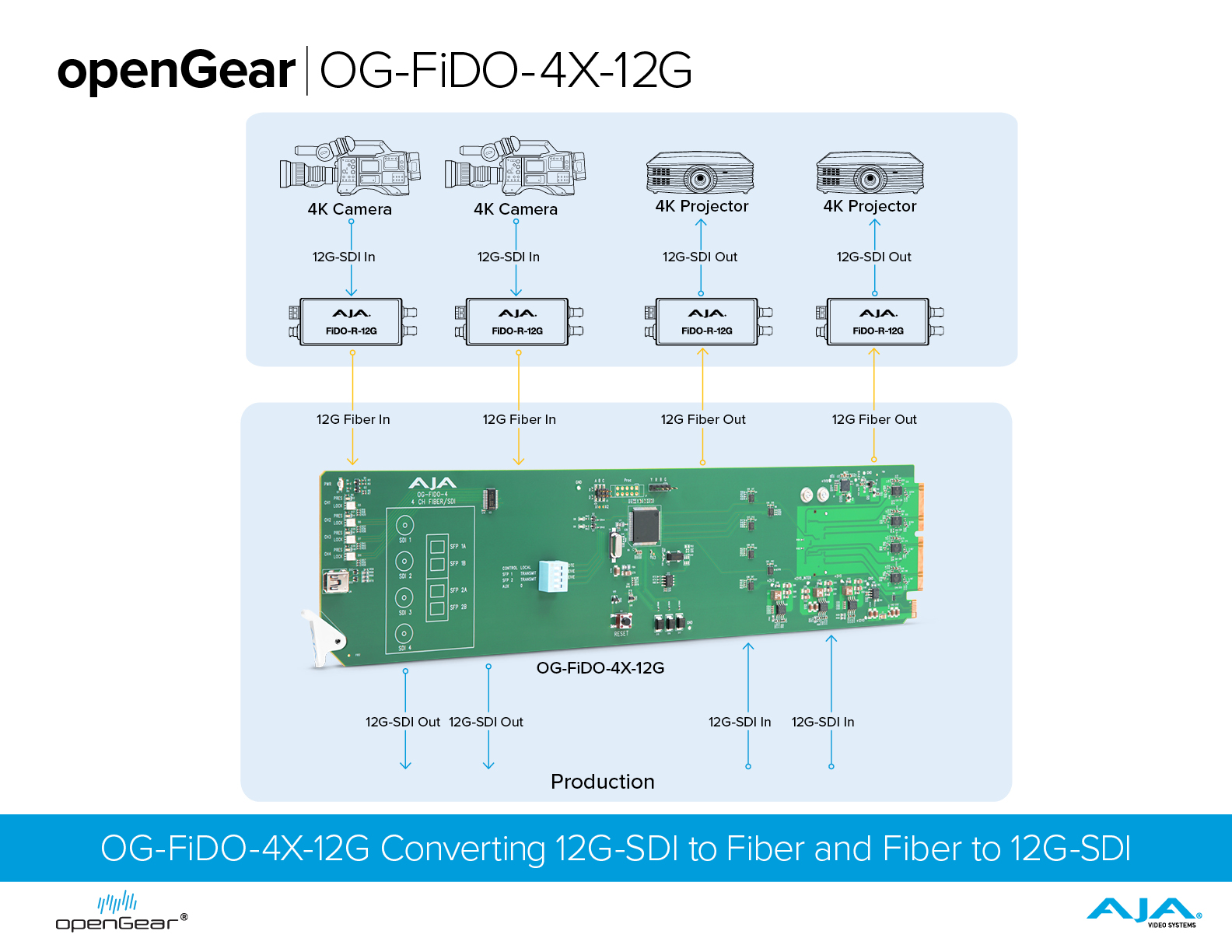

AJA OG-FiDO-4X-12G — Bidirectional 12G-SDI and Fiber Transport

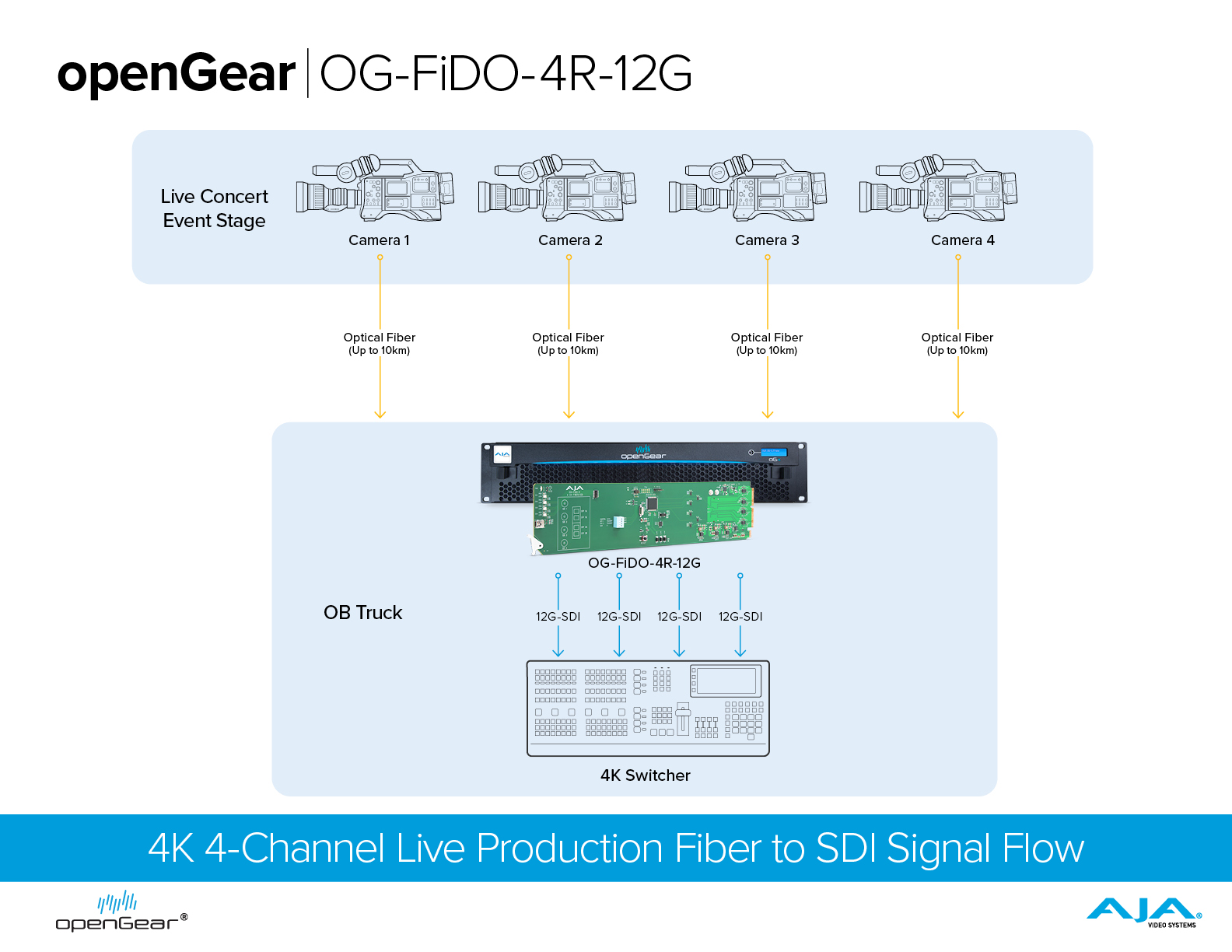

AJA OG-FiDO-4R-12G — Bringing Camera Feeds Back to Production

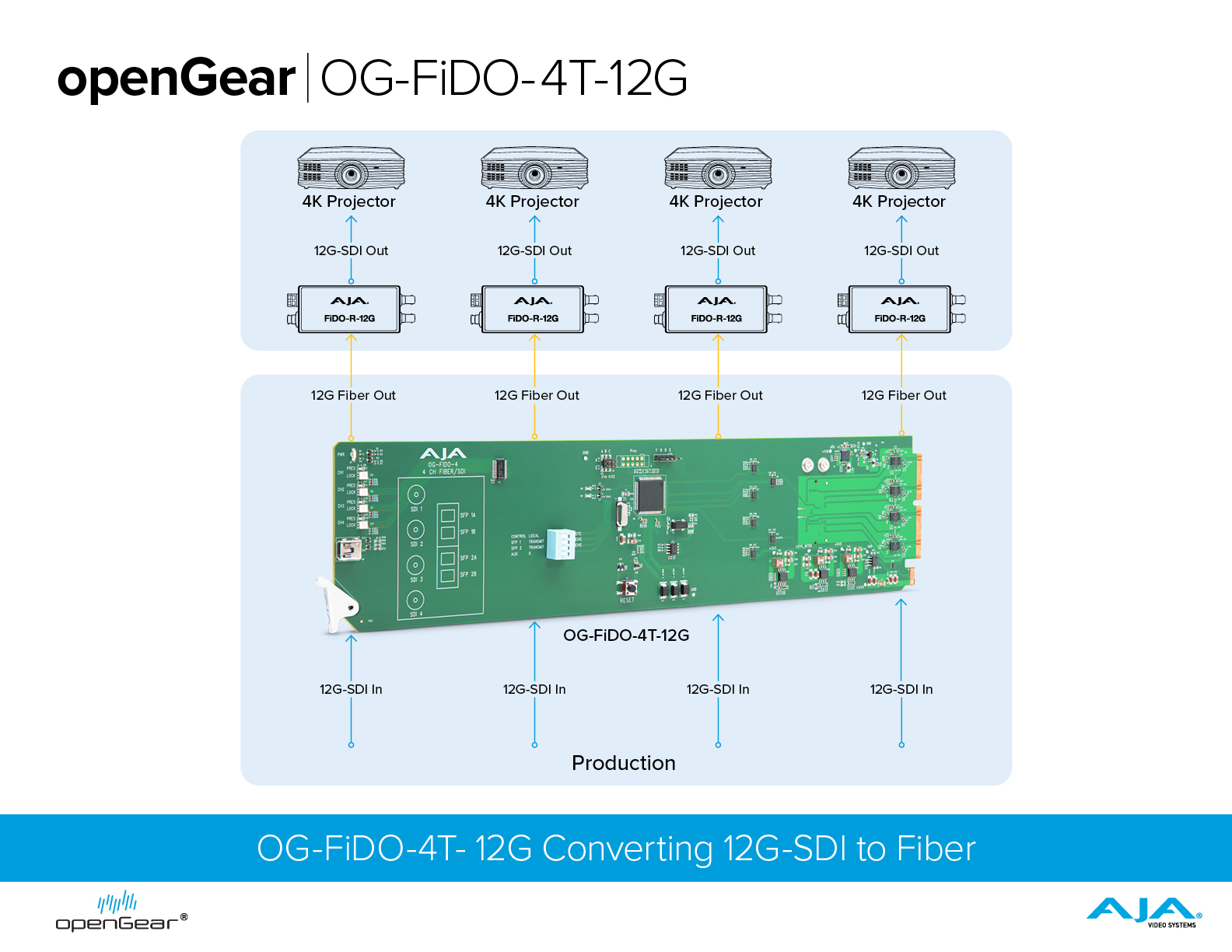

AJA OG-FiDO-4T-12G — 12G-SDI to Fiber Transport



產品規格

📹AJA OG-FiDO-4 Family 影音介面卡

AJA OG-FiDO-4 Family
OG-FiDO-4T-12G
  • Video Formats
    • 270 Mbps - 12 Gbps, format agnostic (150 Mbps MADI)



  • Video Input Digital
    • 4-channel independent 12G-SDI BNC connectors, SMPTE 259/292/424/2081/2082



  • Video Output Digital
    • 4-channel independent 12G-SDI Single Mode LC Fiber connectors, SMPTE 297/259/292/424/2081/2082
    • Nominal Wavelength: Tx 1260 nm (Min), 1310 nm (Typ), 1360 nm (Max)
    • Optical Power: -5 dBm (Min), 0.5 dBm (Max)
    • Extinction Ratio: 3.5 (Min)



  • Reclocking
    • 150 Mbps, 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
    • All other rates are passed through and not reclocked
OG-FiDO-4R-12Gc
  • Video Formats
    • 270 Mbps - 12 Gbps, format agnostic (150 Mbps MADI)



  • Video Input Digital
    • 4-channel independent 12G-SDI Single Mode LC Fiber connectors, SMPTE 297/259/292/424/2081/2082
    • Nominal Wavelength: Rx 1260 nm (Min), 1620 nm (Max)
    • Optical Sensitivity: -9 dBm (Max) for 12 Gbps, -10 dBm (Max) for 270 Mbps, 1.5 Gbps, 3 Gbps & 6 Gbps
    • Overload Power: -2 dBm (Min)



  • Video Output Digital
    • 4-channel independent 12G-SDI BNC Outputs, SMPTE 259/292/424/2081/2082



  • Reclocking
    • 150 Mbps, 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
    • All other rates are passed through and not reclocked
OG-FiDO-4X-12G
  • Video Formats
    • 270 Mbps - 12 Gbps, format agnostic (150 Mbps MADI)



  • Video Input Digital
    • 2-channel independent 12G-SDI BNC connectors, SMPTE 259/292/424/2081/2082
    • 2-channel independent 12G-SDI Single Mode LC Fiber connectors, SMPTE 297/259/292/424/2081/2082
    • Nominal Wavelength: Rx 1260 nm (Min), 1620 nm (Max)
    • Optical Sensitivity: -9 dBm (Max) for 12 Gbps, -10 dBm (Max) for 270 Mbps, 1.5 Gbps, 3 Gbps & 6 Gbps
    • Overload Power: -2 dBm (Min)



  • Video Output Digital
    • 2-channel independent 12G-SDI BNC Outputs, SMPTE 259/292/424/2081/2082
    • 2-channel independent 12G-SDI Single Mode LC Fiber connectors, SMPTE 297/259/292/424/2081/2082
    • Nominal Wavelength: Tx 1260 nm (Min), 1310 nm (Typ), 1360 nm (Max)
    • Optical Power: -5 dBm (Min), 0.5 dBm (Max)
    • Extinction Ratio: 3.5 (Min)



  • Reclocking
    • 150 Mbps, 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
    • All other rates are passed through and not reclocked
OG-FiDO-4T
  • Video Formats
    • 270 Mbps - 3 Gbps, format agnostic (150 Mbps MADI)



  • Video Input Digital
    • 4-channel independent 3G-SDI BNC Inputs, SMPTE 259/292/424



  • Video Output Digital
    • 4-channel independent Single Mode LC Fiber Outputs, SMPTE 297
    • Nominal Wavelength: 1310 nm
    • Optical Power: -5dBm (Min), 0dBm (Max)
    • Extinction Ratio: 7.5dB (Typ)



  • Reclocking
    • 150 Mbps, 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
    • All other rates are passed through and not reclocked
OG-FiDO-4R
  • Video Formats
    • 270 Mbps - 3 Gbps, format agnostic (150 Mbps MADI)



  • Video Input Digital
    • 4-channel independent Single Mode LC Fiber Inputs, SMPTE 297
    • Nominal Wavelength: 1260 - 1620 nm
    • Optical Sensitivity: -18dBm (Max)
    • Overload Power: -3dBm (Min)



  • Video Output Digital
    • 4-channel independent 3G-SDI BNC Outputs, SMPTE 259/292/424



  • Reclocking
    • 150 Mbps, 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
    • All other rates are passed through and not reclocked
OG-FiDO-4X
  • Video Formats
    • 270 Mbps - 3 Gbps, format agnostic (150 Mbps MADI)



  • Video Input Digital
    • 2-channel independent 3G-SDI BNC Inputs, SMPTE 259/292/424
    • 2-channel independent Single Mode LC Fiber Inputs, SMPTE 297
    • Nominal Wavelength: 1260 - 1620 nm
    • Optical Sensitivity: -18dBm (Max)
    • Overload Power: -3dBm (Min)



  • Video Output Digital
    • 2-channel independent 3G-SDI BNC Outputs, SMPTE 259/292/424
    • 2-channel independent Single Mode LC Fiber Outputs, SMPTE 297
    • Nominal Wavelength: 1310 nm
    • Optical Power: -5dBm (Min), 0dBm (Max)
    • Extinction Ratio: 7.5dB (Typ)



  • Reclocking
    • 150 Mbps, 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
    • All other rates are passed through and not reclocked
OG-FiDO-4T-MM
  • Video Formats
    • 270 Mbps - 3 Gbps, format agnostic (150 Mbps MADI)



  • Video Input Digital
    • 4-channel independent 3G-SDI BNC Inputs, SMPTE 259/292/424



  • Video Output Digital
    • 4-channel independent Multi-Mode LC Fiber Outputs, SMPTE 297
    • Nominal Wavelength: 850 nm
    • Optical Power: -7dBm (Min), -2dBm (Max)
    • Extinction Ratio: 7.5dB (Typ)



  • Reclocking
    • 150 Mbps, 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
    • All other rates are passed through and not reclocked
OG-FiDO-4R-MM
  • Video Formats
    • 270 Mbps - 3 Gbps, format agnostic (150 Mbps MADI)



  • Video Input Digital
    • 4-channel independent Multi-Mode LC Fiber Inputs, SMPTE 297
    • Nominal Wavelength: 850 nm
    • Optical Sensitivity: 0dBm (Min), -15dBm (Max)
    • Overload Power: -3dBm (Min)



  • Video Output Digital
    • 4-channel independent 3G-SDI BNC Outputs, SMPTE 259/292/424



  • Reclocking
    • 150 Mbps, 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
    • All other rates are passed through and not reclocked
OG-FiDO-4X-MM
  • Video Formats
    • 270 Mbps - 3 Gbps, format agnostic (150 Mbps MADI)



  • Video Input Digital
    • 2-channel independent 3G-SDI BNC Inputs, SMPTE 259/292/424
    • 2-channel independent Multi-Mode LC Fiber Inputs, SMPTE 297
    • Nominal Wavelength: 850 nm
    • Optical Sensitivity: 0dBm (Min), -15dBm (Max)
    • Overload Power: -3dBm (Min)



  • Video Output Digital
    • 2-channel independent 3G-SDI BNC Outputs, SMPTE 259/292/424
    • 2-channel independent Multi-Mode LC Fiber Outputs, SMPTE 297
    • Nominal Wavelength: 850 nm
    • Optical Power: -7dBm (Min), -2dBm (Max)
    • Extinction Ratio: 7.5dB (Typ)



  • Reclocking
    • 150 Mbps, 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
    • All other rates are passed through and not reclocked
OG-FiDO-4 Family, User Interface • openGear DashBoard network control software via Windows, macOS, or Linux
OG-FiDO-4 Family, Size • openGear standard form factor, front slot and rear card
• Two slots required for each card
OG-FiDO-4 Family, Weight • 0.5 lb (0.3 kg)
OG-FiDO-4 Family, Power • openGear frame compatible, 8.0 watts max per card
Environment
  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing



關鍵字 : #tricaster.#aja.#NDI.#opengear.#developer.

*本產品將持續創新，規格可能會有變動，當產品設計／規格變動，恕不另行通知。
