AJA OG-FiDO-TR-12G.VOXEL碩方科技

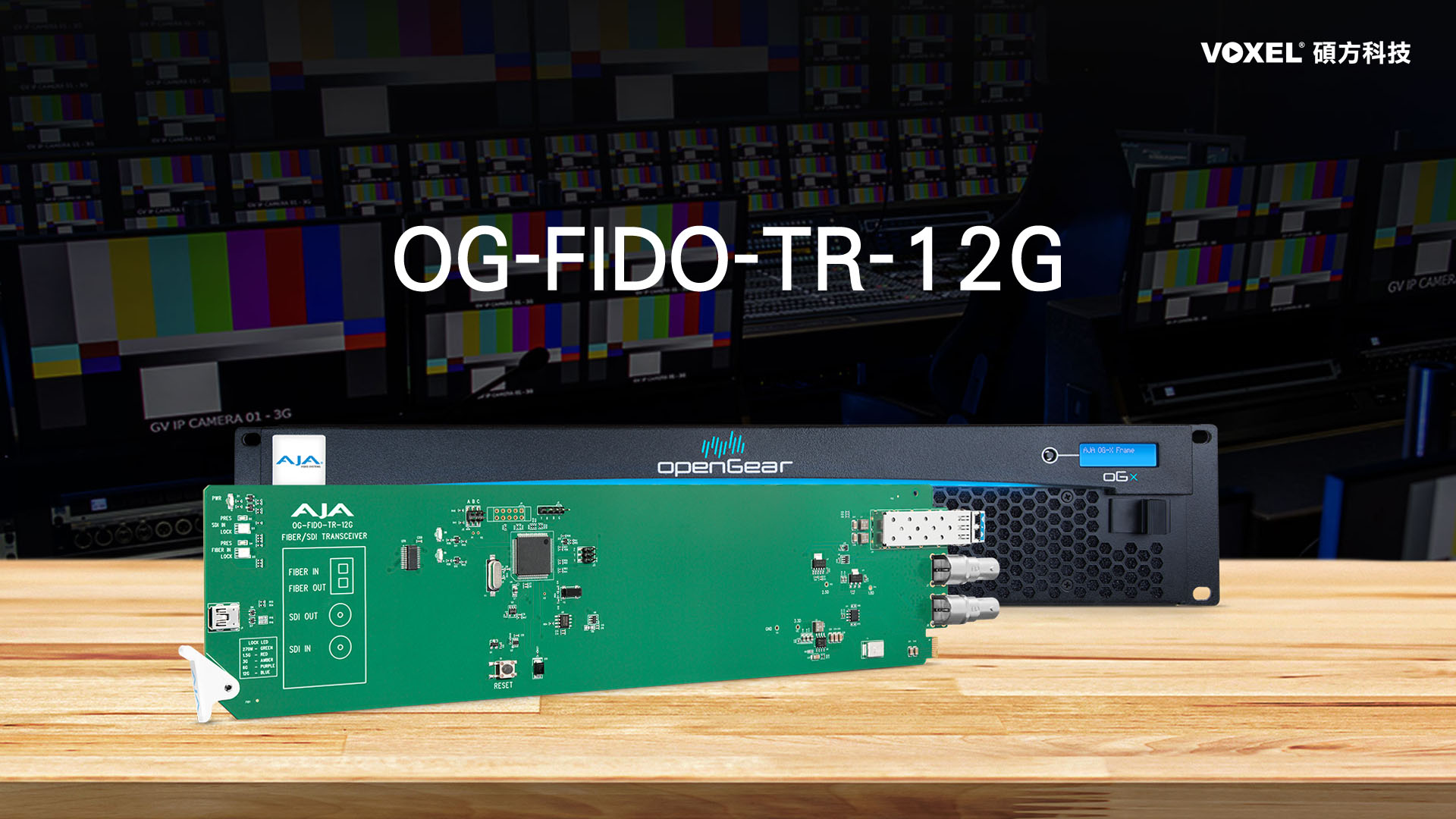

AJA OG-FiDO-TR-12G
Video Formats	270 Mbps - 12 Gbps, format agnostic
Video Input Digital	1-channel independent 12G-SDI BNC connector, SMPTE 259/292/424/2081/2082 1-channel independent 12G-SDI Single Mode LC Fiber connector, SMPTE 297/259/292/424/2081/2082 Nominal Wavelength: Rx 1260 nm (Min), 1620 nm (Max) Optical Sensitivity: -10 dBm (Max) for 6 Gbps & 12 Gbps, -14 dBm (Max) for 270Mbps, 1.5 Gbps & 3 Gbps Overload Power: -2 dBm (Min)
Video Output Digital	1-channel independent 12G-SDI BNC connector, SMPTE-259/292/424/2081/2082 1-channel independent 12G-SDI Single Mode LC Fiber connector, SMPTE-297/259/292/424/2081/2082 Nominal Wavelength: Tx 1260 nm (Min), 1310 nm (Typ), 1360 nm (Max) Optical Power: -5 dBm (Min), 2 dBm (Max) Extinction Ratio: 3.5 (Min)
Reclocking	270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select All other rates are passed through and not reclocked
User Interface	openGear DashBoard network control software via Windows, macOS, or Linux
Size (w x d x h)	openGear standard form factor, front slot and rear card Two slots required for each card
Weight	0.5 lb (0.3 kg)
Power	openGear frame compatible, 3.0 watts max per card
Environment	Safe Operating Temperature: 0 to 40 C (32 to 104 F) Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F) Operating Relative Humidity: 10-90% noncondensing Operating Altitude: <3,000 meters (<10,000 feet)
