AJA OG-FS-Mini
I/O 影音介面卡
3G-SDI Frame Synchronizer

AJA OG-FS-Mini

AJA OG-FS-Mini I/O 影音介面卡具有 openGear 廣播級影格同步功能，將 AJA FS 影格同步技術導入 openGear I/O 影音介面卡，以合理的價格，支援 3G-SDI、HD、SD 視訊同步。 AJA OG-FS-Mini I/O 影音介面卡內建 3G-SDI 輸入和輸出、HDMI 輸出，具有兩個 3-pin 連接端子，可用於平衡類比音訊輸出，讓使用者將各種視訊格式同步化，與進行高品質的上下、交叉轉換。

產品特色

openGear compatible card

Utility frame sync function times input signals to an external reference

Supports bi-level and tri-level references

High quality 10-bit video processing

Low latency processing, nominal video delay of 1 frame

Loss of Input management: Freeze, Black, or Mute

Synchronizes 3G, HD and SD video formats

Simultaneous SDI and HDMI outputs

16-channel embedded SDI audio I/O

8-channel HDMI output audio

2x 3-pin terminal block connectors for analog audio output

Utility frame rate conversion, supports 3:2 pulldown

Up, down, cross conversion between 3G, HD and SD video formats

AFD input detection, down-convert control

Remote configuration through Ross DashBoard software

Rear I/O card included

Compatible with OG-X-FR, OG-3FR and DFR-8321 openGear frames

NOTE:OG-FS-Mini supports 3G-SDI Level A only. 3G-SDI Level B is not supported. OG-FS-Mini passes-through embedded audio ancillary data only; It does not pass through other types of embedded ancillary data.

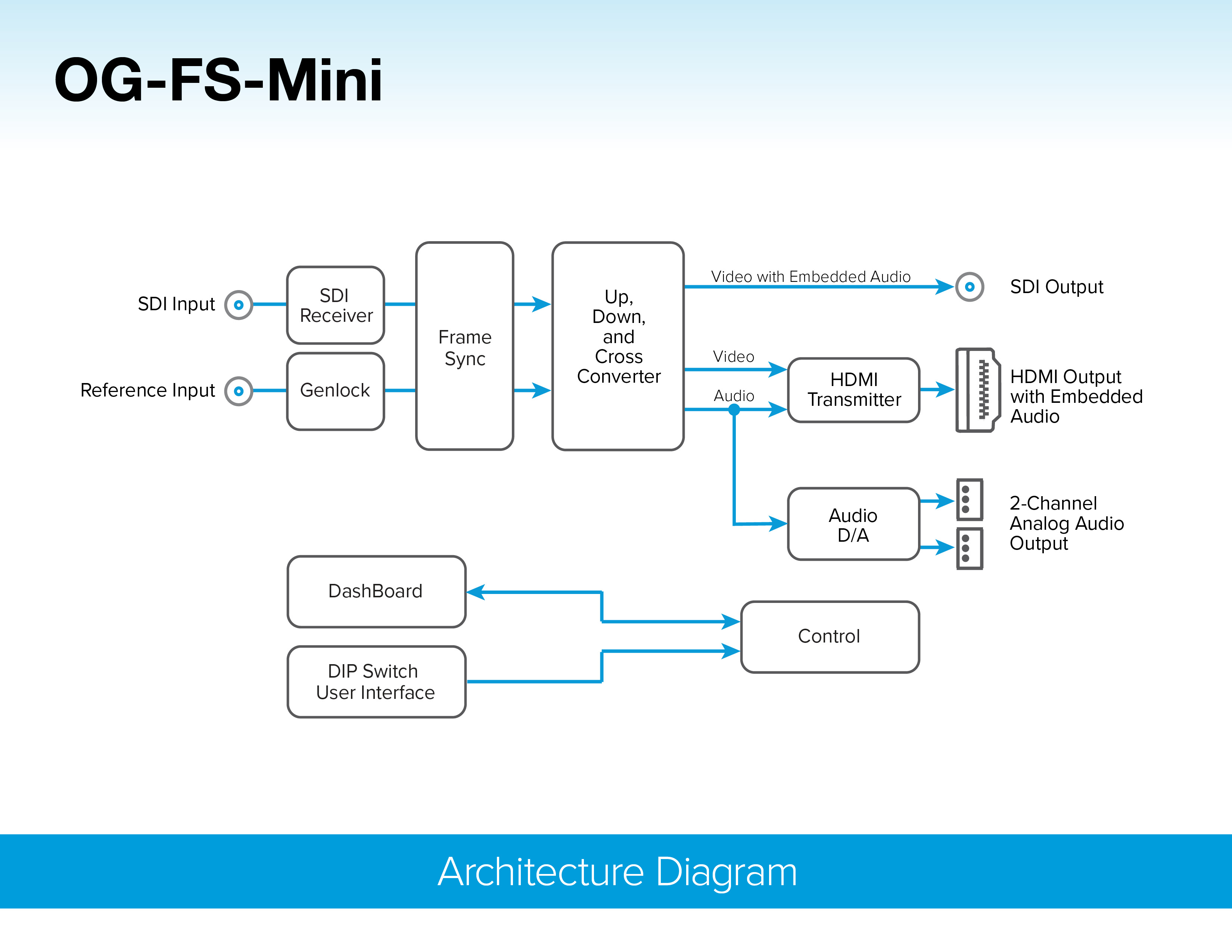

AJA 視訊製作流程架構圖

AJA OG-FS-Mini Workflow Diagram

AJA OG-FS-Mini
Video Formats	(HD) 1920x1080p (HD) 1920x1080PsF (HD) 1920x1080i (HD) 1280x720p (SD) 625i (SD) 525i YCbCr, 4:2:2, 10-bit
Video Input Digital	1x 3G-SDI, 1x BNC 3G/HD/SD, SMPTE-259/292/372/424 Single Link 3G-SDI Level A, SMPTE-425-1 (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30 (HD) 1920x1080i 50, 59.94, 60 (HD) 1280x720p 50, 59.94, 60 (SD) 625i 50 (SD) 525i 59.94
Video Output Digital	1x 3G-SDI outputs, 1x BNC 3G/HD/SD, SMPTE-259/292/424 Single Link 3G-SDI Level A, SMPTE-425-1 (HD) 1080p 23.98 (for 23.98 video inputs) (HD) 1080p 24 (for 24 video inputs) (HD) 1080p 25 (for 50 video inputs) (HD) 1080p 29.97 (for 59.94 video inputs) (HD) 1080p 30 (for 60 video inputs) (HD) 1080p 50 (for 50 video inputs) (HD) 1080p 59.94 (for 23.98, 59.94 video inputs) (HD) 1080p 60 (for 24, 30 or 60 video inputs) (HD) 1080PsF 23.98 (for 23.98 video inputs) (HD) 1080PsF 24 (for 24 video inputs) (HD) 1080PsF 25 (for 50 video inputs) (HD) 1080PsF 29.97 (for 59.94 video inputs) (HD) 1080Psf 30 (for 30 or 60 video inputs) (HD) 1080i 59.94 (for 23.98, or 59.94 video inputs) (HD) 1080i 60 (for 24, 30, or 60 video inputs) (HD) 1080i 50 (for 25 or 50 video inputs) (HD) 720p 50 (for 50 video inputs) (HD) 720p 59.94 (for 23.98, 59.94 video inputs) (HD) 720p 60 (for 24, 30, or 60 video inputs) (SD) 625i 50 (for 25 or 50 fps video inputs) (SD) 525i 59.94 (for 23.98 or 59.94 video inputs)
Monitor Output Digital	1x HDMI standard type A connector HD/SD Color space, YCbCr or RGB Bit depth, 8 or 10 RGB Range, SMPTE or Full Range
Video Processing	Frame rate conversion/film cadence removal/insertion (3:2) Loss of input management: Freeze, Black, or Mute AFD input detection, down-convert control Nominal video delay HD/SD, 1 frame
Up-Conversion	Hardware 10-bit 4x3 Pillar: results in a 4x3 image at center screen with black sidebars 14x9 Pillar: results in a 4x3 image zoomed slightly to fill a 14x9 image with black side bars Full Screen: results in a 4x3 image stretched horizontally to fill in a 16x9 screen Letterbox to Full: results in image zoomed to fill fullscreen Wide Zoom: results in a combination of zoom and horizontal stretch to fill a 16x9 screen; this setting will introduce a small aspect ratio change
Down-Conversion	Hardware 10-bit Crop: image is cropped to fit new screen size Anamorphic: HD image is converted to full-screen SD with a 16x9 aspect ratio 14x9: image is reduced slightly with aspect ratio preserved, black is added top and bottom, and the left and right sides are cropped Auto AFD: automatically selects the best down-convert mode based on the input video's Active Format Description (AFD) code Letterbox: image is reduced with black top and bottom added to image area with the aspect ratio preserved
Cross-Conversion	Hardware 10-bit 1080i to 720p 720p to 1080i 720p to 1080PsF
Aspect Ratio Conversion for SD to SD	Letterbox: transforms SD anamorphic material to a letterboxed image H Crop: produces a horizontally stretched effect on the image; transforms anamorphic SD to full frame SD Pillarbox: produces an image in the center of the screen with black borders on the left and right sides and an anamorphized image in the center V Crop: transforms SD letterbox material to an anamorphic image 14x9: anamorphic to 14x9 conversion
Audio Input Digital	48 kHz sample rate 1x SDI embedded input 16-channels, 24-bit (20-bit SD), SMPTE-272/299
Audio Output Digital	48 kHz sample rate 1x SDI embedded output 16-channels, 24-bit (20-bit SD), SMPTE-272/299
Audio I/O	16-channel embedded SDI audio input 16-channel embedded SDI audio output 8-channel HDMI audio output Balanced analog audio outputs, 2x 3-Pin terminal block connectors
Ancillary Data	Supports pass-through of PCM embedded audio Supports pass-through of non-PCM audio when source is in time with the selected ref (SDI In or Ext Ref). Non-PCM audio is not supported during frame sync operation. All other ANC data is not passed
Reference Input	Supported reference video inputs include: 1080i tri-level sync 1080p tri-level sync 720p tri-level sync 625i Color Black 525i Color Black 75-ohm terminating
Genlock	Lock to External Reference Lock to SDI input Free run
HDCP	The OG-FS-Mini does not encode the HDMI output with HDCP encryption. By definition, HD-SDI inputs to the OG-FS-Mini are unencrypted. The HDMI specification requires HDMI monitors to support unencrypted inputs.
User Interface	External DIP switch openGear DashBoard network control software via Windows, macOS, or Linux
Size	openGear standard form factor, front slot and rear card Two slots required for each card
Weight	0.5 lb (0.3 kg)
Power	openGear frame compatible, 7.0 watts max per card
Environment	Safe Operating Temperature: 0 to 40 C (32 to 104 F) Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F) Operating Relative Humidity: 10-90% noncondensing
