AJA OG-HA5-12G
I/O 影音介面卡
HDMI 2.0 to 12G-SDI Converters

AJA OG-HA5-12G

AJA OG-HA5-12G I/O 影音介面卡屬於 openGear 系列支援 HDMI 2.0 輸入轉換為 12G-SDI，實現 4K/UltraHD 單鏈路輸出。AJA OG-HA5-12G 包含兩個 12G-SDI 分配放大器輸出，可從 HDMI 來源接收 8 或 2 通道嵌入音訊。 AJA OG-HA5-12G 還可擴展顯示識別資料 (EDID) 模擬，確保連接的訊號源在輸出時持續提供自訂的視訊格式。 配備 SFP 光纖介面的 OG-HA5-12G-T 和 OG-HA5-12G-T-ST 型號均為單通道發射器，能夠將 HDMI 4K/UltraHD 訊號遠距離傳輸，單一 LC 或 ST 光纖鏈路的傳輸距離分別可達 10 公里。 這些型號出廠時已預先安裝 SFP 光纖接口，包含 OG-HA5-12G 的所有功能，並具有進一步擴展音訊和視訊訊號的額外優勢。

產品特色

  • Convert up to 4K 60p HDMI 2.0 to 12G-SDI with a second mirrored output
  • Supports up to 60p input at 4:4:4/4:2:2/4:2:0
  • Supports 12-bit workflows
  • EDID LFR & HFR Emulation up to UltraHD 60p
  • Real time HDMI HDR Infoframe data reporting
  • HDR signaling metadata pass-through and optional override
  • Simple Frame Rate Conversion (FRC) between Fractional and Integer rates
  • Embedded audio can be selected from the HDMI or Analog audio inputs
  • Embedded audio pass-through of AC-3 (Dolby Digital) and E-AC-3 (Dolby Digital Plus) compressed audio, including DD+ Atmos (aka DD+ JOC)
  • Monitor and control via Ross DashBoard software
  • 14 watts max per card

可擴充介面卡

OG-HA5-12G-T
OG-HA5-12G-T Features:

  • Convert up to 4K 60p HDMI 2.0 to 12G-SDI with a second mirrored output
  • Includes a single channel Fiber 12G LC transmitter, which extends 12G-SDI signals over long distances (10 km Single Mode)
  • OG-HA5-12G-T ships with FiberLC-1T-12G  SFP installed
  • Support for up to 60p input at 4:4:4/4:2:2/4:2:0
  • Supports 12-bit workflows
  • EDID LFR & HFR Emulation up to UltraHD 60p
  • Two Sample Interleave (2SI) 4K/UltraHD source mapping
  • Analyzes HDR Infoframe data coming in over HDMI in accordance with HDMI v2.0b/CTA-861-G
  • Simple Frame Rate Conversion (FRC) between Fractional and Integer rates
  • Embedded audio can be selected from the HDMI or Analog audio inputs
  • Embedded audio pass-through of AC-3 (Dolby Digital) and E-AC-3 (Dolby Digital Plus) compressed audio, including DD+ Atmos (aka DD+ JOC)
  • Monitor and control via Ross DashBoard software

OG-HA5-12G-T-ST
OG-HA5-12G-T-ST Features:

  • Convert up to 4K 60p HDMI 2.0 to 12G-SDI with a second mirrored output
  • Includes a single channel Fiber 12G ST transmitter, which extends 12G-SDI signals over long distances (10 km Single Mode)
  • OG-HA5-12G-T-ST ships with FiberST-1T-12G SFP installed
  • Support for up to 60p input at 4:4:4/4:2:2/4:2:0
  • Supports 12-bit workflows
  • EDID LFR & HFR Emulation up to UltraHD 60p
  • Two Sample Interleave (2SI) 4K/UltraHD source mapping
  • Analyzes HDR Infoframe data coming in over HDMI in accordance with HDMI v2.0b/CTA-861-G
  • Simple Frame Rate Conversion (FRC) between Fractional and Integer rates
  • Embedded audio can be selected from the HDMI or Analog audio inputs
  • Embedded audio pass-through of AC-3 (Dolby Digital) and E-AC-3 (Dolby Digital Plus) compressed audio, including DD+ Atmos (aka DD+ JOC)
  • Monitor and control via Ross DashBoard software



AJA 視訊製作

DashBoard Software



製作流程

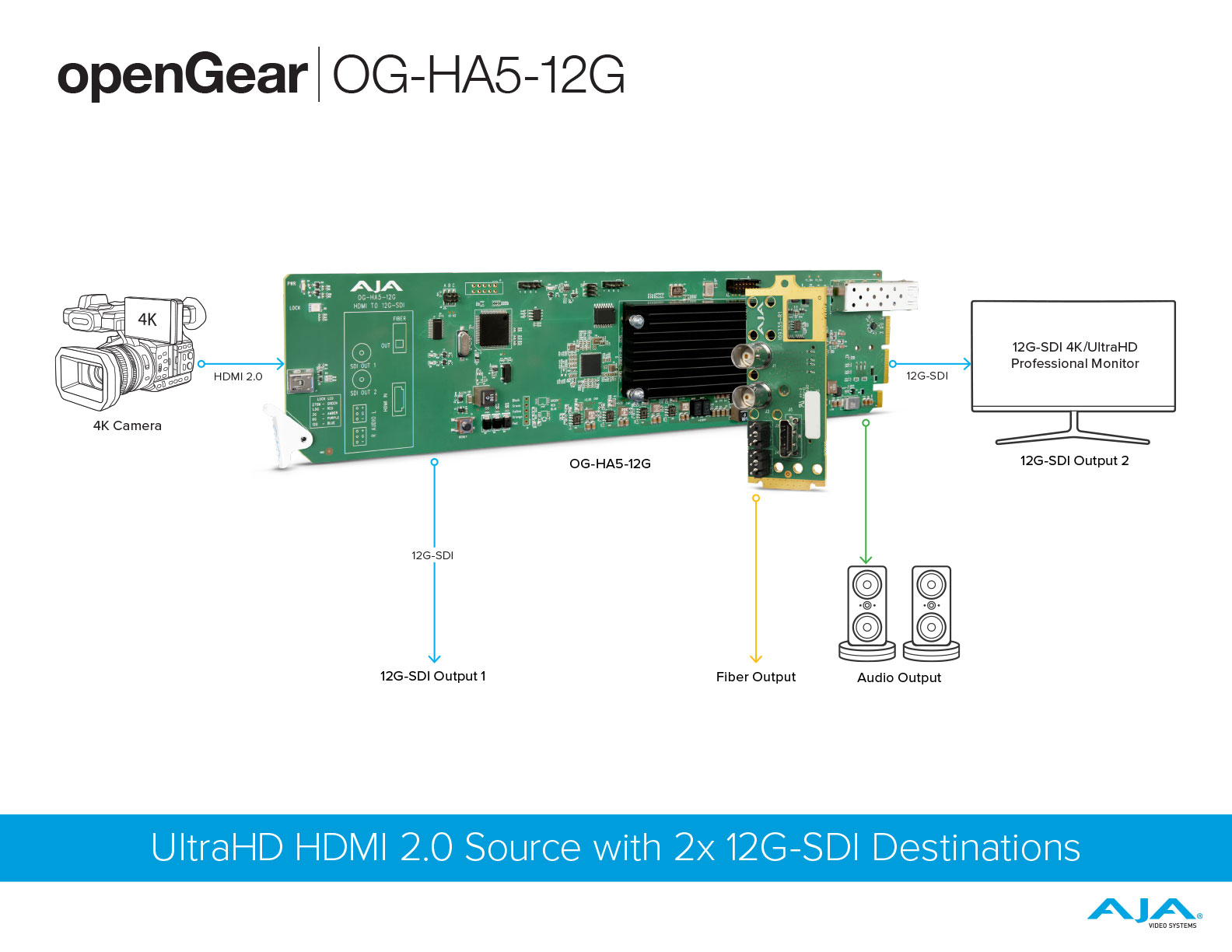

OG-HA5-12G Workflow



產品規格

📹AJA OG-HA5-12G I/O 影音介面卡

AJA OG-HA5-12G
Video Formats
  • (4K) 4096x2160p
  • (UltraHD) 3840x2160p
  • (2K) 2048x1080p
  • (HD) 1920x1080p
  • (HD) 1920x1080i
  • (HD) 1280x720p
  • (SD) 720x576i
  • (SD) 720x480i

Note: Raster and Frame Rate Dependent, please see OG-12GM Video Formats in the Download / Documents section of the website product page.
Video Input Digital
  • 1x HDMI Type A connector, HDMI v2.0b
    • HDR Infoframe decoder as defined in CTA-861.3 and HDMI v2.0b
    • HDR VPID generation with pass-through or override for Colorimetry and Transfer Characteristic
    • YCbCr 4:2:2/4:4:4/4:2:0
    • RGB 4:4:4, SMPTE or Full level
    • 24, 30, or 36-bits Per Pixel (HFR 4K/UltraHD 4:4:4 limited to 24 BPP)
    • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (HD) 1920x1080i 50, 59.94, 60
    • (HD) 1280x720p 50, 59.94, 60
    • (SD) 720x576i 50
    • (SD) 720x480i 59.94
HDCP Decryption
  • Not supported. By definition, SDI outputs are unencrypted.
Video Output Digital
  • 1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
    • YCbCr 4:2:2/4:4:4
    • RGB 4:4:4, SMPTE or Full level
    • 10-bit, 12-bit*
  • 1x 12G-SDI
    • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30,50, 59.94, 60
  • 1x 6 Gb SDI
    • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30
  • 1x 3 Gb SDI (Level A or B Dual Link)
    • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    • (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080i 50, 59.94, 60
    • (HD) 1280x720p** 50, 59.94, 60
  • 1x 1.5 Gb SDI
    • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30
    • (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080i 50, 59.94, 60
    • (HD) 1280x720p 50, 59.94, 60
  • 1x 270 Mb SDI
    • (SD) 625i 50
    • (SD) 525i 59.94

*Some 12-bit formats not supported, please see OG-HA5-12G Video Formats in Documents and Manual.
**1280x720p is Level A Only
Video Output Digital - Additional for OG-HA5-12G-T Only
  • 1x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082
    • Nominal Wavelength: Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max)
    • Optical Power: -5 dBm (min), 0.5 dBm (max)
    • Extinction Ratio: 3.5 dB (min)
Video Output Digital - Additional for OG-HA5-12G-T-ST Only
  • 1x 12G-SDI Fiber ST connector, SMPTE 297/259/292/424/2081/2082
    • Nominal Wavelength: Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max)
    • Optical Power: -5 dBm (min), 2 dBm (max)
    • Extinction Ratio: 3.5 dB (min)
Audio Pass-Through Formats
  • PCM
  • Dolby Digital (AC-3)
  • Dolby Digital Plus (E-AC-3), including Atmos Immersive Sound (JOC)
Audio Input Digital
  • HDMI embedded audio, 24-bit, 8-channel
Audio Input Analog 2x 3-pin terminal block connector, 2-channel balanced analog audio +24dBu (nominal)
Audio Output Digital SDI embedded audio, 24-bit (SD limited to 20-bit), 16-channel
User Interface openGear DashBoard network control software via Windows, macOS, or Linux
Size
  • openGear standard form factor, front slot and rear card
  • Two slots required for each card
Weight 0.5 lb (0.3 kg)
Power
  • openGear frame compatible, 14 watts max per card
Environment
  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)



關鍵字 : #tricaster.#aja.#NDI.#opengear.#developer.

*本產品將持續創新，規格可能會有變動，當產品設計／規格變動，恕不另行通知。
