AJA OG-HA5-4K
I/O 影音介面卡
openGear 4K/UltraHD/2K/HD/SD HDMI 2.0 to 3G-SDI Conversion

AJA OG-HA5-4K

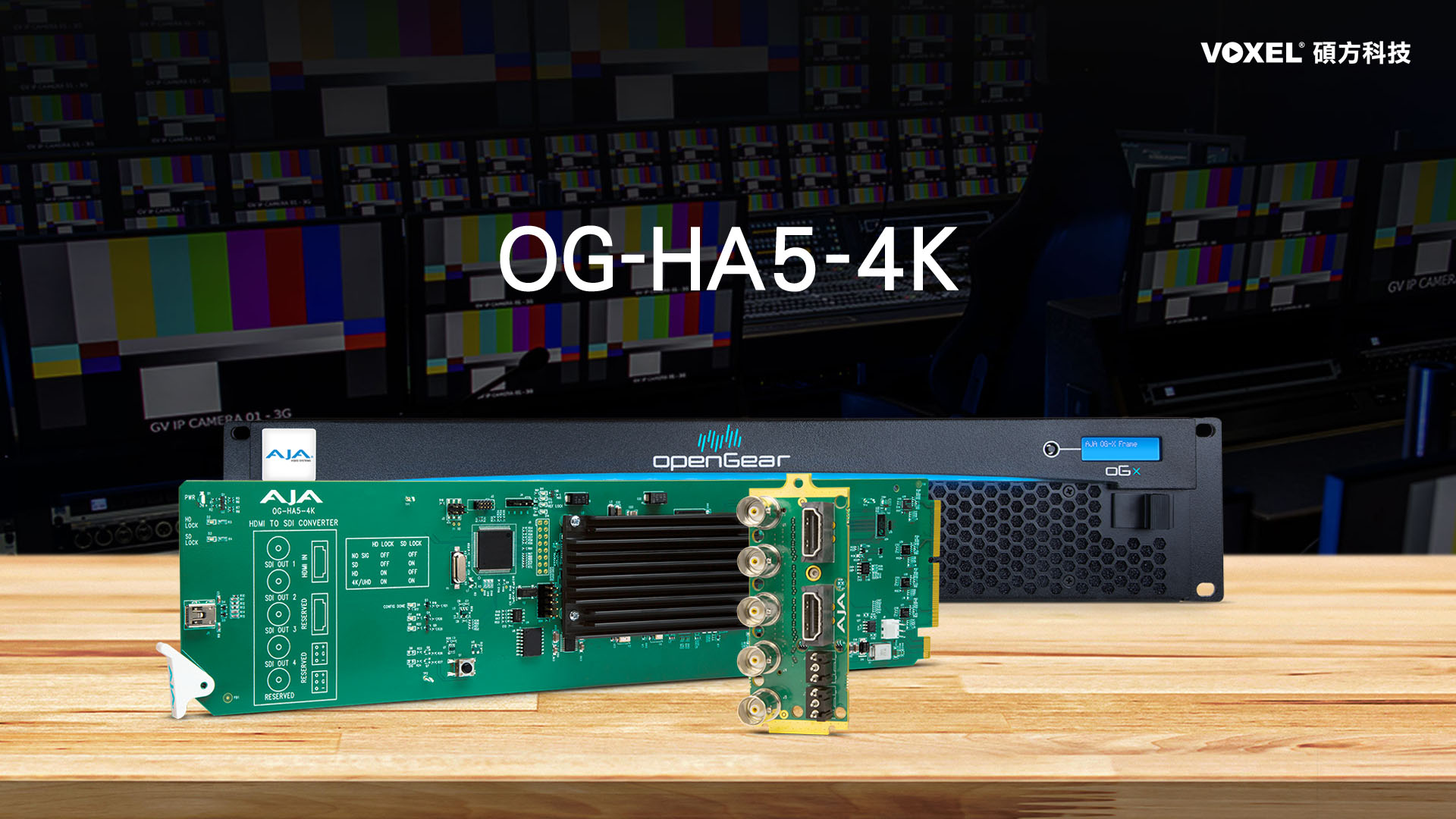

AJA OG-HA5-4K I/O 影音介面卡屬於 openGear 系列配備四個 3G-SDI 輸出，可將 HDMI 2.0 視訊高品質轉換為 4K/UltraHD 3G-SDI，適用專業工作流程。AJA OG-HA5-4K 也能夠與 DashBoard 軟體搭配使用，顯示透過 HDMI 輸入的 HDR 影格資料。

產品特色

  • openGear compatible card
  • Convert HDMI 2.0 to Quad-3G, 4K/UltraHD 60 fps at 4:4:4, 4:2:2, and 4:2:0
  • Supports Two Sample Interleave (2SI) and Square Division (Quadrant) output pixel mapping
  • EDID Emulation
  • Displays HDR Infoframe data coming in over HDMI in accordance with HDMI v2.0b/CTA-861-G
  • HDR Metadata VPID Pass-through and optional override
  • Simple Frame Rate Conversion (FRC)
  • Embedded audio support 8-channel 24-bit
  • Embedded audio pass-through of AC-3 (Dolby Digital Plus) and E-AC-3 compressed audio, including DD+ Atmos (aka DD+ JOC)
  • Remote Ethernet configuration through Ross DashBoard software
  • Power: 10 watts
  • Hot-swappable
  • Rear I/O card included
  • Two slots required for each card
  • Compatible with OG-X-FR, OG-3-FR, and DFR-8321 openGear frames

AJA 視訊製作

DashBoard Software



產品規格

📹AJA OG-HA5-4K I/O 影音介面卡

AJA OG-HA5-4K
Video Formats
  • (4K) 4096x2160p
  • (UltraHD) 3840x2160p
  • (2K) 2048x1080p
  • (HD) 1920x1080p
  • (HD) 1920x1080i
  • (HD) 1280x720p
  • (SD) 720x576i
  • (SD) 720x480i

Note: Raster and Frame Rate Dependent, please see OG-12GM Video Formats in the Download / Documents section of the website product page.
Video Input Digital 1x HDMI Type A connector, HDMI v2.0b
  • HDR Infoframe decoder as defined in CTA-861.3 and HDMI v2.0b
  • HDR VPID generation with pass-through or override for Colorimetry and Transfer Characteristic
  • YCbCr 4:2:2/4:4:4/4:2:0
  • RGB 4:4:4, SMPTE or Full level
  • 24, 30, or 36-bits Per Pixel (HFR 4K/UltraHD 4:4:4 limited to 24 BPP)
  • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920x1080i 50, 59.94, 60
  • (HD) 1280x720p 50, 59.94, 60
  • (SD) 720x576p 50
  • (SD) 720x576i 50
  • (SD) 720x480p 59.94
  • (SD) 720x480i 59.94
HDCP Decryption
  • Not supported. By definition, SDI outputs are unencrypted.
Video Output Digital
  • 4x 3G-SDI BNC, SMPTE-259/292/424
    • YCbCr 4:2:2/4:4:4
    • RGB 4:4:4, SMPTE or Full level
    • 10-bit
    • Two Sample Interleave (2SI) or Square Division (Quadrant) pixel mapping
  • 4x 3 Gb SDI (Level A or B Dual Link)
    • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • 4x 1.5 Gb SDI
    • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30
  • 2x 3 Gb SDI (Level B Dual Stream)
    • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30
  • 2x 1.5 Gb SDI (Dual Link HD-SDI), SMPTE-372
    • (HD) 1920x1080p 50, 59.94, 60
  • 1x 3 Gb SDI (Level A or B Dual Link)
    • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    • (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080i 50, 59.94, 60
    • (HD) 1280x720p** 50, 59.94, 60
  • 1x 1.5 Gb SDI
    • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30
    • (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080i 50, 59.94, 60
    • (HD) 1280x720p 50, 59.94, 60
  • 1x 270 Mb SDI
    • (SD) 625i 50
    • (SD) 525i 59.94

*PsF is Level B Dual Link
**1280x720p is Level A Only
Audio Pass-Through Formats
  • PCM
  • Dolby Digital (AC-3)
  • Dolby Digital Plus (E-AC-3), including Atmos Immersive Sound (JOC)
Audio Input Digital
  • HDMI embedded audio, 24-bit, 8-channel
Audio Input Analog 2x 3-pin terminal block connector, 2-channel balanced analog audio +24dBu (nominal)
User Interface openGear DashBoard network control software via Windows, macOS, or Linux
Size
  • openGear standard form factor, front slot and rear card
  • Two slots required for each card
Weight 0.5 lb (0.3 kg)
Power
  • openGear frame compatible, 10.0 watts max per card
Environment
  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)



關鍵字 : #tricaster.#aja.#NDI.#opengear.#developer.

*本產品將持續創新，規格可能會有變動，當產品設計／規格變動，恕不另行通知。
