AJA OG-Hi5-12G
I/O 影音介面卡
4K/UltraHD 12G-SDI to HDMI 2.0 Converters

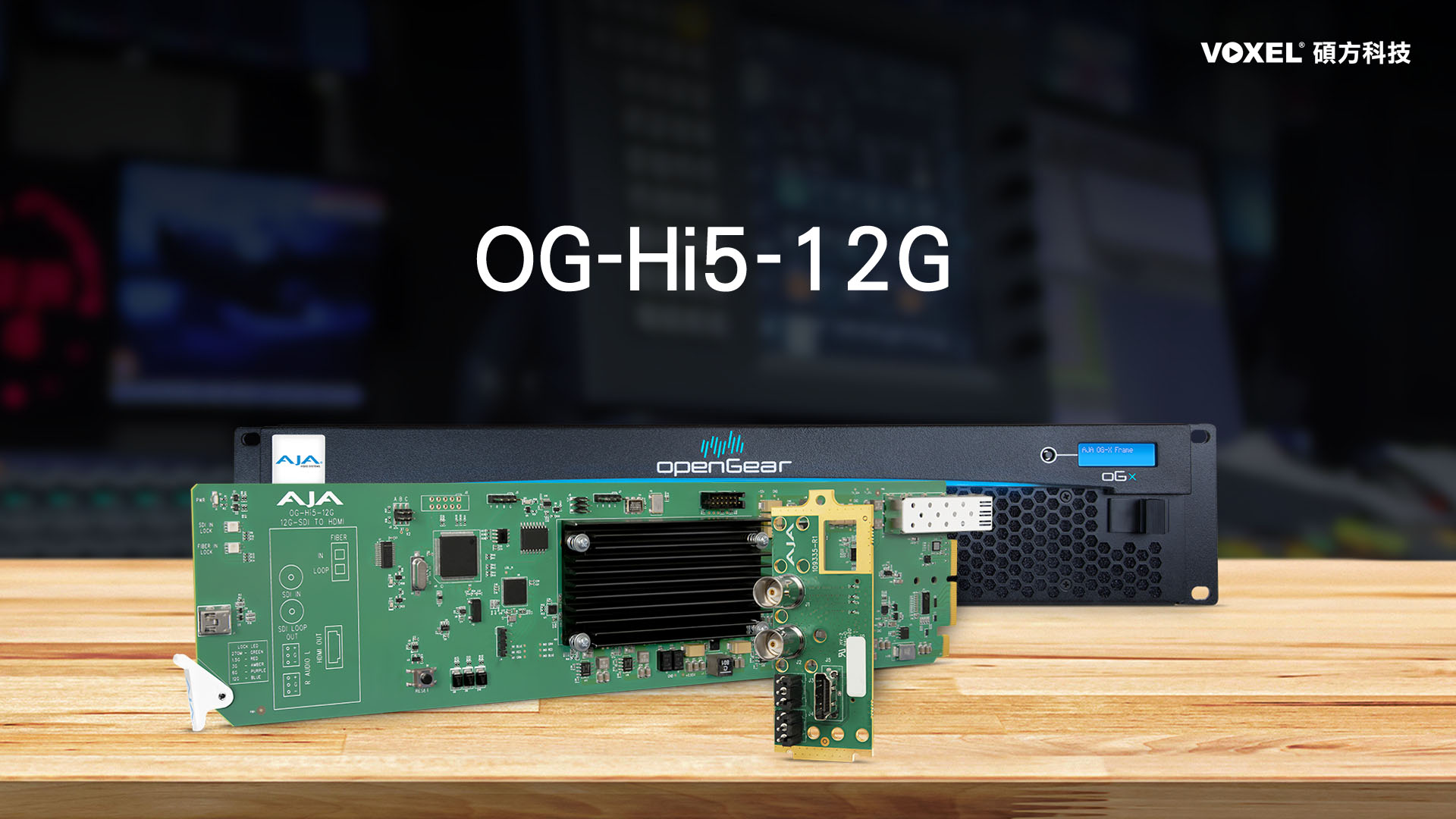

AJA OG-Hi5-12G
AJA OG-Hi5-12G I/O 影音介面卡屬於 openGear 系列，可將 12G-SDI 轉換為 HDMI 2.0，支援 4K/UltraHD 60p 高幀率 (HFR)。 AJA OG-Hi5-12G 具有易於部署的監控連接，可將專業的 4K 12G-SDI 設備連接到具有 HDMI 2.0 輸入的設備，並以 HDMI 2.0 和 CTA-861-G 產生 HDR 元數據。 配備光纖 SFP 的 OG-Hi5-12G、OG-Hi5-12G-R 接收器（可從光纖連接的源遠距離接收 4K 訊號）和 OG-Hi5-12G-TR 收發器（可將 4K/UltraHD SDI 或纖光訊號傳輸至 HD裝置裝置透過裝置裝置）， 將 4K/UltraHD SDI 或纖光訊號傳輸至 HD裝置裝置透過裝置裝置）並將光纖裝置裝置透過裝置訊號傳輸至光纖裝置）。 OG-Hi5-12G-R 和 OG-Hi5-12G-TR 中的視訊來源自動切換功能（SDI 和光纖輸入）可自動切換輸入，並可設定切換優先選項（最後有效輸入、優先 SDI 和優先光纖）。
產品特色
- Convert 12G-SDI to HDMI 2.0 at up to 4K 60p
- Support for 4:4:4/4:2:2/4:2:0 HDMI 2.0 output
- Supports 12-bit workflows
- HDR signaling metadata pass-through and optional override
- Embedded audio support 8-channel 24-bit
- Embedded audio pass-through of AC-3 (Dolby Digital) and E-AC-3 (Dolby Digital Plus) compressed audio, including DD+ Atmos (aka DD+ JOC)
- Supports up to 100 frames of audio delay
- 12G-SDI loop out
- Fiber SFP models available
- Monitor and control via Ross DashBoard software
- 13 watts max per card
可擴充介面卡
OG-Hi5-12G-R
12G-SDI to HDMI 2.0 Conversion with LC Fiber Receiver
- Pristine image fidelity and HFR support up to 60p for 4K/UltraHD 12G-SDI to HDMI 2.0 conversion with a single cable
- Supports 12-bit workflows
- Generates HDR10 metadata in accordance with HDMI v2.0b/CTA-861-G and supports HLG over HDMI
- Provides a monitoring connection from professional 4K devices using 12G-SDI over coaxial or Fiber LC outputs
- 12G-SDI single link input with a reclocked SDI loop out for SDI monitoring or pass on for SDI pipelines
- Ships with a Fiber LC single channel SFP receiver for extending 4K signals over long distances
- Monitor and control via Ross DashBoard software
OG-Hi5-12G-R-ST
12G-SDI to HDMI 2.0 Conversion with ST Fiber Receiver
- Pristine image fidelity and HFR support up to 60p for 4K/UltraHD 12G-SDI to HDMI 2.0 conversion with a single cable
- Supports 12-bit workflows
- Generates HDR10 metadata in accordance with HDMI v2.0b/CTA-861-G and supports HLG over HDMI
- Provides a monitoring connection from professional 4K devices using 12G-SDI over coaxial or Fiber ST outputs to displays with HDMI 2.0 inputs
- 12G-SDI single link input with a reclocked SDI loop out for simpler SDI confidence monitoring or pass on for SDI pipelines
- Ships with a Fiber ST single channel SFP receiver for extending 4K signals over long distances
- Monitor and control via Ross DashBoard software
OG-Hi5-12G-TR
12G-SDI to HDMI 2.0 Conversion with LC Fiber Transceiver
- Pristine image fidelity and HFR support up to 60p for 4K/UltraHD 12G-SDI to HDMI 2.0 conversion with a single cable
- Supports 12-bit workflows
- Generates HDR10 metadata in accordance with HDMI v2.0b/CTA-861-G and supports HLG over HDMI
- Simple monitoring connection from professional 4K devices using 12G-SDI outputs to displays with HDMI 2.0 inputs
- Features a 12G-SDI single link input with a reclocked SDI loop out and includes a Fiber LC single channel SFP transceiver which delivers a 4K/UltraHD SDI or Fiber source signal to an HDMI destination with pass on of the source through SDI or Fiber to a secondary destination
- Ships with a Fiber LC single channel SFP transceiver for extending 4K signals over long distances
- Monitor and control via Ross DashBoard software
AJA 視訊製作
DashBoard Software
製作流程

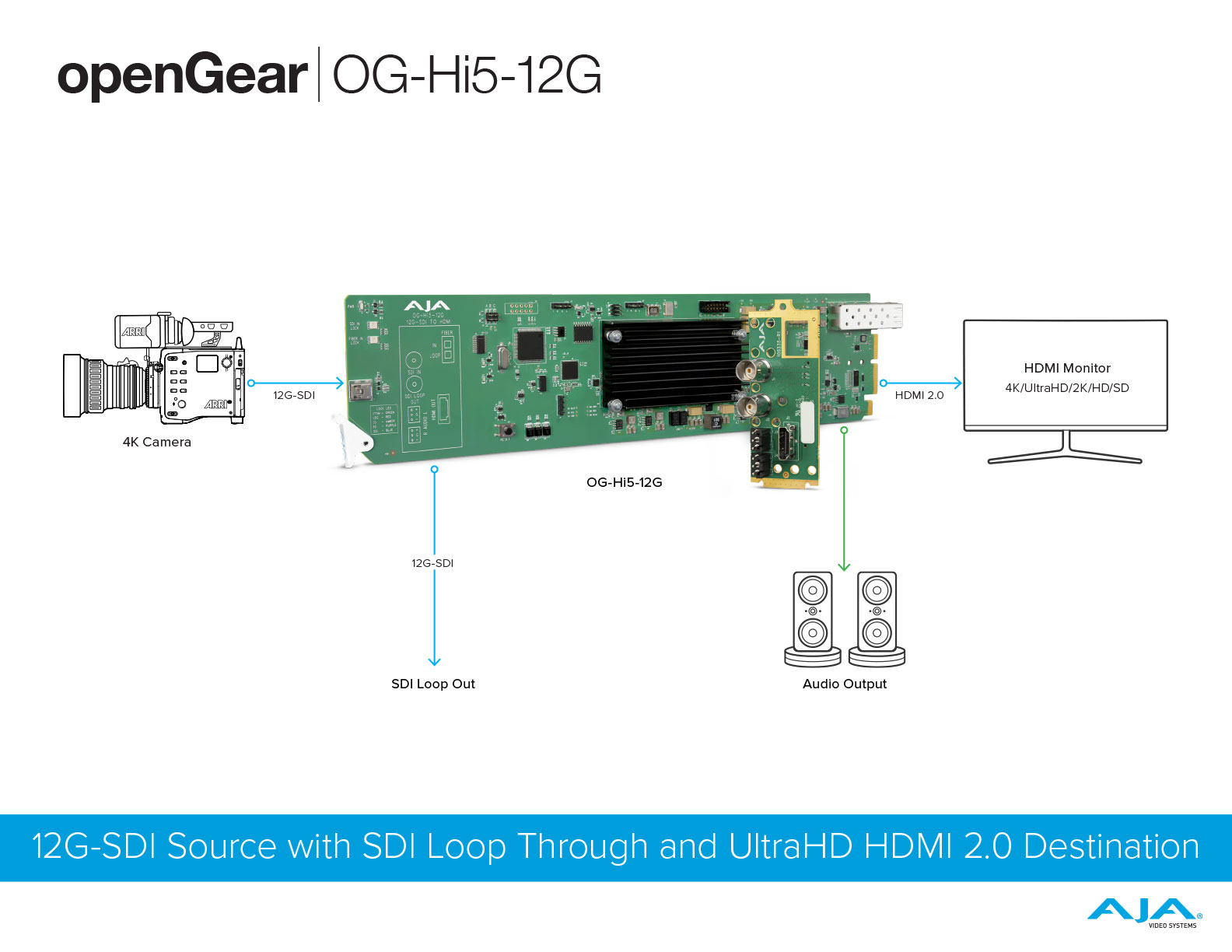

OG-Hi5-12G Workflow

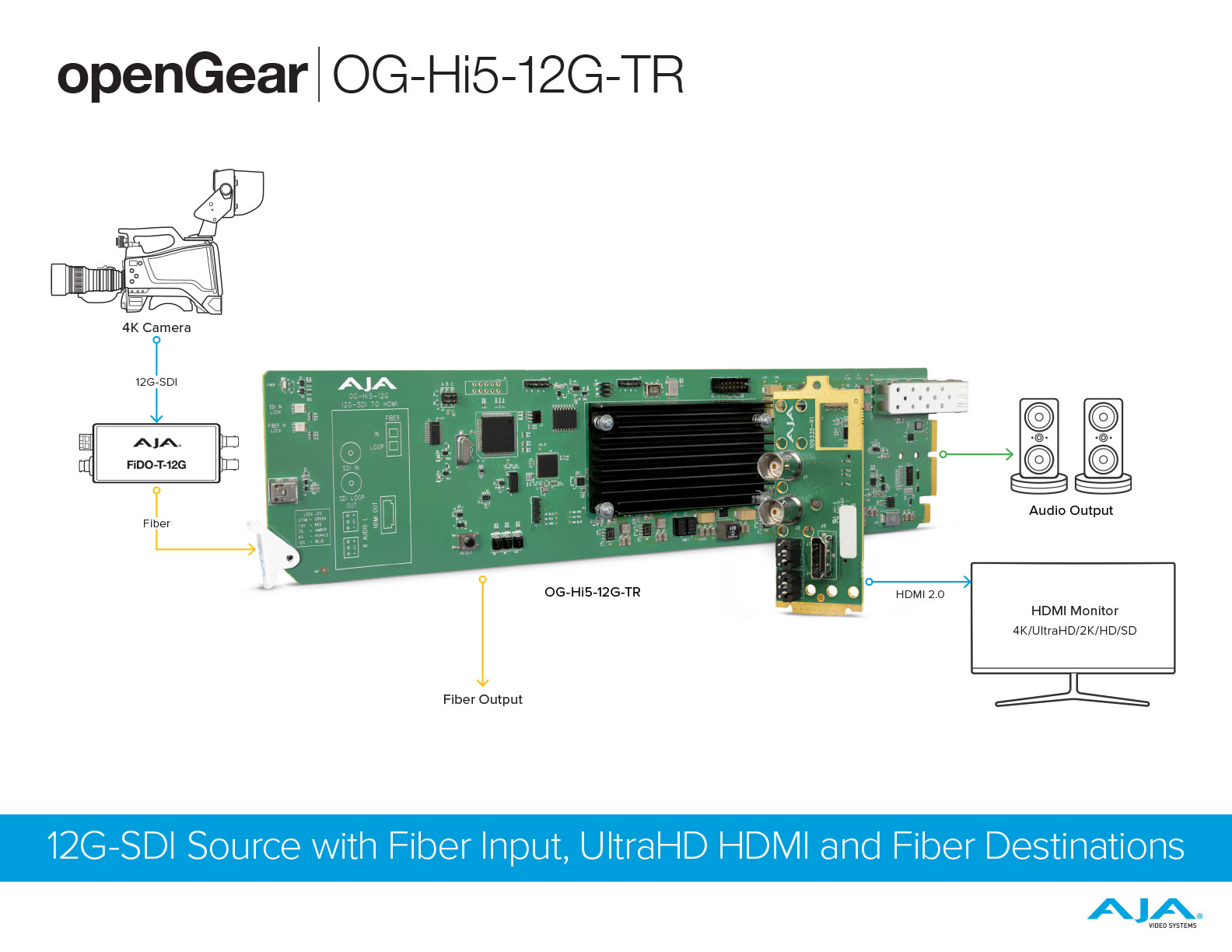

OG-Hi5-12G-TR Workflow
產品規格
📹AJA OG-Hi5-12G I/O 影音介面卡
| AJA OG-Hi5-12G | |
| Video Formats |
Note: Raster and Frame Rate Dependent, please see OG-Hi5-12G Video Formats in Documents and Manual |
| Video Input Digital |
|
| Input Signal Selection - OG-Hi5-12G-R and OG-Hi5-12G-TR Only |
|
| Input Signal Selection - OG-Hi5-12G-R-ST Only |
|
| Video Output Digital |
*If a connected monitor doesn’t support HDMI protocol, the unit automatically switches to DVI protocol (which does not pass audio) |
| Video Output Digital - Additional for OG-Hi5-12G-TR Only | 1x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082
|
| Audio Pass-Through Formats |
|
| Audio Input Digital | SDI embedded audio, 24-bit (SD limited to 20-bit), 16-channel |
| Audio Output Digital | HDMI embedded audio, 24-bit, 8-channel |
| Audio Output Analog | 2x 3-pin terminal block connector, 2-channel balanced analog audio +24dBu (nominal) |
| User Interface | openGear DashBoard network control software via Windows, macOS, or Linux |
| Size |
|
| Weight | 0.5 lb (0.3 kg) |
| Power | openGear frame compatible, 13 watts max per card |
| Environment |
|
關鍵字 : #tricaster.#aja.#NDI.#opengear.#developer.
*本產品將持續創新，規格可能會有變動，當產品設計／規格變動，恕不另行通知。
