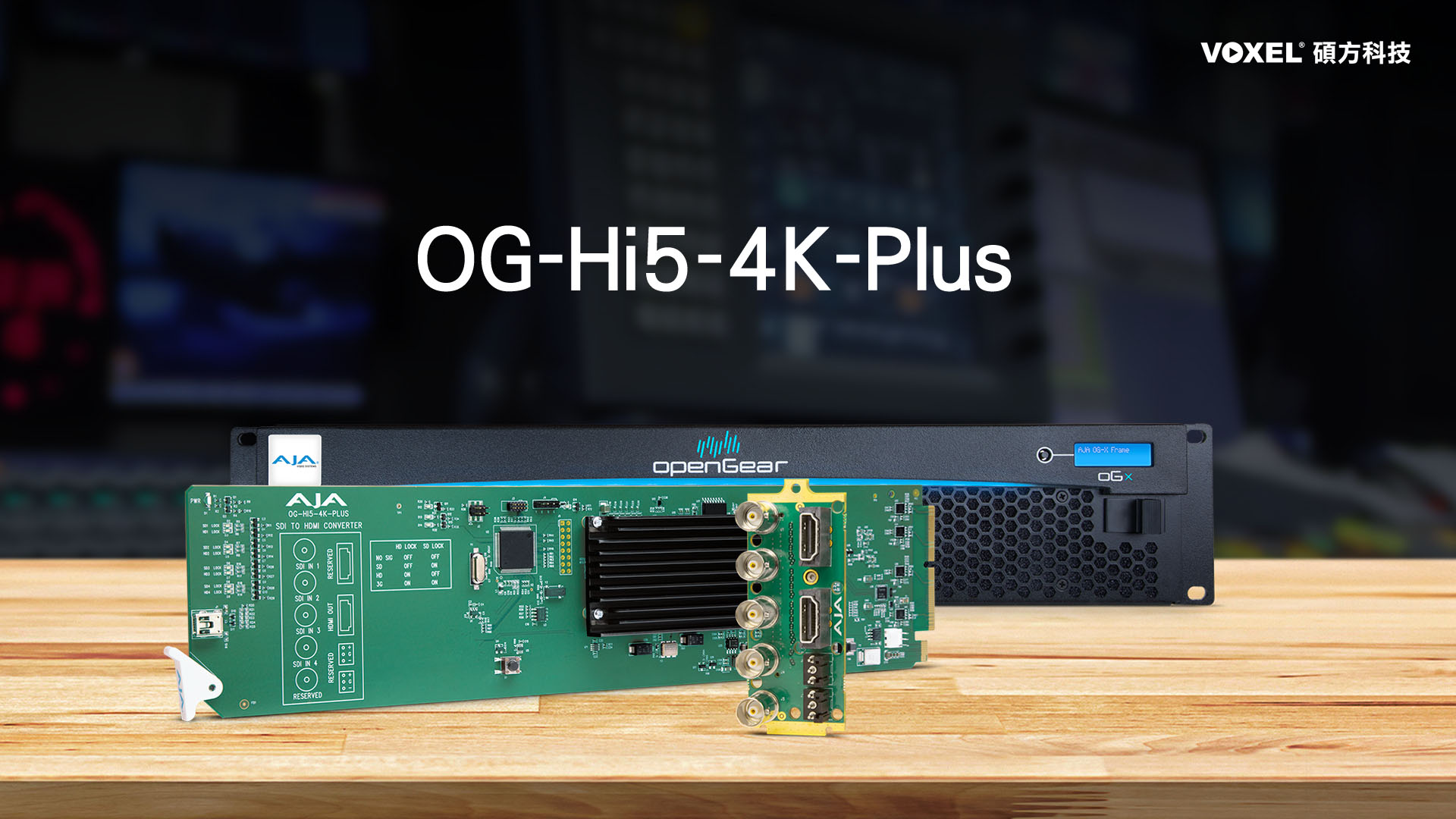

AJA OG-Hi5-4K-Plus
I/O 影音介面卡
3G-SDI to HDMI 2.0 Conversion

AJA OG-Hi5-4K-Plus

AJA OG-Hi5-4K-Plus I/O 影音介面卡屬於 openGear 系列支援 3G-SDI 轉換為 HDMI 2.0，適用於 4K/UltraHD/2K/HD/SD 訊號源，在 HDMI 2.0 顯示器上監看時，支援來自專業 4K/UltraHD 裝置的高達 60p 的解析度。 AJA OG-Hi5-4K-Plus I/O 影音介面卡可依 HDMI v2.0b/CTA-861.3 HDR 元數據（包括 HDR 支援），並提供從具有四路 3G-SDI 或雙路 3G-SDI 輸出的 4K 設備到相容於 HDMI 2.0 顯示器的便監交錯連接， 支援雙頻 (QuSI) 採樣雙頻 (QuSI) 並支援雙頻 (QuSI) 取樣連接並支援雙頻 (3SI)。

產品特色

  • openGear compatible card
  • Convert Quad 3G-SDI to HDMI 2.0 at up to 4K 60p
  • Support for 4:2:2/4:4:4 HDMI 2.0 output
  • Supports 12-bit workflows
  • HDR signaling metadata pass-through and optional override
  • HDR support for HDR10 and HLG
  • Embedded audio support 8-channel 24-bit
  • Embedded audio pass-through of AC-3 (Dolby Digital) and E-AC-3 (Dolby Digital Plus) compressed audio, including DD+ Atmos (aka DD+ JOC)
  • Remote Ethernet configuration through Ross DashBoard software
  • Power: 12 watts
  • Hot-swappable
  • Rear I/O card included
  • Two slots required for each card
  • Compatible with OG-X-FR, OG-3-FR and DFR-8321 openGear frames

AJA 視訊製作

DashBoard Software



產品規格

📹AJA OG-Hi5-4K-Plus I/O 影音介面卡

AJA OG-Hi5-4K-Plus
Video Formats
  • (4K) 4096x2160p
  • (UltraHD) 3840x2160p
  • (2K) 2048x1080p
  • (HD) 1920x1080p
  • (HD) 1920x1080i
  • (HD) 1280x720p
  • (SD) 720x576i
  • (SD) 720x480i

Note: Raster and Frame Rate Dependent, please see OG-Hi5-4K-Plus Video Formats in the Download / Documents section of the website product page.
Video Input Digital
  • 4x 3G-SDI BNC, SMPTE-259/292/424
    • YCbCr 4:2:2/4:4:4
    • RGB 4:4:4, SMPTE or Full level
    • 8, 10, or 12-bit
    • Two Sample Interleave (2SI) or Square Division (Quadrant) pixel mapping
  • 4x 3 Gb SDI (Level A or B Dual Link)
    • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    • (4K) 4096x2160PsF* 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (Ultra HD) 3840x2160PsF* 23.98, 24, 25, 29.97, 30
  • 4x 1.5 Gb SDI
    • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30
    • (4K) 4096x2160PsF 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840x2160PsF 23.98, 24, 25, 29.97, 30
  • 2x 3 Gb SDI (Level B Dual Stream)
    • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30
    • (4K) 4096x2160PsF 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840x2160PsF 23.98, 24, 25, 29.97, 30
  • 1x 3 Gb SDI (Level A or B Dual Link)
    • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    • (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080i 50, 59.94, 60
    • (HD) 1280x720p** 50, 59.94, 60
  • 2x 1.5 Gb SDI (Dual Link HD-SDI), SMPTE-372
    • (HD) 1920x1080p 50, 59.94, 60
  • 1x 1.5 Gb SDI
    • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30
    • (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080i 50, 59.94, 60
    • (HD) 1280x720p 50, 59.94, 60
  • 1x 270 Mb SDI
    • (SD) 625i 50
    • (SD) 525i 59.94



*PsF is Level B Dual Link
**1280x720p is Level A Only
Video Output Digital
  • 1xHDMI Type A connector*, HDMI v2.0b
    • HDR infoframe generation with pass-through or override for Colorimetry and Transfer Characteristic
    • YCbCr 4:2:2/4:4:4/4:2:0
    • RGB 4:4:4, SMPTE or Full level
    • 24, 30, or 36-bits Per Pixel  (HFR 4K/UltraHD 4:4:4 limited to 24 BPP)
    • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (HD) 1920x1080i 50, 59.94, 60
    • (HD) 1280x720p 50, 59.94, 60
    • (SD) 720x576i 50
    • (SD) 720x480i 59.94



*If a connected monitor doesn't support HDMI protocol the unit automatically switches to DVI protocol (which does not pass audio)
Audio Pass-Through Formats
  • PCM
  • Dolby Digital (AC-3)
  • Dolby Digital Plus (E-AC-3), including Atmos Immersive Sound (JOC)
Audio Input Digital SDI embedded audio, 24-bit (SD limited to 20-bit), 16-channel
Audio Output Digital HDMI embedded audio, 24-bit, 8-channel
Audio Output Analog 2x 3-pin terminal block connector, 2-channel balanced analog audio +24dBu (nominal)
User Interface openGear DashBoard network control software via Windows, macOS, or Linux
Size
  • openGear standard form factor, front slot, and rear card
  • Two slots required for each card
Weight 0.5 lb (0.3 kg)
Power openGear frame compatible, 12.0 watts max per card
Environment
  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)*
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
