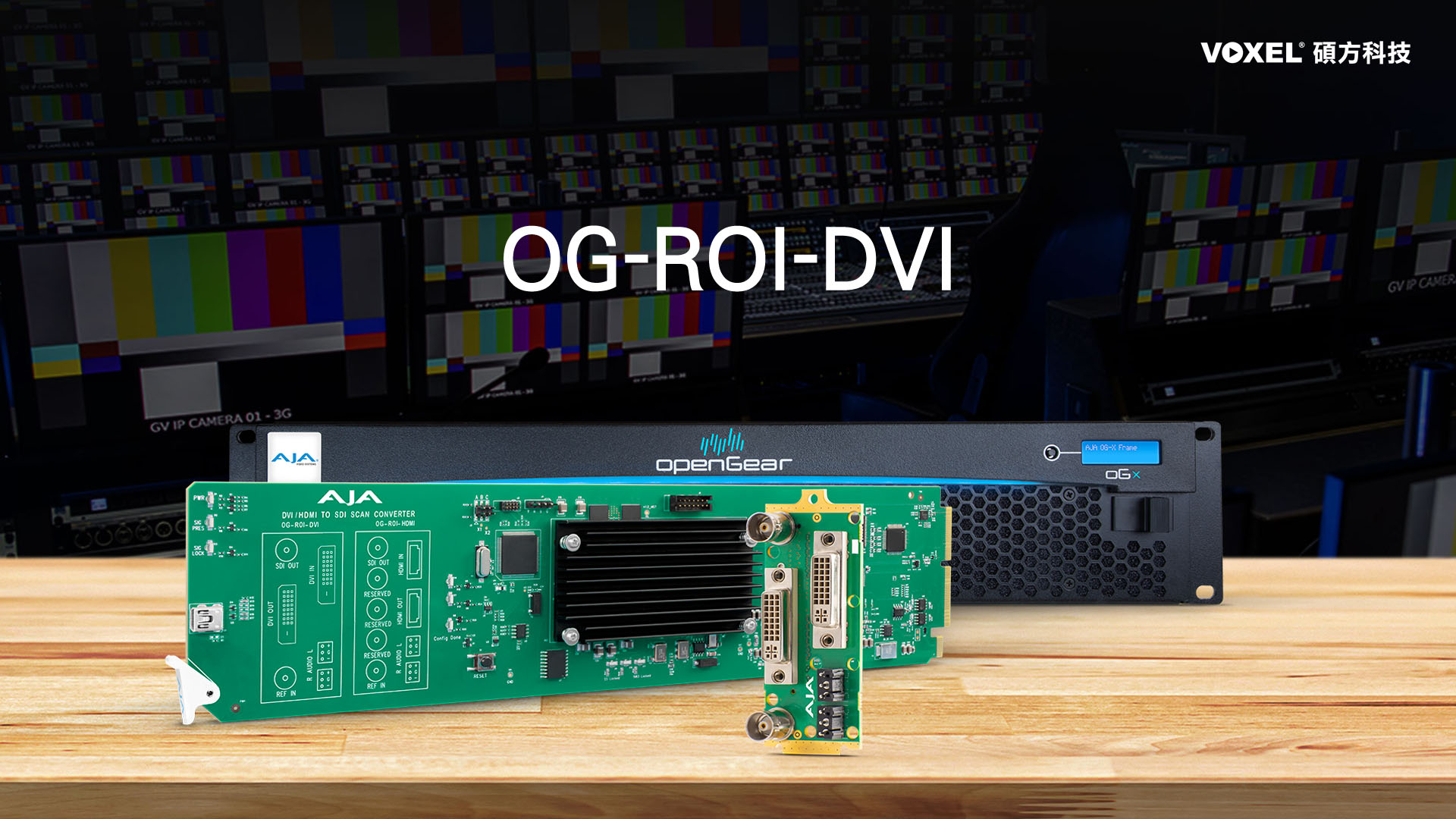

AJA OG-ROI-DVI
I/O 影音介面卡
openGear DVI to 3G-SDI Scan Converter
AJA OG-ROI-DVI
AJA OG-ROI-DVI I/O 影音介面卡屬於 openGear 系列支援電腦和 DVI 訊號以高品質轉換為 3G-SDI 視訊。憑藉卓越的 ROI 影像縮放以及寬高比和幀率轉換功能。 AJA OG-ROI-DVI 滿足了日益增長的需求，即在不犧牲預算或空間的情況下，將電腦訊號完美地融入視訊世界。
產品特色
- openGear compatible card
- DVI to 3G-SDI conversion with DVI loop through
- Computer resolutions to video resolutions Scan Converter
- EDID Emulation
- 3G-SDI output
- Supports SD, HD, and 3G formats (see Tech Specs for complete list)
- Region of Interest scaling
- Up, down, cross-conversion
- Aspect ratio conversion
- Frame rate conversion
- Image H/V flip and 90 degree rotation
- Conversion between Deinterlaced and Progressive signals
- Accepts input DVI formats up to 1920 x 1200 60 H
- Loss of Input management: Black, Freeze, or Mute
- Supports 8-channels of embedded audio
- 2-channels analog audio output of disembedded audio inputs or 2-channel or 8-channel DVI audio (2x 3-Pin Terminal Block connectors included)
- Genlock: Reference Input, DVI Input, or Free Run
- Remote Ethernet configuration through Ross DashBoard software
- Power: 8 watts
- Hot-swappable
- Rear I/O card included
- Two slots required for each card
- Compatible with OG-X-FR, OG-3-FR, and DFR-8321 openGear frames
AJA 視訊製作

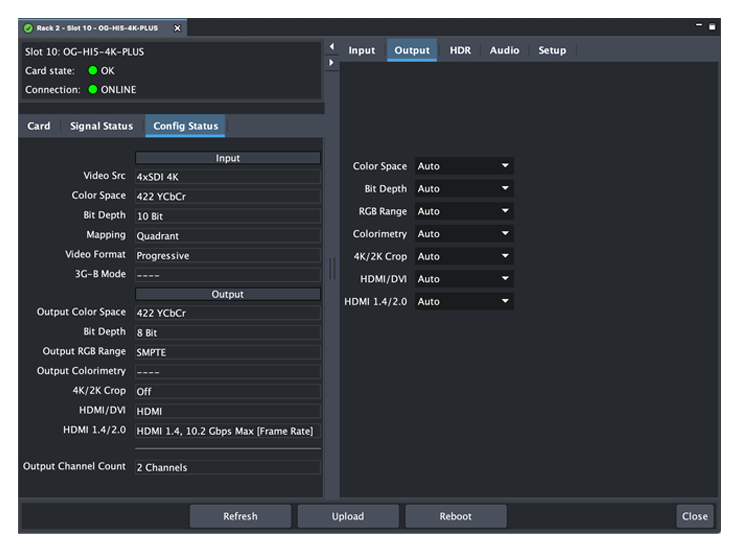

DashBoard Software
製作流程

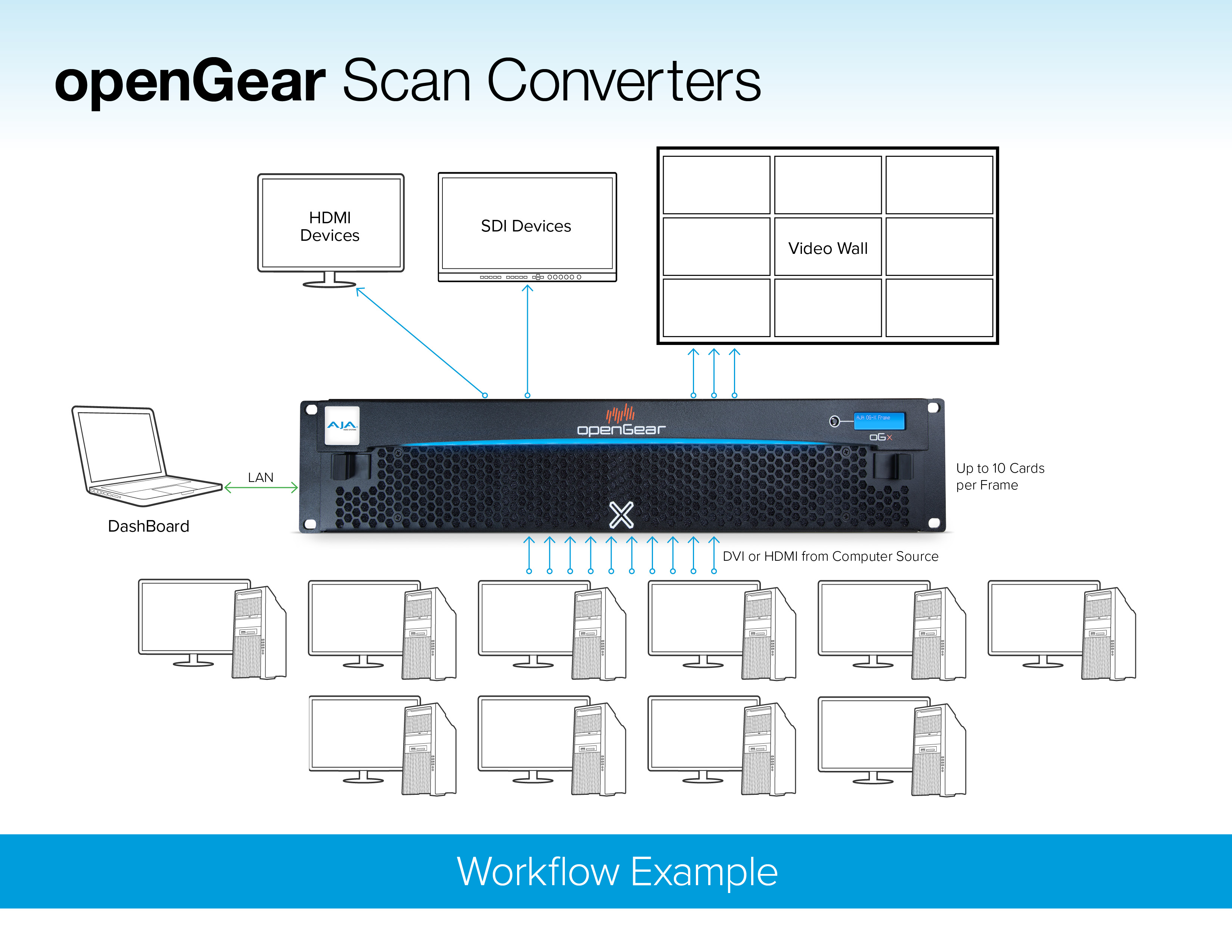

openGear ROI Video Wall Workflow
產品規格
📹AJA OG-ROI-DVI I/O 影音介面卡
| AJA OG-ROI-DVI | |
| Video Formats |
|
| Video Output Formats |
|
| Color Range |
|
| Reference Source |
|
| Reference Input |
|
| Video Input | 1x DVI input connector (with embedded audio, up to 8-channels) |
| Video Outputs |
|
| Audio Inputs | 2-channel balanced analog audio inputs, 2x 3-pin terminal blocks connectors |
| Audio Output | SDI embedded audio, 24-bit, 2-channel or 8-channel |
| User Interface | openGear DashBoard network control software via Windows, macOS or Linux |
| Size (w x d x h) | openGear standard form factor, front slot and rear card. Two slots required for each card |
| Weight |
|
| Power | openGear frame compatible, 8.0 watts max per card |
| Environment |
|
