專業影音製作應用解決方案
AJA OG-ROI-SDI
I/O 影音介面卡
openGear 3G-SDI to 3G-SDI/HDMI Scan Converter

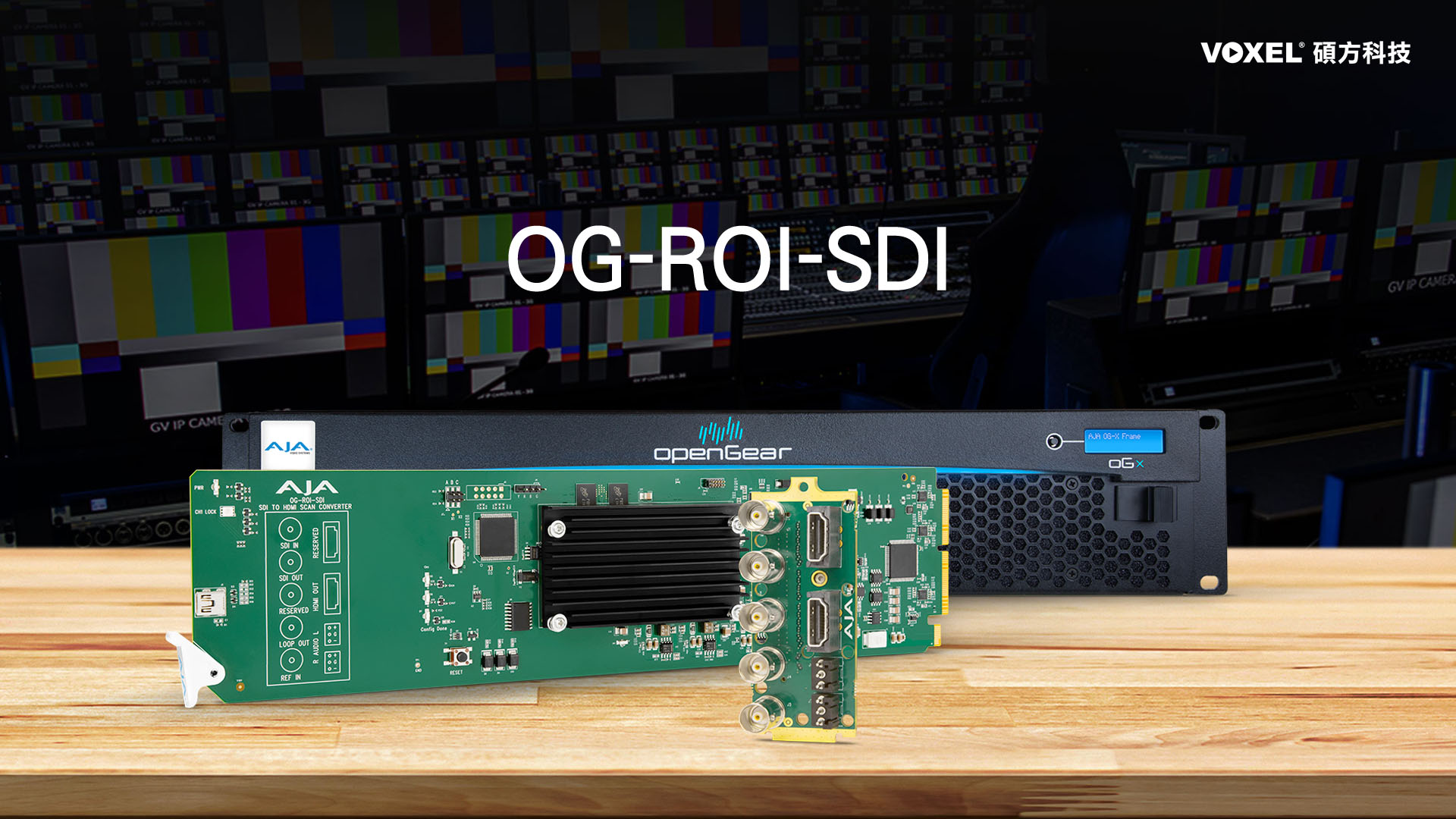

AJA OG-ROI-SDI
AJA OG-ROI-SDI I/O 影音介面卡屬於 openGear 系列支援 SDI 輸入以高品質轉換為 3G-SDI 和 HDMI 視訊輸出。憑藉卓越的 ROI 影像縮放以及寬高比和幀率轉換功能。 AJA OG-ROI-SDI I/O 影音介面卡滿足了日益增長的需求，即在不犧牲預算或空間的情況下，將 3G-SDI 來源提取的內容完美地整合到 3G-SDI 和 HDMI 訊號源中。
產品特色
- openGear compatible card
- SDI to HDMI/3G-SDI conversion with SDI loop through
- Scan Converter
- 3G-SDI and HDMI 1.4 outputs
- Supports SD, HD, and 3G formats (see Tech Specs for complete list)
- Region of Interest scaling
- Up, down, cross-conversion
- Aspect ratio conversion
- Frame rate conversion
- Image H/V flip and 90 degree rotation
- Conversion between Deinterlaced and Progressive signals
- Accepts input SDI formats up to 1920 x 1080p 60 Hz
- Loss of Input management: Black, Freeze, or Mute
- Supports 8-channels of embedded audio
- 2-channel analog audio output of disembedded audio
- Genlock: Reference Input, SDI Input, or Free Run
- Remote Ethernet configuration through Ross DashBoard software
- Power: 7 watts
- Hot-swappable
- Rear I/O card included
- Two slots required for each card
- Compatible with OG-X-FR, OG-3-FR, and DFR-8321 openGear frames
AJA 視訊製作
DashBoard Software
製作流程

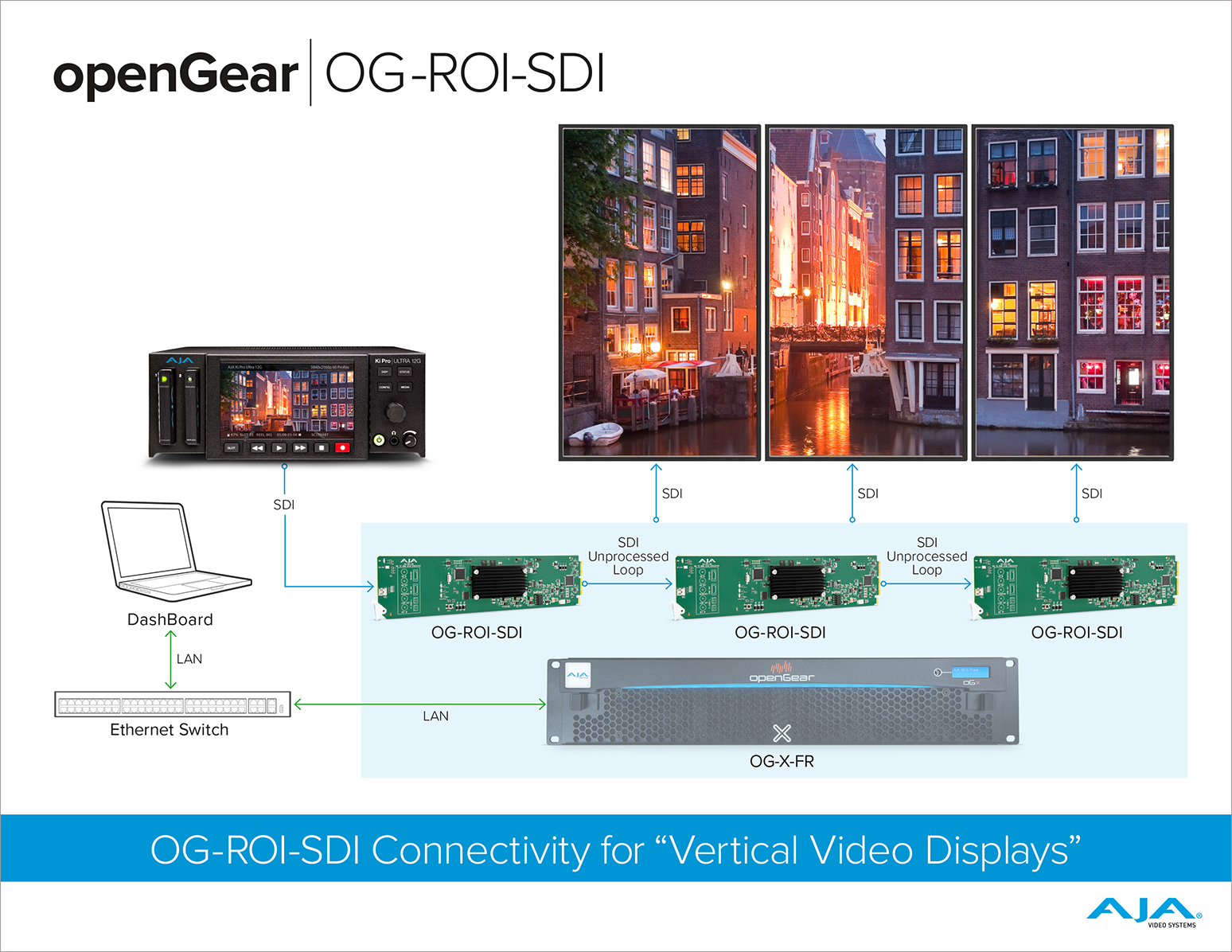

openGear ROI Video Wall Workflow
產品規格
📹AJA OG-ROI-SDI I/O 影音介面卡
| AJA OG-ROI-SDI | |
| Video Formats |
Video Signals:
|
| Video Output Formats |
|
| Color Range |
|
| Reference Source |
|
| Reference Input |
|
| Video Input |
|
| Video Outputs |
|
| Audio I/O |
|
| User Interface | openGear DashBoard network control software via Windows, macOS or Linux |
| Size | openGear standard form factor, front slot and rear card. Two slots required for each card. |
| Weight | 0.5 lb (0.3 kg) |
| Power | openGear frame compatible, 7.0 watts max per card |
| Environment |
|
關鍵字 : #tricaster.#aja.#NDI.#opengear.#developer.
*本產品將持續創新，規格可能會有變動，當產品設計／規格變動，恕不另行通知。
