AJA OG-UDC
I/O 影音介面卡
3G-SDI Up, Down, Cross-Converter

AJA OG-UDC

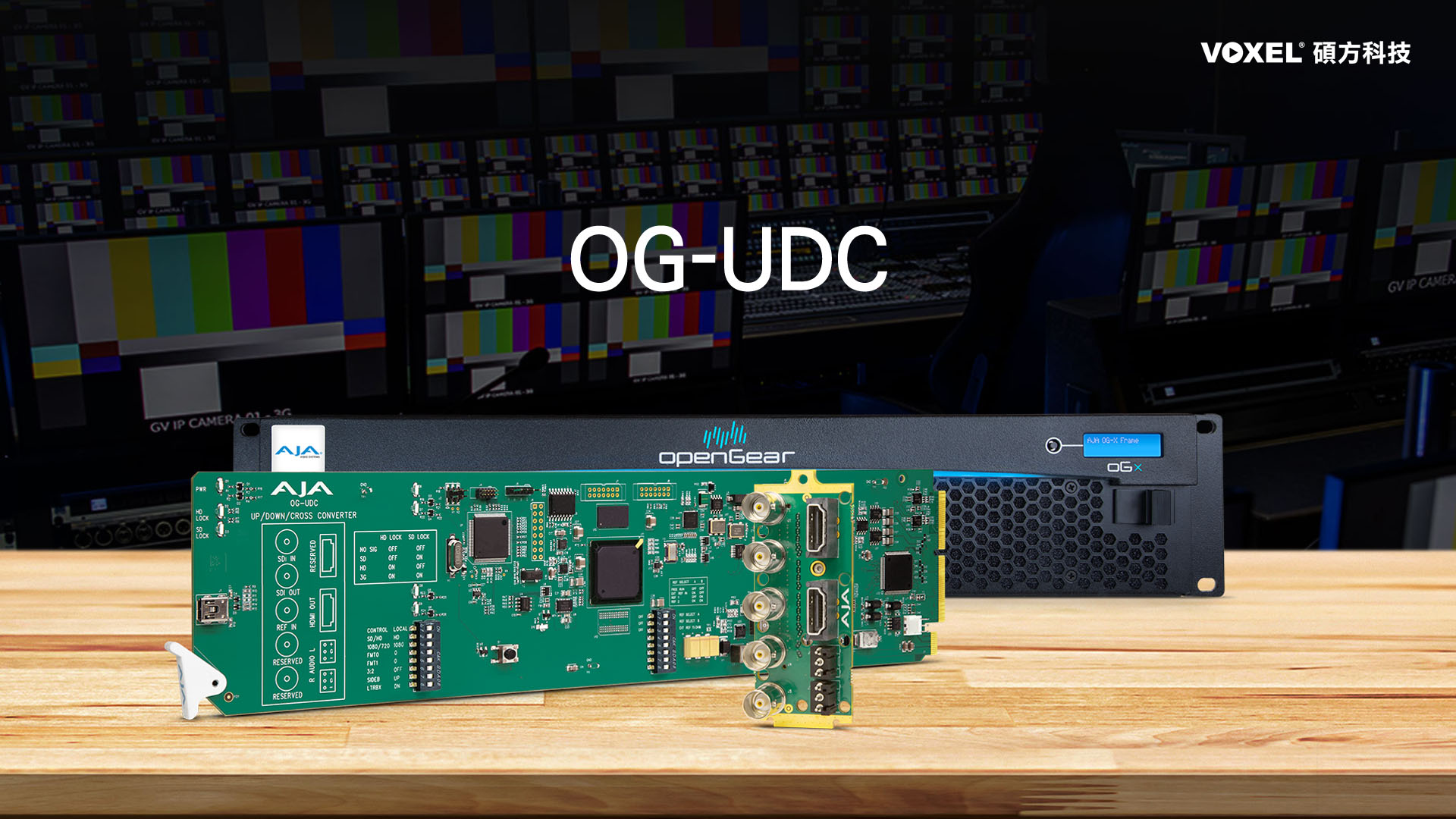

AJA OG-UDC I/O 影音介面卡屬於 openGear 系列支援廣播級 10 位元 up, down, cross-converte 轉換器，可橋接HD和SD視訊解析度。 AJA OG-UDC 提供 3G-SDI 輸入和輸出、HDMI 輸出以及兩個用於模擬音訊輸出的 3-pin 端子連接器。

產品特色

openGear compatible card

Converts between SD, HD, and 3G HD formats

Very high quality conversions

Loss of Input management: Freeze, Black, or Mute

Supports 1080p50/60

16-channel embedded SDI audio input and output

2x 3-Pin Terminal Block connectors (included)

Reference Input

Remote configuration through DashBoard Control System for an openGear frame

Local configuration through DIP Switches

Rear I/O card included

Compatible with OG-X-FR, OG-3-FR and DFR-8321 openGear frames

NOTE:
OG-UDC supports 3G-SDI Level A only. 3G-SDI Level B is not supported.
OG-UDC passes-through embedded audio ancillary data only. It does not pass through other types of embedded ancillary data.

AJA 視訊製作

DashBoard Software

產品規格

📹AJA OG-UDC I/O 影音介面卡

AJA OG-UDC
Video Formats	(HD) 1920 x 1080p (HD) 1920 x 1080PsF (HD) 1920 x 1080i (HD) 1280 x 720p (SD) 720 x 625i (SD) 720 x 576i (SD) 720 x 480i
Video Input Digital	1x 3G-SDI BNC, SMPTE-259/292/372/424 (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30 (HD) 1920 x 1080i 50, 59.94, 60 (HD) 1280 x 720p 50, 59.94, 60 (SD) 720 x 576i 50, 59.94, 60
Video Output Digital	1x 3G-SDI BNC, SMPTE-259/292/372/424 (HD) 1080p 23.98 (for 23.98 video inputs) (HD) 1080p 24 (for 24 video inputs) (HD) 1080p 25 (for 50 video inputs) (HD) 1080p 29.97 (for 59.94 video inputs) (HD) 1080p 30 (for 60 video inputs) (HD) 1080p 50 (for 50 video inputs) (HD) 1080p 59.94 (for 23.98, 59.94 video inputs) (HD) 1080p 60 (for 24, 30 or 60 video inputs) (HD) 1080PsF 23.98 (for 23.98 video inputs) (HD) 1080PsF 24 (for 24 video inputs) (HD) 1080PsF 25 (for 50 video inputs) (HD) 1080PsF 29.97 (for 59.94 video inputs) (HD) 1080Psf 30 (for 30 or 60 video inputs) (HD) 1080i 59.94 (for 23.98, or 59.94 video inputs) (HD) 1080i 60 (for 24, 30, or 60 video inputs) (HD) 1080i 50 (for 25 or 50 video inputs) (HD) 720p 50 (for 50 video inputs) (HD) 720p 59.94 (for 23.98, 59.94 video inputs) (HD) 720p 60 (for 24, 30, or 60 video inputs) (SD) 625i 50 (for 25 or 50 fps video inputs) (SD) 525i 59.94 (for 23.98 or 59.94 video inputs)
Reference Source	Free Run Ext Ref
Reference Input	Supported reference video inputs include 1080i tri-level sync 1080p tri-level sync 720p tri-level sync 625i Color Black 525i Color Black 75-ohm terminating
HDMI Output	10-bit HDMI v1.4a
Audio I/O	16-channel embedded SDI audio input 16-channel embedded SDI audio output 8-channel HDMI audio output Balanced analog audio outputs, 2x 3-Pin terminal block connectors
Ancillary Data	Supports pass-through of PCM embedded audio Supports pass-through of non-PCM audio when source is in time with the selected ref (SDI In or Ext Ref). Non-PCM audio is not supported during frame sync operation. All other ANC data is stripped
User Controls	External DIP switch openGear DashBoard network control software via Windows, macOS or Linux
Size (w x d x h)	openGear standard form factor, front slot and rear card. Two slots required for each card.
Weight	0.5 lb (0.3 kg)
Power	openGear frame compatible, 7.0 watts max per card
Environment	Safe Operating Temperature: 0 to 40 C (32 to 104 F) Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F) Operating Relative Humidity: 10-90% noncondensing Operating Altitude: <3,000 meters (<10,000 feet)
