專業NDI轉換器

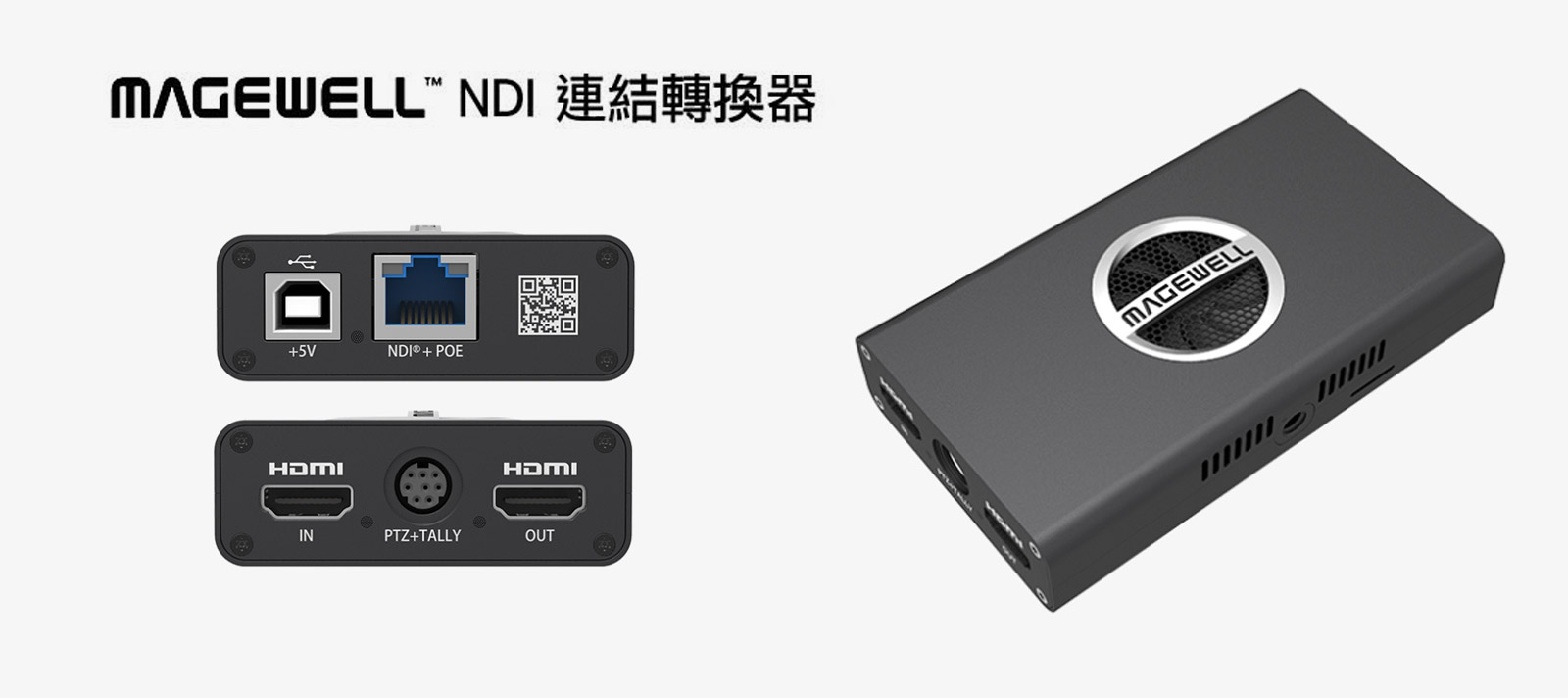

Magewell Pro Convert
HDMI 4K Plus
影音網路 NDI 連結轉換器

magewell pro convert hdmi 4k plus

Pro Convert HDMI 4K Plus 影音網路 4K NDI 連結轉換器,一路4K訊號轉換器

重點功能

● 將一路 HDMI 信號+內嵌音訊轉為 NDI 視訊

● LOOP 輸出一路 HDMI 信號+內嵌音訊

製作流程

magewell Pro Convert HDMI 4K Plus workflow 01

magewell Pro Convert HDMI 4K Plus workflow 02

設備連線

產品規格
Magewell Pro Convert 系列機型 :
Pro Convert HDMI 4K Plus

Model Pro Convert HDMI 4K Plus
Supported Web Browser (tested) Microsoft Internet Explorer 11
Microsoft Edge
Mozilla Firefox version 61 and above
Google Chrome version 49 and above
Apple Safari 11.1 and above
Opera 55.0.2994.44 and above
Supported Software (tested) OBS
XSplit
vMix
VidBlasterX
Wirecast
streamstar SW
mimoLive
Any other NewTek NDI-enabled encoding or streaming software
Input Interfaces HDMI
- DVI-D 1.0
- HDMI 1.4
- HDMI 2.0
Loop-through Interface HDMI
- DVI-D 1.0
- HDMI 1.4
- HDMI 2.0
Storage Interface SD Card (functions to be developed)
PTZ + TALLY Control Mini-DIN–8 jack
Screw Mounting Hole ¼–20 mounting hole
Network Interfaces 10/100/1000Mbps Ethernet
IEEE 802.3af PoE
USB Interface USB2.0 Type B
5V/2.1A power supply
USB RNDIS/ECM
Input feature Support for input video resolutions up to 4:4:4 8-bit 4096x2160 60fps
HDMI Specific Features 600MHz HDMI receiver
Adaptive HDMI equalizer
Support for customized EDID
Support for extraction of AVI/Audio InfoFrames
Full colorimetry support
Support for up to 4096x2160 4:4:4 60fps input signals
Support for 8 channel IEC60958 audio streams
Support for extraction of audio formation information & channel status data
Support for extraction of video timing information
Support for extraction of 3D format information
Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode.
NDI Output Format Support for 4:2:2 8-bit output
Support for up to 4096x2160 60fps or 1920x1080 240fps
Support for NDI 4.1
Video Processing Features Video processing pipelines with 4096x2160 60fps
Video brightness, contrast, saturation, hue adjustment
Video de-interlacing
- Top field only
- Bottom field only
Video aspect ratio conversion
- Auto or manual selection of output aspect ratio
Video color format conversion
- Auto or manual selection of input color format & quantization range
- Auto or manual selection of output color format, quantization range & saturation range
- Support for RGB, YUV BT.601, YUV BT.709, YUV BT.2020 input color formats
- Support for YUV BT.601, YUV BT.709, YUV BT.2020 output color formats
- Support for Limited or Full quantization range
- Support for Limited, Full & ‘Extended gamut’ saturation range
Video frame rate conversion
Video mirror flip
NDI Source Name Support for setting the device name shown in the system using Web UI. By default, the device name is ‘Pro Convert’.
Support for setting the source name shown in the system using Web UI. By default, the source name is ‘board-index + serial number’.
Support for setting board-index, from 0 to F, through on-board rotary switch
Firmware Upgrade Support for manual update using Web UI
LED Indicator Status LEDs indicate:
- the state of power supply: on/off
- Tally: preview/program
- the state of input signal: locked/unlocked
- the state of loopthrough signal: loopthrough connected and signal detected/undetected
Form Factor 117.5mm (L) x 66.7mm (W) x 23.4mm (H)
Accessories USB 2.0 A to B Cable
5V/2.1A power adaptor
Mini-DIN–8 (PTZ + TALLY) to RS232 (PTZ) + Mini-DIN–8 (TALLY)
L-bracket
LED matrix panel (optional)
Power Consumption 5V max current: ~2A / Max power consumption: ~10W
Working Environment Operating temperature: 0 to 45 deg C
Storage temperature: –20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing





美樂威 Magewell Pro Convert 系列NDI轉換器

HDMI TX
HDMI Plus
HDMI 4K Plus
SDI TX
SDI Plus
SDI 4K Plus
12G SDI 4K Plus
NDI to HDMI AIO
NDI to HDMI
NDI to HDMI 4K



關鍵字 : #magewell. #ndi.#ip製作.

*本產品將持續創新,規格可能會有變動,當產品設計/規格變動,恕不另行通知。
